| Manufacturer | Po Ly Gim |
|---|---|
| Model | DIAMOND 20CSB-II |
| Year | 2012 |
| Location | Italy
|
This Po Ly Gim DIAMOND 20CSB-II is a 5-axis CNC sliding headstock lathe designed for Swiss-type precision turning, suitable for machining bars up to 20 mm in diameter and lengths up to 250 mm. Manufactured in 2012, the machine features a robust build with dimensions of 2500 mm length, 1280 mm width, and 1780 mm height, weighing approximately 3000 kg.
The machine is equipped with a total of 12 tools, including 6 fixed and 6 motorized radial tools, allowing for versatile machining operations. It features a comb with 6 fixed tools plus 6 motorized radials, a rostrum with motorized 3+3 tools, and a side device rostrum with 4+4 fixed tools. Additionally, there are 4 driven tools for counter operations and 2 counter spindles with C-axis capability, enhancing the machine's flexibility.
The spindle and counter spindle both operate at speeds up to 10,000 rpm, powered by 3.75 kW motors. The rotating tools have speeds ranging from 3,000 to 6,000 rpm with 0.75 kW power. The lathe can work with fixed or revolving bushes, facilitating complex turning tasks.

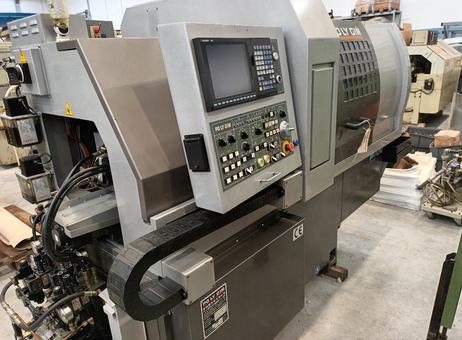

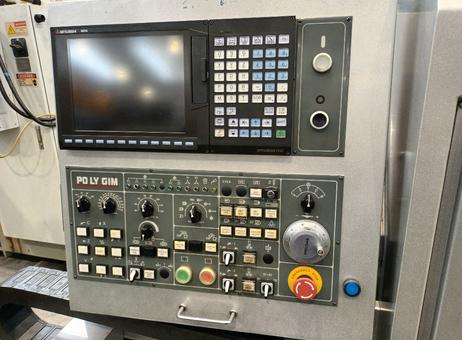

The machine includes a Mitsubishi M70 CNC control panel with a screen, multiple buttons, switches, and rotary knobs labeled 'POLY GIM' for precise operation. An emergency stop button is prominently positioned for safety. The control panel is mounted on the machine body with a handle for easy access.

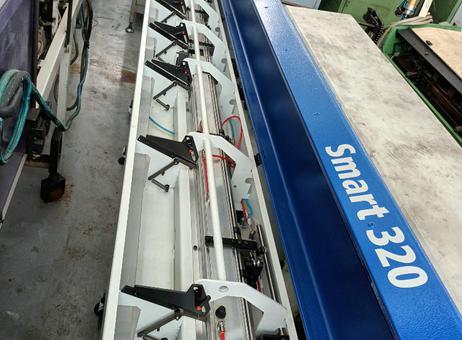

Additional accessories include a bar feeder Iemca Smart 320 (year 2018) equipped with two guide kits (21-24 mm) and 10 push lance pliers. The setup also features four guide bushes, 85 bar clamps, a chip conveyor with chip trolley, and a current transformer.

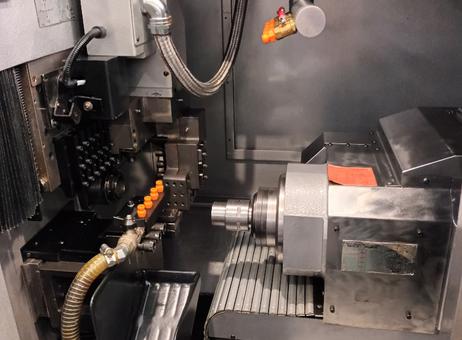

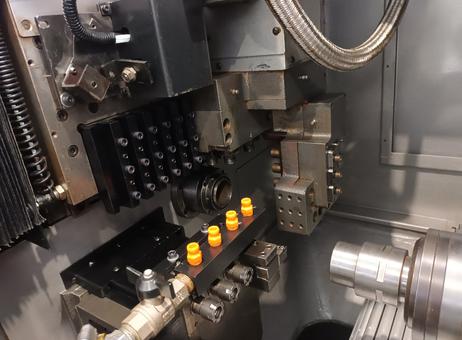

The machine's exterior is metallic gray with CE certification, and it appears clean and well maintained with no visible damage. The interior shows multiple orange coolant nozzles, hydraulic or pneumatic lines connected to the tool holder and coolant system, and protective bellows covering linear guides. The turret has multiple tool pockets with some tools installed and others empty, and the tool holders show minor surface wear but remain in good condition. A flexible cable carrier guides cables from the control panel to the machine body, and a metallic flexible conduit covers cables above the turret.
This lathe is suitable for high-precision Swiss-type turning applications requiring complex multi-axis machining with a comprehensive set of tools and accessories.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC 5-axis sliding headstock lathe that can work with fixed or revolving bush
Comb with 6 fixed tools + 6 motorized radials
rostrum with motorized 3+3
side device rostrum with 4+4 fixed tools
4 driven tools for counter operations
counter spindle - n. 2 C-axis
Barpass 20 mm
turning length 250 mm
Spindle/counter spindle speed 10000 rpm -
Spindle/counter-spindle motor power 3.75 kW
Rotating tools speed/power 6000-3000 rpm/0.75 kW
bar feeder Iemca Smart 320732 year 2018 with 2 guide kits 21-24 mm and 10 push lance pliers
rotating compass
4 guide bushes
85 bar clamps
chip conveyor + chip trolley
current transformer
manuals
