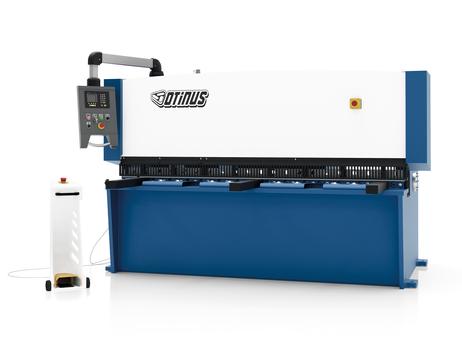

The Otinus SMO-2506-N QC12Y 6x2500 is a hydraulic guillotine shear designed for precise cutting of sheet metal. It features a maximum cutting length of 2500 mm and can handle material thicknesses up to 6.0 mm, suitable for processing S235 steel. The machine operates at a stroke rate of 18 strokes per minute, with a blade inclination angle adjustable between 0.5° and 2.5°.
This model includes a motorized backgauge with a travel distance of 600 mm, equipped with ball screws and driven by an electric motor, allowing for accurate positioning and repeatability. The backgauge control system can store up to 40 programs, each with up to 25 steps, enabling efficient handling of various cutting tasks. A retract function and single-click parameter saving enhance operational convenience, while parameter memory ensures settings are retained during power interruptions.
The machine is equipped with hydraulic hold-downs that clamp the sheet firmly along the entire cut length to ensure clean cuts. Blade clearance adjustment is provided to optimize cutting quality. Ball transfer units are installed on the worktable and rear chute, facilitating smooth movement of materials before and after cutting. Two black support arms extend from the front of the machine to support materials during processing.
Operator ergonomics are enhanced by a control panel mounted on a swivel arm on the left-hand side, a mobile foot switch for hands-free operation, additional LED work lighting, and a laser cutting line indicator for precise alignment. Safety features include a protective guard grille in front of the cutting area, visible safety labels, rear light curtains, and easily accessible safety switches.
The machine measures 3200 mm in length, 1700 mm in width, and 1850 mm in height, with a weight of 3800 kg. It incorporates high-quality components such as a Rexroth hydraulic valve, Siemens-licensed main motor, Schneider electrical parts, and steel hydraulic line tubing to reduce leak risks. An oil cooling system maintains stable performance during extended operation, and a pressure control system ensures long-term blade reliability.
This shear comes with a CE marking and EU declaration of conformity, along with a comprehensive instruction manual. Included with the purchase are one day of installation and training, plus an 8-hour telephone consultation package with an Otinus specialist for ongoing support. Warranty and post-warranty services are provided by the seller, with the customer responsible for unloading and internal transport of the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
A part of our machines is available IMMEDIATELY.
Hydraulic guillotine shears SMO-2506-N QC12Y 6x2500
Specifications
Maximum cutting thickness (S235): up to 6.0 mm
Maximum cutting length: 2500 mm
Blade inclination angle: 0.5 – 2.5°
Strokes per minute: 18
Backgauge travel distance: 600 mm
Motor power output: 7.5 kW
Length: 3200 mm
Width: 1700 mm
Height: 1850 mm
Weight: 3800.0 kg
Equipment and features
Backgauge equipped with ball screws and driven by the electric motor
Hydraulic hold-downs to clamp the sheet over the entire cut length.
Blade clearance adjustment
Ball transfer units on the worktable
Work lighting
Front supports
Mobile foot switch
Rear chute
The rear chute is equipped with ball transfer units to slide smoothly away from the shear after cutting.
E21S control
(Mounted on a swivel arm on the left-hand side of the machine.)
Motorized backgauge
Capable of storing 40 programs, with up to 25 different steps each.
Retract function
Single-click parameter saving
Parameter memory in the event of power failure
Top quality components
Rexroth hydraulic valve
Siemens-licensed main motor
Schneider electrical components
Steel hydraulic line tubings
Hydraulic lines made of steel instead of rubber reduce the risk of future leaks.
Ergonomics
The operator can work freely throughout the machine's working area thanks to the mobile foot switch and the controller on the swivel arm. Additional LED lighting and laser indicator ensure a comfortable view of the workpieces in any situation.
Safety
We attach great importance to the safety of our Clients, therefore we equip our shears with visible safety labels, rear light curtains and easily accessible safety switches.
The machines comes with carefully prepared instructions manual.
The machine has a CE marking and EU declaration of conformity.
Oil cooling system
The Oil Cooling System guarantees the stability of the machine's performance even after long, continuous operation.
Pressure Control System
PCS ensures blade reliability for years to come.
Assistance by a specialist
We strive to maintain constant communication with our Customers. To support this, every machine purchase includes a specialist support package with hours of expert guidance.
Within the service, our technicians may:
Specify the bending steps for intricate parts.
Advise on material and gas selection
Assist in the selection of operating parameters for different materials
The remaining time can be checked in the Otinus Customer Panel.
Included in the price
1-day training including machine installation
1 day to 8 hours—machine installation and training
Telephone consultation with an Otinus specialist—8-hour package
from 7:30 a.m. to 9:00 p.m—8-hour support package valid for 12 months
Terms of cooperation
Warranty and post-warranty service provided by the seller.
The Customer is responsible for the machine during unloading and transport within their facility.
