| Manufacturer | Otinus |
|---|---|
| Model | SMO-3208-N QC12Y 8x3200 |
| Year | 2025 |
| Location | Poland
|

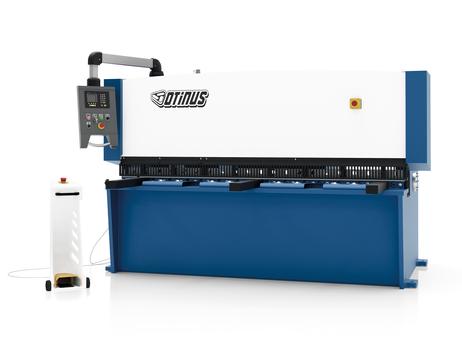

The Otinus SMO-3208-N QC12Y 8x3200 is a hydraulic guillotine shear designed for precise and efficient metal cutting. Manufactured in 2025, this machine features a maximum cutting length of 3200 mm and can handle sheet thicknesses up to 8.0 mm (S235 steel). It operates with a blade inclination angle of 1.5° and offers a stroke rate of 10 to 15 strokes per minute, driven by an 11.0 kW Siemens-licensed main motor.
The machine's dimensions are 4300 mm in length, 2000 mm in width, and 2100 mm in height, with a total weight of 6400 kg. It includes a motorised back gauge with a travel distance of 600 mm, equipped with ball screws and electric motor drive, capable of storing 40 programs with up to 25 steps each. The back gauge features a retract function and single-click parameter saving, with memory retention in case of power failure.
For ease of operation, the control panel is mounted on a swivel arm on the left-hand side, and a mobile foot switch allows the operator to work freely around the machine. The worktable is equipped with ball transfer units and two black support arms with rollers at the front to facilitate material handling. Additional features include hydraulic hold-downs to clamp sheets across the entire cut length, blade clearance adjustment, work lighting, front supports, and a rear chute with ball transfer units to smoothly slide cut pieces away.
Safety is addressed with visible safety labels, rear light curtains, and easily accessible safety switches, including an emergency stop button on both the front panel and the separate white foot pedal control unit. The machine is CE marked and comes with an oil cooling system to maintain performance during extended use, as well as a pressure control system to ensure long-term blade reliability.
Constructed with high-quality components such as Rexroth hydraulic valves, Schneider electrical components, and steel hydraulic line tubings to minimize leak risks, this shear is built for durability and precision. The machine is clean and appears well maintained, with no visible damage.
Included with the purchase is a 1-day training session covering installation and operation, along with an 8-hour telephone consultation package valid for 12 months, providing expert support for machine use and maintenance. The customer is responsible for unloading and internal transport of the machine. This hydraulic guillotine shear offers a comprehensive solution for metal cutting needs with advanced features and operator-friendly ergonomics.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
A part of our machines is available IMMEDIATELTY.
Hydraulic guillotine shears SMO-3208-N QC12Y 8x3200
Specifications
Maximum cutting thickness (S235): up to 8.0 mm
Maximum cutting length: 3200 mm
Blade inclination angle: 1.5°
Strokes per minute: 10 – 15
Backgauge travel distance: 600 mm
Motor power output: 11.0 kW
Length: 4300 mm
Width: 2000 mm
Height: 2100 mm
Weight: 6400.0 kg
Equipment and features
Backgauge equipped with ball screws and driven by the electric motor
Hydraulic hold-downs to clamp the sheet over the entire cut length.
Blade clearance adjustment
Ball transfer units on the worktable
Work lighting
Front supports
Mobile foot switch
Rear chute
The rear chute is equipped with ball transfer units to slide smoothly away from the shear after cutting.
E21S control
(Mounted on a swivel arm on the left-hand side of the machine.)
Motorized backgauge
Capable of storing 40 programs, with up to 25 different steps each.
Retract function
Single-click parameter saving
Parameter memory in the event of power failure
Top quality components
Rexroth hydraulic valve
Siemens-licensed main motor
Schneider electrical components
Steel hydraulic line tubings
Hydraulic lines made of steel instead of rubber reduce the risk of future leaks.
Ergonomics
The operator can work freely throughout the machine's working area thanks to the mobile foot switch and the controller on the swivel arm. Additional LED lighting and laser indicator ensure a comfortable view of the workpieces in any situation.
Safety
We attach great importance to the safety of our Clients, therefore we equip our shears with visible safety labels, rear light curtains and easily accessible safety switches.
The machines comes with carefully prepared instructions manual.
The machine has a CE marking and EU declaration of conformity.
Oil cooling system
The Oil Cooling System guarantees the stability of the machine's performance even after long, continuous operation.
Pressure Control System
PCS ensures blade reliability for years to come.
Assistance by a specialist
We strive to maintain constant communication with our Customers. To support this, every machine purchase includes a specialist support package with hours of expert guidance.
Within the service, our technicians may:
Specify the bending steps for intricate parts.
Advise on material and gas selection
Assist in the selection of operating parameters for different materials
The remaining time can be checked in the Otinus Customer Panel.
Included in the price
1-day training including machine installation
1 day to 8 hours—machine installation and training
Telephone consultation with an Otinus specialist—8-hour package
from 7:30 a.m. to 9:00 p.m—8-hour support package valid for 12 months
Terms of cooperation
Warranty and post-warranty service provided by the seller.
The Customer is responsible for the machine during unloading and transport within their facility.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery manufacturer |
| Active since | 2025 |
| Offers online | 25 |
| Last activity | Oct. 22, 2026 |
Otinus Polska Sp. z o.o. is one of Poland’s most trusted names in metalworking machinery, offering cutting-edge solutions under the Otinus brand. With over a decade of experience and a strong in-house production setup, Otinus delivers reliable and efficient machines tailored for today’s industrial needs—ranging from fiber laser cutters and plasma machines to press brakes, shears, and machining centers.
What sets Otinus apart is their full-service approach: from helping customers choose the right equipment to installation, training, and ongoing support. Their modern showroom in Bydgoszcz allows buyers to see the machines in action and test them under real conditions—ensuring confident investments with fast ROI.
Otinus machines are built for performance, safety, and durability, making them a smart choice for manufacturers looking to boost productivity and stay competitive. Whether you're upgrading your production line or expanding your capabilities, Otinus offers the right technology backed by expert service.
