Contact us to receive an offer.
| Manufacturer | OKUMA |
|---|---|
| Model | LCS-15E |
| Year | |
| Location | Spain
|
| Category | Lathes - CNC lathes |
| Turning length | 500 mm |
| Turning Ø | 270 mm |
| Ø above the bed | 450 mm |
| Ø above transversing slide | 350 mm |
| Length between centers | mm |
| Type of CNC | OKUMA OSP U100L |
| X-axis | 155 mm |
| Z-axis | 320 mm |
| Max workpiece weight | kg |
| Spindle taper | |
| Spindle bore | 100 mm |
| Number of turrets | 1 |
| Number of tools on turret | 12 |
| Number of rotating tools | |
| Turning speed | 3500 rpm |
| Spindle motor power | 7.5 kW |
| Tailstock | no |
| Bar feeder | yes |
| Length x width x height | 2200.0 × 1670.0 × 1635.0 |
| Weight | 3800 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Datasheet | Okuma LCS-15 |
| Last availability date | 04/09/2026 |
| Product id | P250528116 |
| Language |
cnc струг OKUMA LCS-15E
Soustruh cnc OKUMA LCS-15E
OKUMA LCS-15E cnc drejebænk
OKUMA LCS-15E Drehmaschine CNC
cnc τόρνος OKUMA LCS-15E
OKUMA LCS-15E cnc lathe
Torno cnc OKUMA LCS-15E
Tour cnc OKUMA LCS-15E
cnc tokarski stroj OKUMA LCS-15E
OKUMA LCS-15E cnc eszterga
Tornio cnc OKUMA LCS-15E
cnc tekinimo staklės OKUMA LCS-15E
OKUMA LCS-15E cnc-draaibank
Tokarka CNC OKUMA LCS-15E
Torno CNC OKUMA LCS-15E
strung cnc OKUMA LCS-15E
OKUMA LCS-15E Токарный станок с ЧПУ
cnc strug OKUMA LCS-15E
OKUMA LCS-15E cnc svarv
Cnc torna OKUMA LCS-15E
|

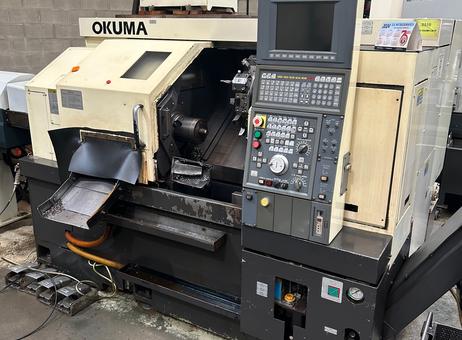

This Okuma LCS-15E CNC lathe is a versatile machine designed for precision turning operations. It features a maximum turning diameter of 270 mm and a maximum workpiece length of 500 mm, making it suitable for a variety of small to medium-sized components. The lathe offers a turning capacity of 450 mm above the bed and 350 mm above the transversing slide. The spindle bore diameter is 100 mm, allowing for the accommodation of sizable workpieces.
The machine's travel distances include 155 mm on the X-axis and 320 mm on the Z-axis, providing ample movement for machining tasks. The spindle speed ranges from 75 to 3500 rpm, enabling a wide range of turning speeds to suit different materials and cutting requirements.

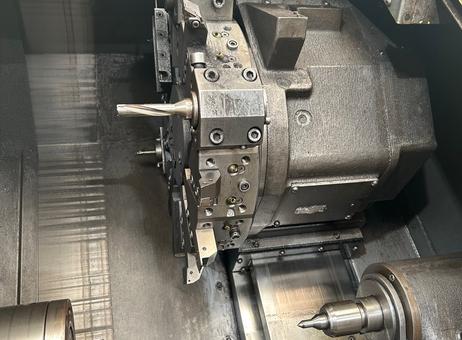

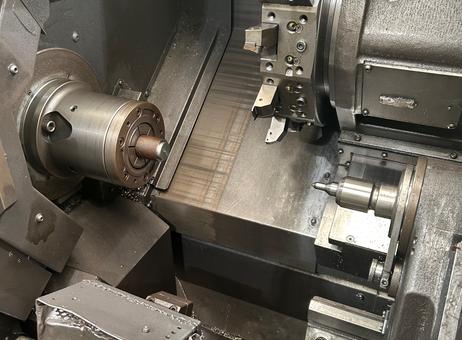

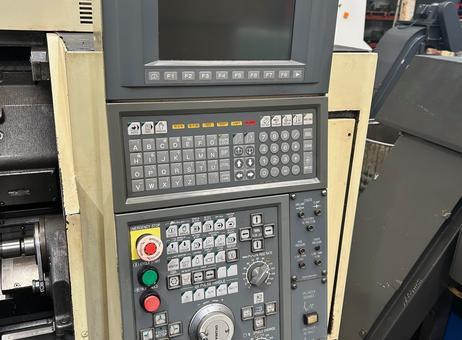

Equipped with a single automatic turret holding 12 tool stations, this lathe supports motorized tooling for efficient and flexible machining. The control system is the Okuma OSP U100L, featuring a control panel with a screen, multiple buttons, knobs, and a keyboard for comprehensive operation management. Safety features include an emergency stop button prominently located on the control panel.

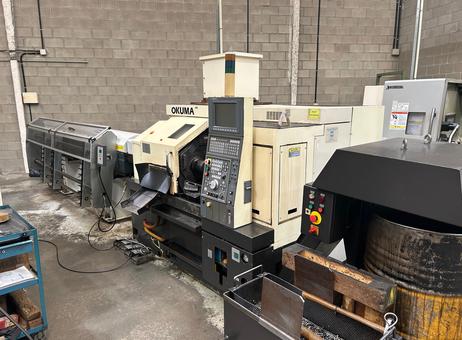

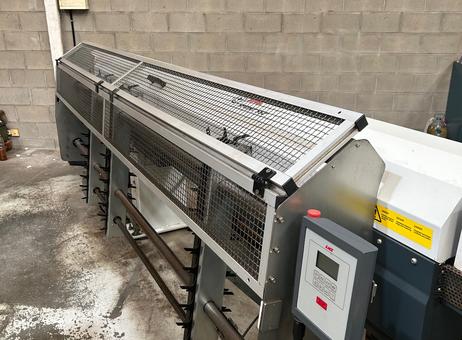

The machine comes with a chip conveyor attached to the rear, facilitating effective chip removal during operation. Additionally, it is equipped with a chip extractor and an LNS SPRINT 552 bar loader with a 3-meter capacity, enhancing automation and material handling.
The lathe measures 2200 mm in length, 1670 mm in width, and 1635 mm in height, with a weight of approximately 3800 kg. The machine shows signs of use, including some dirt, metal chips in the machining area, and surface wear and discoloration, which is typical for used industrial equipment. Overall, this Okuma LCS-15E CNC lathe offers robust capabilities for precision turning with integrated automation features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Ø on bed: 450 mm
Ø on carriage 350 mm
Max. turning Ø 270 mm
Max. workpiece length: 500 mm
Ø main axis 100 mm
X-axis travel 155 mm
Z-axis travel 320 mm
Speed: 75 - 3500 rpm
Equipped with:
Control: OKUMA OSP U100L
Automatic turret 12 stations
Motorized tool: Yes
Chip extractor: Yes
LNS SPRINT 552 bar loader: 3 meters
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 64 |
| Last activity | Oct. 30, 2026 |
