| Manufacturer | Muratec |
|---|---|
| Model | MT200 |
| Year | 2019 |
| Location | Spain
|
| Category | Lathes - CNC multi-spindle lathes |
| Type of CNC | |
| Spindle speed | 4000 rpm |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 25/10/2026 |
| Product id | P260319230 |
| Language |
CNC струг Muratec MT200
CNC soustruh Muratec MT200
Muratec MT200 CNC-drejebænk
Muratec MT200 CNC-Drehmaschine
Τόρνος CNC Muratec MT200
Muratec MT200 CNC lathe
Torno CNC Muratec MT200
Tour CNC Muratec MT200
CNC tokarski stroj Muratec MT200
Muratec MT200 CNC esztergagép
Tornio CNC Muratec MT200
Muratec MT200 CNC tekinimo staklės
Muratec MT200 CNC-draaibank
Tokarka CNC Muratec MT200
Torno CNC Muratec MT200
Strung CNC Muratec MT200
Muratec MT200 Токарный станок с ЧПУ
CNC strug Muratec MT200
Muratec MT200 CNC-svarv
CNC torna Muratec MT200
|
This Muratec MT200 is a 9-axis CNC multi-spindle turning machine manufactured in 2019, designed for precision and efficiency in high-volume turning operations. It supports a maximum bar capacity of 65 mm as standard, with an optional increase to 80 mm, and features a chuck size of 210 mm. The machine offers an impressive maximum swing diameter of 205 mm with 15 turret stations or 228 mm with 12 stations, accommodating various workpiece sizes.

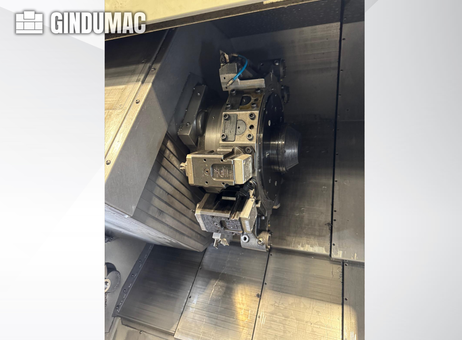

The MT200 is equipped with two turrets: an upper turret with X-axis stroke of 220 mm, Z-axis stroke of 770 mm, and Y-axis movement of ±40 mm, and a lower turret with X-axis stroke of 200 mm, Z-axis stroke of 770 mm, and Y-axis movement of ±40 mm. The right spindle has a Z-axis stroke of 880 mm. Maximum feed speeds reach up to 24 m/min on the X-axis, 36 m/min on the Z-axis, and 12 m/min on the Y-axis, supporting rapid and precise machining cycles.
Live tooling is powered by a motor delivering up to 14.0 kW peak power (4.8 kW continuous) with a maximum speed of 4500 rpm. The spindle speed is rated at 4000 rpm with C-axis control allowing positioning accuracy within ±0.015 degrees. The machine includes a counter spindle and offers optional equipment such as a gantry loader with a capacity of 140 mm x 105 mm (3-jaw) and up to 8.0 kg per loader, as well as a parts catcher capable of handling parts up to 65 mm x 160 mm weighing 2.5 kg.

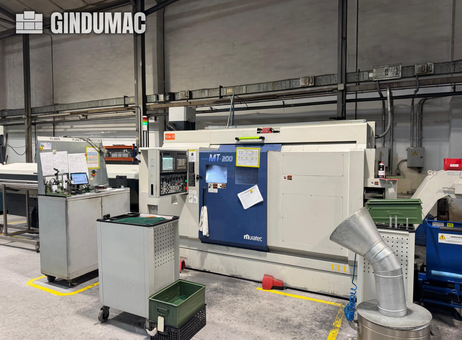

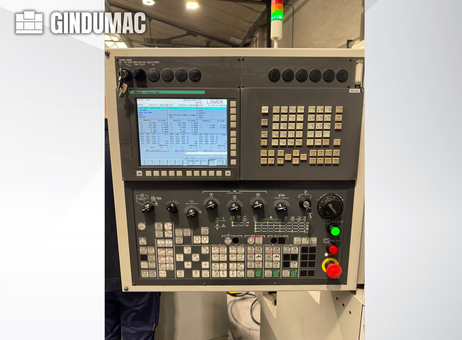

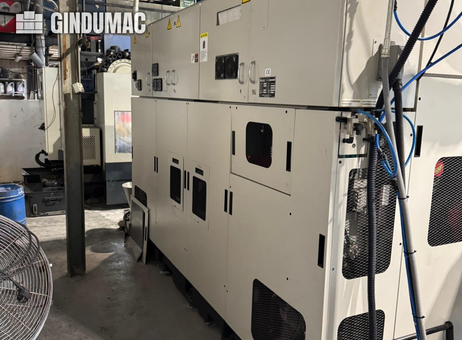

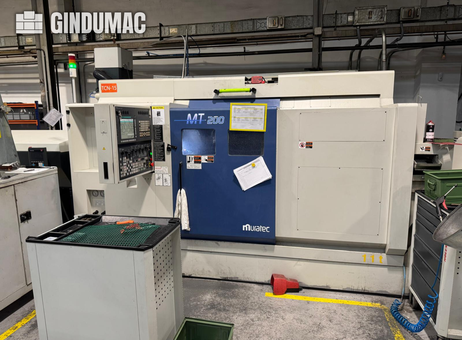

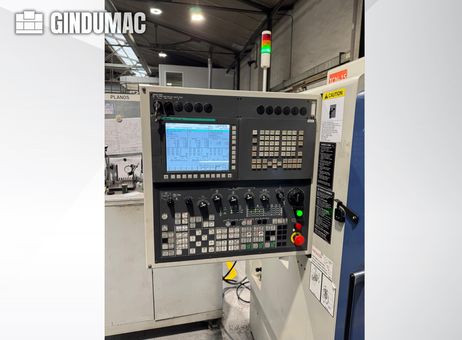

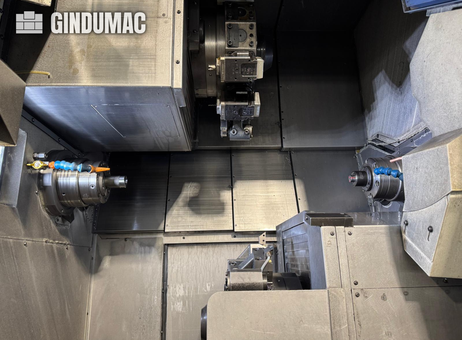

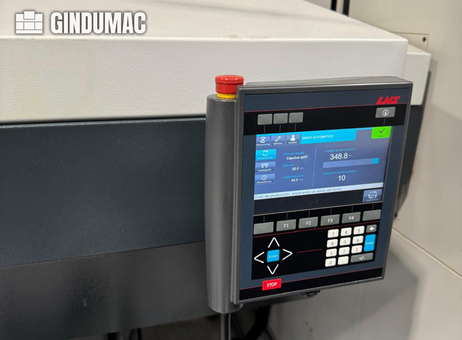

From visual inspection, the machine appears well-maintained and clean, featuring a control panel with a display screen and multiple buttons located on the left side. The machining area is accessible through a blue door with a viewing window. Additional equipment visible includes a metal cabinet on wheels positioned in front of the machine. Some minor dirt marks are present on the machine surface, but overall it is in good condition. Electrical cables and ventilation grilles are integrated into the machine's design, supporting operational reliability.
This Muratec MT200 CNC multi-spindle lathe is suitable for manufacturers seeking a versatile and precise turning solution with multiple axes and tooling options. For further technical details or to arrange a viewing, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 9-axis Muratec MT200 multi-spindle turning machine was manufactured in 2019. It features a maximum bar capacity of 65 mm and a chuck size of 210 mm. The machine includes an impressive maximum feed speed of 24 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high-quality turning capabilities, consider the Muratec MT200 machine we have for sale. Contact us for further details.Chuck size: 210 mm (8 inch)
Maximum swing: 205 mm (15 stations) / 228 mm (12 stations)
Maximum bar capacity: 65 mm (standard) / 80 mm (option)
Turret stations: 15 (upper and right) / 12 (lower)
Bar diameter: 65 mm (Standard) / 80 mm (Option)
Axis stroke (2-turret):

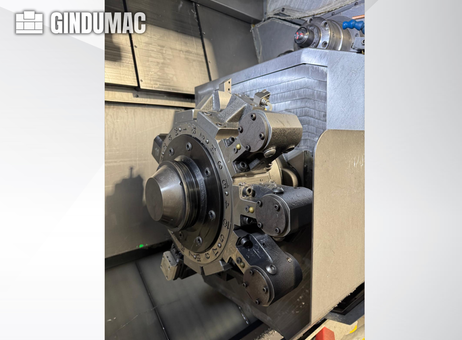

Upper turret: X 220 mm, Z 770 mm, Y +/- 40 mm
Lower turret: X 200 mm, Z 770 mm, Y +/- 40 mm
Right spindle (Zs): 880 mm
Maximum feed speed:
X axis: 24 m/min
Z axis: 36 m/min
Y axis: 12 m/min
Live tooling motor: 14.0 kW max (4.8 kW continuous)
Live tooling max speed: 4500 rpm
Spindle positioning: C axis control (+/- 0.015 degrees)
Additional equipment
Gantry loader capacity: 140 mm x 105 mm (3 jaw), up to 8.0 kg x 2 (option)
Parts catcher capacity: 65 mm x 160 mm, 2.5 kg
Counter Spindle: yes
Max. Bar Diameter: 65 mm
Number of Axes: 9
Spindle Speed: 4000 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2095 |
| Last activity | Oct. 26, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 9-axis Muratec MT200 multi-spindle turning machine was manufactured in 2019. It features a maximum bar capacity of 65 mm and a chuck size of 210 mm. The machine includes an impressive maximum feed speed of 24 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high-quality turning capabilities, consider the Muratec MT200 machine we have for sale. Contact us for further details.Chuck size: 210 mm (8 inch)
Maximum swing: 205 mm (15 stations) / 228 mm (12 stations)
Maximum bar capacity: 65 mm (standard) / 80 mm (option)
Turret stations: 15 (upper and right) / 12 (lower)
Bar diameter: 65 mm (Standard) / 80 mm (Option)
Axis stroke (2-turret):
Upper turret: X 220 mm, Z 770 mm, Y +/- 40 mm
Lower turret: X 200 mm, Z 770 mm, Y +/- 40 mm
Right spindle (Zs): 880 mm
Maximum feed speed:
X axis: 24 m/min
Z axis: 36 m/min
Y axis: 12 m/min
Live tooling motor: 14.0 kW max (4.8 kW continuous)
Live tooling max speed: 4500 rpm
Spindle positioning: C axis control (+/- 0.015 degrees)
Additional equipment
Gantry loader capacity: 140 mm x 105 mm (3 jaw), up to 8.0 kg x 2 (option)
Parts catcher capacity: 65 mm x 160 mm, 2.5 kg
Counter Spindle: yes
Max. Bar Diameter: 65 mm
Number of Axes: 9
Spindle Speed: 4000 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
