| Manufacturer | Mori Seiki |
|---|---|
| Model | NL2000SY |
| Year | 2004 |
| Location | United Kingdom
|

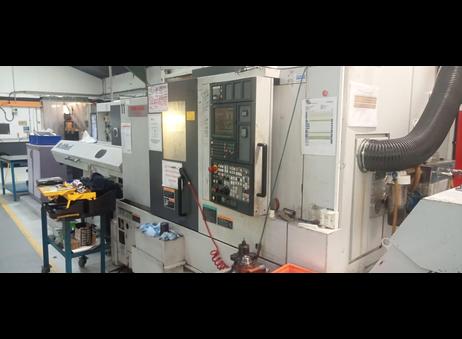

The Mori Seiki NL2000SY is a CNC lathe machine designed for precision turning and milling operations. Manufactured in 2004, this machine features a robust build with dimensions of 3688 mm in length, 2000 mm in width, and 2120 mm in height, weighing approximately 5800 kg. It offers a maximum cutting diameter of 356 mm and a maximum cutting length of 510 mm, making it suitable for medium-sized workpieces. The distance between spindles is 784 mm, allowing for efficient dual-spindle machining.
Equipped with a powerful spindle motor rated at 15/11 kW, the main spindle can reach speeds up to 5000 rpm. The sub spindle includes a bore diameter of 43 mm, with a maximum speed of 6000 rpm and a motor power of 11/7.5 kW. Both spindles feature C-axis control with a resolution of 0.001 degrees, enabling complex machining tasks requiring precise angular positioning.
The machine's milling capabilities include a motor power of 5.5/3.7 kW with a maximum milling speed of 6000 rpm. It features a 12-station turret and rapid feed rates of 30 m/min in the X and Z axes and 10 m/min in the Y axis, which has a travel range of ±50 mm. The X-axis travel is 260 mm, and the Z-axis travel is 590 mm.

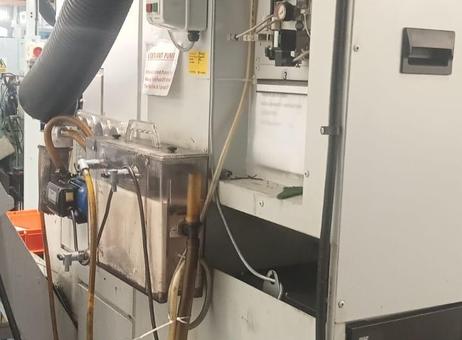

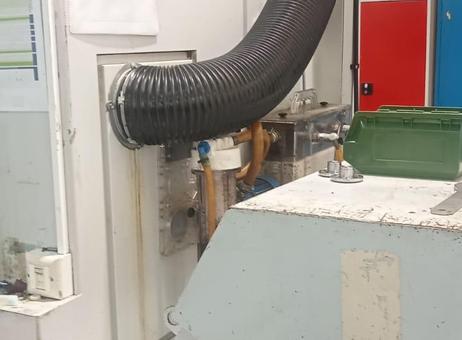

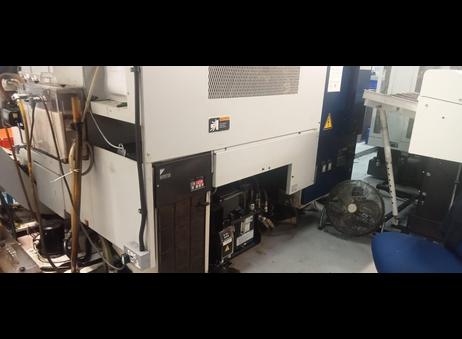

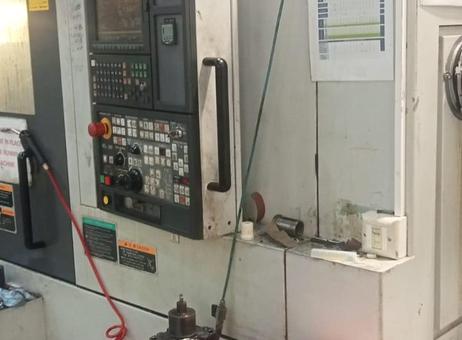

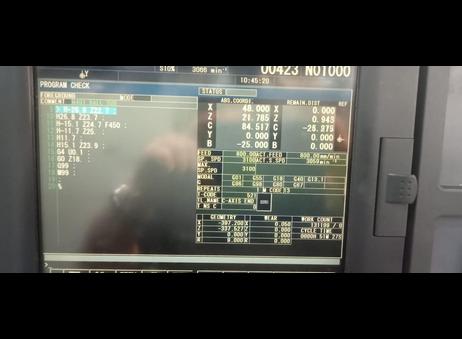

Additional features include a Hydrafeed MULTI SERVO bar feeder compatible with bar diameters up to 65 mm. The machine is equipped with a control panel (MSX-850) featuring multiple buttons and a screen for operational control. Observations note the presence of a tool holder with a mounted tool and a large black flexible hose likely used for ventilation or chip extraction. The machine shows some signs of use, including oil stains and dirt on surfaces and wear marks on side panels. Nearby, there are bins containing parts or tools, indicating a functional workshop environment.
Overall, the Mori Seiki NL2000SY CNC lathe offers comprehensive capabilities for versatile turning and milling applications, supported by precise control systems and suitable for production environments requiring dual-spindle machining.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Bar Capacity
65mm
Barfeed
Hydrafeed MULTI SERVO
C axis
0.001 degree
Control
MSX-850
Distance Between Spindles
784mm
Machine Dimensions
3688 x 2000 x 2120mm
Machine Weight
5800kg
Maximum Cutting Diameter
356mm
Maximum Cutting Length
510mm
Milling Motor Power
5.5/3.7kW
Milling RPM
6000rpm
Rapid Feedrates
XZYB: 30 x 30 x 10 x 30m/minute
Spindle Motor Power
15/11kW
Spindle Nose
A2-6
Spindle Speed
5000rpm
Sub Spindle Bore
43mm
Sub Spindle C axis
0.001 degree
Sub Spindle Max Speed
6000rpm
Sub Spindle Motor
11/7.5kW
Sub Spindle Nose
A2-5
Sub Spindle Stroke
624mm
Swing
923.8
Swing over the Cross-slide
755mm
Turret Positions
12 Station
X axis Travel
260mm
Y axis Travel
-/+ 50mm
Z axis Travel
590mm
