| Manufacturer | MONFORTS |
|---|---|
| Model | KNC 6 2000 |
| Year | 1999 |
| Location | Germany
|
This listing is for a Monforts KNC 6 2000 CNC lathe, manufactured in 1999. The machine features a turning length of 2000 mm and a maximum turning diameter over the bed of 630 mm, suitable for a variety of turning applications. The swing diameter over the slide rest is 350 mm, and the spindle bore measures 71 mm. The lathe bed has a width of 550 mm, providing a stable foundation for machining operations. It is equipped with a spindle motor delivering 30 kW of power and offers a turning speed range from 2 to 1800 rpm, allowing for precise control over machining speeds.
The spindle diameter in the front bearing is 120 mm, and the spindle head complies with DIN 55027 - Size 8. The tool taper is RD2 PARAT, and the quill stroke is 210 mm. The machine's total power requirement is 30 kW, and it weighs approximately 5000 kg. Its overall dimensions are roughly 4.90 meters in length, 2.10 meters in width, and 2.00 meters in height.

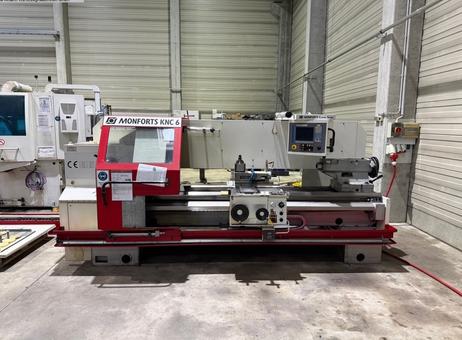

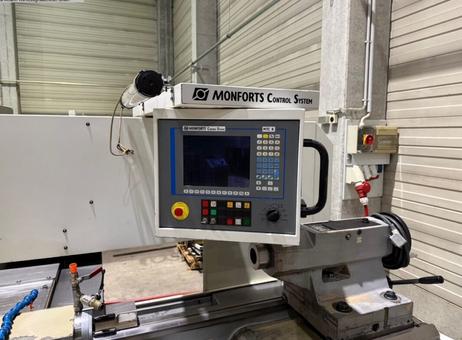

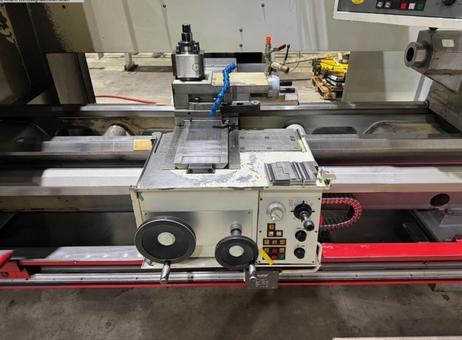

The lathe includes the Monforts Control System K CNC control, with a control panel mounted on the right side featuring a screen and buttons for operation. The machine is housed within a protective red and white enclosure. The lathe bed, carriage, and tool post are present and visible, with handwheels and control buttons on the carriage and cross slide.

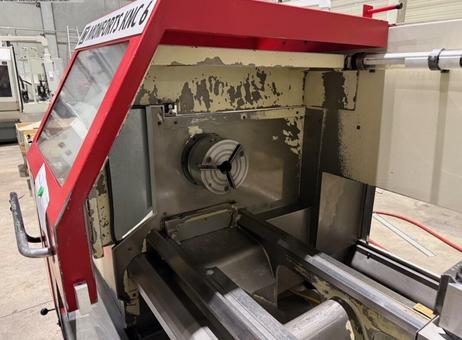

Regarding condition, the machine appears clean and generally in good condition externally, with no visible damage to the control panel or enclosure. However, there is notable paint wear and surface scratches on the carriage and slide surfaces, as well as significant paint peeling and wear inside the machine enclosure near the chuck and spindle area. These signs of use are typical for a machine of this age and should be considered when assessing its suitability for your needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
turning length 2000 mm
greates pass round over bed 630 mm
swing diameter over slide rest 350 mm
control Monforts Control System K
bed width 550 mm
turning speed range 2 - 1800 U/min
spindle diameter in front bearing 120 mm
spindle head DIN 55027 - Size 8
tool taper RD2 PARAT
quill stroke 210 mm
spindle bore 71 mm
total power requirement 30 kW
weight of the machine ca. 5 t
dimensions of the machine ca. 4,90 x 2,10 x 2,00 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2006 |
| Offers online | 74 |
| Last activity | Oct. 29, 2026 |
turning length 2000 mm
greates pass round over bed 630 mm
swing diameter over slide rest 350 mm
control Monforts Control System K
bed width 550 mm
turning speed range 2 - 1800 U/min
spindle diameter in front bearing 120 mm
spindle head DIN 55027 - Size 8
tool taper RD2 PARAT
quill stroke 210 mm
spindle bore 71 mm
total power requirement 30 kW
weight of the machine ca. 5 t
dimensions of the machine ca. 4,90 x 2,10 x 2,00 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a Monforts KNC 6 2000 CNC lathe, manufactured in 1999. The machine features a turning length of 2000 mm and a maximum turning diameter over the bed of 630 mm, suitable for a variety of turning applications. The swing diameter over the slide rest is 350 mm, and the spindle bore measures 71 mm. The lathe bed has a width of 550 mm, providing a stable foundation for machining operations. It is equipped with a spindle motor delivering 30 kW of power and offers a turning speed range from 2 to 1800 rpm, allowing for precise control over machining speeds.
The spindle diameter in the front bearing is 120 mm, and the spindle head complies with DIN 55027 - Size 8. The tool taper is RD2 PARAT, and the quill stroke is 210 mm. The machine's total power requirement is 30 kW, and it weighs approximately 5000 kg. Its overall dimensions are roughly 4.90 meters in length, 2.10 meters in width, and 2.00 meters in height.
The lathe includes the Monforts Control System K CNC control, with a control panel mounted on the right side featuring a screen and buttons for operation. The machine is housed within a protective red and white enclosure. The lathe bed, carriage, and tool post are present and visible, with handwheels and control buttons on the carriage and cross slide.
Regarding condition, the machine appears clean and generally in good condition externally, with no visible damage to the control panel or enclosure. However, there is notable paint wear and surface scratches on the carriage and slide surfaces, as well as significant paint peeling and wear inside the machine enclosure near the chuck and spindle area. These signs of use are typical for a machine of this age and should be considered when assessing its suitability for your needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
