| Manufacturer | MONFORTS |
|---|---|
| Model | KNC 5 1500 |
| Year | 2000 |
| Location | Germany
|
This listing features a MONFORTS KNC 5 1500 CNC lathe, manufactured in the year 2000. It is a cycle-controlled lathe designed for precise turning operations with a maximum turning diameter of 500 mm and a turning length of 1500 mm. The machine is equipped with a MONFORTS CONTROL system along with EURO TURN control, providing reliable CNC operation.
Key specifications include a spindle bore diameter of 70 mm and spindle speeds ranging from 3 to 2800 rpm, powered by a 15 kW spindle motor delivering a torque of 1530 Nm. The spindle head conforms to DIN 55027 size 8 standards. The lathe features feed forces on the X and Z axes of 11,300 N, with rapid traverse rates of 10 m/min longitudinally and 5 m/min in the plane. The bed width measures 360 mm, complemented by a face slide travel of 265 mm and a top slide travel of 140 mm. The machine accepts turning tool shanks with a cross-section of 32 x 25 mm.
The tailstock includes an 80 mm diameter quill with a stroke length of 160 mm and a MK 5 holder. The machine weighs approximately 3.3 tonnes and measures 3.45 meters in length, 1.65 meters in width, and 1.93 meters in height.

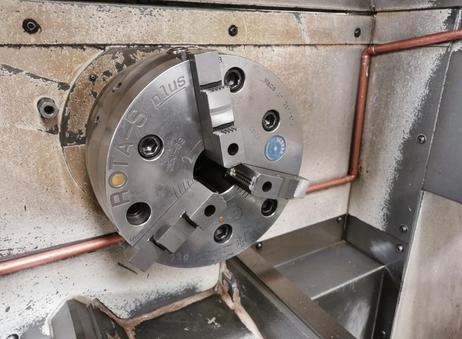

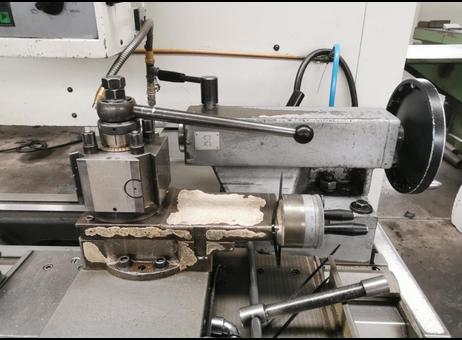

Included accessories are a 3-jaw ROTA-S chuck with a diameter of 250 mm, a 4-fold steel holder head by PARAT, and a coolant device to support machining operations.

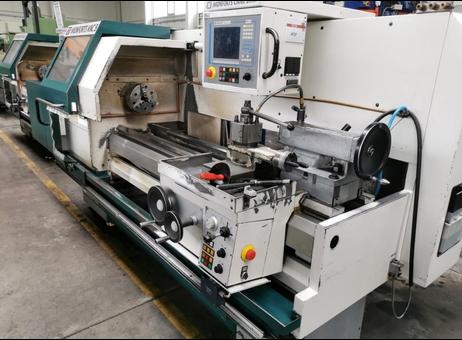

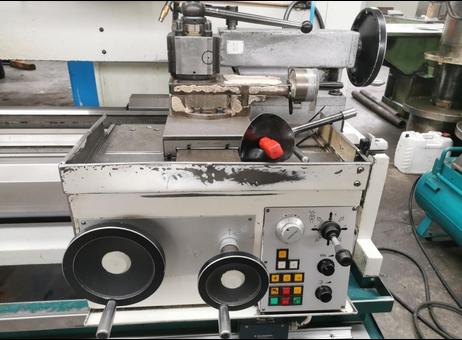

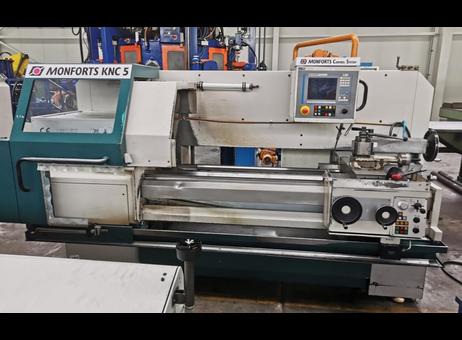

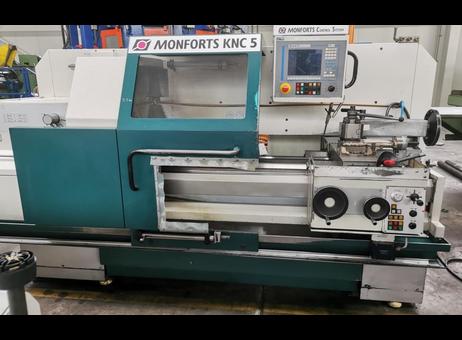

The lathe is housed within a protective enclosure featuring safety handle bars for opening and closing. The headstock and chuck are positioned on the left side behind the enclosure window, while the carriage and cross-slide with hand wheels and control buttons are located on the right side. The machine shows signs of wear, including chipped and scratched paint in several areas, reflecting its usage history.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category: Lathe - cycle-controlled
Make: MONFORTS
Type: KNC 5 1500
Year of manufacture: 2000
Control: CNC
Turning diameter: 500 mm
Turning length: 1500 mm

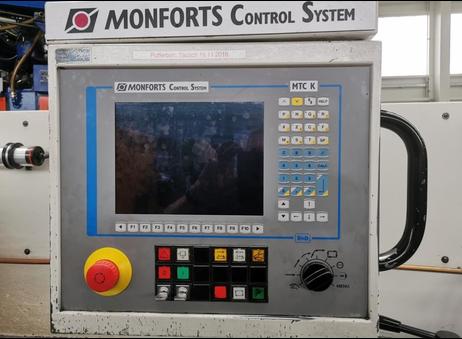

Control system: MONFORTS CONTROL
Control system: EURO TURN
Turning diameter over bed slide: 290 mm
Spindle bore: 70 mm
Spindle speeds: 3 - 2800 rpm
Spindle power: 15 kW
Torque at the spindle: 1530 Nm
Spindle head: DIN 55027 size 8
Feed force X/Z-axis: 11300 N
Rapid traverse - longitudinal/plane: 10 / 5 m/min

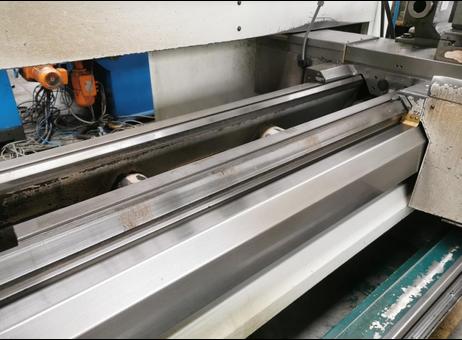

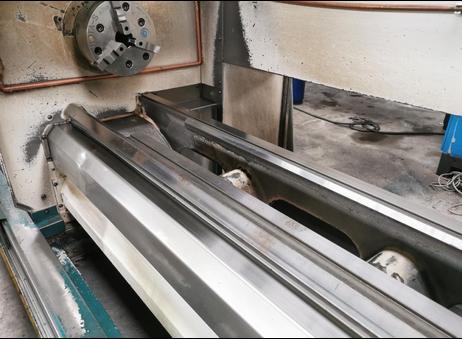

Bed width: 360 mm
Face slide travel: 265 mm
Top slide travel: 140 mm
Turning tool shank cross-section: 32 x 25 mm
Tailstock quill diameter: 80 mm
Tailstock quill stroke: 160 mm
Tailstock holder: MK 5
Machine weight: approx. 3.3 t
Machine dimensions (L x W x H): 3.45 x 1.65 x 1.93 m
Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4-fold steel holder head PARAT, coolant device
Technical condition: as inspected, where inspected
