MIYANO BNE-51MSY CNC lathe

Verified seller

Price on request

Make an offer

- Secured payment for the purchase
- Dedicated compliance check of the seller
- Logistics and customs support if applicable
- After-sale follow up if needed

Manufacturer	MIYANO
Model	BNE-51MSY
Year	2018
Location	Belgium

Your dedicated contact

Raphael M.

Details
About this seller

Specifications

Category	Lathes - CNC lathes
Turning length	380 mm
Turning Ø	165 mm
Type of CNC	Mitsubishi
Spindle taper
Number of turrets	2
Number of tools on turret	12
Number of rotating tools	12
Tailstock	no
Bar feeder	no
Weight	8000 kg
worked hours
hours under power
state	as-is, where-is
At local norms	---------
status	visible
Last availability date	23/10/2026
Product id	P261022063
Language	CNC струг MIYANO BNE-51MSY CNC soustruh MIYANO BNE-51MSY MIYANO BNE-51MSY CNC-drejebænk MIYANO BNE-51MSY CNC-Drehmaschine Τόρνος CNC MIYANO BNE-51MSY MIYANO BNE-51MSY CNC lathe Torno CNC MIYANO BNE-51MSY Tour CNC MIYANO BNE-51MSY CNC tokarski stroj MIYANO BNE-51MSY MIYANO BNE-51MSY CNC esztergagép Tornio CNC MIYANO BNE-51MSY MIYANO BNE-51MSY CNC tekinimo staklės MIYANO BNE-51MSY CNC-draaibank Tokarka CNC MIYANO BNE-51MSY Torno CNC MIYANO BNE-51MSY Strung CNC MIYANO BNE-51MSY MIYANO BNE-51MSY Токарный станок с ЧПУ CNC strug MIYANO BNE-51MSY MIYANO BNE-51MSY CNC-svarv CNC torna MIYANO BNE-51MSY

Seller's description

Description

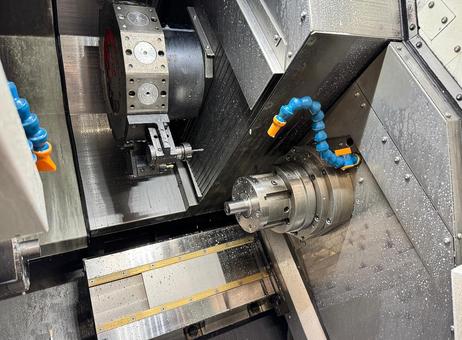

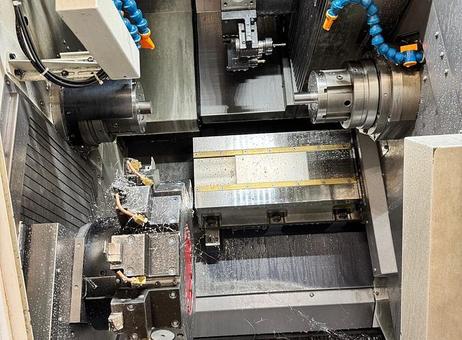

MIYANO CNC Turning Centre with Twin Spindle Twin Turret
Type: BNE-51MSY
Year: 2018

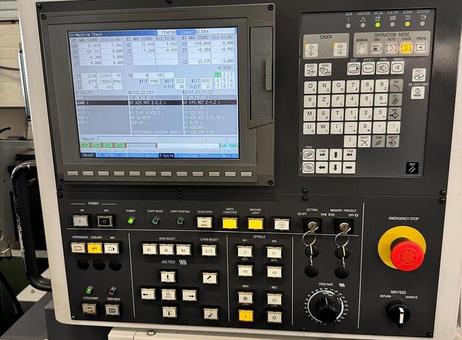

Control: MITSUBISHI
Maximum turning diameter: 165mm
Maximum turning length: 380mm
Maximum bar capacity: 51mm
Distance between spindles: 432mm
Y-axis travel: 80mm (±40mm)
X1/Z1-axis travel: 195/380mm
X2/Z2-axis travel: 195/175mm
X3/Z3-axis travel: 155/450mm
Main spindle speed: 5000rpm
Main spindle motor: 15/11kW
Main spindle chuck: 165mm (6")
Main spindle nose: A2-6
Main spindle draw tube diameter: 52mm
Sub-spindle speed: 5000rpm
Sub-spindle motor: 7.5/5.5kW
Sub-spindle chuck: 165mm (6")
Sub-spindle nose: A2-6
Sub-spindle draw tube diameter: 52mm

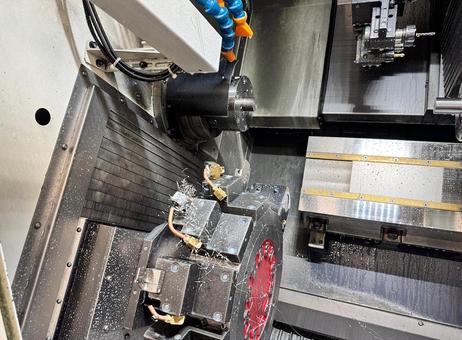

Number of turrets: 2
Tool stations: 12 per turret
Revolving tools: Up to 12 + 12
Driven tool speed: 6000rpm
Tool shank size: 20mm square
Drill shank diameter: 25mm
Machine weight: 8000kg
Please Note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details!
Show All

Specifications
Manufacturer MIYANO
Model BNE-51MSY
Year 2018
Condition Used
Stock Number 00179
Type BNE-51MSY
Year 2018
Control MITSUBISHI
Maximum turning diameter 165mm
Maximum turning length 380mm
Maximum bar capacity 51mm
Distance between spindles 432mm
Y-axis travel 80mm (±40mm)
X1/Z1-axis travel 195/380mm
X2/Z2-axis travel 195/175mm
X3/Z3-axis travel 155/450mm
Main spindle speed 5000rpm
Main spindle motor 15/11kW
Main spindle chuck 165mm (6")
Main spindle nose A2-6
Sub-spindle speed 5000rpm
Sub-spindle motor 7.5/5.5kW
Sub-spindle chuck 165mm (6")
Sub-spindle nose A2-6
Sub-spindle draw tube diameter 52mm
Number of turrets 2
Tool stations 12 per turret
Driven tool speed 6000rpm
Tool shank size 20mm square
Drill shank diameter 25mm
Machine weight 8000kg
