| Manufacturer | MAZAK |
|---|---|
| Model | INTEGREX 400 III-S |
| Year | 2005 |
| Location | Denmark
|

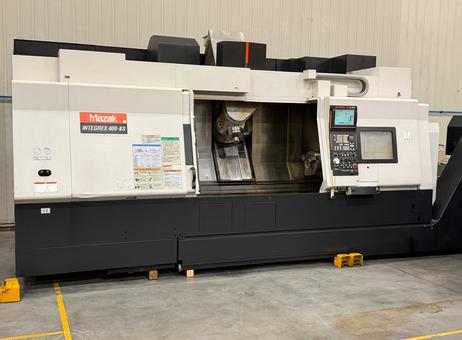

The MAZAK INTEGREX 400 III-S is a versatile CNC lathe built in 2005, designed for complex machining tasks with its advanced multi-axis capabilities. It features a maximum turning diameter of 420 mm over the slide and an impressive maximum turning diameter of 850 mm. The machine supports a turning length of up to 1524 mm, allowing for a wide range of workpiece sizes.
Equipped with a powerful 30 kW main motor, the main spindle operates at speeds up to 3300 rpm, providing strong performance for various turning operations. The boring capacity through the drawing pipe is 102 mm in diameter, enabling internal machining of sizable components. The lathe includes precise C-axis control on both the main and sub-spindle with a stroke resolution of 0.001 degrees, facilitating accurate indexing and milling tasks.

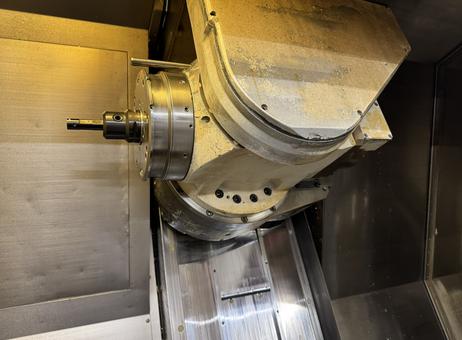

The Y-axis offers a travel of +/- 115 mm, while the B-axis provides a stroke range from -30 to +195 degrees, complemented by a high-speed spindle capable of 12,000 rpm and a milling power of 18.5 kW. The B-axis system utilizes the Capto C6 interface, known for its rigidity and quick tool changes.

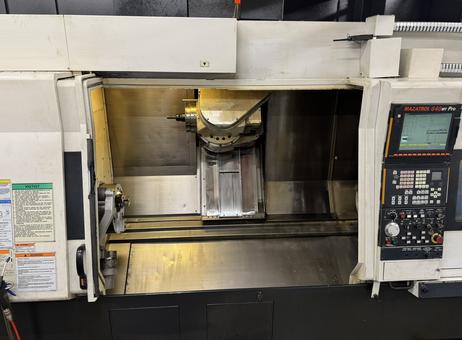

The sub-spindle is powered by a motor delivering 26/22 kW, enhancing the machine's capability for complex, multi-part machining. The machine is controlled via the Mazatrol 640 system, supporting 6-axis simultaneous control for sophisticated machining processes.

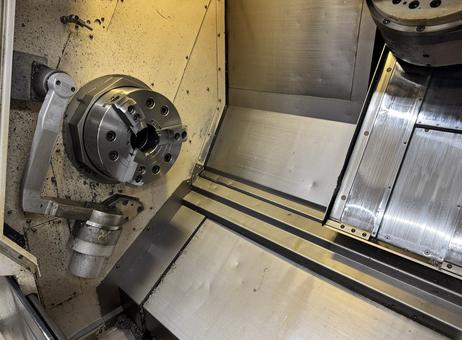

Additional features include an automatic tool changer (ATC) with 40 stations, hydraulic chucks on both the main and sub-spindles with a diameter of 300 mm each, various tool posts, and a tool setter to ensure precise tool positioning.
The machine's total power consumption is 99.9 kVA. It has recorded 2631 working hours on the spindle, indicating moderate use. The overall dimensions are 5100 mm in length, 2798 mm in height, and 2200 mm in width, with a weight of approximately 13,300 kg.
This MAZAK INTEGREX 400 III-S offers a robust and flexible solution for complex turning and milling operations, suitable for manufacturers requiring high precision and multi-axis machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
MAZAK INTEGREX 400 III-S
Build: 2005
Specifications:
Max. Turning diameter 420 mm dia.
Max. Turning dia o/slide 850 mm dia.
Turning Length 1524 mm
Main motor power 30 kw
Main Spindle speed Range 3300 rpm
Boring trough drawing pipe 102 mm dia.
C Axis - Mainspindle Stroke 0.001 degree
Y axis +/- 115 mm
B axis Stroke -30/+195 Degree
B axis spindrel rpm. 12000 rpm
B axis milling power 18.5 kw
B axis system Capto C6
Sub Spindle
C Axis – Sub spindle Stroke 0.001 degree
Motor Power Subspindle 26/22 Kw
Total Power Source 99.9 kva
Control system Mazatrol 640 manuf.
Working hours Spindle 2631 Hours
Controlled in 6 Axis
Accessories:
ATC Tool magazine with 40 Stations
Hydr. Chuck Mainspindle 300 mm dia
Hydr. Chuck Supspindle 300 mm dia
Various toolposts.
Tool setter
Length: 5100 mm, Height: 2798 mm, Width: 2200 mm, Weight: 13300 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 89 |
| Last activity | Oct. 30, 2026 |
MAZAK INTEGREX 400 III-S
Build: 2005
Specifications:
Max. Turning diameter 420 mm dia.
Max. Turning dia o/slide 850 mm dia.
Turning Length 1524 mm
Main motor power 30 kw
Main Spindle speed Range 3300 rpm
Boring trough drawing pipe 102 mm dia.
C Axis - Mainspindle Stroke 0.001 degree
Y axis +/- 115 mm
B axis Stroke -30/+195 Degree
B axis spindrel rpm. 12000 rpm
B axis milling power 18.5 kw
B axis system Capto C6
Sub Spindle
C Axis – Sub spindle Stroke 0.001 degree
Motor Power Subspindle 26/22 Kw
Total Power Source 99.9 kva
Control system Mazatrol 640 manuf.
Working hours Spindle 2631 Hours
Controlled in 6 Axis
Accessories:
ATC Tool magazine with 40 Stations
Hydr. Chuck Mainspindle 300 mm dia
Hydr. Chuck Supspindle 300 mm dia
Various toolposts.
Tool setter
Length: 5100 mm, Height: 2798 mm, Width: 2200 mm, Weight: 13300 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The MAZAK INTEGREX 400 III-S is a versatile CNC lathe built in 2005, designed for complex machining tasks with its advanced multi-axis capabilities. It features a maximum turning diameter of 420 mm over the slide and an impressive maximum turning diameter of 850 mm. The machine supports a turning length of up to 1524 mm, allowing for a wide range of workpiece sizes.
Equipped with a powerful 30 kW main motor, the main spindle operates at speeds up to 3300 rpm, providing strong performance for various turning operations. The boring capacity through the drawing pipe is 102 mm in diameter, enabling internal machining of sizable components. The lathe includes precise C-axis control on both the main and sub-spindle with a stroke resolution of 0.001 degrees, facilitating accurate indexing and milling tasks.
The Y-axis offers a travel of +/- 115 mm, while the B-axis provides a stroke range from -30 to +195 degrees, complemented by a high-speed spindle capable of 12,000 rpm and a milling power of 18.5 kW. The B-axis system utilizes the Capto C6 interface, known for its rigidity and quick tool changes.
The sub-spindle is powered by a motor delivering 26/22 kW, enhancing the machine's capability for complex, multi-part machining. The machine is controlled via the Mazatrol 640 system, supporting 6-axis simultaneous control for sophisticated machining processes.
Additional features include an automatic tool changer (ATC) with 40 stations, hydraulic chucks on both the main and sub-spindles with a diameter of 300 mm each, various tool posts, and a tool setter to ensure precise tool positioning.
The machine's total power consumption is 99.9 kVA. It has recorded 2631 working hours on the spindle, indicating moderate use. The overall dimensions are 5100 mm in length, 2798 mm in height, and 2200 mm in width, with a weight of approximately 13,300 kg.
This MAZAK INTEGREX 400 III-S offers a robust and flexible solution for complex turning and milling operations, suitable for manufacturers requiring high precision and multi-axis machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
