Contact us to receive an offer.
| Manufacturer | Manurhin |
|---|---|
| Model | KMX Swing 720 |
| Year | 2004 |
| Location | Poland
|
The Manurhin KMX Swing 720 is a CNC multispindle automatic lathe designed for high-precision machining of small-diameter parts. Manufactured in 2004, this Swiss-type lathe is equipped with two spindles—a main spindle and a counter spindle—each capable of reaching speeds up to 10,000 rpm. It supports machining of parts with a maximum diameter of 20 mm and a maximum length of 2,500 mm, making it suitable for detailed and complex turning operations.
This machine features 10 axes, providing extensive flexibility for multi-axis machining tasks. The tool magazine holds 14 tools, allowing for a variety of cutting and shaping operations without frequent tool changes. The main spindle is powered by a 2.2 kW motor, enabling efficient material removal and precise control.

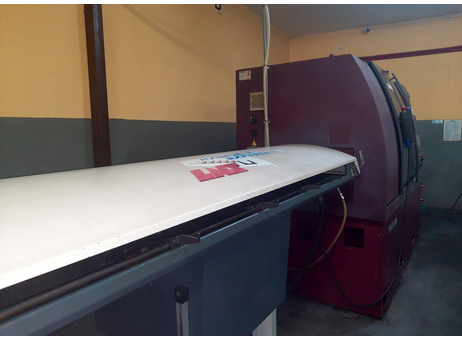

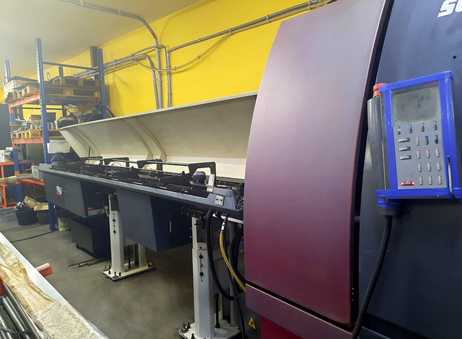

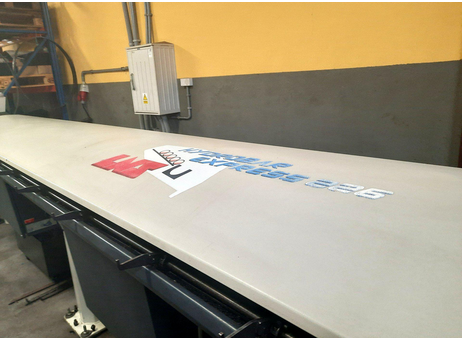

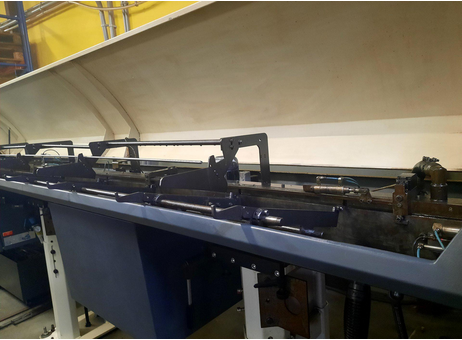

The lathe is controlled via a Fanuc Series 160i-T CNC system, known for its reliability and user-friendly interface. The machine comes with a Hydrobar Express 226 LNS bar feeder, which aids in continuous feeding of bar stock, improving productivity.
In terms of dimensions, the machine measures approximately 3100 mm in length, 1500 mm in width, and 2100 mm in height, with a total weight of 4300 kg, reflecting its robust construction.

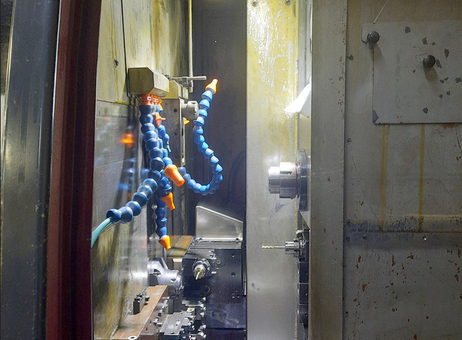

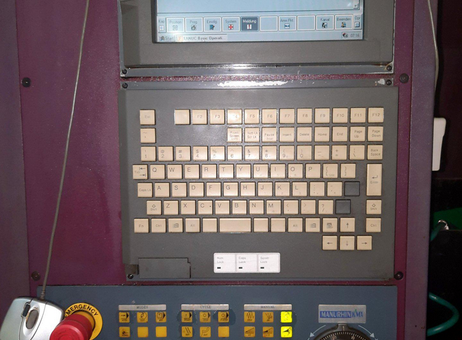

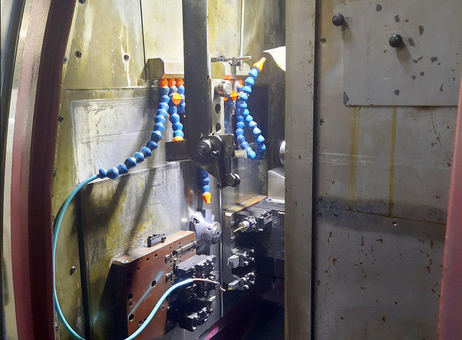

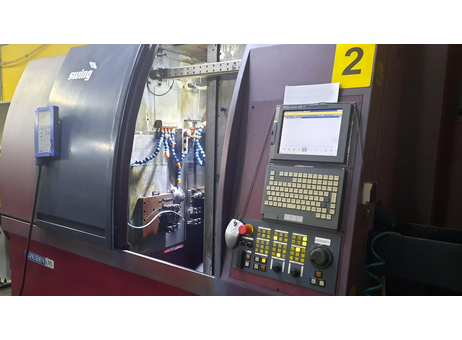

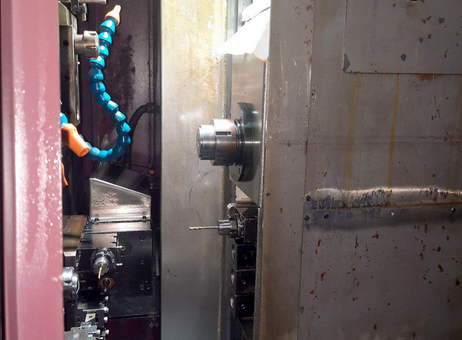

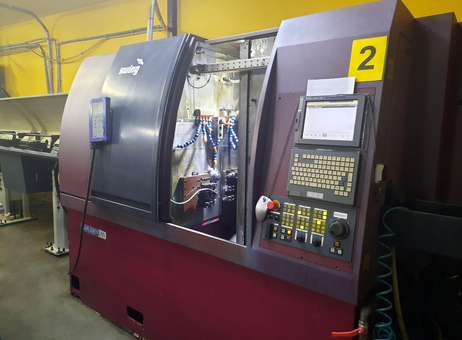

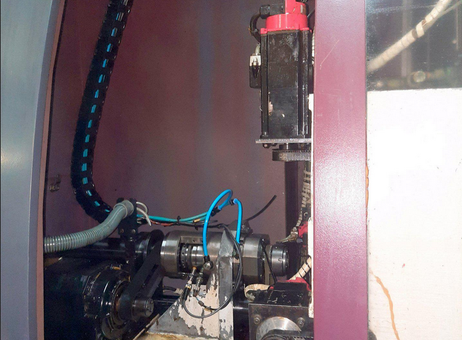

The machining area is enclosed and features multiple coolant hoses to assist in temperature control and chip removal during operation. The control panel is located on the right side and includes a screen and keypad for programming and operation, as well as an emergency stop button for safety. Interior lighting in the machining area enhances visibility during setup and operation.
Overall, the Manurhin KMX Swing 720 combines precision, versatility, and robust build quality, making it suitable for demanding production environments requiring complex and accurate turning of small components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The MANURHIN KMX SWING 720 CNC automatic lathe, manufactured in 2004 in France, is designed for precise machining of details with a maximum length of 2500 mm and 20 mm in diameter. The Swiss-type lathe is characterized by high quality of workmanship, turning precision and high reliability, thanks to which it will meet the expectations of even the most demanding customers.
The KMX SWING 720 lathe uses two spindles - the main and the counter spindles, which rotate at a maximum speed of 10,000 rpm, give many new possibilities of turning details in ten axes. The tool magazine holds up to 14 pieces of tools, which can be changed in no time.
The Swiss-type automatic lathe is offered with equipment consisting of a Fanuc Series 160i-T numerical control and a Hydrobar Express 226 LNS bar feeder. The total weight of the machine is 4300 kg.
Technical data of the CNC turning center MANURHIN KMX SWING 720
- number of axles: 10
- turning length: 2500 mm
- turning diameter: 20 mm
- Z axis travel: 250 mm
- the number of tools in the magazine: 10 + 4 pcs.
- maximum rotational speed of the main spindle: 10,000 rpm
- diameter of the hole in the main spindle: 28 mm
- main spindle motor power (100/40%): 2.2 / 3.7 kW
- maximum rotation speed of the interceptor spindle: 10000 rpm
- Interceptor spindle motor power (100/40%): 3.7 / 5.5 kW
- maximum diameter of the collet: 20 mm
- barfeeder length: 8100 mm
- machine dimensions (length x width x height): 3100 x 1500 x 2100 mm
- total weight of the KMX SWING 720 machine: 4300 kg
CNC lathe equipment MANURHIN KMX SWING 720
- CNC controller: Fanuc Series 160i-T
- bar magazine and feeder: HYDROBAR EXPRESS 226 LNS
- capture spindle
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
