Contact us to receive an offer.
| Manufacturer | Janus |
|---|---|
| Model | HTC 2050 |
| Year | |
| Location | Poland
|
| Category | Lathes - CNC lathes |
| Turning length | 500 mm |
| Turning Ø | 200 mm |
| Ø above the bed | 500 mm |
| Type of CNC | |
| Spindle taper | |
| Spindle motor power | 11 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3900.0 × 1800.0 × 1750.0 |
| Weight | 5000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | yes |
| status | under power |
| Last availability date | 31/10/2024 |
| Product id | P231222045 |
| Language |
cnc струг Janus HTC 2050
Soustruh cnc Janus HTC 2050
cnc drejebænk Janus HTC 2050
Janus HTC 2050 Drehmaschine CNC
cnc τόρνος Janus HTC 2050
Janus HTC 2050 cnc lathe
Torno cnc Janus HTC 2050
Tour cnc Janus HTC 2050
cnc tokarski stroj Janus HTC 2050
Janus HTC 2050 cnc eszterga
Tornio cnc Janus HTC 2050
cnc tekinimo staklės Janus HTC 2050
Janus HTC 2050 cnc-draaibank
Tokarka CNC Janus HTC 2050
Torno CNC Janus HTC 2050
strung cnc Janus HTC 2050
Janus HTC 2050 Токарный станок с ЧПУ
cnc strug Janus HTC 2050
Janus HTC 2050 cnc svarv
Cnc torna Janus HTC 2050
|
The Janus HTC 2050 is a CNC lathe designed for precision turning tasks with substantial capacity and power. It features a maximum turning diameter over the bed of 500 mm and a maximum turning length of 500 mm, allowing for versatile machining of medium-sized workpieces. The lathe's turning diameter capability is 200 mm, with a handle diameter of 210 mm. The machine includes a longitudinal travel of the sled up to 600 mm and a cross slide travel of 160 mm, providing precise control over machining dimensions.
This lathe is equipped with a spindle motor delivering 11 kW of power, supported by stepless spindle speed control ranging from 40 to 4000 revolutions per minute. The spindle hole diameter measures 55 mm, accommodating a variety of tooling options. Tool shank size is 25 x 25 mm, with minimum entered values for the Z and X axes at 0.001 mm, enabling high precision in both longitudinal and cross movements.
Additional features include a tailstock sleeve diameter of 80 mm with a maximum extension of 100 mm, and a Morse 5 taper cone for secure workpiece support. Rapid traverse speeds are 20 m/min for the Z axis and 16 m/min for the X axis. The machine also integrates servo motors providing 7 Nm torque on both the Z and X axes.
Supporting components include a hydraulic unit powered by a 1.5 kW engine, a chip conveyor motor rated at 0.2 kW, and a coolant pump motor with 0.55 kW power. The lathe's external dimensions are 3900 mm in length, 1800 mm in width, and 1750 mm in height, with a net weight of 5000 kg.

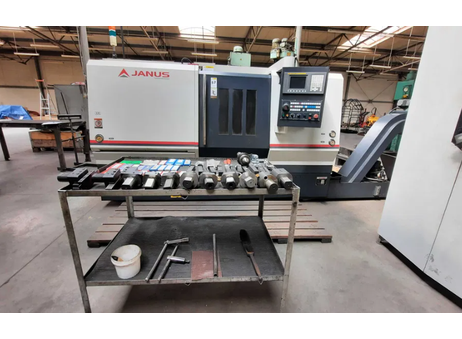

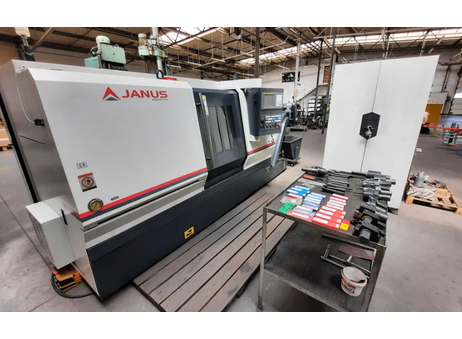

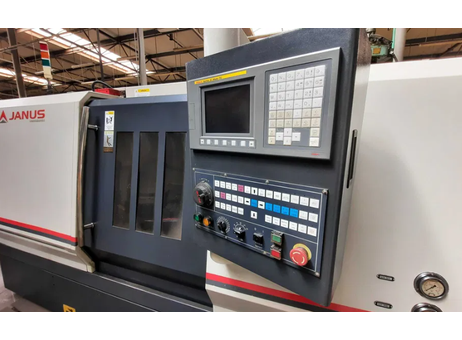

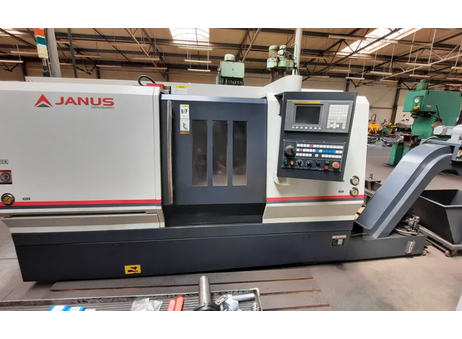

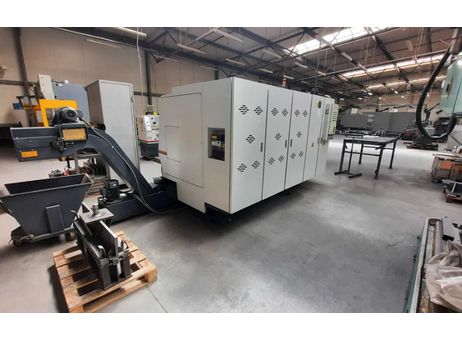

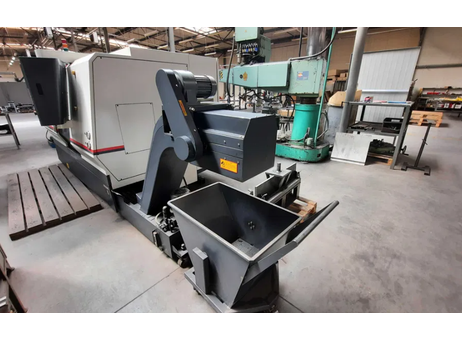

The machine features an enclosed working area and a control panel positioned on the right side, which includes a screen along with multiple buttons and knobs for operation. A chip conveyor is attached on the right side to assist with efficient removal of machining debris. The overall condition appears clean and well-maintained with no visible damage, suggesting it has been cared for appropriately.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
handle diameter – 210 mm
turning diameter over the bed – 500 mm
Maximum turning diameter - 200 mm
Maximum turning length – 500 mm
Maximum longitudinal travel of the sled – 600 mm
Maximum cross slide travel – 160 mm
Spindle hole diameter – 55 mm
Spindle speed control (stepless) – 40-4000 r/m
Tool shank size 25 x 25 mm
Minimum entered value (Z axis) - 0.001 mm / (X axis) – 0.001 mm (in diameter)
Tailstock sleeve diameter – 80 mm
Maximum extension of the tailstock sleeve – 100 mm
Rapid traverse (Z axis) – 20m/min / (X axis)-16m/min
Tailstock sleeve cone – Morse 5
Main engine power (alternating current) – 11 kW
Servo motor (Z axis) – 7 Nm / (X axis) – 7 Nm
Hydraulic unit engine power – 1.5 kW
Chip conveyor motor – 0.2 kW
Coolant pump motor – 0.55 kW
External dimensions (length x width x height) – 3900 x 1800 x 1750 mm
Net weight – 5000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2023 |
| Offers online | 6 |
| Last activity | Oct. 27, 2026 |
handle diameter – 210 mm
turning diameter over the bed – 500 mm
Maximum turning diameter - 200 mm
Maximum turning length – 500 mm
Maximum longitudinal travel of the sled – 600 mm
Maximum cross slide travel – 160 mm
Spindle hole diameter – 55 mm
Spindle speed control (stepless) – 40-4000 r/m
Tool shank size 25 x 25 mm
Minimum entered value (Z axis) - 0.001 mm / (X axis) – 0.001 mm (in diameter)
Tailstock sleeve diameter – 80 mm
Maximum extension of the tailstock sleeve – 100 mm
Rapid traverse (Z axis) – 20m/min / (X axis)-16m/min
Tailstock sleeve cone – Morse 5
Main engine power (alternating current) – 11 kW
Servo motor (Z axis) – 7 Nm / (X axis) – 7 Nm
Hydraulic unit engine power – 1.5 kW
Chip conveyor motor – 0.2 kW
Coolant pump motor – 0.55 kW
External dimensions (length x width x height) – 3900 x 1800 x 1750 mm
Net weight – 5000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
