| Manufacturer | Hyundai Wia |
|---|---|
| Model | L2100SY |
| Year | 2012 |
| Location | Germany
|

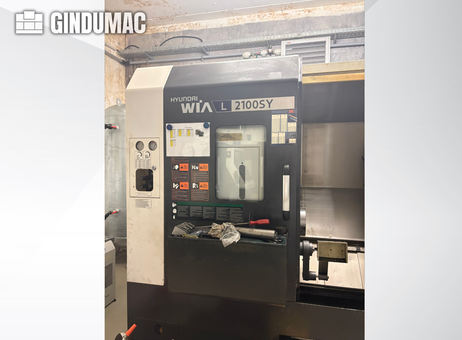

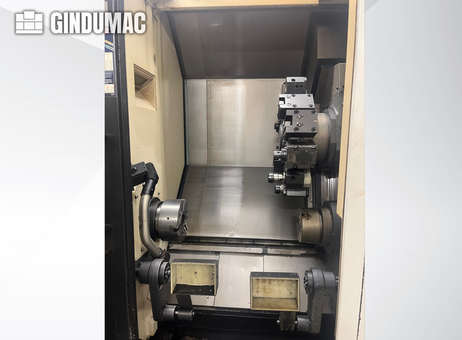

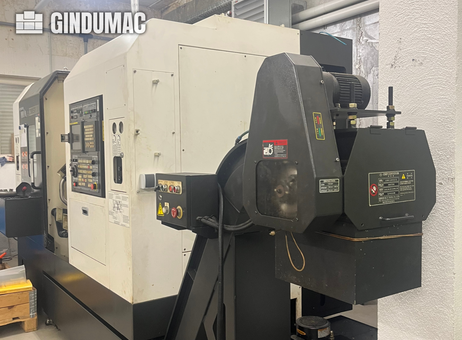

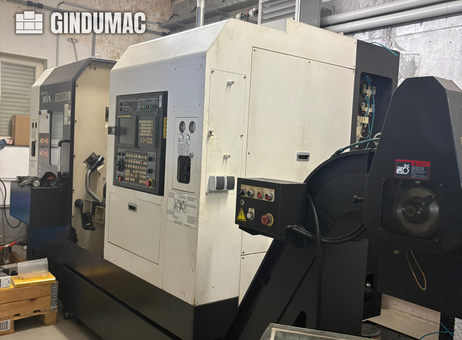

Hyundai Wia L2100SY — 4-axis turn-mill centre (manufactured 2012) with FANUC Series 18i-TB control. This machine is specified for combined turning and milling tasks and includes a counter spindle and driven tools for machining operations on both spindles.
Key specifications and capacities:
- Maximum turning diameter: Ø335 mm
- Maximum turning length: 455 mm
- Swing over bed: Ø630 mm; swing over carriage: Ø390 mm
- Bar capacity / max. bar diameter: Ø65 mm
- Chuck size: Ø210 mm (main spindle: Samchully MH-208; sub spindle: Samchully HS-06)
- Spindle bore: Ø76 mm; spindle nose: A2-6
- Spindle speed range: 45–4,500 rpm
- Spindle motor power: multiple ratings provided (continuous 15/11 kW; maximum 25.4/18.5 kW); a spindle motor power value of 25.4 kW is listed in the specification set
- Spindle torque (continuous / maximum): 254.2 Nm / 597.7 Nm
Tooling and axes:
- Number of axes: 4

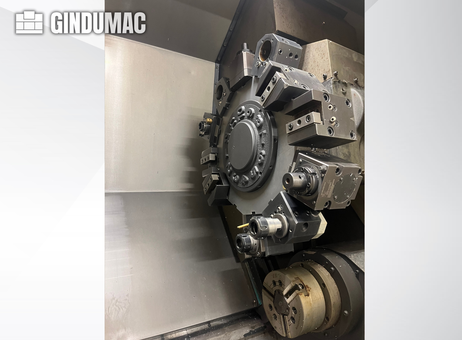

- Turret: BMT65 with 12 tool stations (tool stations: 12)
- OD tool size: 25 × 25 mm; ID tool size: Ø50 mm
- Indexing time: 0.2 sec/step
- X-axis travel: 210 mm; Z-axis travel: 580 mm
- Slide type: box guide
- Rapid traverse (X/Y/Z): 24/24 m/min (X/Y), 18/12 m/min (Z)
Machine utilities and physical data:

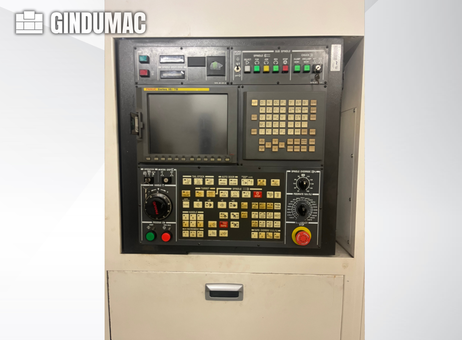

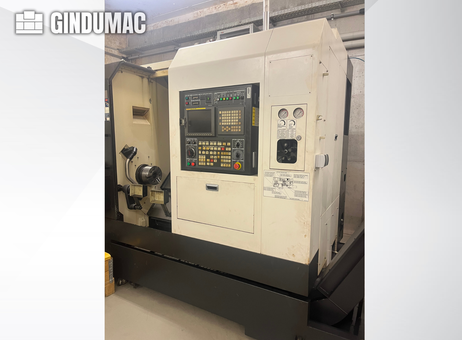

- Control: FANUC Series 18i-TB

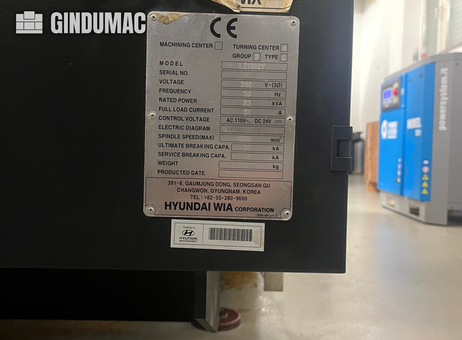

- Electrical: 380 V (3Ø), 50 Hz; Rated power 33 kVA; power requirement listed as over 35 kVA
- Coolant tank capacity: 220 L; lubrication tank capacity: 0.9 L
- Machine dimensions (L × W × H): 3039 × 1725 × 2225 mm
- Machine weight: 4570 kg

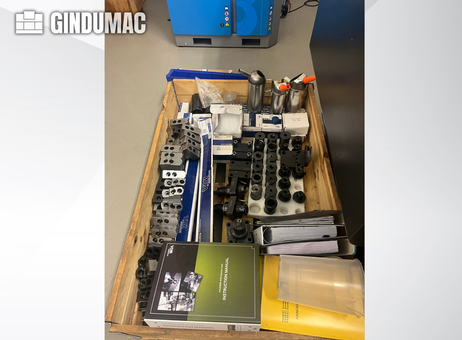

Additional notes: counter spindle and driven tools are included in the specification set and chuck jaws are noted as optional. If you need further information, operating history, inspection records, or clarification on any specification, please request those details.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis Hyundai Wia L2100SY turn-mill centre was manufactured in 2012. It features a maximum turning diameter of 335 mm and a turning length of 455 mm. The machine is equipped with a 12-station turret and a spindle speed of up to 4,500 rpm. If you are looking to get high-quality turning capabilities, consider the Hyundai Wia L2100SY machine we have for sale. Contact us for further details.Control Unit: FANUC Series 18i-TB
Voltage: 380 V (3Ø)
Frequency: 50 Hz
Rated Power: 33 kVA
Full Load Current: 51 A
Control Voltage: AC 110 V / DC 24 V
Swing Over Bed: Ø630 mm (24.8")
Swing Over Carriage: Ø390 mm (15.4")
Max. Turning Diameter: Ø335 mm (13.2")
Max. Turning Length: 455 mm (17.8")
Bar Capacity: Ø65 mm (2.6")
Chuck Size: Ø210 mm (8")
Spindle Bore: Ø76 mm (3")
Spindle Speed Range: 45–4,500 rpm
Spindle Motor (Continuous): 15/11 kW (20/15 HP)
Spindle Motor (Maximum): 25.4/18.5 kW
Spindle Torque (Continuous): 254.2 Nm
Spindle Torque (Maximum): 597.7 Nm
Spindle Nose: A2-6
Rapid Traverse X/Y: 24/24 m/min
Rapid Traverse Z: 18/12 m/min
Slide Type: Box Guide
Turret: BMT65
OD Tool Size: □25 × 25 mm
ID Tool Size: Ø50 mm (2")
Indexing Time: 0.2 sec/step
X-Axis Motor: 5.5/3.7 kW
Z-Axis Motor: 5.5/3.7 kW
Torque: 5,000 Nm
Coolant Tank Capacity: 220 L (58.1 gal)
Lubrication Tank Capacity: 0.9 L (0.5 gal)
Power Requirement: Over 35 kVA
Main Spindle Chuck: Samchully MH-208
Sub Spindle Chuck: Samchully HS-06
Chuck Jaws optional
Control Brand: FANUC
Control Model: Series 18i-TB
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2225 mm
Machine Length: 3039 mm
Machine Weight: 4570 kg
Machine Width: 1725 mm
Max. Bar Diameter: 65 mm
Max. Workpiece Diameter: 335 mm
Number of Axes: 4
Tool Stations: 12
Spindle Power: 15 kW
Spindle Speed: 4500 RPM
X-axis Travel: 210 mm
Z-axis Travel: 580 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
