| Manufacturer | Hyundai-Kia |
|---|---|
| Model | SKT100 |
| Year | 2008 |
| Location | USA
|
This listing features a Hyundai-Kia SKT100 CNC lathe, a multispindle automatic lathe manufactured in 2008. The machine is designed for precision turning operations and is equipped with a 6-inch chuck size, allowing for secure workholding. It offers a swing over the bed of 21.7 inches and a swing over the cross slide of 13.8 inches, supporting a maximum turning length of 11.8 inches and a bar capacity of 1.77 inches. The lathe's travel distances are 8.3 inches on the X-axis and 13 inches on the Z-axis, with rapid traverse rates of 1417 inches per minute for both axes, enabling efficient machining cycles.
The main spindle operates at speeds up to 6000 rpm, powered by a spindle drive belt system. It features a spindle nose of type A2-5 and a spindle bore diameter of 2.09 inches. The maximum spindle torque is rated at 45.9 and 70.4 ft-lbs, providing robust performance for various turning tasks. The quill bore taper is MT#4, with a quill diameter of 2.6 inches and a quill travel distance of 3.1 inches. The tailstock travel measures 6.3 inches, allowing for versatile support during machining.
The power of the main motor is 20.1/14.7 HP. The lathe occupies a floor space measuring approximately 79.5 inches in length by 65.0 inches in width. The machine is housed in a gray and white enclosure with ventilation grills at the bottom, and it includes a control panel mounted on the right side featuring a screen, buttons, and knobs for operator interface.
Additional visible features include a Tri-Mist mist collector mounted on top of the machine to assist with coolant and mist management. The interior workholding area shows a multi-jaw chuck and illumination for better visibility during operation. The machine appears to be used with some metal shavings and wear marks inside, suggesting prior operation in a workshop environment. A user manual for the Hyundai-Kia SKT100 and SKT200 models with FANUC 0i-TC control is also included, providing valuable documentation for operation and maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Chuck size 6″
Swing over the bed 21.7"
Swing over cross slide 13.8"
Maximum turning length 11.8"
Bar capacity 1.77"
Travel x 8.3"
Travel z 13"
Main spindle speed 6000rpm
Spindle nose A2-5
Spindle bore 2.09"
Maximum spindle torque 45.9, 70.4 ft-lbs
Speed drive Belt
Rapid traverse x 1417ipm
Rapid traverse z 1417ipm
Power main 20.1/14.7HP
Quill bore taper MT#4
Quill diameter 2.6"
Quill travel 3.1"
Tail stock travel 6.3"
Floor space (lxw) 79.5″ x 65.0″
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 3 |
| Last activity | June 11, 2026 |
Chuck size 6″
Swing over the bed 21.7"
Swing over cross slide 13.8"
Maximum turning length 11.8"
Bar capacity 1.77"
Travel x 8.3"
Travel z 13"
Main spindle speed 6000rpm
Spindle nose A2-5
Spindle bore 2.09"
Maximum spindle torque 45.9, 70.4 ft-lbs
Speed drive Belt
Rapid traverse x 1417ipm
Rapid traverse z 1417ipm
Power main 20.1/14.7HP
Quill bore taper MT#4
Quill diameter 2.6"
Quill travel 3.1"
Tail stock travel 6.3"
Floor space (lxw) 79.5″ x 65.0″
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a Hyundai-Kia SKT100 CNC lathe, a multispindle automatic lathe manufactured in 2008. The machine is designed for precision turning operations and is equipped with a 6-inch chuck size, allowing for secure workholding. It offers a swing over the bed of 21.7 inches and a swing over the cross slide of 13.8 inches, supporting a maximum turning length of 11.8 inches and a bar capacity of 1.77 inches. The lathe's travel distances are 8.3 inches on the X-axis and 13 inches on the Z-axis, with rapid traverse rates of 1417 inches per minute for both axes, enabling efficient machining cycles.
The main spindle operates at speeds up to 6000 rpm, powered by a spindle drive belt system. It features a spindle nose of type A2-5 and a spindle bore diameter of 2.09 inches. The maximum spindle torque is rated at 45.9 and 70.4 ft-lbs, providing robust performance for various turning tasks. The quill bore taper is MT#4, with a quill diameter of 2.6 inches and a quill travel distance of 3.1 inches. The tailstock travel measures 6.3 inches, allowing for versatile support during machining.

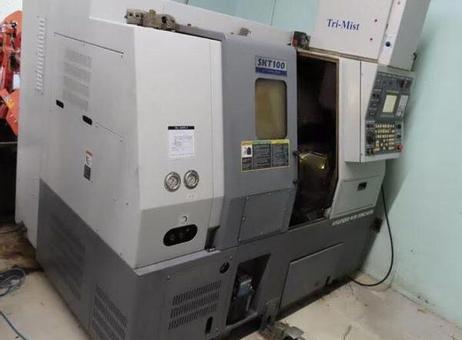

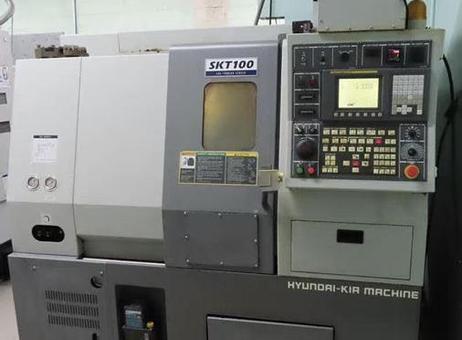

The power of the main motor is 20.1/14.7 HP. The lathe occupies a floor space measuring approximately 79.5 inches in length by 65.0 inches in width. The machine is housed in a gray and white enclosure with ventilation grills at the bottom, and it includes a control panel mounted on the right side featuring a screen, buttons, and knobs for operator interface.

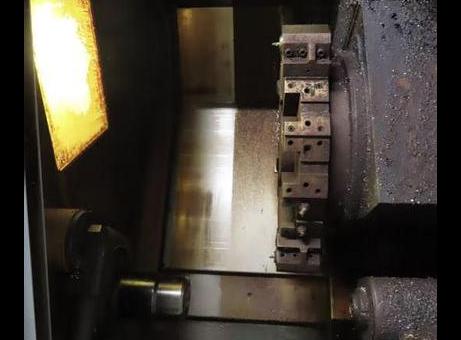

Additional visible features include a Tri-Mist mist collector mounted on top of the machine to assist with coolant and mist management. The interior workholding area shows a multi-jaw chuck and illumination for better visibility during operation. The machine appears to be used with some metal shavings and wear marks inside, suggesting prior operation in a workshop environment. A user manual for the Hyundai-Kia SKT100 and SKT200 models with FANUC 0i-TC control is also included, providing valuable documentation for operation and maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 3 |
| Last activity | June 11, 2026 |
