| Manufacturer | Hwacheon |
|---|---|
| Model | Hi-tech 230 BL |
| Year | 2019 |
| Location | France
|

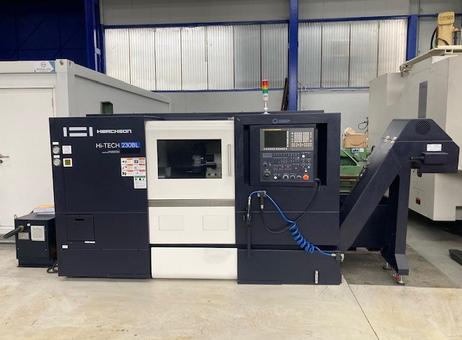

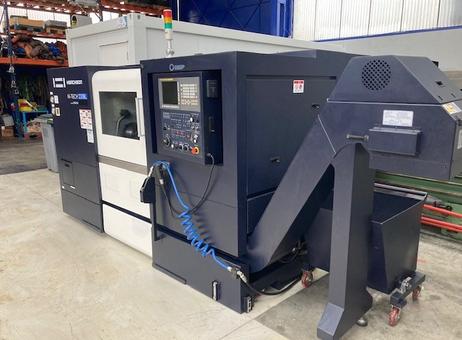

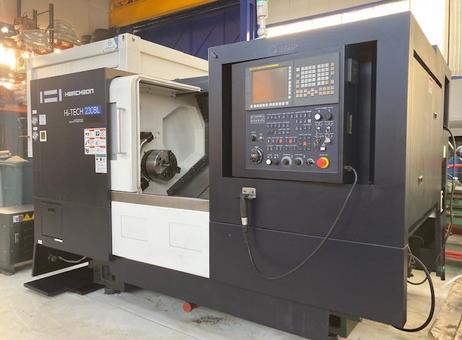

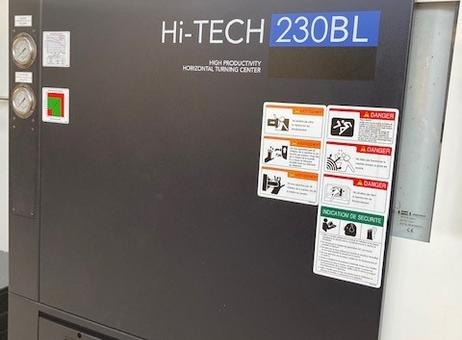

This listing features a Hwacheon Hi-Tech 230 BL Horizontal Turning Center, a 2-axis CNC lathe designed for precision machining. Equipped with a Fanuc 0i-TF series CNC control system from 2019, it includes a Manual Guide conversational interface to facilitate programming and operation.
The lathe offers a maximum turning diameter of 400 mm and a center-to-center distance of 750 mm, suitable for a variety of medium-sized workpieces. The Z-axis travel is 700 mm and the X-axis travel is 484 mm, providing ample machining range. The spindle operates at speeds up to 3,500 rpm, driven by a powerful 18.5 kW main motor.

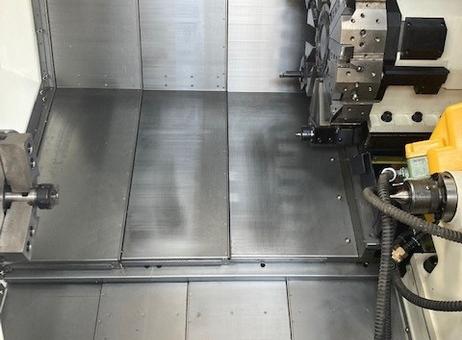

It features an automatic hydraulic chuck with a 250 mm diameter and 3 concentric jaws, ensuring secure and precise workpiece holding. The spindle bore measures 91 mm, allowing bar stock up to 81 mm in diameter to pass through. The machine is equipped with a 12-position automatic turret, enabling efficient tool changes and versatile machining operations.
Rapid traverse speeds on both X and Z axes reach 30 m/min, enhancing productivity. The lathe also includes an independent hydraulic motorized tailstock for additional support during machining and a chip conveyor to manage metal shavings and maintain a clean work area.
According to the control panel, the machine has recorded 645 hours of operation, indicating limited use. The overall weight of the machine is approximately 6,500 kg. This Hwacheon Hi-Tech 230 BL is suitable for users seeking a reliable and capable CNC turning center for various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Hwacheon Hi-Tech 230 BL Horizontal Turning Center
HWACHEON Hi-TECH 230 BL 2-axis CNC lathe

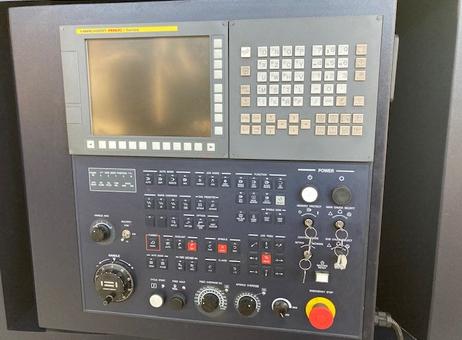

Year 2019, Fanuc 0i-TF series CNC
With Manual Guide conversational interface
Maximum turning diameter: 400 mm
Center-to-center distance: 750 mm
Z-axis travel: 700 mm
X-axis travel: 484 mm
Chuck rotation speed: 3,500 rpm

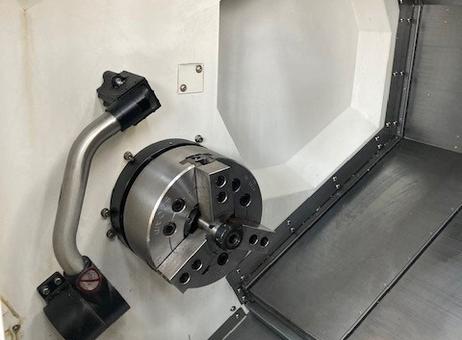

Automatic hydraulic chuck, 250 mm diameter – 3 concentric jaws
Main motor power: 18.5 kW
Spindle bore: 91 mm
Bar capacity: 81 mm

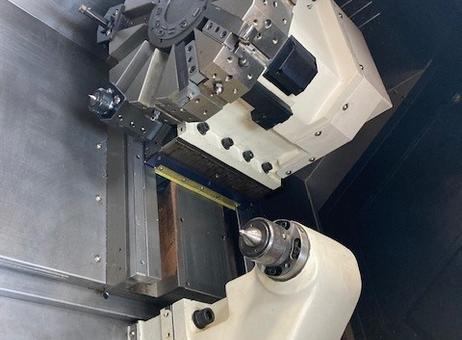

12-position automatic turret
Rapid traverse speeds on X and Z axes = 30 m/min
Independent hydraulic motorized tailstock

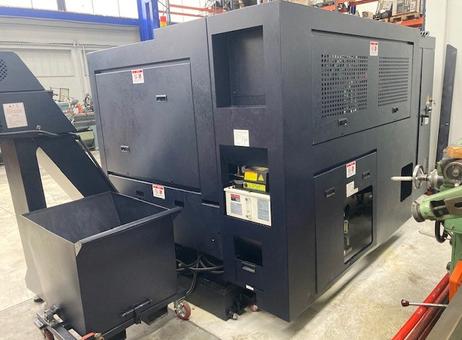

Chip conveyor
645 hours of operating time recorded on the control panel!!
Machine weight: approx. 6,500 kg
