Price on request
Make an offer| Strength | 225 T |
| Folding length | 3600 mm |
| Distance between uprights | 3150 mm |
| CNC | 2D Touch |
| Throat | 300 mm |
| Vertical stroke | 200 mm |
| Working speed | 7 mm/s |
| Engine Power | 18.7 kW |
| ------------------- | |
| Length x width x height | 4100.0 × 2000.0 × 2800.0 |
| Weight | 14300 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 07/03/2026 |

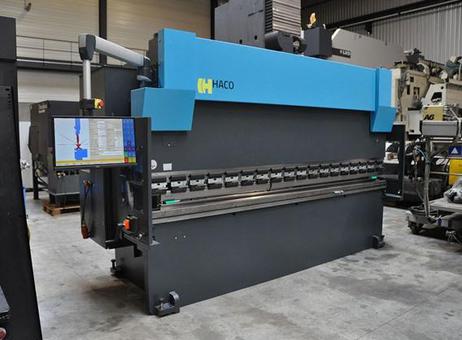

This is a HACO ERM press brake machine with a capacity of 225 tons and a bending length of 3600 mm. It is designed for precision sheet metal bending and features a CNC-controlled backgauge system, allowing for accurate positioning during operation. The machine is equipped with a 2D touch control interface, facilitating user-friendly programming and operation.
The press brake offers a passage between uprights measuring 3150 mm, providing ample space for handling larger workpieces. It has a maximum vertical stroke of 200 mm and a throat depth of 300 mm, which determines the distance from the bending line to the back of the ram. The maximum distance between the table and the ram is 450 mm, allowing for the accommodation of thicker materials.
Operational speeds include a working speed of 7 mm/s, a locking speed of 80 mm/s, and a returning speed of 80 mm/s, enabling efficient bending cycles. The machine is powered by an electric motor with an output of 18.7 kW, ensuring sufficient force for heavy-duty bending tasks.
Physically, the machine measures 4100 mm in length, 2000 mm in width, and 2800 mm in height, with a total weight of 14,300 kg. The structure includes a long bending beam equipped with multiple clamps for securing tooling, enhancing versatility for various bending operations.
The machine is painted in blue and gray and features a control screen mounted on the left side, displaying a graphical interface for CNC programming. It appears clean and well-maintained, situated in an indoor industrial environment. This press brake is suitable for professional workshops requiring reliable and precise bending capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Capacity
225 ton x 3600 mm
Backgauge
CNC
Control
2D Touch
Passage between uprights
3150 mm
Max stroke
200 mm
Max distance between table -- ram
450 mm
Depth of throat
300 mm
Locking speed
80 mm/sec
Working speed
7 mm/sec
Returning speed
80 mm/sec
Electric motor (power)
18,7 kW
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What is the pressure capacity of this Haco ERM 225?
This Haco ERM 225 ton x 3600 mm press brake has a pressure capacity of 225.0 tons.
What is the bending length of the machine?
This Haco ERM 225 ton x 3600 mm press brake features a bending length of 3600.0 mm.
What is the distance between columns on this model?
This Haco ERM 225 ton x 3600 mm press brake has a distance between columns of 3150.0 mm.
What is the overhang measurement of the machine?
This Haco ERM 225 ton x 3600 mm press brake offers an overhang of 300.0 mm.
What is the maximum stroke of this press brake?
This Haco ERM 225 ton x 3600 mm press brake has a maximum stroke of 200.0 mm.
What is the working speed of the machine?
This Haco ERM 225 ton x 3600 mm press brake operates at a working speed of 7.0 mm/s.
What is the motor power of this Haco ERM 225?
This Haco ERM 225 ton x 3600 mm press brake is powered by an 18.7 kW motor.
What is the capacity of this Haco ERM press brake?
This Haco ERM press brake has a capacity of 225 tons.
What is the working length of this press brake?
This Haco ERM press brake has a working length of 3600 mm.
What type of classification does this equipment have?
This equipment is classified as CNC/NC.
What is the working length of this Haco ERM press brake?
This Haco ERM press brake has a working length of 3600 mm.
Does this Haco ERM press brake have CNC/NC control?
This Haco ERM press brake is equipped with CNC/NC control.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
