| Manufacturer | Haas |
|---|---|
| Model | EC-400 |
| Year | 2011 |
| Location | USA
|

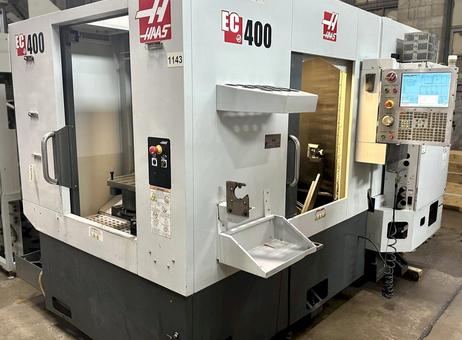

This listing is for a Haas EC-400 horizontal machining center, manufactured in 2011, designed for precision machining tasks. The machine features a robust construction with overall dimensions of approximately 3556 mm in length, 2463.8 mm in width, and 2590.8 mm in height, and a total weight of about 9982 kg. It is equipped with a Haas CNC control system supporting 4 axes, enabling complex machining operations.
The machining center includes a 24-position side-mount automatic tool changer, allowing efficient tool management during production. The spindle has a maximum speed of 8100 RPM and a CAT 40 taper, supported by a 20 HP spindle motor. Coolant can be delivered through the spindle to aid in machining processes. The table measures approximately 400 mm by 400 mm, with travel distances of 508 mm along the X, Y, and Z axes, and can accommodate parts up to 453.7 kg.

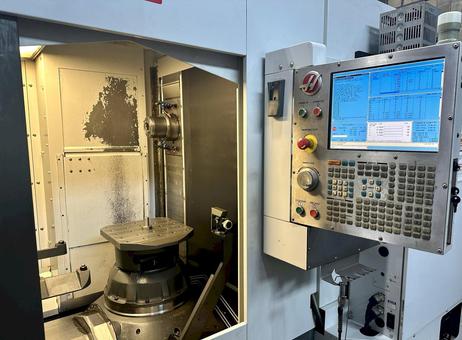

This machine is equipped with two 1-degree indexed pallets, each measuring 400 mm square, facilitating quick workpiece changes to optimize productivity. The control panel is mounted on the right side of the machine and includes a screen, keypad, emergency stop, and power buttons for operator convenience and safety.

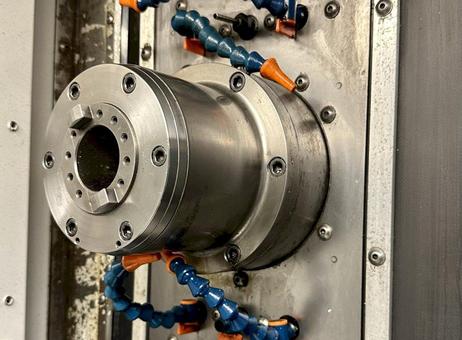

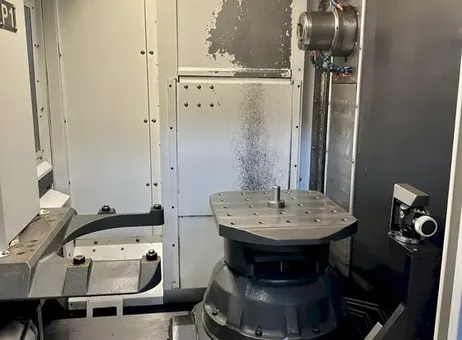

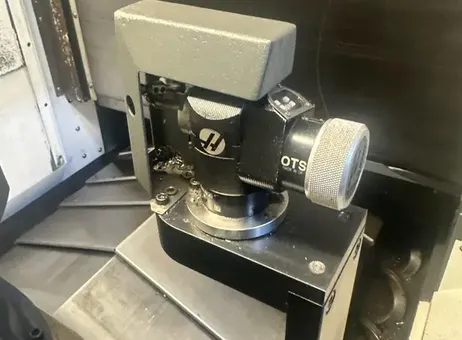

The enclosure is intact and generally clean, showing minor wear marks and some paint chipping inside the machining area, which is typical for used equipment. The spindle nose features coolant nozzles, and there is an optical tool setter (Haas OTS) mounted inside the enclosure to assist with tool measurement. The machine’s exterior panels have minor scratches and signs of use, and it is currently mounted on wooden blocks, likely for stability during storage or transport.

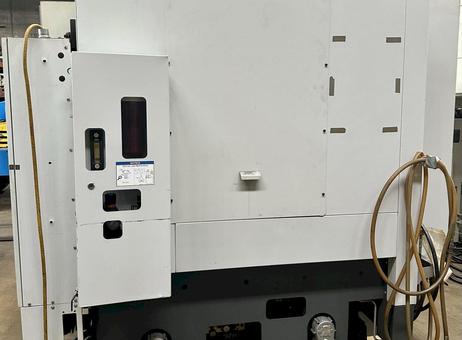

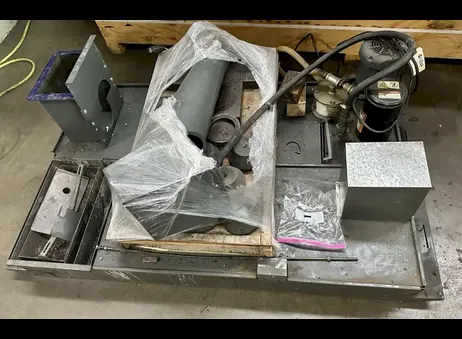

Additional features include a visible fluid level indicator on the left panel and hoses attached on the right side. Various machine parts and components are organized nearby, some wrapped in plastic, indicating careful handling. Overall, the Haas EC-400 offers a capable and versatile solution for horizontal machining applications in a used condition with visible signs of normal operational wear.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Equipped With
Haas CNC Control
(2) 15.75" x 15.75" 1-Degree Pallet w/Pallet-Shuttle
8100 Max Spindle RPM, Thru the Spindle Coolant,
24 Position Automatic Tool Changer
WIPS-R
Control Options (EPFDM, Home, RJH-C, Rtap-3)
80 Gallon Coolant System.
Specifications
CNC Control : yes
Type of CNC Control : Haas CNC Control
# Axis 4
Number of Pallets 2
Pallet Dimensions 15.75" x 15.75"
Maximum Pallet Load 1,000 LBS
B-Axis (Pallet Indexing) 0.001°
X-Axis (Longitudinal Table Travel) 20"
Y-Axis (Vertical Travel) 20"
Z-Axis (Spindle Travel) 20"
Spindle Nose to Pallet Center Minimum 3.9"
Spindle Nose to Pallet Center Maximum 23.9"
Feed Rate, All Axes 500 IPM
Rapid Traverse Rate, All Axes 1,000 IPM
Spindle Horsepower 20 HP
Spindle Taper CAT 40
Spindle Speed Range 0 - 8,100 RPM
Coolant Through Spindle yes
Automatic Tool Changer Capacity (ATC) 24
Automatic Tool Changer Style Side-Mount
Electrics 220/3/60
Approximate Machine Dimensions 140" x 97"
Approximate Machine Height 102"
Approximate Machine Weight 22,000 LBS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
