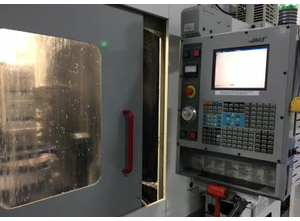

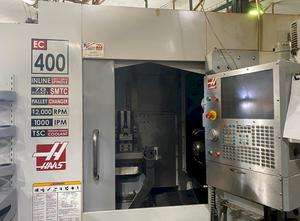

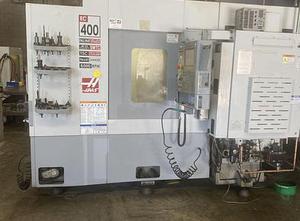

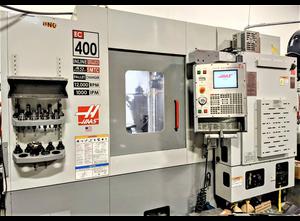

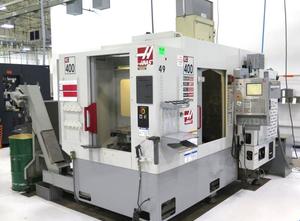

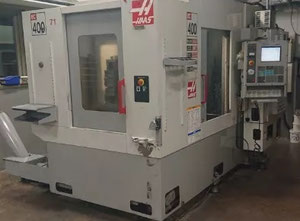

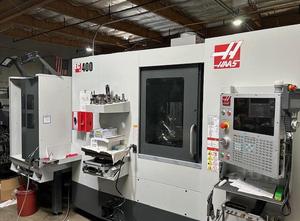

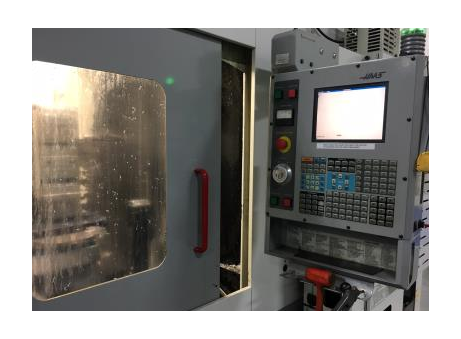

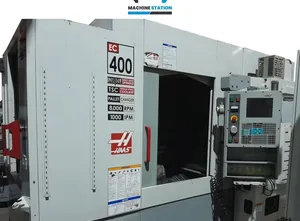

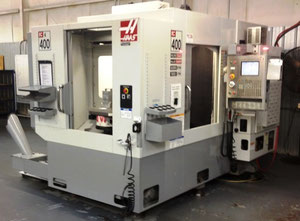

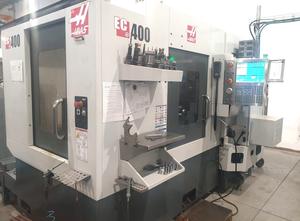

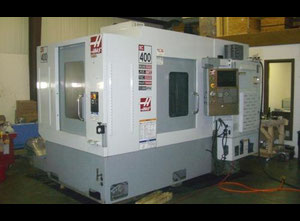

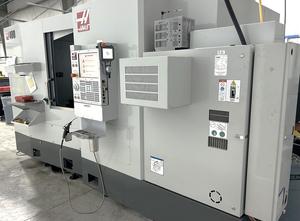

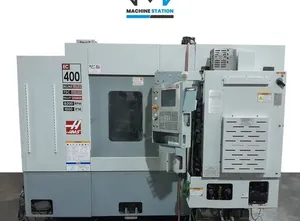

Haas EC-400

Model: Haas EC-400

Description: The Haas EC-400 is a robust horizontal machining center designed to enhance productivity and efficiency in CNC machining environments.

Common Applications: This machine is ideal for high-volume production and continuous operation in industries such as automotive, aerospace, and contract manufacturing.

Pallet Size: 400 x 400 mm, optimized for versatile job handling.

X-Y-Z Axis Travel: 560 x 510 x 510 mm, providing a comprehensive range and flexibility in machining.

Spindle Speed: Maximum 8,100 RPM, tailored for precision and rapid material removal.

Spindle Power: 22 kW, delivering significant cutting power to handle a variety of materials.

Tool Capacity: 70-pocket side-mount tool changer, enabling extensive tooling options and quick changeovers.

Maximum Table Load: 400 kg, supporting substantial workpiece weights.

Positional Accuracy: +/- 0.005 mm, ensuring superior precision and consistency.

Rapid Traverse Rates: 45.7 m/min in X, Y, and Z axes, facilitating high-speed machine movements.

Machine Dimensions: 3670 x 2870 x 2845 mm, strategically sized for efficient use of shop floor space.

Machine Weight: Approximately 12,700 kg, indicative of its sturdy and durable construction.

Pallet Change Time: 8 seconds, enhancing throughput by minimizing idle times.

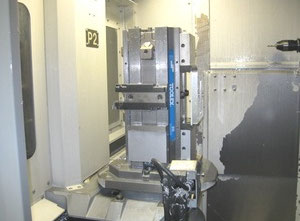

Number of Pallets: 2, allowing one pallet to be loaded while the machine operates on the other.

Control System: Features the state-of-the-art Haas CNC control, offering advanced programmability and user-friendly operation.

Construction: Dual-axis spindle head and rigid cast iron construction provide optimal stability and dampening properties during high-speed machining operations.

Advantages: The Haas EC-400 is renowned for its capability to handle complex parts through 4th-axis rotary integration, allowing for multi-sided machining in a single setup. This reduces cycle times and increases part accuracy, making it a valuable asset in any machining operation.
