Contact us to receive an offer.
| Manufacturer | Graziano |
|---|---|
| Model | CTX 310 |
| Year | 2008 |
| Location | Italy
|

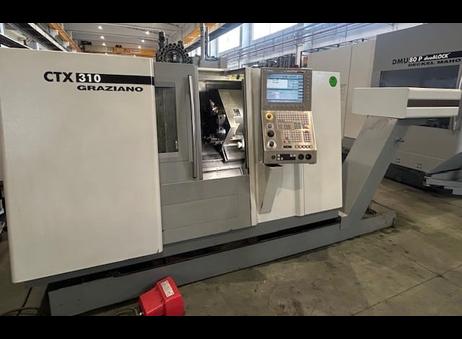

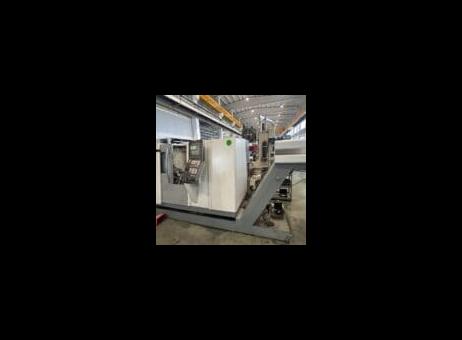

Machine: Graziano CTX 310 CNC lathe (manufactured 2008). Control and software: Siemens 840D numerical control with ShopTurn software installed. Work envelope and travels: turning diameter above the bed 500 mm, turning diameter above the transversing slide 375 mm, and a turning diameter (Turning Ø) of 246 mm. Axis travels are X = 213 mm and Z = 450 mm. Features and tooling: the machine is equipped with a motorized tool turret (motorized stations reported) and a main spindle with a flat flange nose. Additional equipment and documentation: supplied with a chip evacuator, preparation for a dust extractor, a range of fixed and motorized tool holders, instructional manuals, and a CE declaration. Additional equipment noted in the description includes an automatic counterpunch with a punch-nose attachment. What is not stated here: several common technical details (spindle bore, spindle power and speed ranges, exact turret station count, bar-feed capacity, rapid-feed rates, and workpiece weight limits) are not provided in the available fields and are therefore omitted. If you require any of those specifics (for example spindle power, spindle bore, turret station count, bar capacity, counterpunch stroke or force, or running condition and commissioning status), request them from the seller to confirm before purchase. This listing summarizes the documented capabilities and the accessories declared for this Graziano CTX 310 without introducing unspecified numeric data or condition claims.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

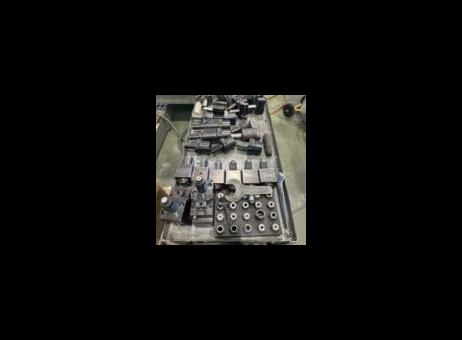

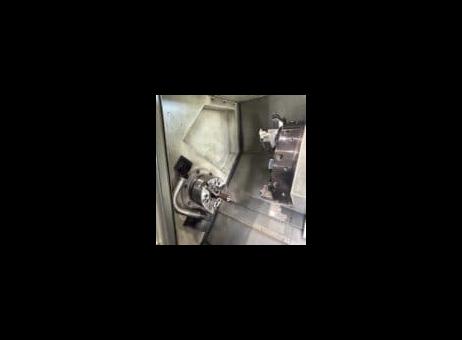

The TORNIO CNC GRAZIANO CTX 310 is a CNC machine equipped with a Siemens 840D control system and ShopTurn software. It features a work area with a maximum diameter of 500 mm for turning on the bed, 375 mm for turning on the slide, and a maximum diameter of 246 mm for turning. The machine can handle bars up to 65 mm in diameter and has a cross travel of 213 mm and a longitudinal travel of 450 mm. The spindle advances at a rate of 24/30 m/min for rapid movement on the X/Z axis. The main spindle has a flat flange nose with a diameter of 140 h5 mm, an internal bearing diameter of 100 mm, and a motor power of 16/12 kW with a torque of 153/115 Nm. The tool turret can accommodate 12 stations, all motorized, with a spindle diameter of 30 mm, a motor power of 9 kW, and a maximum speed of 4500 min-1. The machine is equipped with an automatic counterpunch with a stroke of 450 mm, an attachment for a punch nose of CM 4, and a maximum counterpunch force of 400 daN. It was manufactured in 2008 and comes complete with a chip evacuator, preparation for a dust extractor, various fixed and motorized tool holders, and instructional manuals along with a CE declaration.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 69 |
| Last activity | Oct. 30, 2026 |
The TORNIO CNC GRAZIANO CTX 310 is a CNC machine equipped with a Siemens 840D control system and ShopTurn software. It features a work area with a maximum diameter of 500 mm for turning on the bed, 375 mm for turning on the slide, and a maximum diameter of 246 mm for turning. The machine can handle bars up to 65 mm in diameter and has a cross travel of 213 mm and a longitudinal travel of 450 mm. The spindle advances at a rate of 24/30 m/min for rapid movement on the X/Z axis. The main spindle has a flat flange nose with a diameter of 140 h5 mm, an internal bearing diameter of 100 mm, and a motor power of 16/12 kW with a torque of 153/115 Nm. The tool turret can accommodate 12 stations, all motorized, with a spindle diameter of 30 mm, a motor power of 9 kW, and a maximum speed of 4500 min-1. The machine is equipped with an automatic counterpunch with a stroke of 450 mm, an attachment for a punch nose of CM 4, and a maximum counterpunch force of 400 daN. It was manufactured in 2008 and comes complete with a chip evacuator, preparation for a dust extractor, various fixed and motorized tool holders, and instructional manuals along with a CE declaration.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Machine: Graziano CTX 310 CNC lathe (manufactured 2008). Control and software: Siemens 840D numerical control with ShopTurn software installed. Work envelope and travels: turning diameter above the bed 500 mm, turning diameter above the transversing slide 375 mm, and a turning diameter (Turning Ø) of 246 mm. Axis travels are X = 213 mm and Z = 450 mm. Features and tooling: the machine is equipped with a motorized tool turret (motorized stations reported) and a main spindle with a flat flange nose. Additional equipment and documentation: supplied with a chip evacuator, preparation for a dust extractor, a range of fixed and motorized tool holders, instructional manuals, and a CE declaration. Additional equipment noted in the description includes an automatic counterpunch with a punch-nose attachment. What is not stated here: several common technical details (spindle bore, spindle power and speed ranges, exact turret station count, bar-feed capacity, rapid-feed rates, and workpiece weight limits) are not provided in the available fields and are therefore omitted. If you require any of those specifics (for example spindle power, spindle bore, turret station count, bar capacity, counterpunch stroke or force, or running condition and commissioning status), request them from the seller to confirm before purchase. This listing summarizes the documented capabilities and the accessories declared for this Graziano CTX 310 without introducing unspecified numeric data or condition claims.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
