Contact us to receive an offer.
| Manufacturer | GILDEMEISTER |
|---|---|
| Model | SPPED 12-7 LINEAR |
| Year | 2007 |
| Location | Italy
|
This listing features a GILDEMEISTER SPPED 12-7 LINEAR Swiss type lathe manufactured in 2007. The machine is equipped with a FANUC control system and offers 7 axes, providing versatile machining capabilities. It has a compact footprint with dimensions of 2043 mm in length, 1138 mm in width, and 1760 mm in height, and weighs approximately 2100 kg.
The lathe's main spindle supports a maximum bar diameter of 15 mm and operates at speeds up to 12,000 rpm with a spindle power of 3.7 kW. The spindle counter shares similar specifications, capable of handling turning diameters up to 15 mm at the same maximum speed and power.
Axis performance includes a maximum rapid traverse speed of 40 m/min and acceleration up to 10 m/s². The translation paths are as follows: X1 (linear) at 30 mm, Y1 at 195 mm, Z1 at 120 mm, and secondary axes X2 and Z2 at 180 mm each.
Tooling is managed via two linear tool holder systems. The first trolley holds 5 fixed and 4 driven tools, with fixed tool joints sized 10 x 10 mm and driven tools powered at 1.1 kW (S3 40%) and 0.55 kW (S1). The second sliding carriage accommodates 8 fixed and 5 driven tools, with fixed tool joints of 16 mm diameter and similar drive power ratings for driven tools.

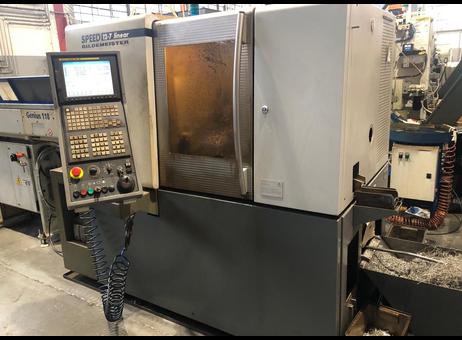

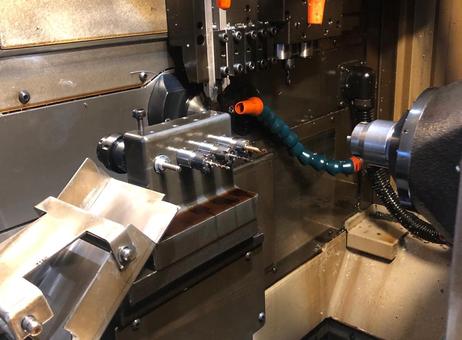

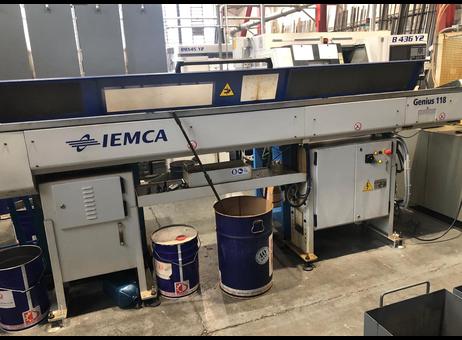

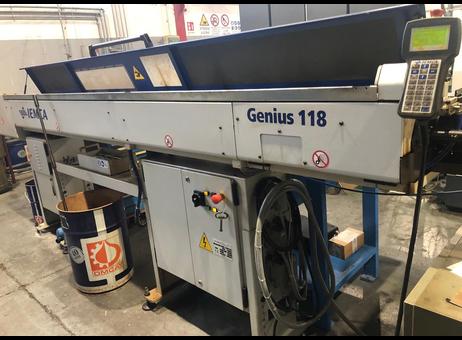

The machine includes an IEMCA Genius 118 bar loader, which is visible in the images and appears clean and well-maintained. The lathe features an enclosed machining area with a window for visibility, a control panel with screen and multiple buttons including an emergency stop, and flexible coolant hoses directed at the machining area. The interior shows typical signs of use such as metal chips and coolant residue.

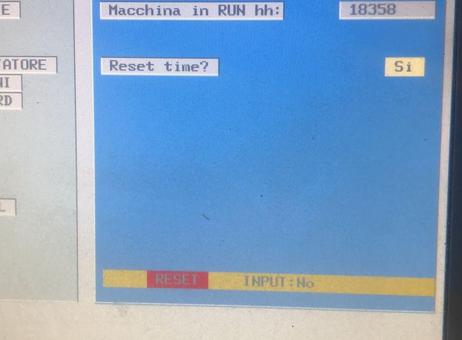

Machine hours displayed on the control screen indicate approximately 26,030 total hours with 18,358 hours in running mode. Overall, the machine presents a clean exterior and is situated in an industrial environment with supporting equipment visible nearby.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control: FANUC
Number of axles: 7
Complete with IEMCA GENIUS 118 bar loader
Main spindle:
- Max. diameter bar: 12 (15) mm
- Maximum speed rpm: 12,000
- Driving performance (S2: 30 min/ S1) kW 3.7 / 2.2
Spindle counter:
- Maximum turning diameter: 12 (15) mm
- Maximum speed rpm: 12,000
- Driving performance (S2: 30 min/ S1) kW 3.7 / 2.2
Aces:
- Maximum rapid translation of the axes m / min 40
- Maximum acceleration of the axes m / s2 10
- Translation path X1 (linear) / Y1/ Z1 mm 30/ 195/ 120
- Translation path X2 / Y2 / Z2 mm 180/-/ 180
Tool holder trolley 1:
- Tool holder system: linear
- Number of fixed/driven tools: 5 / 4
- Cross section of the joint for fixed tools: 10 x10 mm
- Drive power for driven tools (S3 40% / S1): kW 1.1 / 0.55
Tool holder sliding carriage 2:
- Tool holder system: linear
- Number of fixed/driven tools: 8/ 5*
- Cross section of the joint for fixed tools: mm ø 16
- Drive power for driven tools (S3 40%/ S1): kW 1.1 / 0.55
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 202 |
| Last activity | Oct. 29, 2026 |
Control: FANUC
Number of axles: 7
Complete with IEMCA GENIUS 118 bar loader
Main spindle:
- Max. diameter bar: 12 (15) mm
- Maximum speed rpm: 12,000
- Driving performance (S2: 30 min/ S1) kW 3.7 / 2.2
Spindle counter:
- Maximum turning diameter: 12 (15) mm
- Maximum speed rpm: 12,000
- Driving performance (S2: 30 min/ S1) kW 3.7 / 2.2
Aces:
- Maximum rapid translation of the axes m / min 40
- Maximum acceleration of the axes m / s2 10
- Translation path X1 (linear) / Y1/ Z1 mm 30/ 195/ 120
- Translation path X2 / Y2 / Z2 mm 180/-/ 180
Tool holder trolley 1:
- Tool holder system: linear
- Number of fixed/driven tools: 5 / 4
- Cross section of the joint for fixed tools: 10 x10 mm
- Drive power for driven tools (S3 40% / S1): kW 1.1 / 0.55
Tool holder sliding carriage 2:
- Tool holder system: linear
- Number of fixed/driven tools: 8/ 5*
- Cross section of the joint for fixed tools: mm ø 16
- Drive power for driven tools (S3 40%/ S1): kW 1.1 / 0.55
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a GILDEMEISTER SPPED 12-7 LINEAR Swiss type lathe manufactured in 2007. The machine is equipped with a FANUC control system and offers 7 axes, providing versatile machining capabilities. It has a compact footprint with dimensions of 2043 mm in length, 1138 mm in width, and 1760 mm in height, and weighs approximately 2100 kg.
The lathe's main spindle supports a maximum bar diameter of 15 mm and operates at speeds up to 12,000 rpm with a spindle power of 3.7 kW. The spindle counter shares similar specifications, capable of handling turning diameters up to 15 mm at the same maximum speed and power.
Axis performance includes a maximum rapid traverse speed of 40 m/min and acceleration up to 10 m/s². The translation paths are as follows: X1 (linear) at 30 mm, Y1 at 195 mm, Z1 at 120 mm, and secondary axes X2 and Z2 at 180 mm each.
Tooling is managed via two linear tool holder systems. The first trolley holds 5 fixed and 4 driven tools, with fixed tool joints sized 10 x 10 mm and driven tools powered at 1.1 kW (S3 40%) and 0.55 kW (S1). The second sliding carriage accommodates 8 fixed and 5 driven tools, with fixed tool joints of 16 mm diameter and similar drive power ratings for driven tools.
The machine includes an IEMCA Genius 118 bar loader, which is visible in the images and appears clean and well-maintained. The lathe features an enclosed machining area with a window for visibility, a control panel with screen and multiple buttons including an emergency stop, and flexible coolant hoses directed at the machining area. The interior shows typical signs of use such as metal chips and coolant residue.
Machine hours displayed on the control screen indicate approximately 26,030 total hours with 18,358 hours in running mode. Overall, the machine presents a clean exterior and is situated in an industrial environment with supporting equipment visible nearby.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 202 |
| Last activity | Oct. 29, 2026 |
