Contact us to receive an offer.
| Manufacturer | GILDEMEISTER |
|---|---|
| Model | GD12 |
| Year | 2001 |
| Location | Italy
|

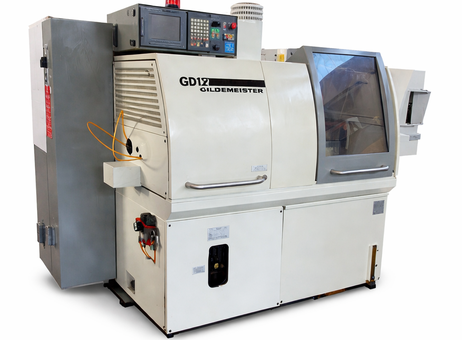

For sale is a GILDEMEISTER GD12 Swiss-type lathe, manufactured in 2001. This precision machine is designed for high-accuracy turning operations and features a maximum bar diameter capacity of 12 mm and a maximum machining length of 180 mm. The lathe is equipped with five rotating tools, each capable of operating at spindle speeds up to 12,000 rpm, powered by a spindle motor rated at 2.2 kW.
The machine measures 2300 mm in length, 1200 mm in width, and 1850 mm in height, with a total weight of approximately 1450 kg. It includes a sliding headstock with a Z1 stroke of 160 mm, rapid traverse speeds of 30 m/min, and acceleration rates of 10 m/s² across all axes. The lathe provides a radial stroke (X1) of 85 mm and a transverse stroke (Y1) of 150 mm, supporting complex machining tasks.

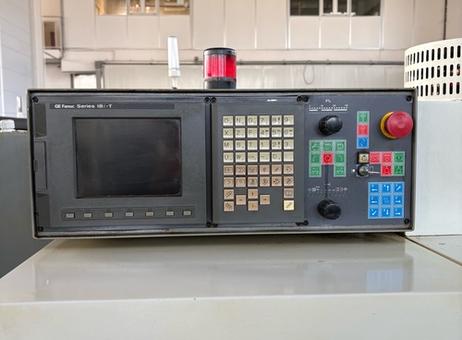

Additional features include a protective transparent door on the right side for operator safety, a control panel labeled 'GE Fanuc Series 16i-T' with a display and multiple buttons for precise operation, and an emergency stop button for immediate machine shutdown. The machine's exterior shows minor signs of use but remains clean and well-maintained, with ventilation grills on the grey panels ensuring proper cooling.

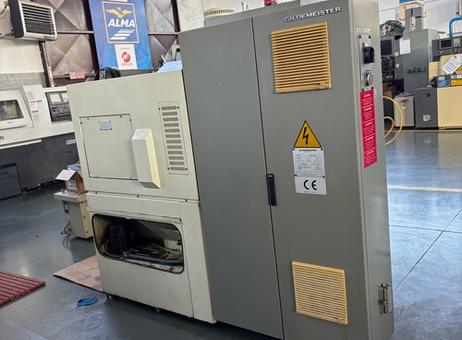

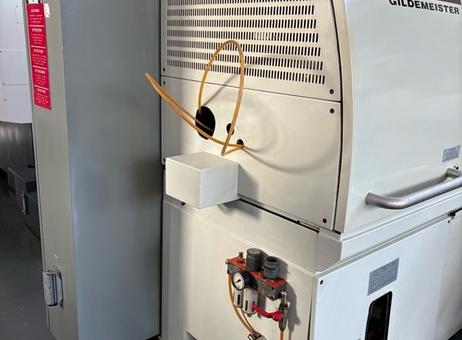

The back of the machine has visible pneumatic or hydraulic control valves and gauges, along with connected air or fluid lines, indicating integrated fluid control systems. Safety labels, including a CE certification and electrical hazard warnings, are affixed to the machine.
Included with the lathe are electrical schematics and a service tool kit. The machine is delivered in four packages and is suitable for users seeking a reliable Swiss-type lathe for precision manufacturing applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: GILDEMEISTER GD12 Swiss Type Lathe
Manufacturer: GILDEMEISTER
Model: GD12
Year of Manufacture: 2001
Technical Condition: In working conditions
Maximum Bar Diameter: 12.7 mm
Maximum Spindle Speed: 12,000 rpm
Spindle Power (25% / 100%): 2.2 kW / 1.5 kW
Z1 Sliding Headstock Stroke: 160 mm
Rapid Traverse Speed of All Axes: 30 m/min
Acceleration of All Axes: 10 m/s²
X1 Radial Stroke: 85 mm
Y1 Transverse Stroke: 150 mm
Number of Fixed Tools: 5
Number of Fixed + Driven Tools: 5 + 3
Driven Tool Power (40% Duty Cycle): 1.1 kW
Maximum Driven Tool Speed: 6,000 rpm
Z2 Longitudinal Stroke: 180 mm
Sub-Spindle Power (60% Duty Cycle): Via Main Motor
Maximum Speed: 12,000 rpm
Maximum Drilling Diameter: 7 mm
Maximum Tapping Capacity: M8
Electrical Schematics Included: Yes
Service Tool Kit Included: Yes
Dimensions:
Length: 2300 mm
Width: 1200 mm
Min/Max Height: 1850 mm
Weight: 1450 kg
Number of Packages: 4
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is the tailstock mobile on this Gildemeister GD12?
This Gildemeister GD12 CNC turning machine has a mobile tailstock.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 48 |
| Last activity | Oct. 27, 2026 |
Offer Title: GILDEMEISTER GD12 Swiss Type Lathe
Manufacturer: GILDEMEISTER
Model: GD12
Year of Manufacture: 2001
Technical Condition: In working conditions
Maximum Bar Diameter: 12.7 mm
Maximum Spindle Speed: 12,000 rpm
Spindle Power (25% / 100%): 2.2 kW / 1.5 kW
Z1 Sliding Headstock Stroke: 160 mm
Rapid Traverse Speed of All Axes: 30 m/min
Acceleration of All Axes: 10 m/s²
X1 Radial Stroke: 85 mm
Y1 Transverse Stroke: 150 mm
Number of Fixed Tools: 5
Number of Fixed + Driven Tools: 5 + 3
Driven Tool Power (40% Duty Cycle): 1.1 kW
Maximum Driven Tool Speed: 6,000 rpm
Z2 Longitudinal Stroke: 180 mm
Sub-Spindle Power (60% Duty Cycle): Via Main Motor
Maximum Speed: 12,000 rpm
Maximum Drilling Diameter: 7 mm
Maximum Tapping Capacity: M8
Electrical Schematics Included: Yes
Service Tool Kit Included: Yes
Dimensions:
Length: 2300 mm
Width: 1200 mm
Min/Max Height: 1850 mm
Weight: 1450 kg
Number of Packages: 4
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is the tailstock mobile on this Gildemeister GD12?
This Gildemeister GD12 CNC turning machine has a mobile tailstock.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
For sale is a GILDEMEISTER GD12 Swiss-type lathe, manufactured in 2001. This precision machine is designed for high-accuracy turning operations and features a maximum bar diameter capacity of 12 mm and a maximum machining length of 180 mm. The lathe is equipped with five rotating tools, each capable of operating at spindle speeds up to 12,000 rpm, powered by a spindle motor rated at 2.2 kW.
The machine measures 2300 mm in length, 1200 mm in width, and 1850 mm in height, with a total weight of approximately 1450 kg. It includes a sliding headstock with a Z1 stroke of 160 mm, rapid traverse speeds of 30 m/min, and acceleration rates of 10 m/s² across all axes. The lathe provides a radial stroke (X1) of 85 mm and a transverse stroke (Y1) of 150 mm, supporting complex machining tasks.
Additional features include a protective transparent door on the right side for operator safety, a control panel labeled 'GE Fanuc Series 16i-T' with a display and multiple buttons for precise operation, and an emergency stop button for immediate machine shutdown. The machine's exterior shows minor signs of use but remains clean and well-maintained, with ventilation grills on the grey panels ensuring proper cooling.
The back of the machine has visible pneumatic or hydraulic control valves and gauges, along with connected air or fluid lines, indicating integrated fluid control systems. Safety labels, including a CE certification and electrical hazard warnings, are affixed to the machine.
Included with the lathe are electrical schematics and a service tool kit. The machine is delivered in four packages and is suitable for users seeking a reliable Swiss-type lathe for precision manufacturing applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 48 |
| Last activity | Oct. 27, 2026 |
