Contact us to receive an offer.
| Manufacturer | GILDEMEISTER |
|---|---|
| Model | CTV250 |
| Year | 2001 |
| Location | Germany
|
This listing features a Gildemeister CTV 250 CNC lathe machine, manufactured in 2001. The machine offers a longitudinal traverse (Z-axis) of 300 mm, enabling precise axial movement during turning operations. It is equipped with a spindle bore diameter of 79 mm, suitable for accommodating various workpieces. The lathe's spindle can reach speeds from 20 up to 5000 revolutions per minute, providing a wide range of turning speeds for different machining requirements.
The spindle motor delivers a powerful 42.4 kW, supporting robust machining tasks. The tool turret includes 12 stations, allowing for multiple tools to be used without frequent changes, enhancing operational efficiency. The turret uses a VDI 40 tool taper system. The main spindle torque is rated at 200 Nm, while the tool carrier provides a maximum torque of 28 Nm at the clamping center.
The machine operates on a three-phase electrical supply of 400V at 50Hz and requires a total power input of approximately 50 kVA. It features an interface for control and connectivity purposes. Although specific details about tailstock taper and adjustment are not provided, the lathe supports various machining setups.

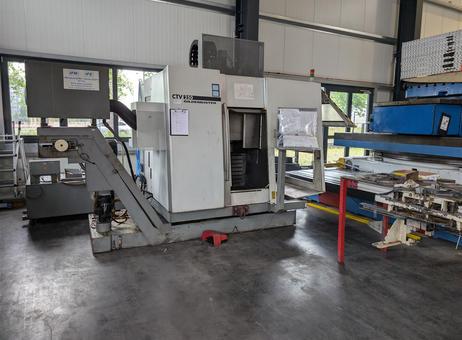

Visually, the lathe is situated in an indoor industrial environment with a clean surrounding floor, indicating good maintenance of the workspace. The enclosure door is shown open in the available image, and a chip conveyor is attached to the left side of the machine, facilitating efficient removal of machining debris. Additionally, a red foot pedal is present in front of the machine, likely used for operational control.
This Gildemeister CTV 250 CNC lathe is a versatile and powerful machine suitable for various turning applications, combining substantial power, speed range, and tooling capacity with practical accessories such as the chip conveyor.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
longitudinal traverse (z-axis): 300 mm
control:
revolution per minute: 20 - 5000 U/min
spindle bore: 79 mm
external spindle dia. in forward position: 120 mm
Torque: Hauptantrieb: 200 Nm
max. torque at clamping center: Werkzeugträger: 28 Nm m
feed motor: N
rapid motion - x-axis: m/min
tool turret - number of stations: 12
tool taper: VDI 40
tailstock taper ISO:
tailstock adjustment: mm
Main spindle capacity: kW
spindle hours: 42.400 h
operating hours - idle run: 93.728 h
electrics - voltage/frequency: 3~ / 400V / 50Hz V/Hz
interface: yes
total power requirement: 50 kVA
dimension machine approx.LxWxH: m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
