| Manufacturer | Ganesh |
|---|---|
| Model | GT-3080 Series |
| Year | |
| Location | USA
|

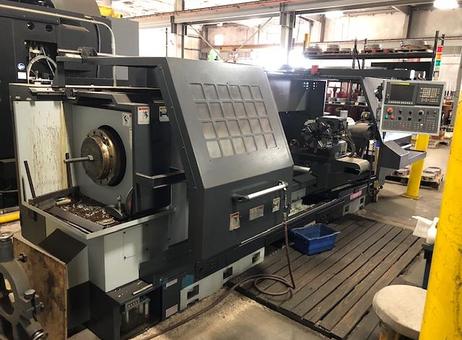

This Ganesh GT-3080 Series CNC lathe is designed for heavy-duty machining with a robust spindle motor rated at 20.0 kW and a spindle speed of 600 rpm. It features a swing over bed of 30 inches (760 mm) and a swing over cross slide of 19 inches (480 mm), providing ample capacity for large workpieces. The center height is 15 inches (380 mm), accommodating various turning operations. The machine includes a 24-inch 3-jaw manual chuck with a 10-inch bore, suitable for securely holding workpieces. It is equipped with a FANUC 0i-TD control system featuring Manual Guide i, offering precise CNC control and user-friendly operation. The lathe has a rapid traverse feedrate of 394 IPM (10 m/min) on the X and Z axes, with travel distances of 19-5/8 inches (500 mm) and 96 inches respectively. Ball screws on the X and Z axes measure 1.25 inches (32 mm) and 2 inches (50 mm) in diameter, powered by servo motors of 3.5 HP (2.5 kW) and 4.0 HP (2.9 kW). Additional features include an 8-inch (200 mm) quill stroke with manual advancement, a 2 HP hydraulic motor operating at 500 PSI with Mobil #32 oil, and a 3/4 HP coolant pump. The machine comes with a chip conveyor and steady rest to support extended machining operations. Visually, the lathe is enclosed with a protective cover and has a control panel mounted on an arm on the right side, featuring alphanumeric keys, function keys, and an emergency stop button. The control panel shows signs of use but remains intact and functional. Some metal shavings are present near the spindle area, indicating prior use. The surrounding area includes wooden planks and concrete flooring, with hoses and containers nearby. This Ganesh GT-3080 Series CNC lathe is suitable for demanding turning tasks requiring reliable precision and robust construction.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Swing over Bed 30” (760 mm)
Swing over Cross Slide 19” (480 mm)
Center Height 15” (380 mm)
Spindle Motor Horsepower (Fanuc 18.5Kw) 30-HP Peak (25-HP 30-min. rated)
Big-Bore Spindle Option – Bore Size 10” A2-15 spindle Big-Bore
Spindle Speeds 18-600 rpm (2-ranges)
Workpiece weight limit when held in chuck 1,100 lbs. (500kgs)
Workpiece weight limit when held by chuck and tailstock 2,200 lbs. (1,000kgs)
Workpiece weight limit when held by chuck, steady rest & tailstock 4,400 lbs. (2,000kgs)
Rapid Traverse Feedrate X&Z 394 IPM (10m/min)
X-Axis Cross slide travel 19-5/8” (500 mm)
Z-Axis Longitudinal travel 96”
X-Axis Ball screw Diameter / Servo Motor Power 1.25” (32 mm) / 3.5-HP (2.5kw)
Z-Axis Ball screw Diameter / Servo Motor Power 2” (50 mm) / 4.0-HP (2.9kw)
Quill stroke (manual quill advance, hydraulic optional) 8″ (200 mm)
Hydraulic Motor Power 2-H.P.
Hydraulic Pressure 500 PSI / Mobil #32 oil
Coolant Pump 3/4-HP
Equipped With:

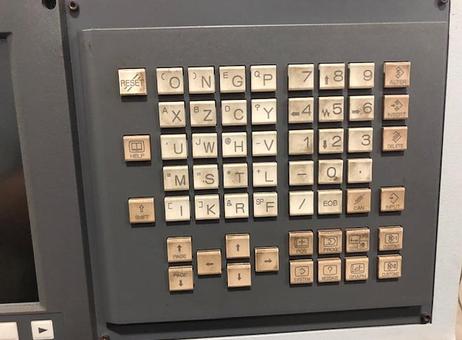

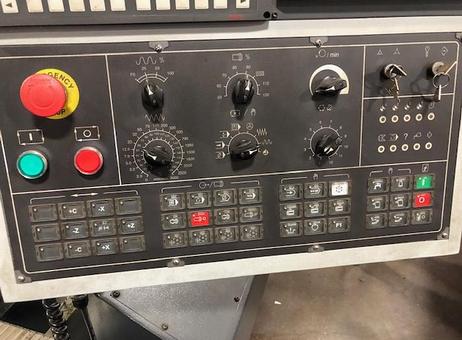

FANUC 0i-TD (With Manual Guide i)
24″ 3 Jaw Manual Chuck (10″ Bore)
Chip Conveyor
Steady Rest
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
