Contact us to receive an offer.
| Manufacturer | Biglia |
|---|---|
| Model | B 550 SM |
| Year | 2006 |
| Location | Italy
|

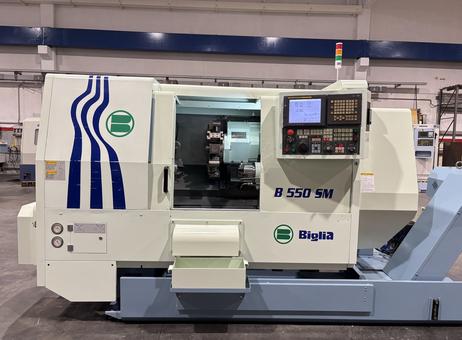

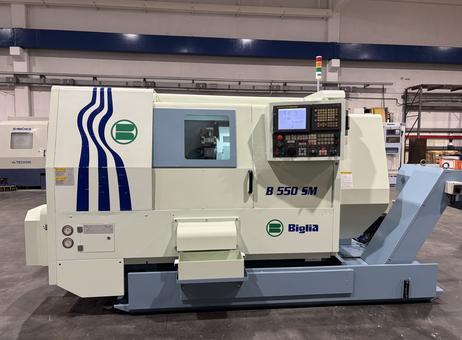

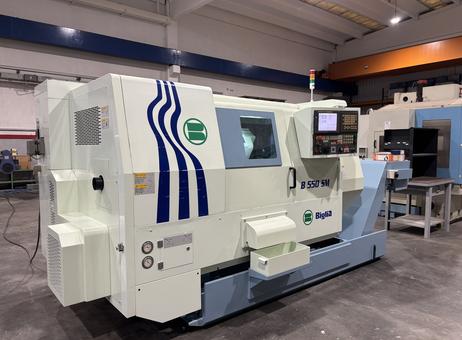

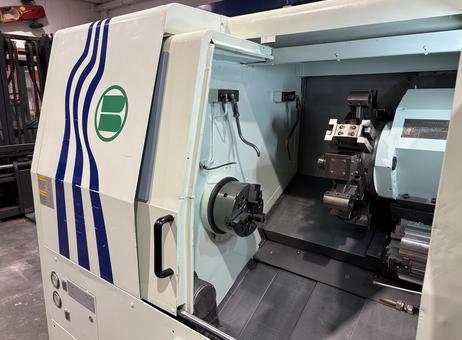

Biglia B 550 SM CNC lathe (manufactured 2006) — motorized main spindle with sub-spindle and GE Fanuc Series 18i-TB CNC control. This is a heavy-duty turning center with a listed machine weight of 5,000 kg, intended for medium-length turning work and rework operations.
Key machine specifications (as provided):
- Manufacturer / Model: Biglia B 550 SM
- Year: 2006

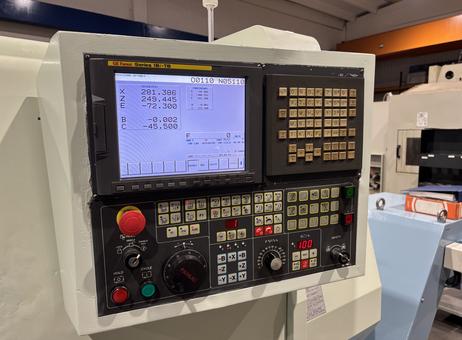

- Control: GE Fanuc Series 18i-TB
- Maximum rotating diameter: 580 mm
- Maximum turning/working length: 550 mm
- X-axis travel: 173 mm
- Z-axis travel: 550 mm
- Maximum spindle speed: 4,000 rpm

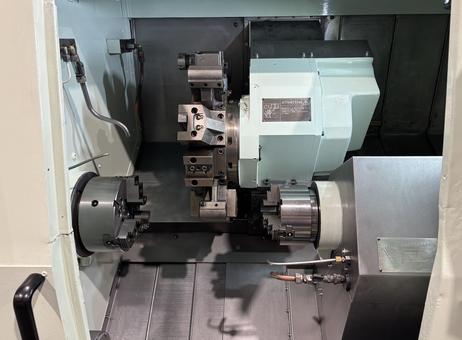

- Configuration: motorized main spindle plus sub-spindle
Tooling and peripherals (as provided):
- Bidirectional motorized turret (motorized tool stations)
- Combination of motorized and fixed tooling options are listed as included
- Chip conveyor is listed as included
Comments:
This description summarizes the supplied specification data. Tooling configuration, exact turret station count, spindle nose details and certain diameters were provided in the original listing text but are not restated here beyond the core dimensions and travel values above. No claims are made regarding machine condition, operational testing, or warranty. Prospective buyers should verify tooling, accessories, and functional condition directly with the seller prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
lathes
BIGLIA B 550 SM LATHE
MOTORIZED + SUB-SPINDLE
CNC GE FANUC Series 18i- TB
MAX. BAR WORKING DIAMETER: 67 mm
MAX. DIAMETER FOR REWORKING: 296 mm
MAX. WORKING LENGTH: 550 mm
MAX. ROTATING DIAMETER: 580 mm
SPINDLE:
SPEED: 40 – 4,000 RPM
MAIN SPINDLE NOSE: ASA – 6
SELF-CENTERING DIAMETER: 210 mm

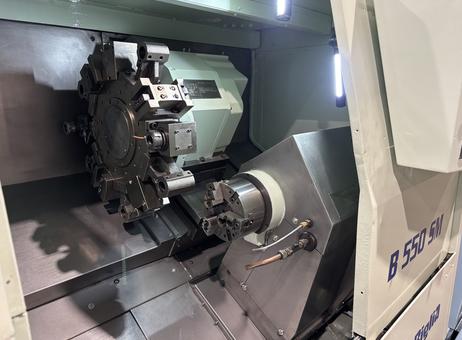

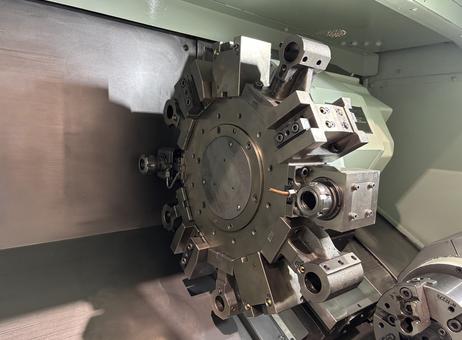

BIDIRECTIONAL TURRET: 12 POSITIONS (ALL MOTORIZED)
TRAVELS:
X: 173 mm
Z: 550 mm
B: 600 mm
SUB-SPINDLE NOSE: ASA – 5
SELF-CENTERING DIAMETER: 165 mm
INCLUDED: 2 MOTORIZED TOOLS
VARIOUS FIXED TOOLS MIXED
CHIP CONVEYOR
WEIGHT: 5,000 KG
YEAR OF FIRST INSTALLATION: 2006
TO VIEW THE MACHINE IN OPERATION VIDEO, COPY AND PASTE THE FOLLOWING LINK:
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 29 |
| Last activity | Oct. 30, 2026 |
lathes
BIGLIA B 550 SM LATHE
MOTORIZED + SUB-SPINDLE
CNC GE FANUC Series 18i- TB
MAX. BAR WORKING DIAMETER: 67 mm
MAX. DIAMETER FOR REWORKING: 296 mm
MAX. WORKING LENGTH: 550 mm
MAX. ROTATING DIAMETER: 580 mm
SPINDLE:
SPEED: 40 – 4,000 RPM
MAIN SPINDLE NOSE: ASA – 6
SELF-CENTERING DIAMETER: 210 mm
BIDIRECTIONAL TURRET: 12 POSITIONS (ALL MOTORIZED)
TRAVELS:
X: 173 mm
Z: 550 mm
B: 600 mm
SUB-SPINDLE NOSE: ASA – 5
SELF-CENTERING DIAMETER: 165 mm
INCLUDED: 2 MOTORIZED TOOLS
VARIOUS FIXED TOOLS MIXED
CHIP CONVEYOR
WEIGHT: 5,000 KG
YEAR OF FIRST INSTALLATION: 2006
TO VIEW THE MACHINE IN OPERATION VIDEO, COPY AND PASTE THE FOLLOWING LINK:
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Biglia B 550 SM CNC lathe (manufactured 2006) — motorized main spindle with sub-spindle and GE Fanuc Series 18i-TB CNC control. This is a heavy-duty turning center with a listed machine weight of 5,000 kg, intended for medium-length turning work and rework operations.
Key machine specifications (as provided):
- Manufacturer / Model: Biglia B 550 SM
- Year: 2006
- Control: GE Fanuc Series 18i-TB
- Maximum rotating diameter: 580 mm
- Maximum turning/working length: 550 mm
- X-axis travel: 173 mm
- Z-axis travel: 550 mm
- Maximum spindle speed: 4,000 rpm
- Configuration: motorized main spindle plus sub-spindle
Tooling and peripherals (as provided):
- Bidirectional motorized turret (motorized tool stations)
- Combination of motorized and fixed tooling options are listed as included
- Chip conveyor is listed as included
Comments:
This description summarizes the supplied specification data. Tooling configuration, exact turret station count, spindle nose details and certain diameters were provided in the original listing text but are not restated here beyond the core dimensions and travel values above. No claims are made regarding machine condition, operational testing, or warranty. Prospective buyers should verify tooling, accessories, and functional condition directly with the seller prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 29 |
| Last activity | Oct. 30, 2026 |
