| Manufacturer | Fermat |
|---|---|
| Model | SF 48 1500 |
| Year | 2008 |
| Location | Czech Republic
|
This listing features a Fermat SF 48 1500 CNC lathe, a robust machine designed for precision turning tasks. Manufactured in 2008, the lathe has a maximum turning length of 1500 mm and a maximum turning diameter of 460 mm, including above the bed. The spindle motor delivers a power of 7.5 kW, capable of reaching speeds up to 4500 rpm, making it suitable for a variety of machining applications.

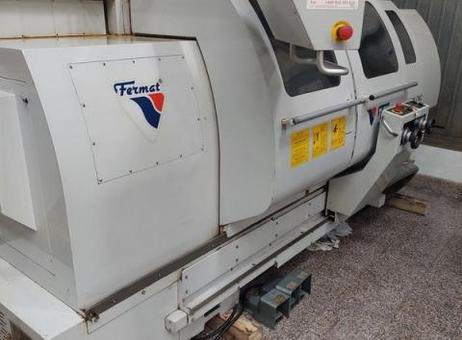

The machine's dimensions are 3530 mm in length, 1935 mm in width, and 2022 mm in height, with a total weight of 3450 kg. The lathe features a protective enclosure with a window, allowing operators to monitor the machining process safely. The enclosure houses a fluorescent light tube to illuminate the work area effectively.

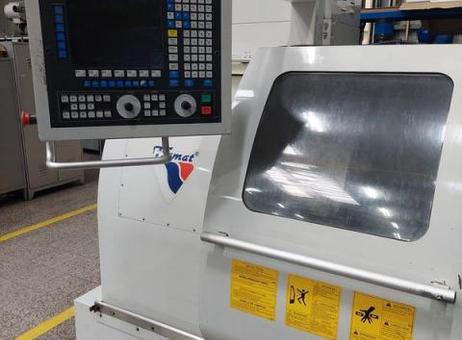

The control panel is mounted on an adjustable arm and includes a screen along with numerous buttons and dials, providing comprehensive control over the machining operations. An emergency stop button is prominently located on the front panel for safety purposes. Yellow safety and instruction labels are affixed below the enclosure window to guide safe operation.

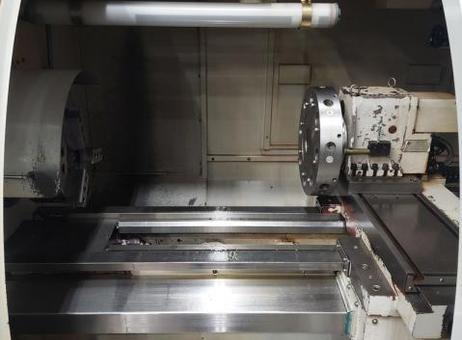

The machine appears clean and well-maintained with minor signs of wear consistent with regular use. The interior, including the chuck, tool holder, and bed, shows some wear marks and slight paint chipping on lower parts but no significant damage. No tooling or workpieces are installed in the machine at the time of inspection.
This Fermat SF 48 1500 CNC lathe is situated indoors on a factory floor, ready for integration into your production line. Inspection by prior arrangement is possible to assess the machine's condition and suitability for your needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Fagor 8055 TC
Maximum turning length: 1500 mm
Maximum turning diameter: 460 mm
Turning diameter above the bed (max.): 460 mm 475 mm
Spindle clearance: 51 mm
Maximum spindle speed: 51 RPM: 4500 1/min
Spindle power: 4500 rpm: Spindle power: 7.5/11 kW
Dimensions L x W x H: 3530 x 1935 x 2022 mm
Weight: 3450kg
Possibility of inspection in operation by prior arrangement.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
