| Manufacturer | Engel |
|---|---|
| Model | Victory 200/90 tech + Viper 6 RC300 |
| Year | 2015 |
| Location | Germany
|

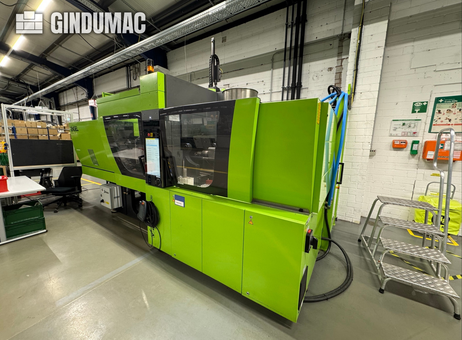

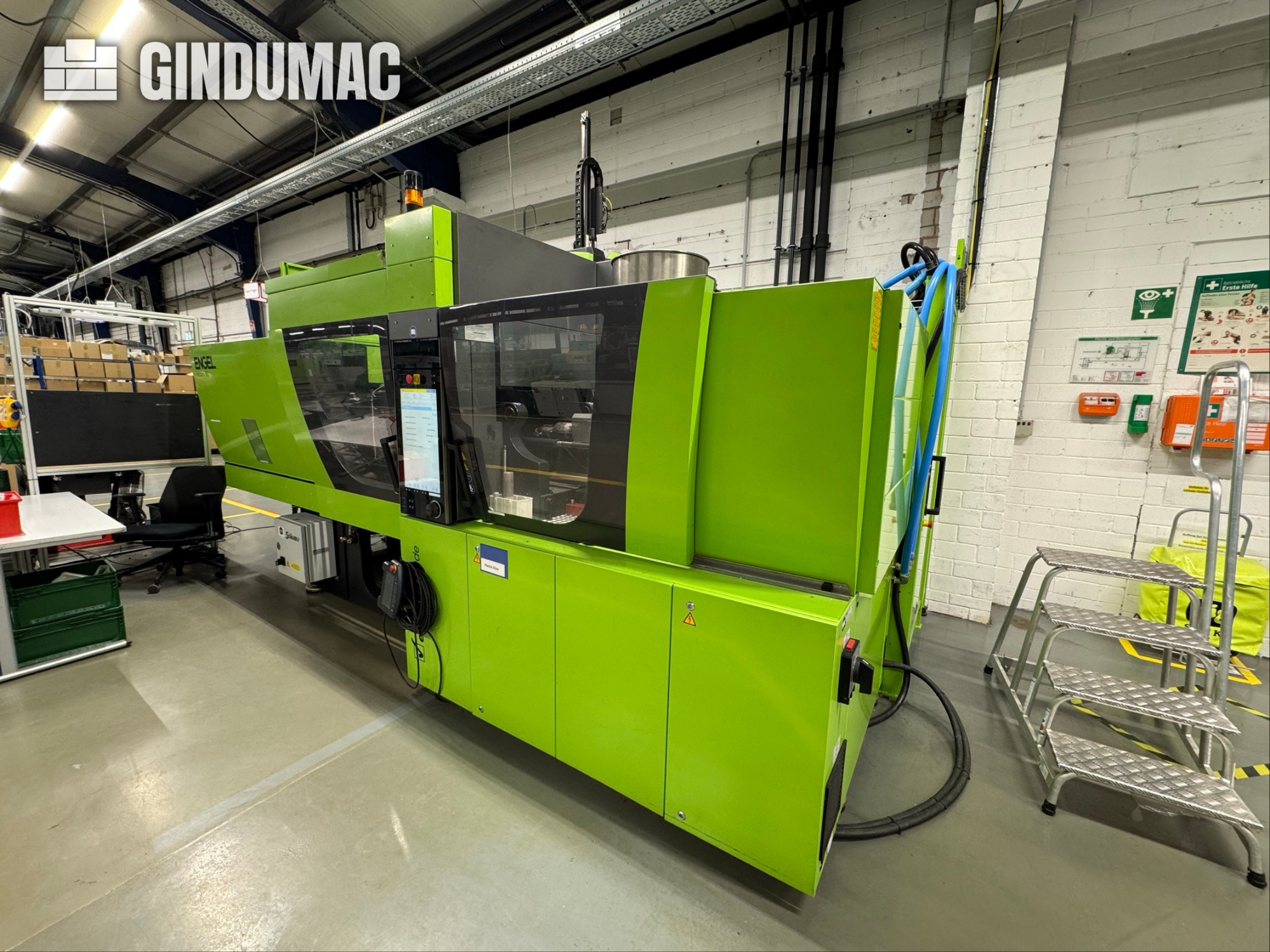

ENGEL Victory 200/90 tech hydraulic injection moulding machine with Viper 6 RC300 robot, manufactured in 2015. The machine has a clamping force of 90 tonnes and is equipped with a robot. Its stated total system height is 4100 mm.
The moulding machine features a central ejector system and a Stäubli magnetic clamping system. The configuration also includes an ENGEL cc300 control system. The Viper 6 RC300 robot is part of the machine setup. A touchscreen control panel is mounted on the machine housing, and dark transparent guarding covers the moulding area. A tall transparent safety door with a handle is also present beside the machine.

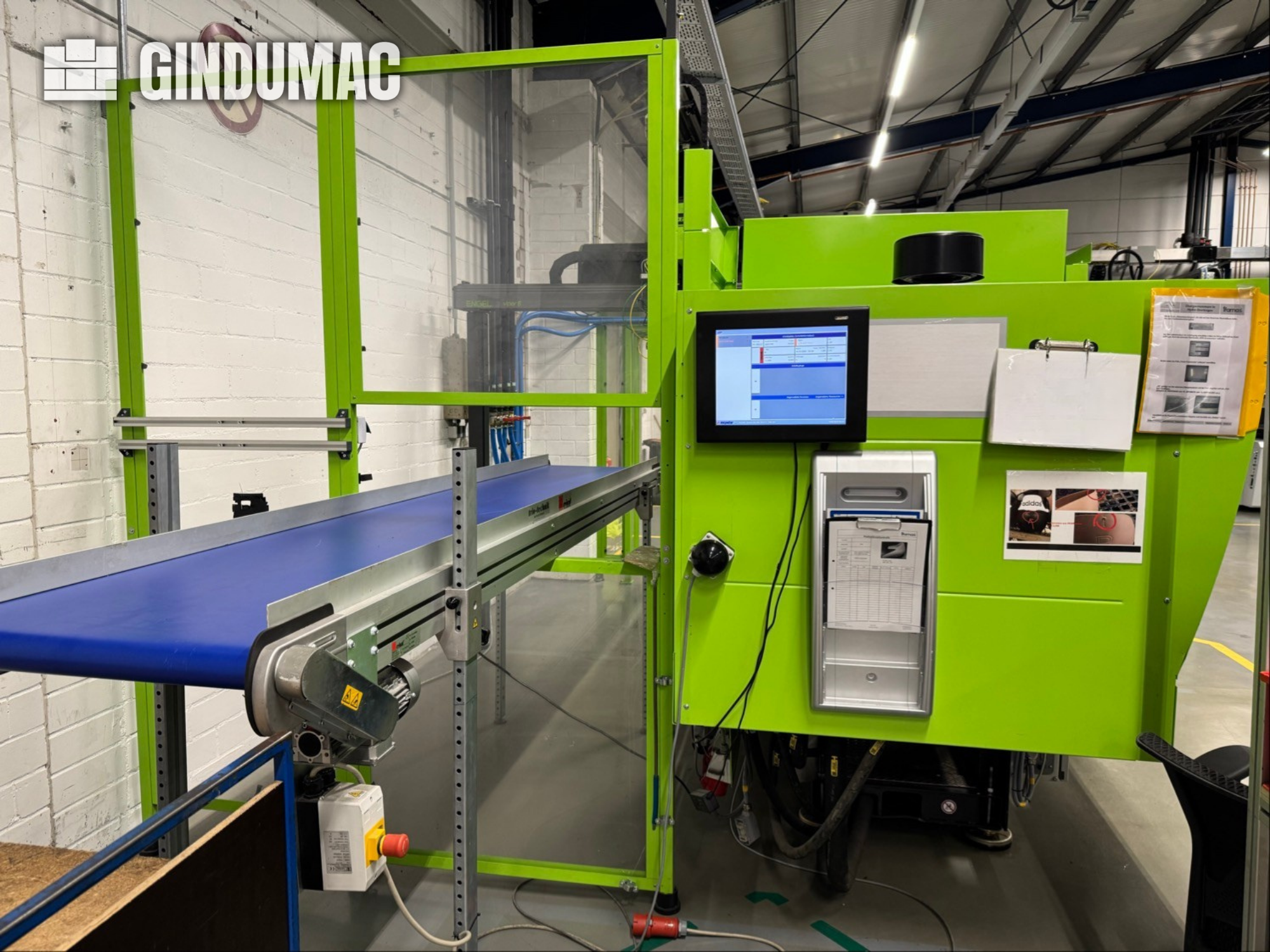

A blue-belt conveyor and metal support structure are positioned alongside the machine, with a transparent safety enclosure around the conveyor area. Blue hoses run along the side of the machine, and black hoses or cables are routed near the floor. These visible components are arranged around the machine and conveyor setup.

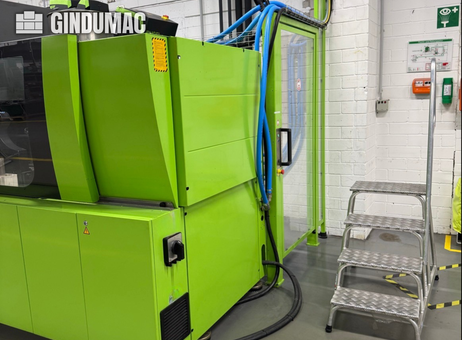

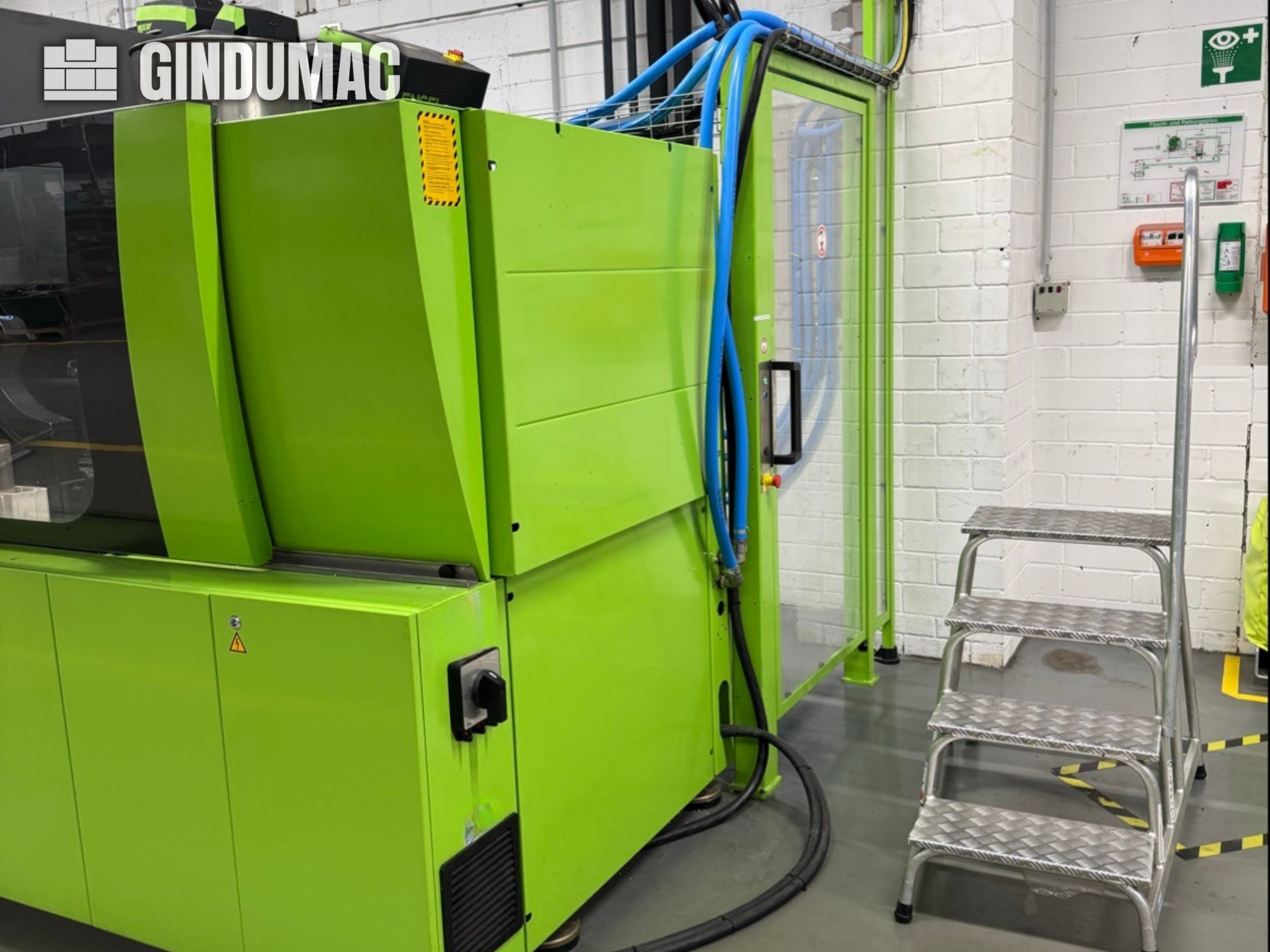

The exterior panels appear generally intact, with minor visible marks and no major damage apparent. The conveyor and machine housing also appear assembled and in generally good visible condition. This description covers the Engel Victory 200/90 tech injection moulding machine and its Viper 6 RC300 robot configuration, with the control system, ejector and magnetic clamping system noted above.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis Engel Victory 200/90 tech + Viper 6 RC300 was manufactured in 2015. It features a clamping force of 90 tonnes and an injection unit size of 200. The machine includes a central ejector system and a magnetic clamping system for enhanced efficiency. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 200/90 tech + Viper 6 RC300 hydraulic injection moulding machine we have for sale. Contact us for further details.ENGEL Victory 200/90 tech
- Clamping Force: 90 tonnes
- Injection Unit Size: 200

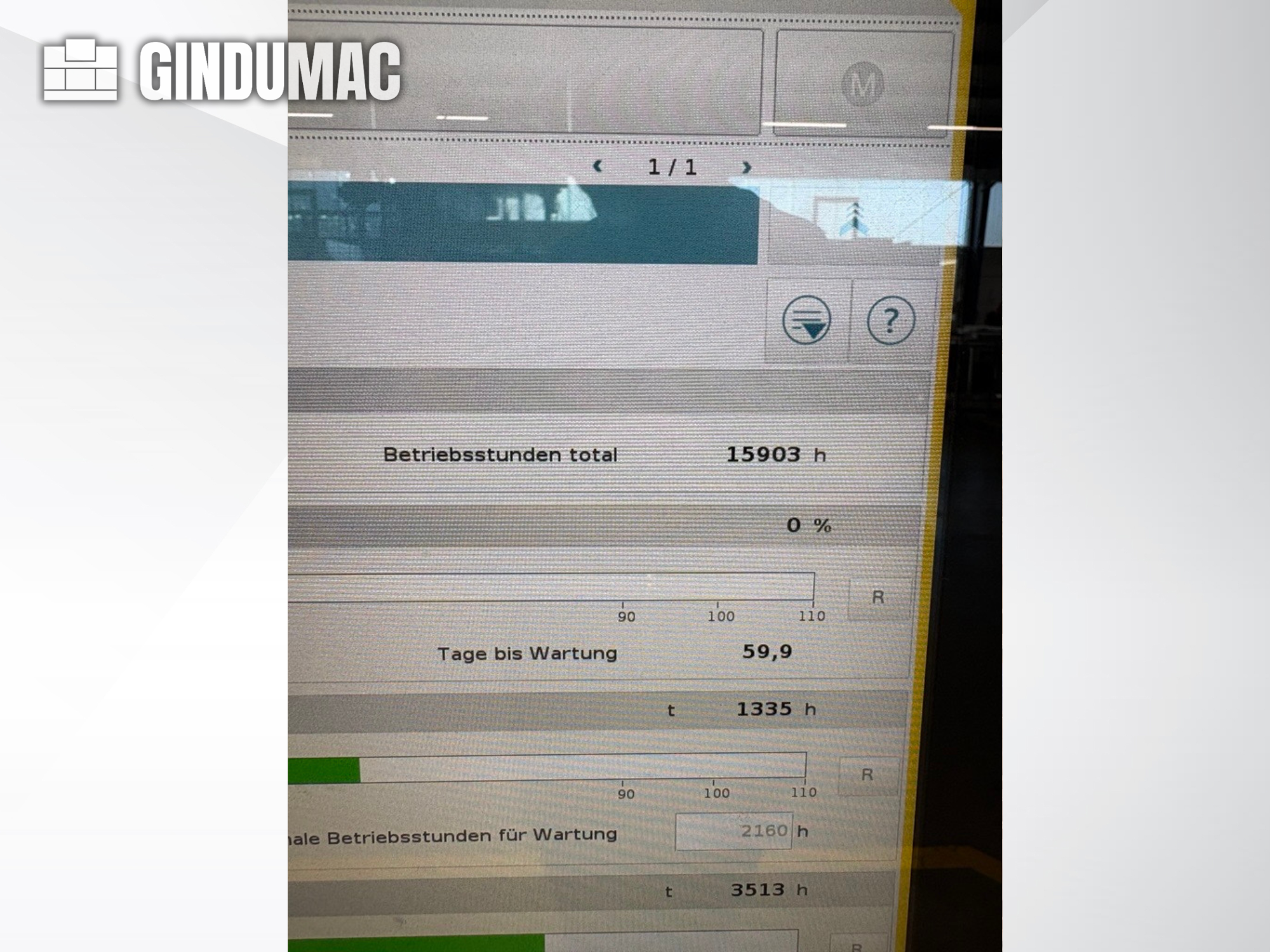

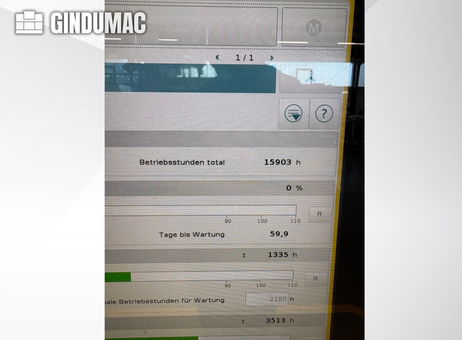

- Total Operating Hours (Machine): 15,903 h

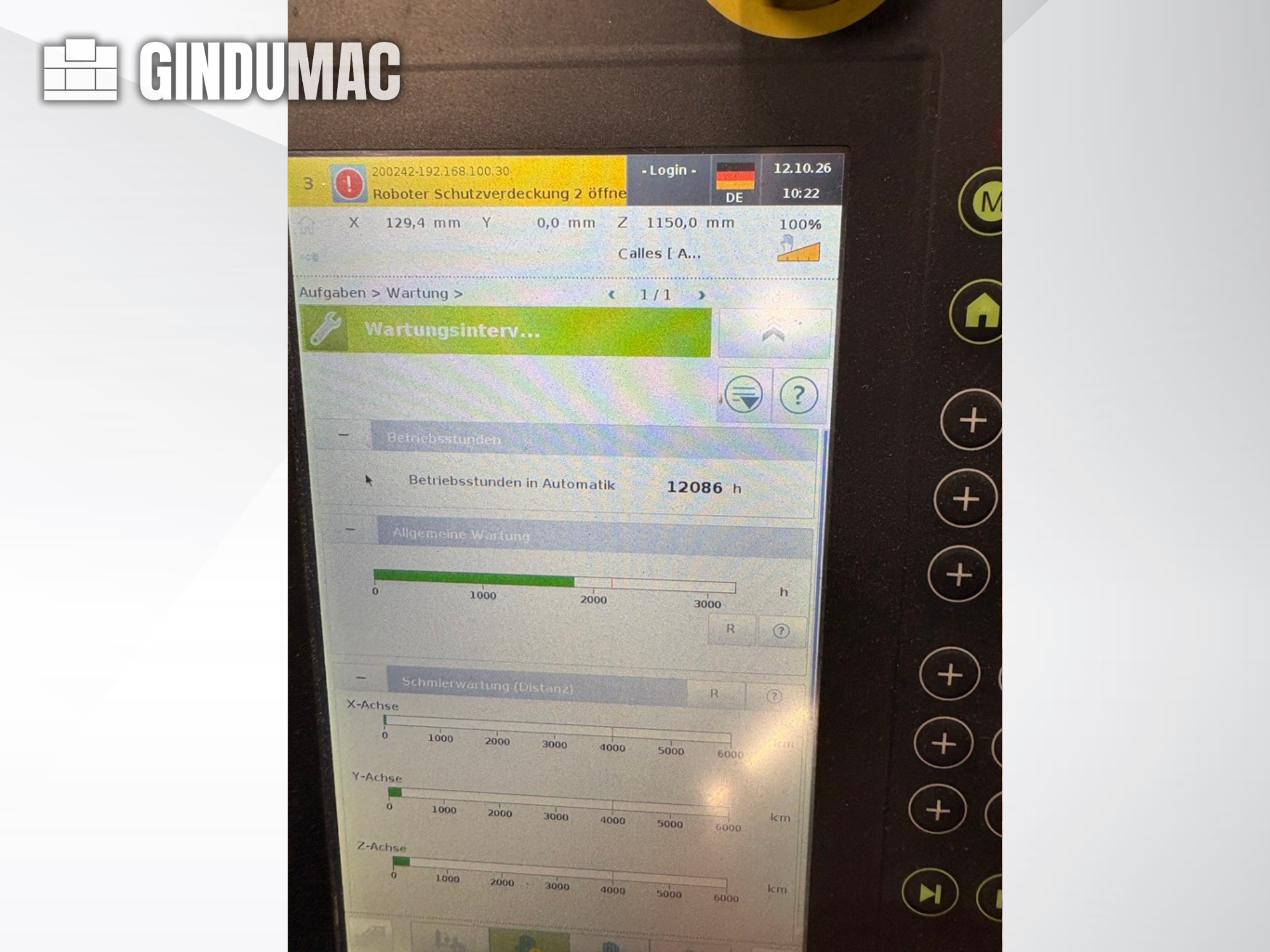

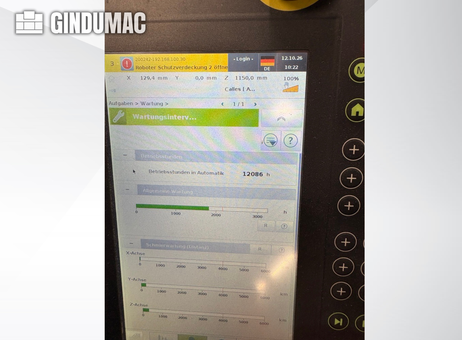

- Operating Hours in Automatic (Robot): 12,086 h
- Clamping Platen Execution: Tie-bar-less standard platen according to EUROMAP
- Centring Diameter: 125 mm EUROMAP
- Magnetic Clamping System: Stäubli magnetic clamping plate
- Ejector System: Central ejector with ejector safety interface
- Heating System: 230 V ceramic cylinder heating bands
ENGEL Viper 6 RC300
- Maximum Manipulation Weight (Payload): 5 kg
- Robot Axis Strokes:
X-Stroke: 400 mm
Y-Stroke (Single): 1,000 mm
Z-Stroke: 2,360 mm
C-Axis: Compact pneumatic rotary axis, 0–90° pivot, torque 6 Nm
- Minimum Deposit Height: 1450 mm (center of unswiveled C-axis, without gripper head and part)
- Max. Vertical Part / Gripper Head Size (TV): 200 mm
- Maximum Total System Height: 4100 mm (handling and machine incl. machine shoes)
- Part Deposit Side: Machine rear side
- Entry Movement: Vertical
Clamping Force: 900 kN
Control Brand: ENGEL
Control Model: cc300
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
