Contact us to receive an offer.
| Manufacturer | DOOSAN |
|---|---|
| Model | PUMA TT1800 SY |
| Year | 2006 |
| Location | Czech Republic
|
This listing is for a DOOSAN PUMA TT1800 SY CNC lathe, manufactured in 2006. The machine weighs approximately 7800 kg and is designed for precision turning operations. It features a maximum turning length of 600 mm, with a maximum circulating diameter above the bed of 300 mm and above the transversing slide of 230 mm. The lathe supports a maximum turning diameter over the bed with upper and lower heads of 230 mm. The distance between the faces of the right and left spindles is 980 mm, allowing for versatile machining capabilities.
The lathe is equipped with C and Y axes, enabling milling operations outside the turning axis with a milling range of 100 mm (±50 mm) on the Y axis. It accommodates a maximum diameter of turned bar of 65 mm on both the left and right spindles. The maximum permissible weight of the workpiece without using a counterspindle, including the chuck weight of 23 kg, is 12 kg.

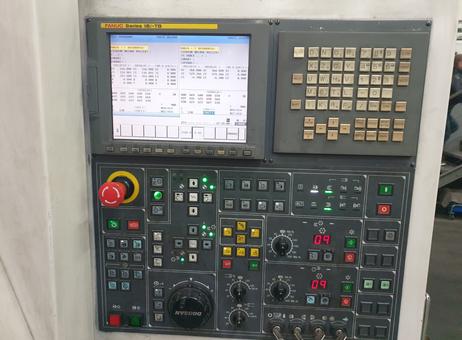

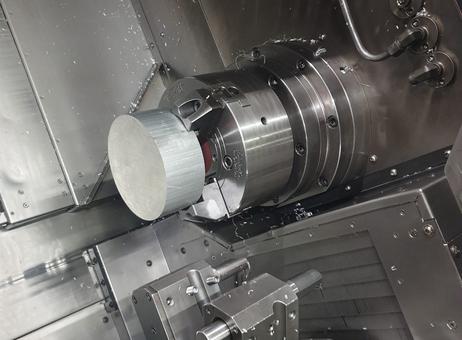

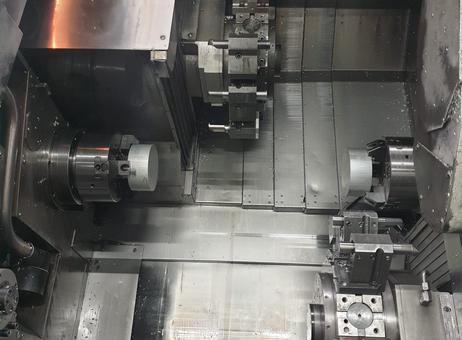

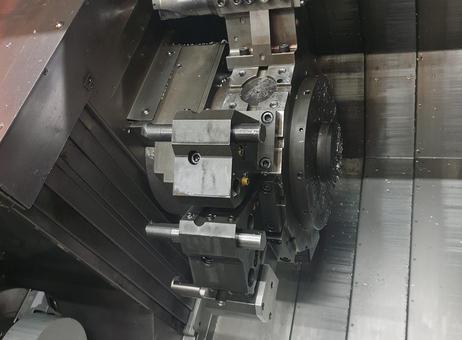

This CNC lathe operates with a Fanuc 18i-TB control system, known for its reliability and precision. Visual inspection indicates the presence of a chuck and turret inside the machining area, as well as a control panel featuring a screen and multiple buttons for machine operation. The machine shows signs of use with some wear and dirt but appears functional. No specific information is provided regarding testing, refurbishment, or warranty.
Overall, the DOOSAN PUMA TT1800 SY is a robust CNC lathe suitable for various turning and milling tasks, offering a combination of precision and versatility for industrial machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The lathe is in good technical condition, has C, Y axes, Fanuc 18i-TB control system.
Max. circulating diameter above the bed 300 mm
Max. circulating diameter above the support 230 mm
Max. turning diameter over bed with upper head 230 mm
Max. turning diameter above bed with lower head 230 mm. Max. turning length 600 mm
Max. distance between the face of the right and the face of the left spindle 980 mm
Milling range outside the turning axis using the Y axis mm 100 (+/- 50).
Max. diameter of turned bar (left spindle) 65 mm.
Max. diameter of turned bar (right spindle) 65 mm.
Max. permissible weight of the workpiece without the use of a counterspindle (including the weight of the chuck = 23 kg) 12 kg.
Total weight 7800kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
