Contact us to receive an offer.
| Manufacturer | DMG MORI |
|---|---|
| Model | NLX3000 |
| Year | 2018 |
| Location | United Kingdom
|
This listing features a DMG MORI NLX3000 CNC lathe, model NLX 3000/1250, manufactured in 2018. The machine has dimensions of 5478 mm in length, 2480 mm in width, and 2362 mm in height, with a total weight of 8900 kg. It offers a turning length of 1260 mm and a maximum turning diameter of 430 mm, with a swing over the bed measuring 978 mm and a swing over the cross-slide of 808 mm. The distance between centers is 1250 mm, allowing for versatile workpiece sizes.
The lathe is equipped with a 12-station turret, accommodating tool sizes of 25 x 25 mm, and provides an X-axis travel of 280 mm and a Z-axis travel of 1370 mm. It features a spindle motor with a power rating of 22 kW and a maximum spindle speed of 3000 rpm. The spindle nose type is A2-8. Additionally, the machine includes a C axis with a resolution of 0.001 degrees, enhancing its precision capabilities.

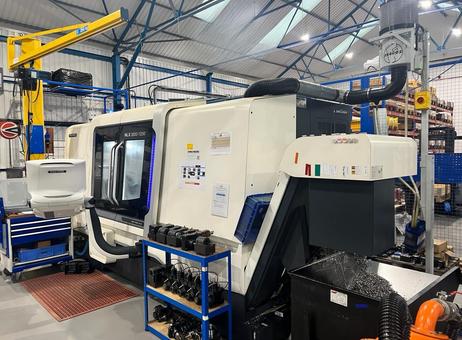

Control is managed via the CELOS system with MAPPS V, offering advanced operational functionality. The machine enclosure includes transparent sliding doors with handles, facilitating easy access and visibility, and the control panel is mounted on an arm to the left side of the machine for ergonomic operation.

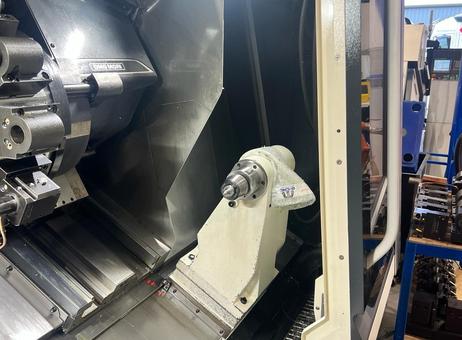

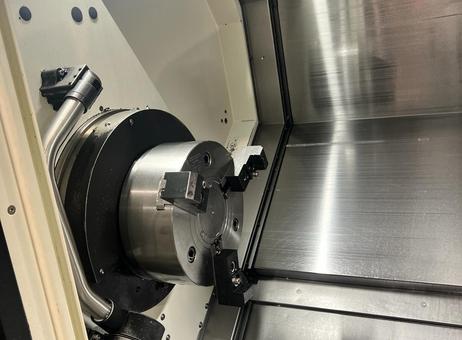

Inside the enclosure, the chuck and tool holder are present, along with a mounted coolant or chip conveyor pipe to assist in machining processes. The tailstock component is also installed, painted white and bearing brand markings. The interior shows some metal shavings and use marks but is generally clean and well-maintained, indicating careful upkeep.
A blue storage rack with multiple tool holders or components is positioned next to the machine, providing convenient storage for tooling and accessories. Overall, this CNC lathe is a robust and versatile machine suitable for various turning applications in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Bar Capacity
90mm
C axis
0.001 degree
Chuck Size
12" (300mm)
Control
CELOS WITH MAPPS V
Distance Between Centres
1250mm
Machine Dimensions
5478 x 2480 x 2362mm
Machine Weight
8900kg
Maximum Cutting Diameter
430mm
Maximum Cutting Length
1260mm
Milling RPM
10000rpm
Spindle Motor Power
22/18.5kW
Spindle Nose
A2-8
Spindle Speed
3000rpm
Swing
978mm
Swing over the Cross-slide
808mm
Tool Size
25 x 25mm
Turret Positions
12 Station
X axis Travel
280mm
Y axis Travel
+/-60mm
Z axis Travel
1370mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
