| Manufacturer | Citizen |
|---|---|
| Model | B16 |
| Year | 2013 |
| Location | Hungary
|
Citizen Cincom B16 Swiss-type lathe, manufactured in 2013, with a four-axis configuration and capacity for a maximum machining diameter of Ø16 mm and maximum machining length of 135 mm. The machine has a spindle speed of up to 10,000 rpm and spindle power of 3.7 kW, with 15 tool positions. Overall dimensions are 1,622 mm long, 837 mm wide and 1,597 mm high; machine weight is 1,150 kg.

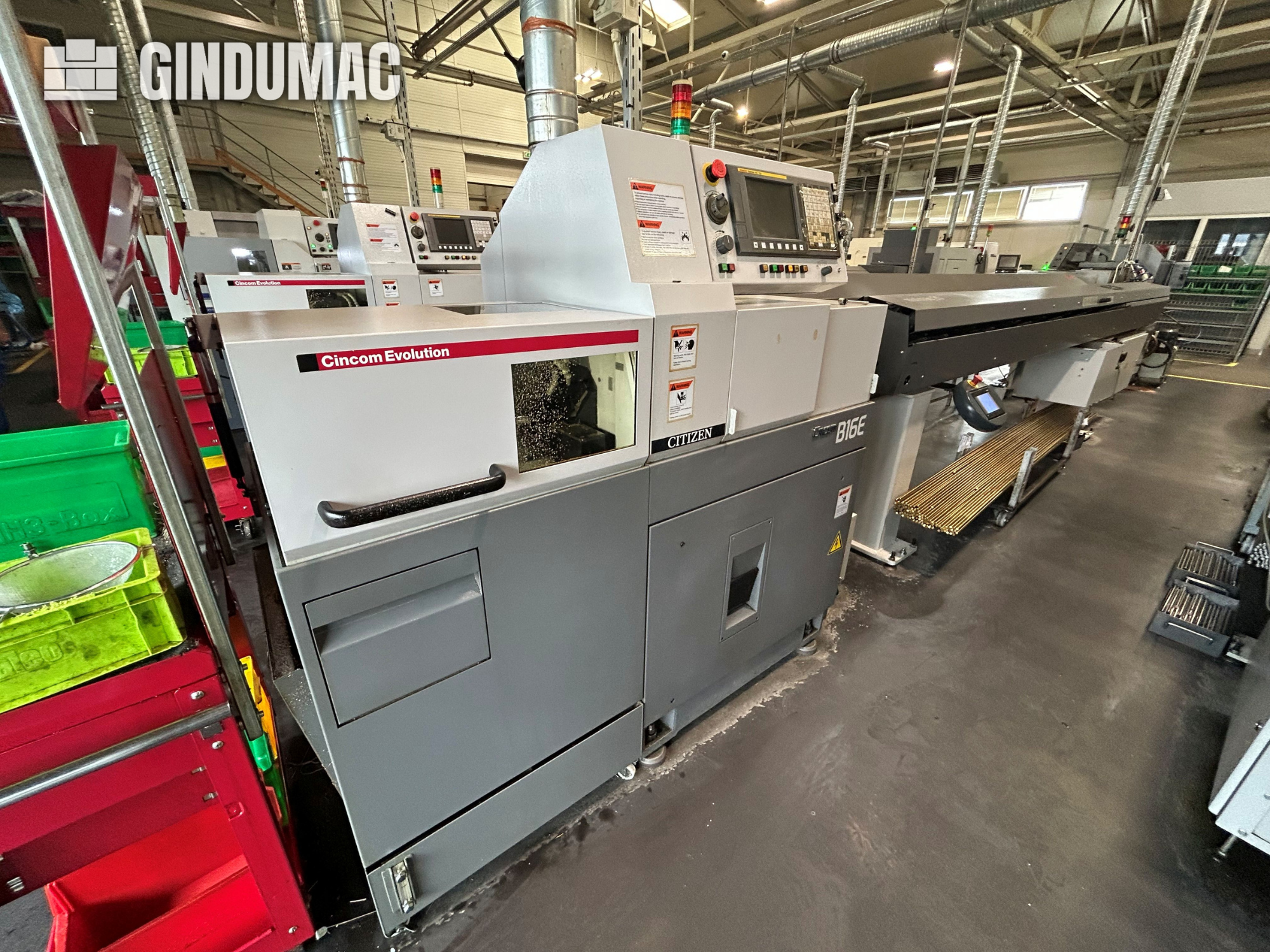

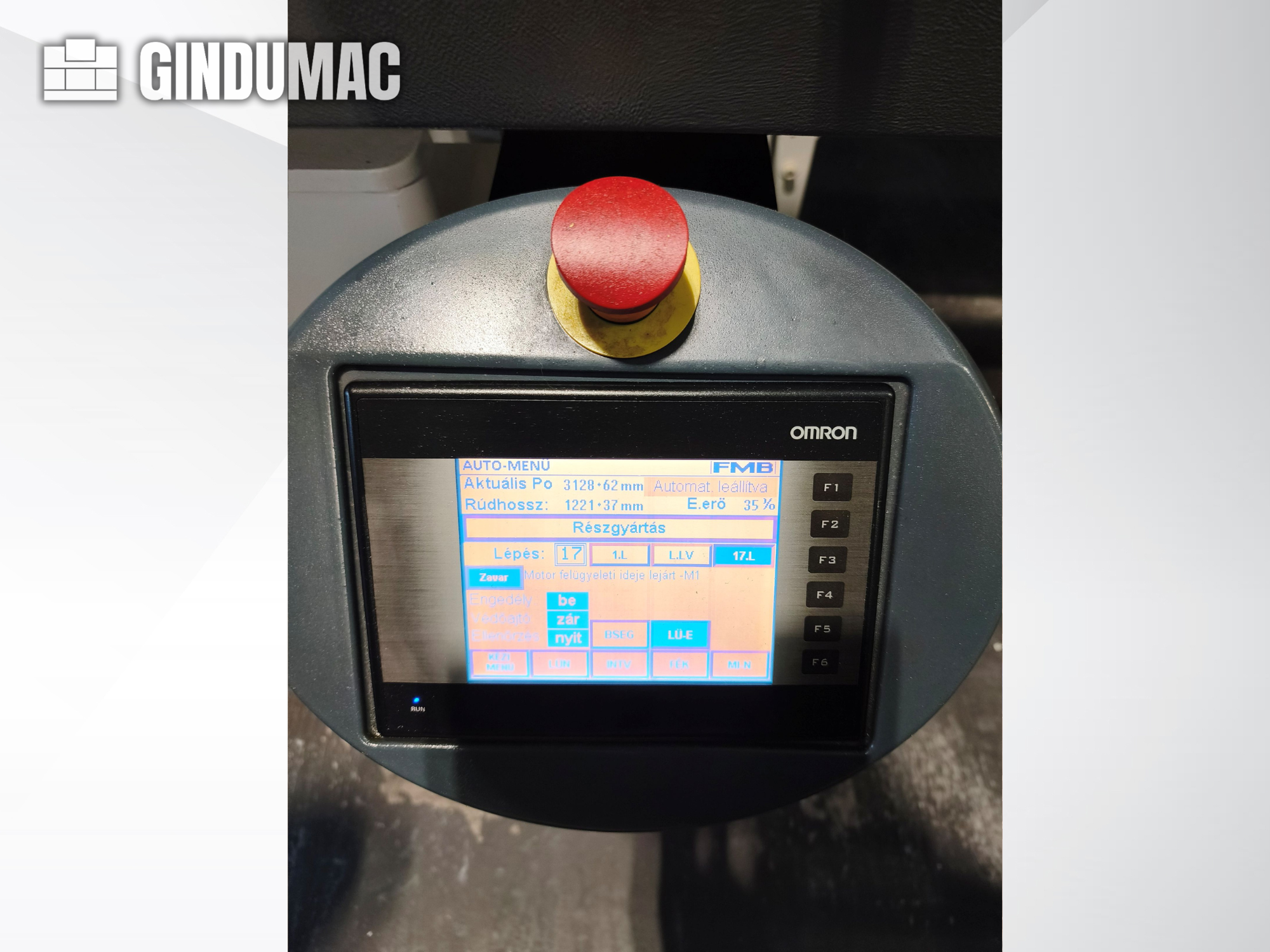

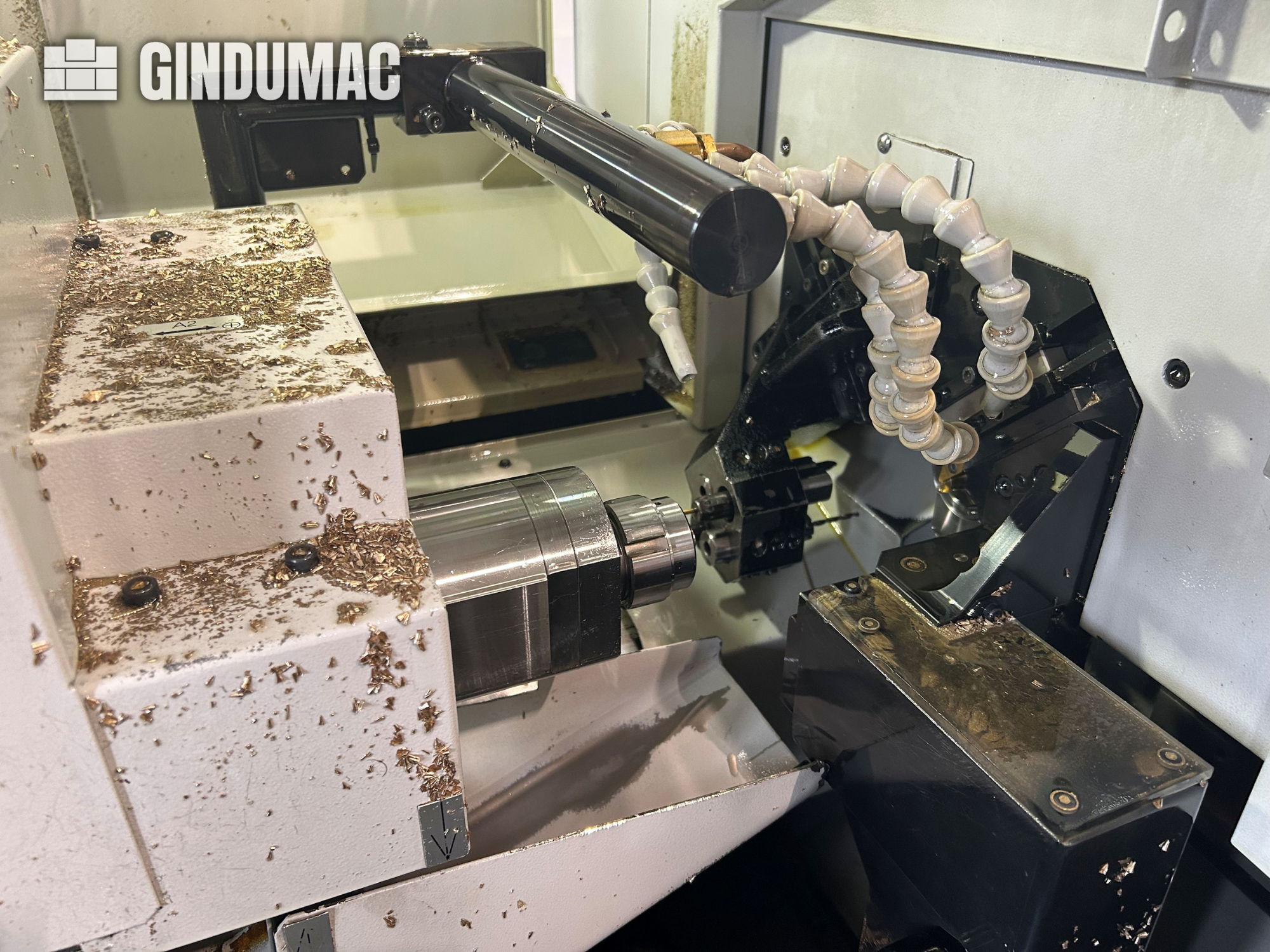

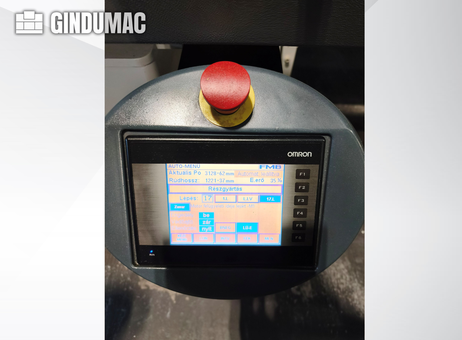

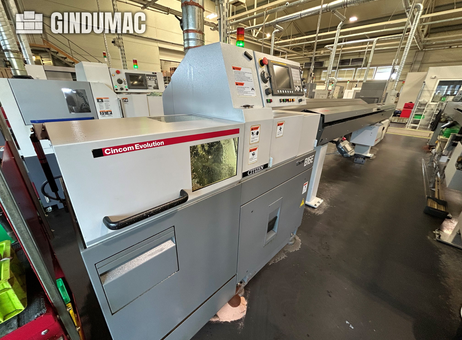

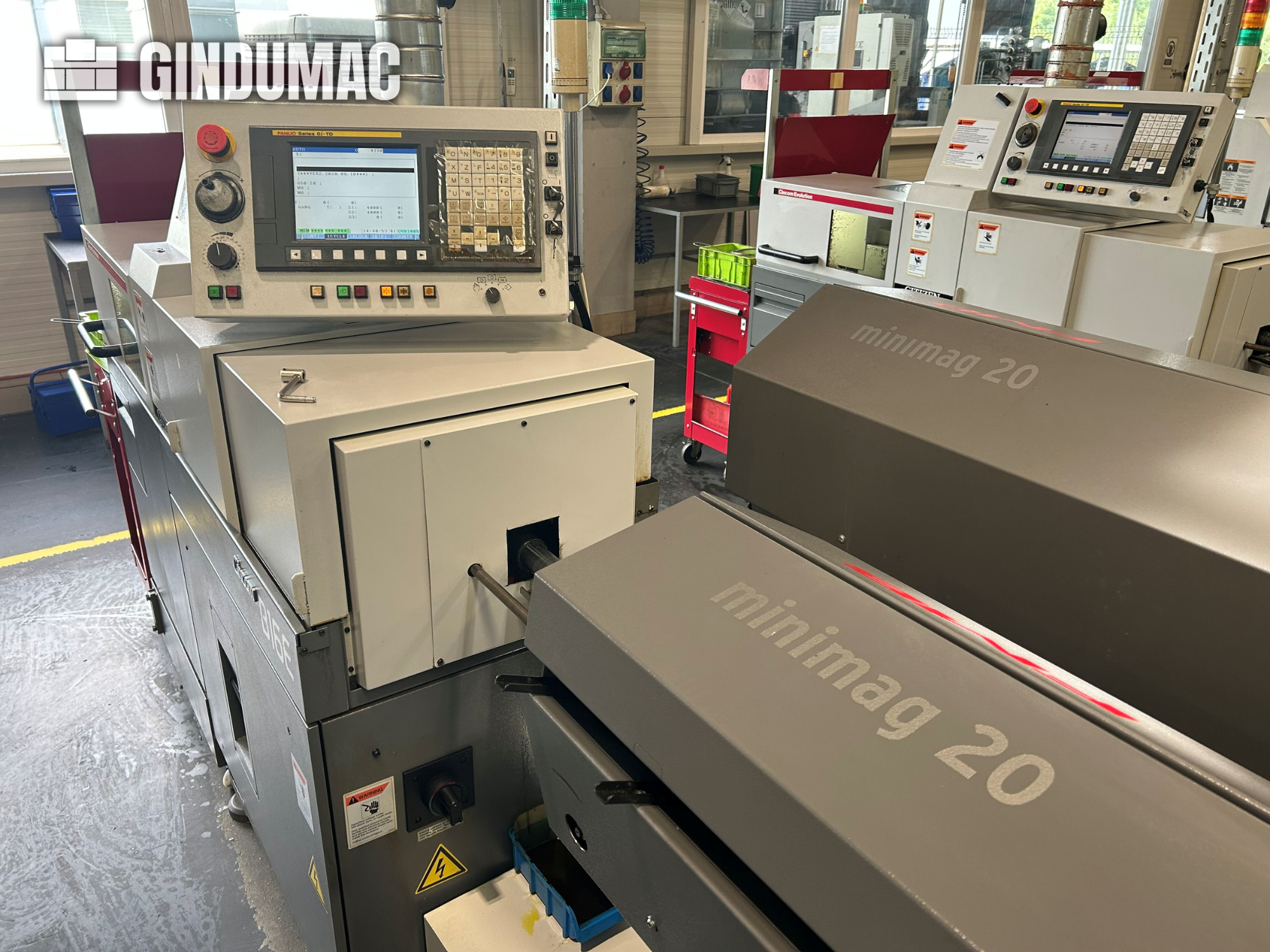

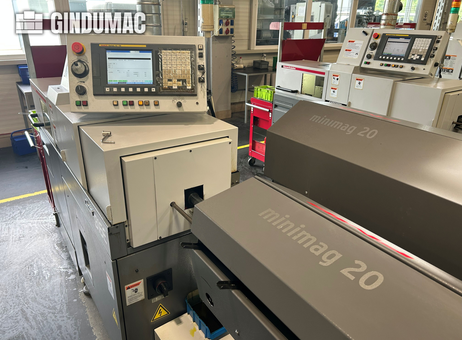

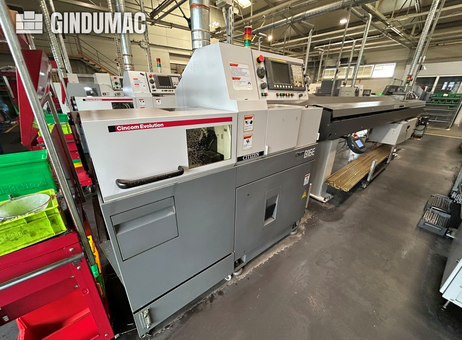

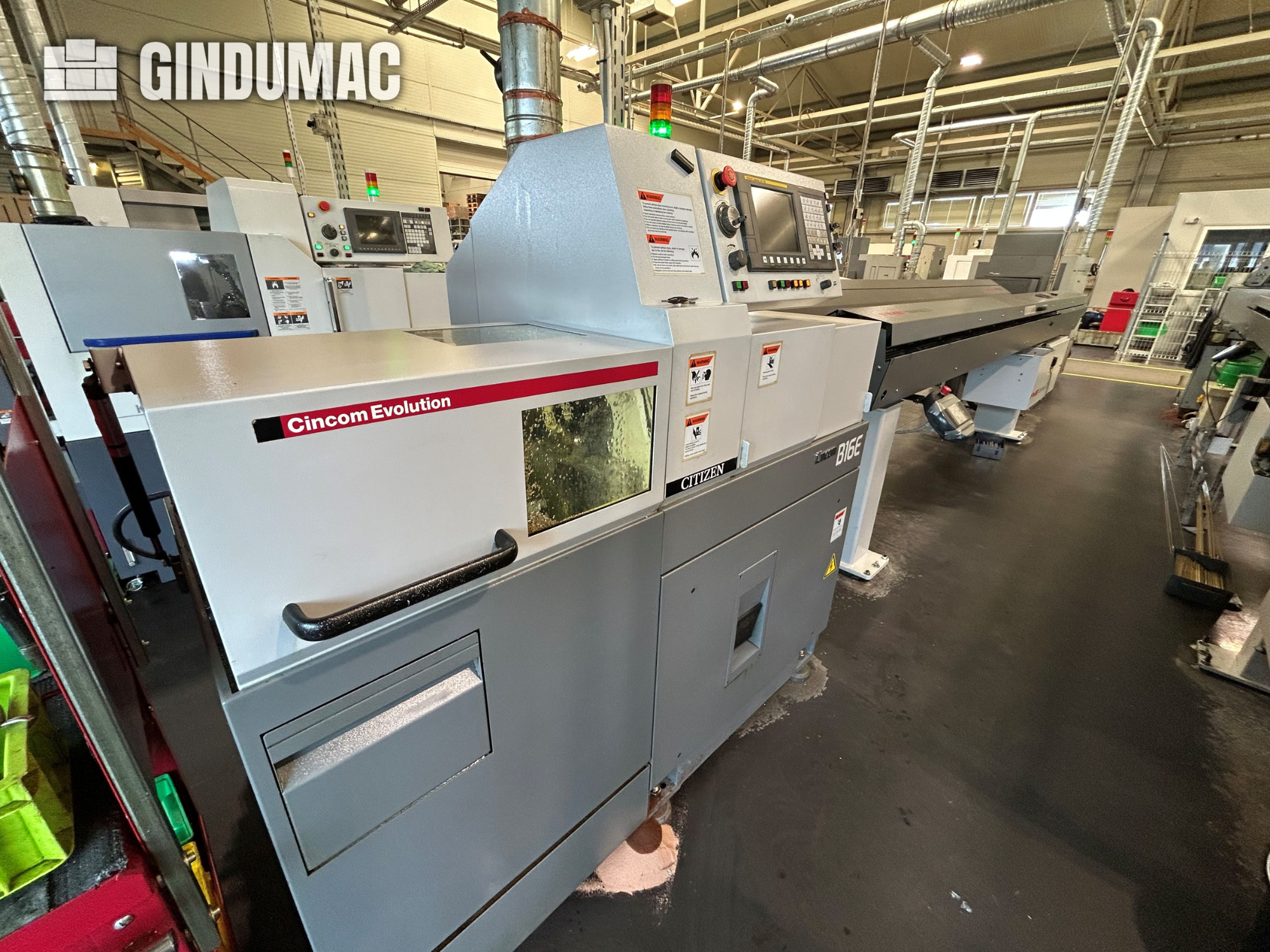

The enclosed machine is marked Cincom Evolution and B16E. It has a FANUC Series 0i-TD control panel with display, keypad and operator buttons. A bar-feeder assembly extends alongside the lathe; the feeder covers are marked Minimag 20, and an FMB feeder is listed with the machine. A counter spindle and driven tooling are also listed. The machining area includes a spindle or workholding assembly, mounted tooling and segmented coolant hoses.

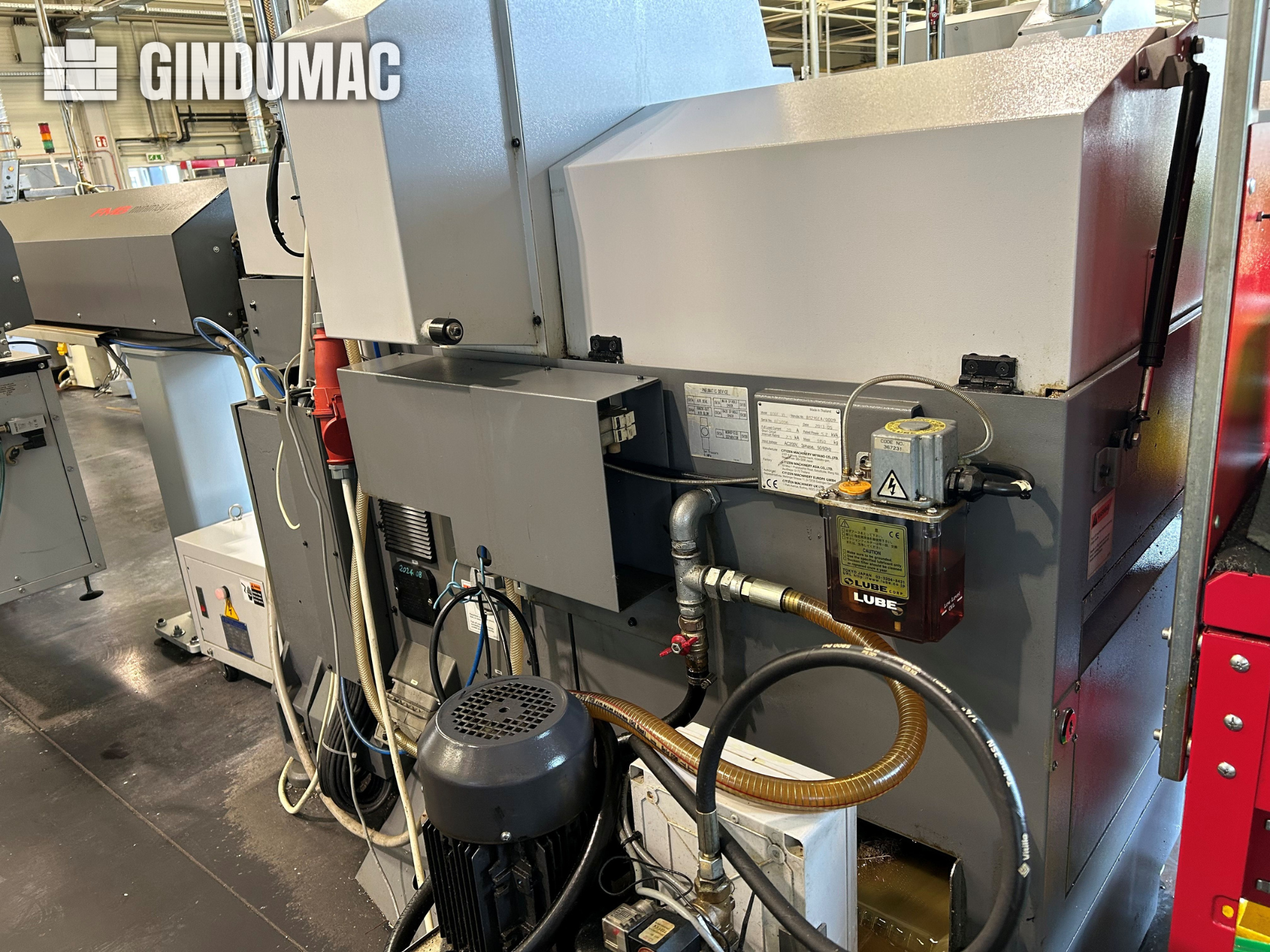

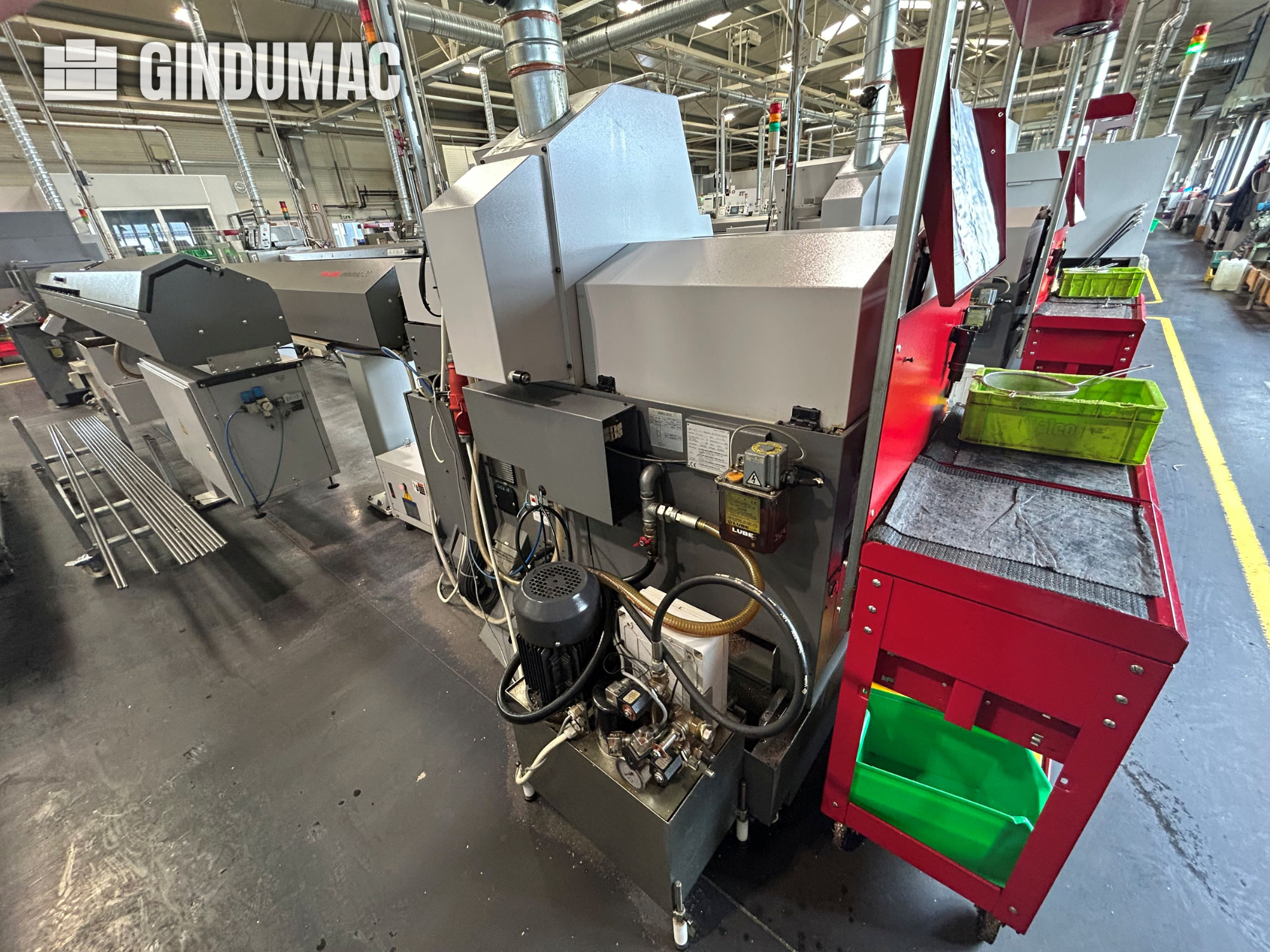

The enclosure appears assembled and generally intact. Metal chips are present inside the machining area, and surfaces and components show coolant or fluid residue. Hoses, cables, a pump/motor assembly and a lubricator are present around the rear auxiliary equipment. The listing does not establish operational condition, so the machine is offered with its condition as shown and described.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis Citizen Cincom B16 was manufactured in 2013. It features a maximum machining diameter of Ø16 mm and a maximum machining length of 135 mm. The machine includes a main spindle speed range of 200–10,000 rpm and a counter spindle with a maximum chucking diameter of Ø16 mm. If you are looking to get high-quality turning capabilities, consider the Citizen Cincom B16 horizontal turning machine we have for sale. Contact us for further details.Machining capacity
Maximum machining diameter: Ø16 mm
Maximum machining length: 135 mm
Main spindle through-hole diameter: Ø20 mm
Maximum front drilling diameter: Ø6 mm
Maximum front tapping: M6
Travels
A2/back-spindle axis travel: 200 mm
Rapid feeds
X-axis: 21 m/min
Y-axis: 21 m/min
Z-axis: 15 m/min
A2-axis: 15 m/min
Main spindle
Speed range: 200–10,000 rpm
Maximum speed with rotary guide bushing: 8,000 rpm
Motor: 2.2 / 3.7 kW
Counter spindle (back spindle)
Maximum chucking diameter: Ø16 mm
Speed range: 100–6,000 rpm
Maximum drilling diameter: Ø5 mm
Maximum tapping: M3
Motor power: 1.0 kW
Driven tooling
Maximum drilling diameter: Ø5 mm
Maximum tapping: M4
Tool spindle speed: 100–4,500 rpm
Drive motor: 0.5 kW
Tooling
Total mountable tools: 15
Cutting tools: 5
Secondary machining tools: 2
Front drilling tools: 4
Back drilling tools: 4
General
Input power capacity: 5.2 kVA
Units available and hours
Unit 1
Manufacture date: 05/2013
Power On: approx. 82,600 h
Run Time: approx. 31,847 h
Cutting Time: approx. 22,613 h
Unit 2
Manufacture date: 06/2013
Power On: approx. 81,474 h
Run Time: approx. 31,403 h
Cutting Time: approx. 20,127 h
Additional equipment

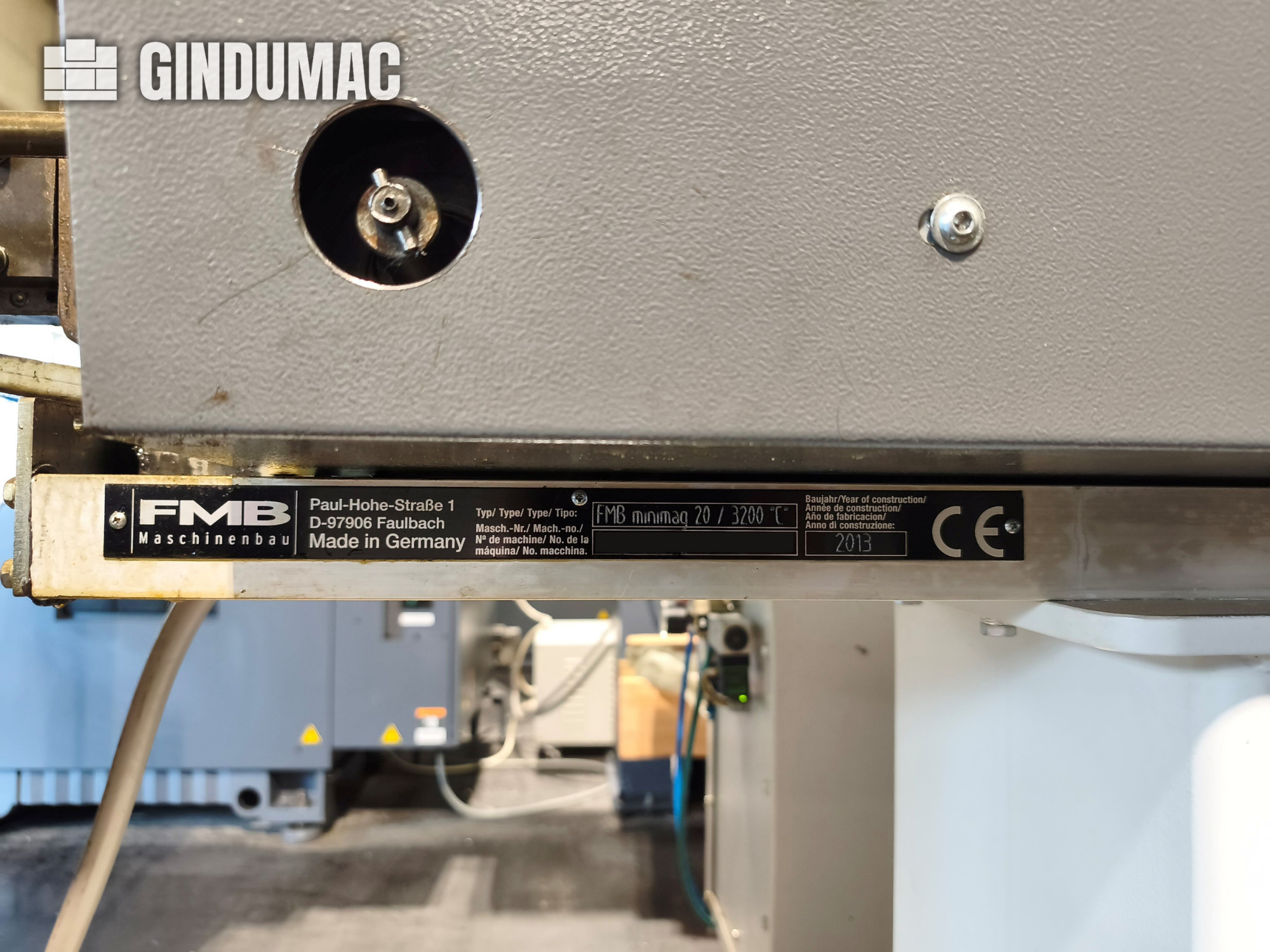

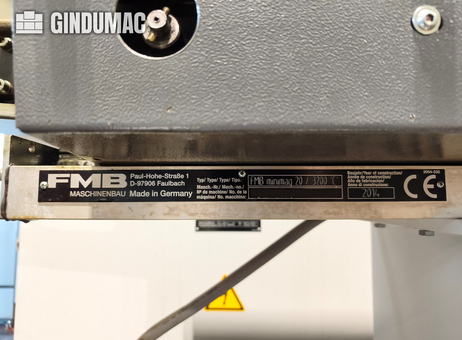

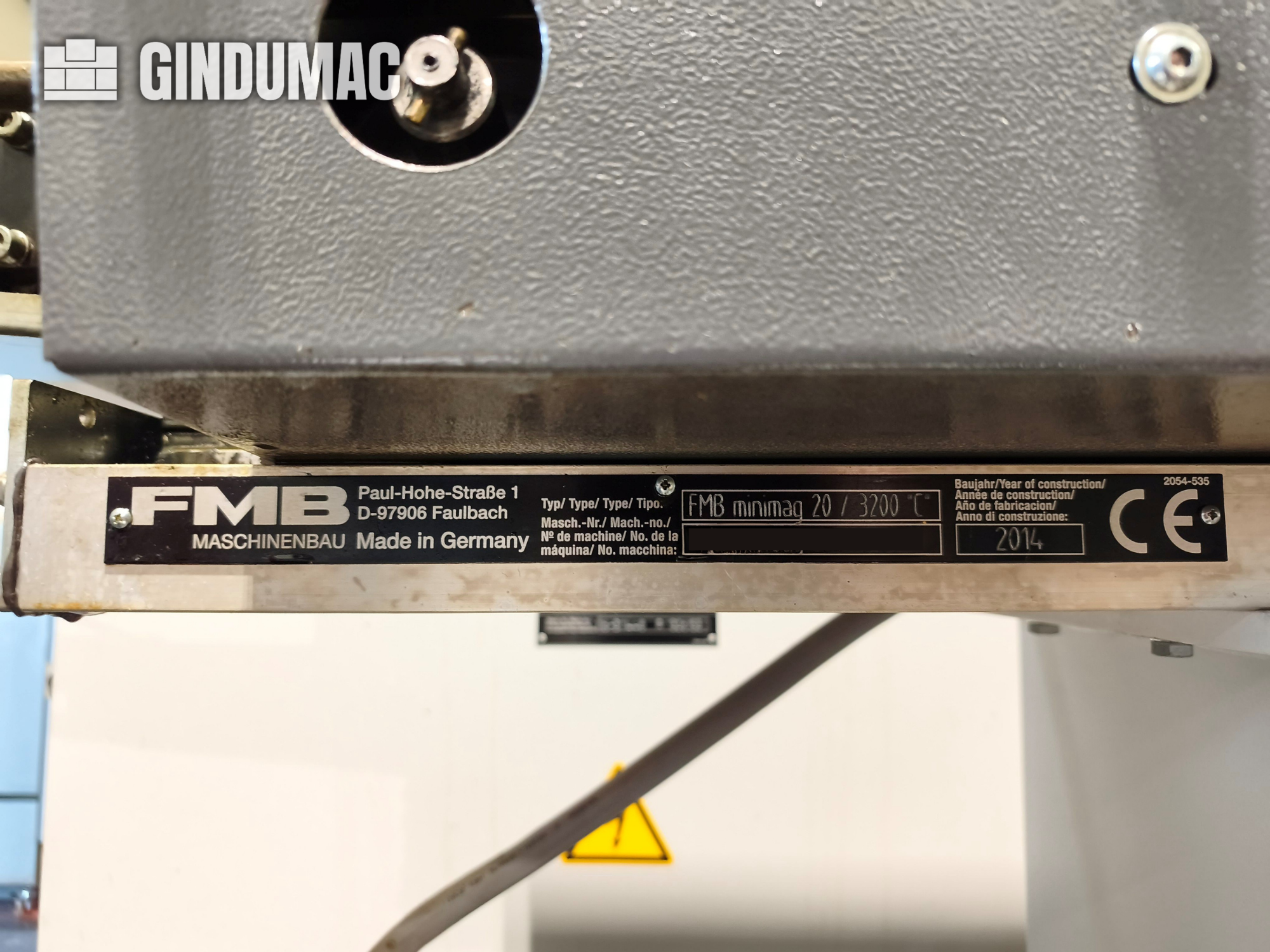

Bar feeder: FMB Minimag 20 / 3200 C
Unit 1 bar feeder year: 2014
Unit 2 bar feeder year: 2013
Control Brand: FANUC
Counter Spindle: yes
Driven Tools: yes
Machine Height: 1597 mm
Machine Length: 1622 mm
Machine Weight: 1150 kg
Machine Width: 837 mm
Number of Axes: 4
Spindle Power: 3.7 kW
Spindle Speed: 10000 RPM
X-axis Travel: 108 mm
Y-axis Travel: 104 mm
Z-axis Travel: 140 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
