| Manufacturer | Citizen |
|---|---|
| Model | A20 |
| Year | 2018 |
| Location | Italy
|
This Citizen A20 Swiss-type lathe, manufactured in 2018, is designed for precision turning with a maximum bar diameter capacity of 25.4 mm and a maximum machining length of 200 mm. The machine features a spindle speed of up to 10,000 rpm and a spindle power of 3.7 kW, supporting efficient machining operations. It has a compact footprint with dimensions of 2245 mm in length, 1180 mm in width, and 1690 mm in height, weighing approximately 3400 kg.
The machine is equipped with six axes, enabling complex machining tasks. Its X-axis travel is 55 mm, and the Y-axis travel is 308 mm, providing substantial working range. The tooling system includes multiple tool positions and live tooling capabilities, allowing for versatile machining processes. The lathe also features a counter spindle for enhanced productivity.

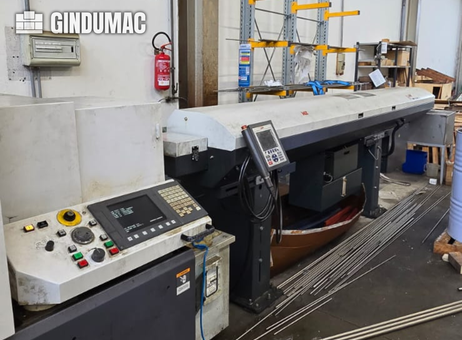

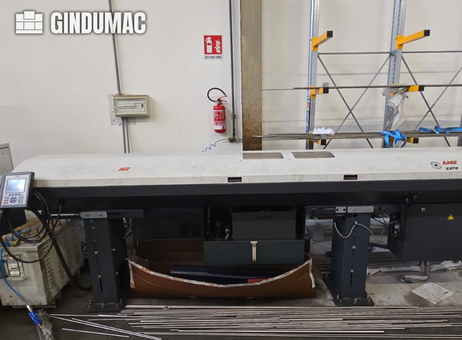

Included with the machine is a long bar feeder unit with a 3-meter capacity, suitable for bar diameters up to 25 mm. This feeder is equipped with its own control panel and a handheld remote control device for convenient operation. The lathe's control panel features a screen with various buttons and knobs, as well as an emergency stop button to ensure operator safety.

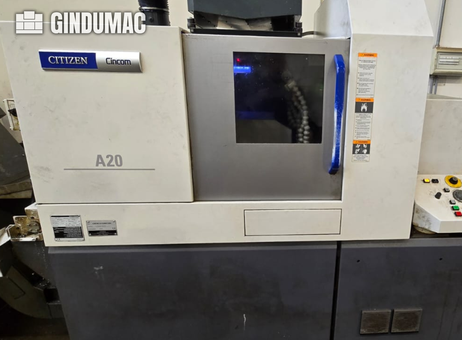

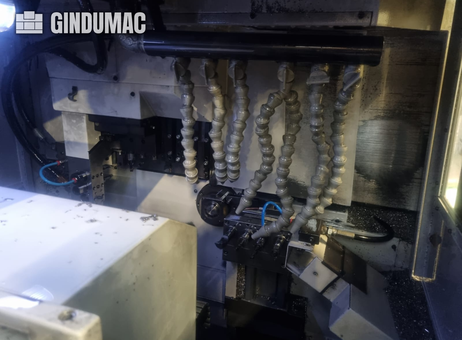

The machine exterior shows signs of use, including some dirt and wear marks, consistent with typical industrial operation. Safety warning labels are present on the machine, and a transparent window on the door allows viewing of internal components. Inside, multiple flexible coolant hoses and tool holders are visible, with lighting to illuminate the working area. Metal shavings inside indicate prior machining activity.
Overall, this Citizen A20 lathe offers robust capabilities for precision turning applications, complemented by practical accessories and safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 6-axis Citizen Cincom A20-VII was manufactured in 2018. It features a maximum bar diameter of 25.4 mm and a maximum machining length of 200 mm. The machine includes a robust tooling system with 22 tool positions and live tooling capabilities. If you are looking to get high-quality turning capabilities, consider the Citizen Cincom A20-VII swiss-type turning machine we have for sale. Contact us for further details regarding this machine.Condition: Under power, visible in operation
Spindle hours: approx. 7,000 h
Axes/configuration:
Total axes: 6 (5 linear: X1, Y1, Z1, X2, Z2 + C-axis)
C-axis: on main and counter spindle, resolution 0.001°, 90° index 0.27 s
Working capacity:
Max bar diameter: 20 mm standard; Large Bore option installed: 25.4 mm (1")
Max machining length per chucking: 200 mm with synchronized guide bush
Max projection from counter spindle: 80 mm
Main spindle:
Max speed: 10,000 rpm (limited to 8,000 rpm with 25.4 mm bore by parameter)
Motor power: 2.2 / 3.7 kW
Max drilling: Ø12 mm
Max tapping: M8
Counter spindle:
Max speed: 8,000 rpm
Motor power: 1.1 / 1.5 kW
C-axis: Yes, resolution 0.001°
Tooling system:
Total tool positions: 22 + α
Live tooling: Yes
Driven tools: 4
Driven tool motor power: 0.75 kW
Max live tooling speed: 8,000 rpm
Tooling layout:
Gang tool post: 5 turning tools, 16 x 16 mm
Cross driven tools: 4 x ER16
Front tool positions: 4 fixed driven tools + 2 double ER11 positions
Rear tool positions: 3 fixed tools + 1 ER11 driven tool on counter spindle
Boring tool diameter: Ø25.4 mm on 3 positions
Travels:
X1: 55 mm; Y1: 308 mm; Z1: 200 mm
X2: 55 mm; Z2: 200 mm
Feed/accuracy:
Rapid traverse: 30 m/min (X/Y/Z)
Linear resolution: 0.0001 mm
Rotary resolution: 0.001°
Fluids:
Oil tank capacity: 180 L
Installation data:
Power supply: 200 V ±10%, 50/60 Hz
Power requirement: approx. 13 kVA (15 kVA with high pressure coolant)
Air supply: 0.5 MPa, 100 NL/min
Installed options:
Large Bore option S393 with 25.4 mm (1") spindle bore
Additional equipment
Bar feeder: LNS EXPR S3 320 Z, 3 m capacity, up to Ø25 mm
High pressure coolant system: Citizen 1.5 MPa, 15 L/min, 50 μm filter
Chip conveyor: Hinged type, rear discharge
Long parts discharge

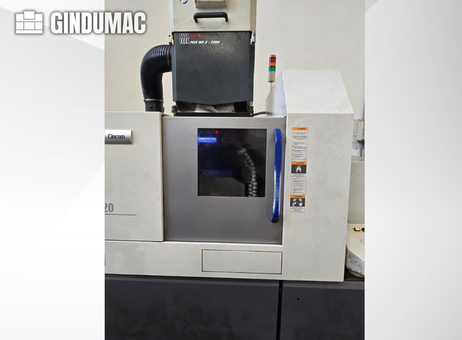

Extraction unit (mist/fume)
Counter Spindle: yes
Driven Tools: yes
Machine Height: 1690 mm
Machine Length: 2245 mm
Machine Weight: 3400 kg
Machine Width: 1180 mm
Max. Bar Diameter: 25.4 mm
Number of Axes: 6
Spindle Power: 3.7 kW
Spindle Speed: 10000 RPM
X-axis Travel: 55 mm
Y-axis Travel: 308 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
