| Manufacturer | Cartes |
|---|---|
| Model | GT363SHR |
| Year | 2024 |
| Location | Italy
|
| Category | Die-cutters / Embossers / Hot foil |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Datasheet | Cartes GT363SHR |
| Last availability date | 20/10/2026 |
| Product id | P261012031 |
| Language |
Машина за довършителни работи Cartes GT363SHR
Dokončovací stroj Cartes GT363SHR
Cartes GT363SHR efterbehandlingsmaskine
Cartes GT363SHR-Endbearbeitungsmaschine
Μηχανή φινιρίσματος Cartes GT363SHR
Cartes GT363SHR Finishing Machine
Máquina de acabado Cartes GT363SHR
Machine de finition Cartes GT363SHR
Cartes GT363SHR završna mašina
Cartes GT363SHR felületkezelő gép
Macchina di finitura Cartes GT363SHR
Apdailos staklės „Cartes GT363SHR“
Cartes GT363SHR-afwerkingsmachine
Maszyna do obróbki wykończeniowej Cartes GT363SHR
Máquina de acabamento Cartes GT363SHR
Mașină de finisare Cartes GT363SHR
Машина для финишной обработки Cartes GT363SHR
Kartes GT363SHR mašina za finiranje
Ytbehandlingsmaskin Cartes GT363SHR
Cartes GT363SHR Son İşlem Makinesi
|
Manufacturer: Cartes
Model: GT363SHR
Year manufactured: 2024
Overview
This Cartes GT363SHR is a modular converting line configured for integrated web handling and multiple finishing operations, including screen printing, hot stamping and semi-rotative die cutting. The machine includes dedicated input and output modules, process units with specific tooling, electronic controls and a remote-connection computer for diagnostics and software updates.

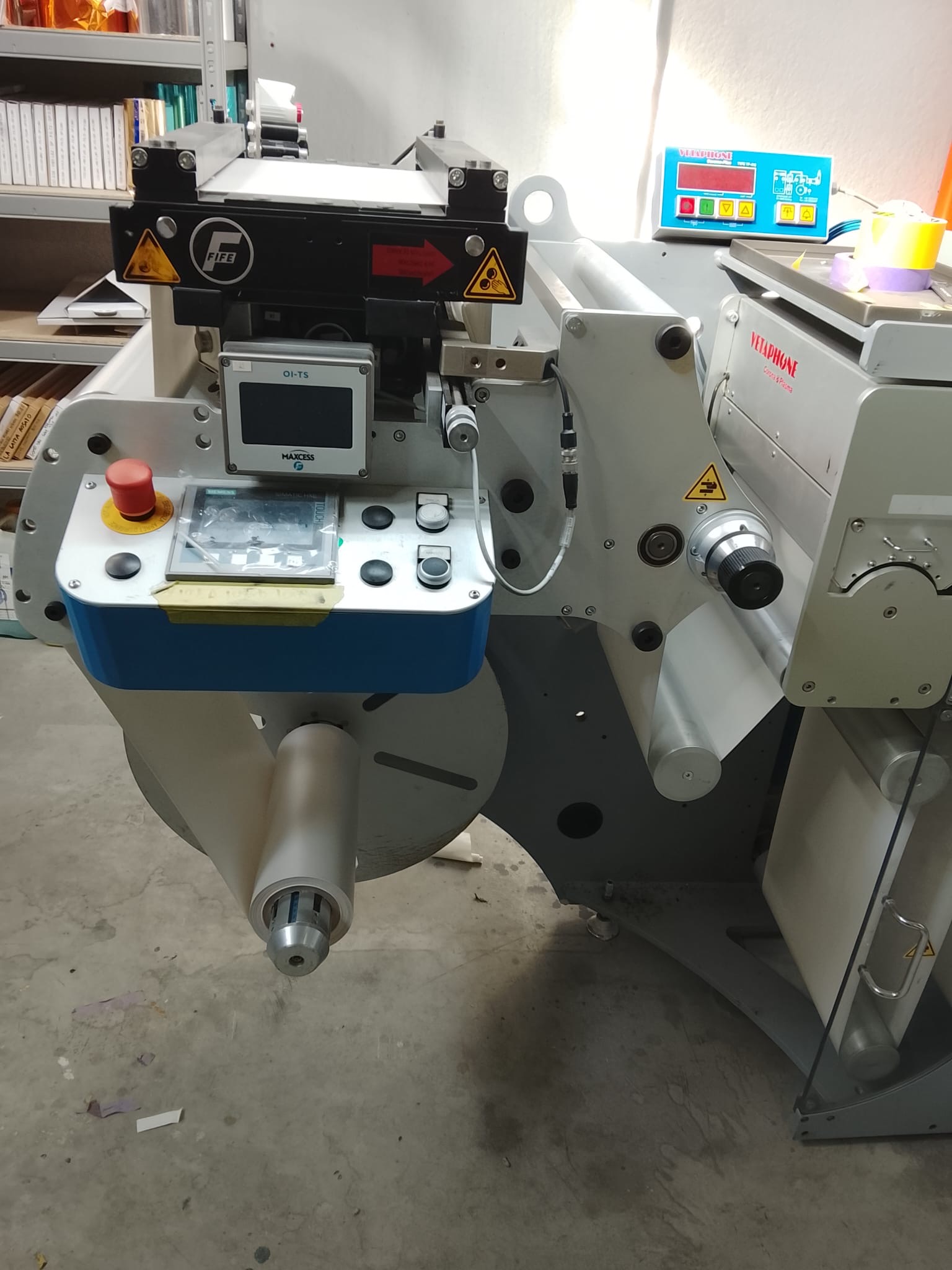

Input module
- Integrated unwinder with fully servo-assisted material control.
- Pneumatically expanding shaft, Ø76 mm, for rolls up to Ø800 mm or 200 kg.
- Automatic roll diameter control with end-of-material sensor.
- Electronic web guide with ultrasonic sensor, splicing table and adhesive tape dispenser.
- Restart photocell for registration on marks or color contrasts of pre-printed materials.
- Paper crown unit.
First unit — Screen printing
- Printing head with ink dispenser and UV oven (range 24 to 200 W/cm, RD4).
- External screen printing frame dimensions: 54 x 65 cm.

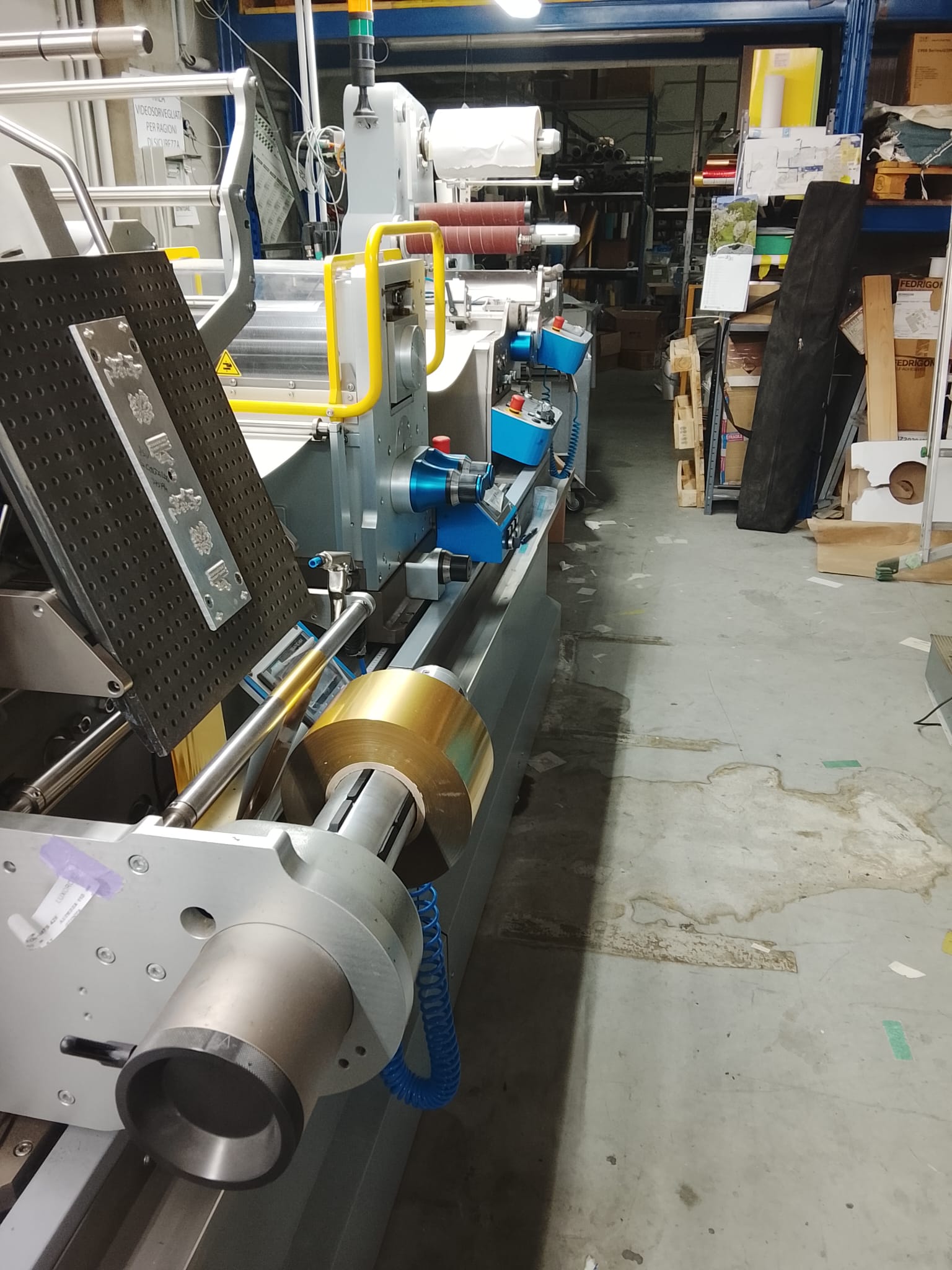

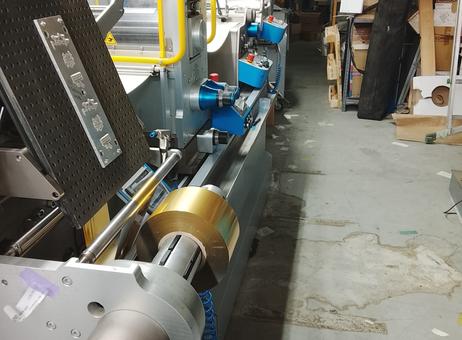

Second unit — Hot stamping
- Hot stamping head configured with one transverse foil and one longitudinal foil, plus comparators.
Third unit — Semi-rotative die cutter (with AGS & IDS)
- Semi-rotary and rotary unit with gearless magnetic cylinder. Plate thickness capability: 0.2 to 2 mm.
- AIR GAP SYSTEM (AGS): adjustable gap between die and material with millimetre precision to control cutting depth.
- IMAGE DISTORTION SYSTEM (IDS): ability to enlarge or shrink up to 5 die-cutting positions by up to 20% relative to the original size without changing the gap.
Output module
- Fully servo-assisted rewinding system equipped with five longitudinal cutting units using oscillating blades.
- Two servo-assisted pneumatic expansion shafts (Ø76 mm) for rolls up to Ø500 mm with automatic tension control for clockwise and counterclockwise rotation.
- Additional servo-assisted pneumatic expansion shaft (Ø76 mm) for high-speed stripping of difficult-to-shape labels, also for rolls up to Ø500 mm.
- Computer for remote connection to CARTES for diagnostics and software upgrades.
Additional systems and accessories
- MHPS system enabling each unit to be automatically positioned independently of the others.
- Included accessories: double pinned tray for reliefs; removable table for joining material at the end of the line; VETAPHONE corona treatment system (2 kW).
Note: Description reflects the machine configuration and specifications provided. No claims are made about operational condition, testing or refurbishment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
GT363SHR MACHINE
Configured as follows:
INPUT MODULE
Integrated unwinder with fully servo-assisted material control
Pneumatically expanding shaft, Ø76 mm, for rolls up to Ø800 mm or 200 kg
Automatic roll diameter control with end-of-material sensor
Electronic web guide with ultrasonic sensor, splicing table, and adhesive tape dispenser
Restart photocell for reading marks or color contrasts on pre-printed materials
Paper crown unit
FIRST UNIT: SCREEN PRINTING
Head with ink dispenser and UV oven, range from 24 to 200 W/cm (RD4)
EXTERNAL SCREEN PRINTING FRAME DIMENSIONS (cm) 54x65
SECOND UNIT: HOT STAMPING
Head with 1 transverse foil, 1 longitudinal foil, and comparators
THIRD UNIT: SEMI-ROTATIVE DIE CUTTER with AGS & IDS adjustment systems
Semi-rotary & rotary unit with gearless magnetic cylinder
Plate thickness range: 0.2 to 2 mm
- AIR GAP SYSTEM (AGS)
Allows you to adjust the gap between the die and the material with millimetre precision
controlling the cutting depth, achieving perfect die cutting from the first cycle.
- IMAGE DISTORTION SYSTEM (IDS)
Allows you to enlarge or shrink up to 5 die-cutting positions by 20% compared to the original size
simultaneously and without changing the gap. This distortion not only
allows the use of dies created for magnetic cylinders with different developments, but also
to obtain a wider range of shapes without having to purchase and stock new dies.
OUTPUT MODULE
Fully servo-assisted rewinding system, equipped with 5 longitudinal cutting units with
oscillating blades.
Two (2) servo-assisted pneumatic expansion shafts, Ø76mm, capable of accommodating rolls up to
Ø500mm, with automatic tension control (clockwise and counterclockwise rotation).
Servo-assisted pneumatic expansion shaft, Ø76mm, capable of accommodating rolls up to Ø500mm,
with automatic tension control for high-speed stripping of difficult-to-shape labels.
Computer for remote connection of the machine to CARTES for diagnostics and software upgrades.
MACHINE WITH MHPS SYSTEM
Which allows each unit to be automatically positioned independently of the others.
ACCESSORIES INCLUDED:
Double pinned tray for Reliefs
Removable table for joining material at the end of the line
VETAPHONE corona treatment system, 2 kW power
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| die-cutters-embossers-hot-foil-cartes-gt363shr-p261012031_5.pdf | Download |
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 1 |
| Last activity | Oct. 26, 2026 |
GT363SHR MACHINE
Configured as follows:
INPUT MODULE
Integrated unwinder with fully servo-assisted material control
Pneumatically expanding shaft, Ø76 mm, for rolls up to Ø800 mm or 200 kg
Automatic roll diameter control with end-of-material sensor
Electronic web guide with ultrasonic sensor, splicing table, and adhesive tape dispenser
Restart photocell for reading marks or color contrasts on pre-printed materials
Paper crown unit
FIRST UNIT: SCREEN PRINTING
Head with ink dispenser and UV oven, range from 24 to 200 W/cm (RD4)
EXTERNAL SCREEN PRINTING FRAME DIMENSIONS (cm) 54x65
SECOND UNIT: HOT STAMPING
Head with 1 transverse foil, 1 longitudinal foil, and comparators
THIRD UNIT: SEMI-ROTATIVE DIE CUTTER with AGS & IDS adjustment systems
Semi-rotary & rotary unit with gearless magnetic cylinder
Plate thickness range: 0.2 to 2 mm
- AIR GAP SYSTEM (AGS)
Allows you to adjust the gap between the die and the material with millimetre precision
controlling the cutting depth, achieving perfect die cutting from the first cycle.
- IMAGE DISTORTION SYSTEM (IDS)
Allows you to enlarge or shrink up to 5 die-cutting positions by 20% compared to the original size
simultaneously and without changing the gap. This distortion not only
allows the use of dies created for magnetic cylinders with different developments, but also
to obtain a wider range of shapes without having to purchase and stock new dies.
OUTPUT MODULE
Fully servo-assisted rewinding system, equipped with 5 longitudinal cutting units with
oscillating blades.
Two (2) servo-assisted pneumatic expansion shafts, Ø76mm, capable of accommodating rolls up to
Ø500mm, with automatic tension control (clockwise and counterclockwise rotation).
Servo-assisted pneumatic expansion shaft, Ø76mm, capable of accommodating rolls up to Ø500mm,
with automatic tension control for high-speed stripping of difficult-to-shape labels.
Computer for remote connection of the machine to CARTES for diagnostics and software upgrades.
MACHINE WITH MHPS SYSTEM
Which allows each unit to be automatically positioned independently of the others.
ACCESSORIES INCLUDED:
Double pinned tray for Reliefs
Removable table for joining material at the end of the line
VETAPHONE corona treatment system, 2 kW power
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
