Contact us to receive an offer.
| Manufacturer | BOEHRINGER |
|---|---|
| Model | DUS 400 ti |
| Year | 2006 |
| Location | Germany
|

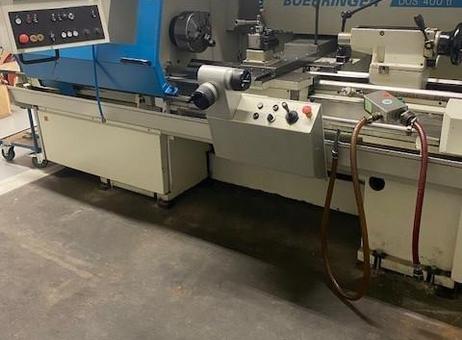

BOEHRINGER DUS 400 ti CNC cycle-controlled lathe
The BOEHRINGER DUS 400 ti is a CNC-controlled lathe equipped with a Heidenhain ManualPlus 4110 control system. Its listed equipment includes an AC main drive with a two-stage gearbox, programmable cycles and rapid traverse. A holding brake is also specified.
The work area is fitted with a cover and chip-guard door. The control panel moves with the support. The machine is equipped with a four-position quick-change turret head and a Parat Gr. 2 mounted on a fixed base. A quick-change tool holder is included in the listed equipment. The lathe also has a tailstock and coolant system, along with a machine light.
Listed accessories include a three-jaw chuck with a through-hole, a set of hard jaws, sets of soft jaws with jaw holders, and tool holders with tools. These accessories are presented as part of the machine listing; their individual condition is not specified.
The listing identifies this machine as a CNC-controlled lathe and describes its control, drive, work-area equipment, tooling arrangement and included accessories. It does not provide additional details about the current operating condition of the machine or accessories in this description.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
BOEHRINGER DUS 400 ti
Data Sheet
Videos
Request Machine
Print Data Sheet
Machine Type: CNC-controlled Lathe
Manufacturer: BOEHRINGER
Model: DUS 400 ti
Year: 2006
Control System: CNC
Origin: Germany
Availability: Immediate
Freight Basis: Immediate
Price: On request
Technical Specifications
Swing over bed: 1000 mm
Swing over cross slide: 420 mm
Swing over tool post: 235 mm
Turning length: 1000 mm
Spindle mount: DIN 55027 Gr. 6
Control: MANUALPlus 4110
Spindle bore: 51 mm
Speed range: 3 - 3000 RPM
Feed rates: 5,000 / 10,000 mm/min
Drive power - spindle motor: 11 kW
Tailstock taper: MT 4
Tailstock quill diameter: 70 mm
Tailstock quill travel: 110 mm
Coolant system: yes
Operating voltage: 400 V

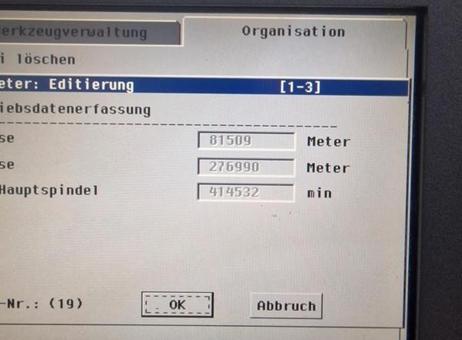

Operating hours: 6,908 h
Machine weight approx.: 3 t
Floor space approx.: 3.4 x 2 x 2.2 m
Technical Description
CNC cycle-controlled lathe BOEHRINGER DUS 400 ti, year 2006

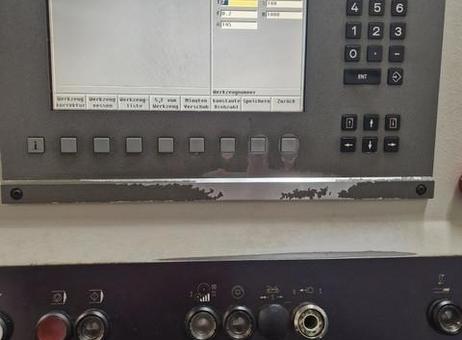

- Control: Heidenhain ManualPlus 4110
- AC main drive 11 kW with 2-stage gearbox
- Work area cover with chip guard door

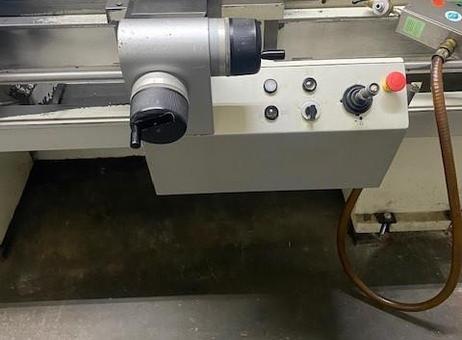

- Control panel moves with support
- Holding brake
- Programmable cycles

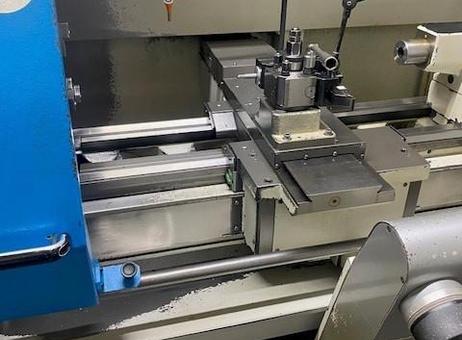

- 4-position quick-change turret head
- Parat Gr. 2 on fixed base
- 1 quick-change tool holder WD "/25

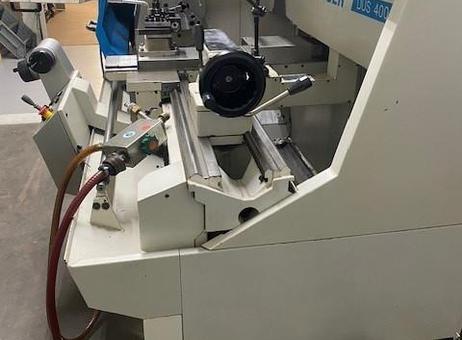

- Tailstock
- Rapid traverse
- Coolant system
- Machine light
Condition:
Machine runs perfectly, no known defects, ready for immediate use.
Accessories:

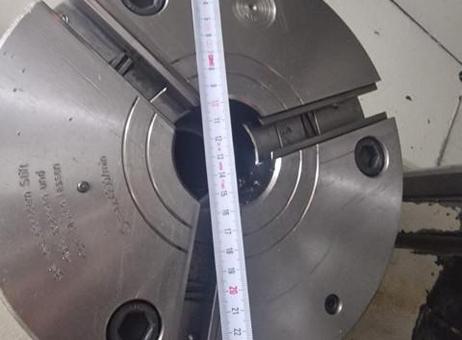

1 three-jaw chuck 250 mm, through-hole 62 mm
1 set of hard jaws

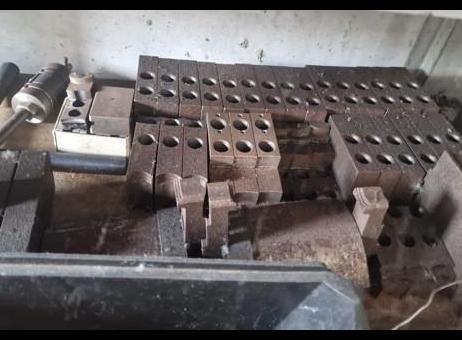

4 sets of soft jaws including jaw holders
23 tool holders including tools
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
