Contact us to receive an offer.
| Manufacturer | BIGLIA |
|---|---|
| Model | B565/M |
| Year | 2008 |
| Location | Italy
|

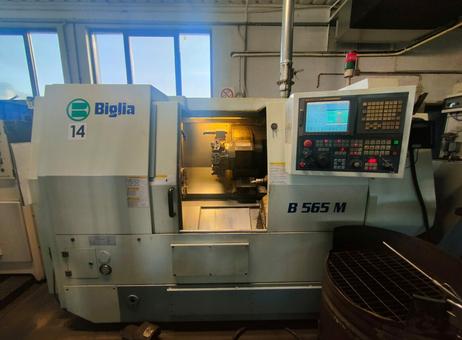

This Biglia B565/M CNC lathe, manufactured in 2008, is a robust machine designed for precision turning applications. It features a Fanuc 18i-TB numerical control system, ensuring reliable and accurate operation. The lathe's main spindle offers a maximum speed of 4,000 rpm with a spindle bore diameter of 76 mm, suitable for a variety of workpieces. The spindle motor delivers up to 26 kW of power, providing substantial torque between 189 and 223 Nm for efficient machining.
Equipped with a bidirectional turret that holds 12 tools, the machine allows for versatile tooling options. The turret's rotation time is rapid, taking approximately 0.15 seconds per position, which enhances productivity. Additionally, the lathe includes 12 motorized rotating tools with a maximum speed of 3,000 rpm and motor power of 3.7 kW, expanding its machining capabilities.
The machine's axes travel includes 170 mm on the X-axis and 560 mm on the Z-axis, with additional Y-axis travel of +55/-50 mm and a B-axis travel of 490 mm, enabling complex machining operations. Rapid traverse speeds are 20 m/min for the X-axis, 24 m/min for the Z-axis, and 6 m/min for the Y-axis.
A tailstock with Morse taper sizes 5 and 4 is included, providing a thrust force of 1,400 daN and a rapid speed of 15 m/min. The cooling system features a 250-liter tank capacity, a pump flow rate of 230 l/min, and a pump motor power of 1.5 kW.

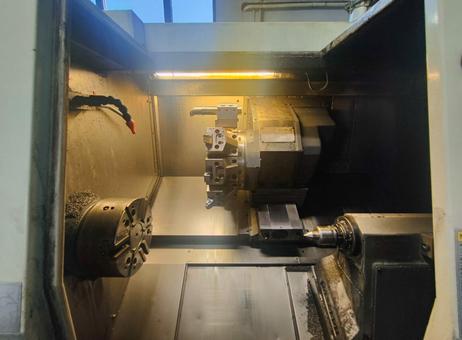

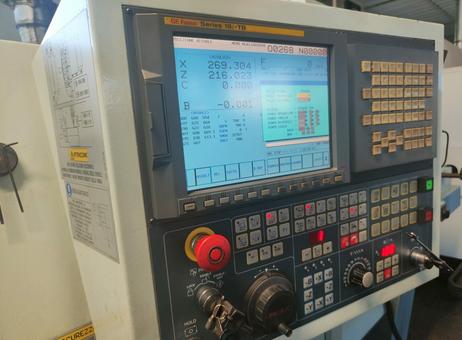

The machine footprint measures 4,240 mm in length, 2,000 mm in width, and 1,900 mm in height, with a total weight of 4,500 kg including the chip conveyor. The lathe is presented in clean and well-maintained condition with internal lighting and includes a control panel equipped with a screen, multiple buttons, knobs, and an emergency stop button for operator safety. Chuck and turret tooling are installed inside the working area, ready for use. Manuals and CE certification are provided with the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
COMPLETE WITH MOTORIZED 3+2
SELF-CENTRATING
TOOL HOLDER
Numerical control (CNC):Fanuc 18i-TB
Main spindle:Maximum speed: 4,000 rpm
Spindle nose: ASA 6"
Spindle bore: 76 mm
Motor power: 22-26 kW
Maximum torque: 189-223 Nm
Turret:Number of positions: 12
Type: bidirectional
Stem size: 20×20 mm, 25×25 mm, Ø32 mm
Rotation time: 0.15 s per position
Motorized tools:Number of positions : 12
Maximum speed: 3,000 rpm
Motor power: 3.7 kW
Axes:X-axis travel: 170 mm
Z-axis travel: 560 mm
Y-axis travel: +55 / -50 mm
B-axis travel: 490 mm
Rapid speed:X 20 m/min, Z 24 m/min, Y 6 m/min
Tailstock:Morse taper: 5 / 4
Thrust force: 1,400 daN
Rapid speed: 15 m/min
Cooling system:Tank capacity: 250 l
Pump flow rate: 230 l/min
Pump motor power: 1.5 kW
Dimensions and weight:Machine footprint with chip conveyor: 4,240 × 2,000 × 1,900 mm
Machine weight with chip conveyor: 4500 kg

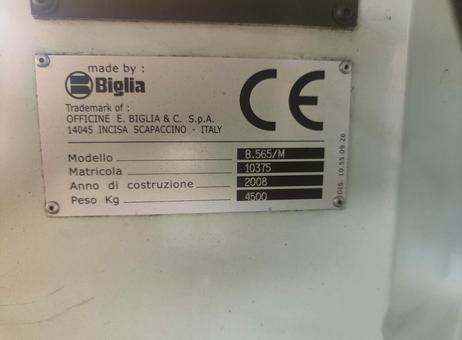

MANUALS AND CE
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 126 |
| Last activity | Oct. 30, 2026 |
