| Manufacturer | Biglia |
|---|---|
| Model | B 501 Y |
| Year | 1997 |
| Location | Italy
|

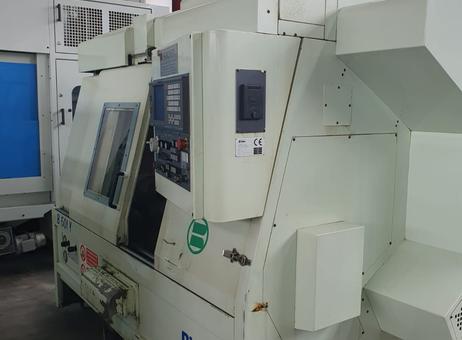

This listing features a Biglia B 501 Y CNC lathe, manufactured in 1997. The machine is designed for precision turning with a maximum turning diameter of 520 mm and a maximum turning length of 500 mm. It accommodates bar diameters starting from 68 mm. The lathe offers an X-axis travel of 210 mm and a Z-axis stroke of 500 mm, with an additional Y-axis travel of 120 mm (±60 mm). The spindle bore measures 80 mm, allowing for versatile machining operations.
The spindle motor delivers 3.7 kW of power, with a spindle speed reaching up to 4000 rpm. The turret is equipped with 12 tool stations, enabling efficient tool changes and multi-operation capabilities. The machine's dimensions are approximately 500 mm in length, 1670 mm in width, and 1650 mm in height, with a total weight of 4900 kg.

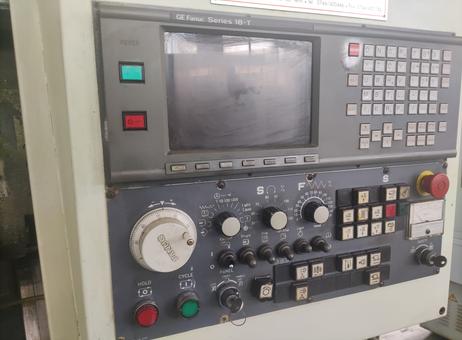

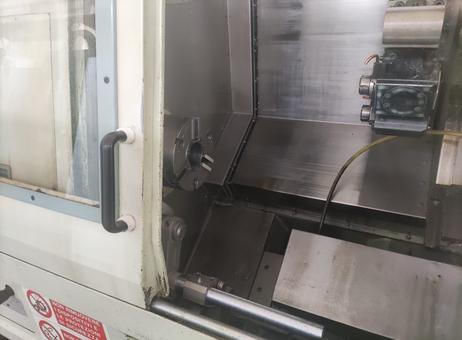

The CNC control system is a Fanuc 18-T, featuring a control panel with a display screen, multiple buttons, switches, and dials for comprehensive machine operation. An emergency stop button is prominently positioned on the right side of the control panel for safety. The lathe includes a sliding door with a handle for access to the machining area, which contains the chuck and tool holder.
Condition-wise, the machine shows signs of surface rust and wear, particularly near the lower front corner, along with some dirt and stains on the lower parts of the body. The control panel has some wear and dirt accumulation around the edges. The machining area is generally clean, with minor stains or residue. Safety warning labels are present on the door, and a safety light tower with red and green lights is mounted on top of the machine.
This Biglia B 501 Y CNC lathe is a robust and capable machine suitable for various turning applications, equipped with essential safety features and a well-equipped control interface.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC: Fanuc 18 - T
Maximum Turning Diameter: 520 mm
Maximum Turning Length: 500 mm
Diaameter Turnable From Bar: 68 mm
X-Axis Travel: 210 + 5
Z-axis stroke: 500 + 10
Y-Axis Travel: 120 ( +60 -60)
Spindle Speed: 4000 rpm
Spindle Motor: 22-26 Kw
Spindle taper: ASA 6
Spindle Bore: 80 mm
Chuck diameter: 165 mm
Turret: number 12 stations
Motor Power: 3.7 kw (50%)
Tailstock: MT 4
Dimensions: 3500 x 1670 x 1650 mm
Weight: 4900 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 46 |
| Last activity | Oct. 30, 2026 |
Deruta Invest S.R.L. is a trusted Italian company specializing in the wholesale trade of metalworking machine tools, both new and pre-owned. Based in Deruta, Umbria, the company has been operating since 2007 and is backed by over 40 years of family experience in the machinery sector. Deruta Invest serves clients across central and southern Italy, offering a wide selection of high-quality machines from leading manufacturers.
With over 3,000 square meters of showroom space and a carefully curated inventory, Deruta Invest is committed to delivering tailored solutions that match each client's technical and budgetary needs. The company offers full-service support, including financial consultancy, machine installation, and ongoing technical assistance, ensuring a seamless buying experience from start to finish.
Known for its long-term relationships, personalized service, and strong industry network, Deruta Invest stands out as a reliable partner for businesses looking to invest in efficient, high-performance machinery. Whether you’re looking for state-of-the-art technology or cost-effective used equipment, Deruta Invest combines expertise, integrity, and value to support your growth.
CNC: Fanuc 18 - T
Maximum Turning Diameter: 520 mm
Maximum Turning Length: 500 mm
Diaameter Turnable From Bar: 68 mm
X-Axis Travel: 210 + 5
Z-axis stroke: 500 + 10
Y-Axis Travel: 120 ( +60 -60)
Spindle Speed: 4000 rpm
Spindle Motor: 22-26 Kw
Spindle taper: ASA 6
Spindle Bore: 80 mm
Chuck diameter: 165 mm
Turret: number 12 stations
Motor Power: 3.7 kw (50%)
Tailstock: MT 4
Dimensions: 3500 x 1670 x 1650 mm
Weight: 4900 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a Biglia B 501 Y CNC lathe, manufactured in 1997. The machine is designed for precision turning with a maximum turning diameter of 520 mm and a maximum turning length of 500 mm. It accommodates bar diameters starting from 68 mm. The lathe offers an X-axis travel of 210 mm and a Z-axis stroke of 500 mm, with an additional Y-axis travel of 120 mm (±60 mm). The spindle bore measures 80 mm, allowing for versatile machining operations.
The spindle motor delivers 3.7 kW of power, with a spindle speed reaching up to 4000 rpm. The turret is equipped with 12 tool stations, enabling efficient tool changes and multi-operation capabilities. The machine's dimensions are approximately 500 mm in length, 1670 mm in width, and 1650 mm in height, with a total weight of 4900 kg.
The CNC control system is a Fanuc 18-T, featuring a control panel with a display screen, multiple buttons, switches, and dials for comprehensive machine operation. An emergency stop button is prominently positioned on the right side of the control panel for safety. The lathe includes a sliding door with a handle for access to the machining area, which contains the chuck and tool holder.
Condition-wise, the machine shows signs of surface rust and wear, particularly near the lower front corner, along with some dirt and stains on the lower parts of the body. The control panel has some wear and dirt accumulation around the edges. The machining area is generally clean, with minor stains or residue. Safety warning labels are present on the door, and a safety light tower with red and green lights is mounted on top of the machine.
This Biglia B 501 Y CNC lathe is a robust and capable machine suitable for various turning applications, equipped with essential safety features and a well-equipped control interface.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
