Contact us to receive an offer.
| Manufacturer | BIGLIA |
|---|---|
| Model | B 470 YSM |
| Year | 2000 |
| Location | Italy
|
| Category | Lathes - CNC lathes |
| Turning length | 300 mm |
| Turning Ø | 200 mm |
| Length between centers | 690 mm |
| Type of CNC | |
| X-axis | 160 mm |
| Z-axis | 390 mm |
| Spindle taper | |
| Spindle bore | 80 mm |
| Turning speed | 4000 rpm |
| Tailstock | no |
| Bar feeder | no |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Biglia B 470 YSM |
| Last availability date | 26/10/2026 |
| Product id | P260902561 |
| Language |

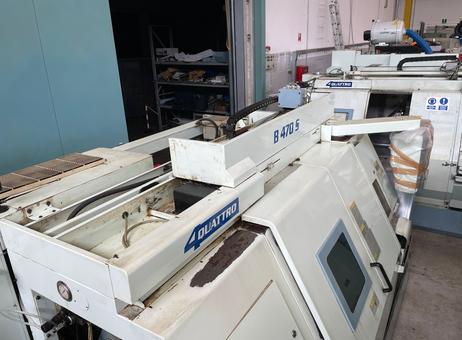

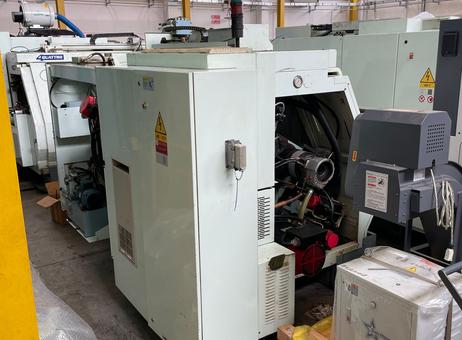

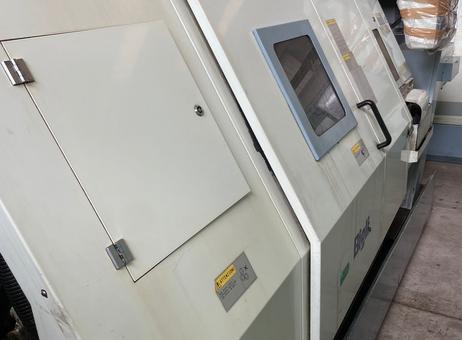

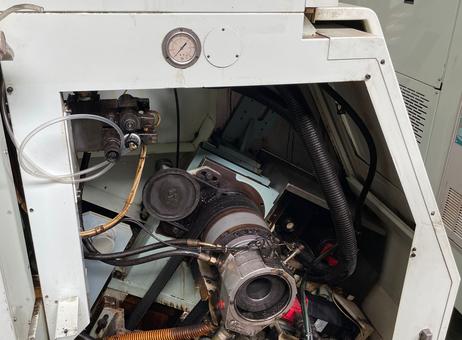

CNC струг BIGLIA B 470 YSM
CNC soustruh BIGLIA B 470 YSM
BIGLIA B 470 YSM CNC-drejebænk
BIGLIA B 470 YSM CNC-Drehmaschine
Τόρνος CNC BIGLIA B 470 YSM
BIGLIA B 470 YSM CNC lathe
Torno CNC BIGLIA B 470 YSM
Tour CNC BIGLIA B 470 YSM
CNC tokarski stroj BIGLIA B 470 YSM
BIGLIA B 470 YSM CNC esztergagép
Tornio CNC BIGLIA B 470 YSM
BIGLIA B 470 YSM CNC tekinimo staklės
BIGLIA B 470 YSM CNC-draaibank
Tokarka CNC BIGLIA B 470 YSM
Torno CNC BIGLIA B 470 YSM
Strung CNC BIGLIA B 470 YSM
BIGLIA B 470 YSM Токарный станок с ЧПУ
CNC strug BIGLIA B 470 YSM
BIGLIA B 470 YSM CNC-svarv
CNC torna BIGLIA B 470 YSM
|
Product overview:
CNC fixed-head lathe equipped with GE Fanuc Series 18i-TB CNC control. The listing includes detailed machining and utility parameters, spindle and tooling data, and overall machine footprint and weight when supplied with a chip conveyor.
Spindle and bar/workpiece capacities:

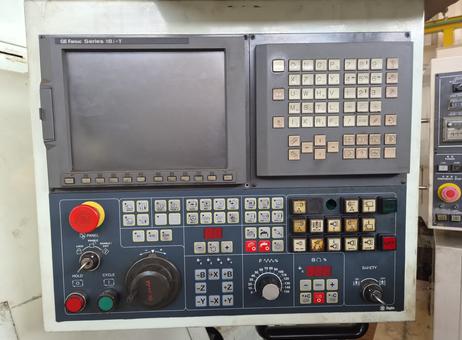

- CNC: GE Fanuc Series 18i-TB
- Main Spindle Capacity: None
- Max bar diameter: 67 mm and 45 mm (two values listed)
- Max rotating/turning diameter: 200 mm and 160 mm
- Max diameter from facing: 200 mm and 160 mm
- Max workpiece length: 300 mm and 200 mm
- Distance between spindle noses: 690 mm (listed twice)
- Spindle nose options/listing: ASA 6" and ASA 5"
- Spindle bore: 80 mm and 56 mm
- Bearing inner diameter: 110 mm and 90 mm
- Self-centering diameter: 210 mm and 165 mm
- Variable spindle speed ranges (listed): 100–4000 rpm, 100–4000 rpm, and 100–3000 rpm
- Rapid speed: 80 rpm

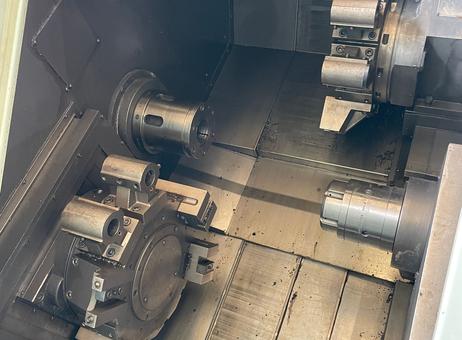

Tooling and turret data:
- Turret: None
- Number/positions: 12 (positions number repeated)
- Turret/type listings: bidirectional and CS (direct)
- External tool shank: 20 x 20 mm
- Boring tool shank: Ø 32 mm
- Rotation time per position: 0.2 sec
- Minimum programmable value (indexing): 0.001°
Axes and feeds:
- X-axis travel: 160 mm and 158 mm
- Z-axis travel: 390 mm and 240 mm
- X-axis rapid feed: 12 m/min (listed twice)
- Z-axis rapid feed: 24 m/min and 20 m/min
- B-axis travel: 420 mm
- B-axis rapid feed: 24 m/min
Drive and utilities:
- Motor power listings: KW 22–26 (50%), KW 5.7–7.5 (50%), kW 1.1–3.7 (25%)
- Coolant: None
- Tank capacity: 180 lt
- Pump flow rate: 150 lt/min
- Pump motor power: kW 0.75
Dimensions, weight and noise:
- Footprint with chip conveyor: 4107 x 2128 x 2204h mm
- Main spindle center height: 1050 mm
- Weight with chip conveyor: 7200 kg
- Noise level: 73.8 dB
Notes and clarifications:
All information in this description is taken from the provided specification text. Fields marked as “None” are recorded as such in the source data. No claims are made about testing, condition, or additional accessories beyond the listed footprint reference to a chip conveyor.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
cnc lathes
fixed head lathes
Cnc: GE Fanuc Series 18i-TB
Main Spindle Capacity: None
Max Bar Diameter: ['67 mm', '45 mm']
Max Diameter from Facing: ['200 mm', '160 mm']
Max Workpiece Length: ['300 mm', '200 mm']
Max Rotating Diameter: ['200 mm', '160 mm']
Distance Between Spindle Noses: ['690 mm', '690 mm']
Sub-Spindle Capacity: None
Main Spindle: None
Variable Speed Range: ['100 - 4000 rpm', '100 - 4000 rpm', '100-3000 rpm']
Spindle Nose: ['ASA 6"', 'ASA 5"']
Spindle Bore: ['80 mm', '56 mm']
Bearing Inner Diameter: ['110 mm', '90 mm']
Self-Centering Diameter: ['210 mm', '165 mm']
Collet Group: ['DIN 6343', 'DIN 6343']
Motor Power: ['KW 22-26 (50%)', 'KW 5.7-7.5 (50%)', 'kW 1.1 - 3.7 (25%)']
Sub-Spindle: None
Turret: None
Number of Positions: 12
Type: ['bidirectional', 'CS (direct)']
External Tool Shank: 20 x 20 mm
Boring Tool Shank: Ø 32 mm
Rotation Time per Position: 0.2 sec
Powered Tools: None
Positions Number: 12
Main Spindle Axes: None
X-Axis Travel: ['160 mm', '158 mm']
Z-Axis Travel: ['390 mm', '240 mm']
X-Axis Rapid Feed: ['12 m/min', '12 m/min']
Z-Axis Rapid Feed: ['24 m/min', '20 m/min']
Sub-Spindle Axes: None
B-Axis Travel: 420 mm
B-Axis Rapid Feed: 24 m/min
Controlled C-Axis: None
Minimum Programmable Value: 0.001°
Rapid Speed: 80 rpm
Coolant: None
Tank Capacity: 180 lt
Pump Flow Rate: 150 lt/min
Pump Motor Power: kW 0.75
Dimensions and Weight: None
Footprint with Chip Conveyor: 4107x2128x2204h mm
Main Spindle Center Height: 1050 mm
Weight with Chip Conveyor: 7200 kg
Noise Level: 73.8 db
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
