| Manufacturer | BAOFENG |
|---|---|
| Model | BF-36DW FANUC |
| Year | |
| Location | Spain
|
This BAOFENG BF-36DW FANUC CNC lathe is a robust machine designed for precision turning tasks. It features a maximum swing over the bed of 500 mm and a maximum turning diameter of 380 mm, making it suitable for medium-sized workpieces. The lathe offers a travel range of 220 mm along the X-axis and 350 mm along the Z-axis, providing flexibility for various machining operations. The spindle bore diameter is 56 mm, accommodating bars up to 42 mm in diameter. Equipped with a powerful spindle motor rated at 11 kW, it achieves spindle speeds up to 8000 rpm, ensuring efficient material removal and high productivity.
The machine includes a 12-station servo turret, allowing for multiple tooling options and complex machining sequences without manual tool changes. It utilizes 45 mm linear guides on both axes for smooth and precise movement, with direct connection types enhancing positioning repeatability to 0.005 mm. The tailstock features an 80 mm sleeve diameter with an 80 mm travel, and a Mohs 4# taper for secure workpiece support.
Physically, the lathe measures 2415 mm in length, 1742 mm in width, and 1680 mm in height, with a total weight of 2600 kg. The spindle nose type is A2-5 (6"), compatible with standard tooling interfaces.
The machine is housed within an enclosed working area, which includes a windowed door for safe observation of the machining process. The control panel is mounted on the right side and is equipped with a screen along with multiple buttons and knobs for operational control. The overall condition appears clean and well-maintained, with no visible signs of damage or wear. This lathe is suitable for users seeking a reliable CNC turning center with comprehensive capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: BAOFENG BF-36DW FANUC CNC Lathe
Manufacturer: BAOFENG
Model: BF-36DW FANUC
Technical Condition: As-is, where-is
Technical Parameters:
Maximum Swing Over Bed: Φ500 mm
Maximum Turning Diameter: Φ380 mm
Maximum Travel on X/Z Axis: 220/350 mm
Spindle Bore Diameter: Φ56 mm
Maximum Bar Diameter: Φ42 mm
Spindle Nose Type: A2-5 (6")
Spindle Speed: 8000 rpm
Servo - X/Z Axis Feed Motor: 1.8/1.8 kW
Servo - Main Spindle Motor: 11-15 kW
Positioning Repeatability Accuracy: 0.005 mm
12-Station Servo Turret
Linear Guides/Sliding Guides: 45/45 Linear Guide
X/Z Axis Connection Type: Direct
Tailstock Sleeve Diameter: 80 mm
Tailstock Sleeve Travel: 80 mm
Maximum Machining Diameter: 400 mm
Tailstock Taper: Mohs 4#
Dimensions (Length * Width * Height): 2,415 * 1,742 * 1,680 mm
Weight: 2,600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 22 |
| Last activity | Oct. 19, 2026 |
Offer Title: BAOFENG BF-36DW FANUC CNC Lathe
Manufacturer: BAOFENG
Model: BF-36DW FANUC
Technical Condition: As-is, where-is
Technical Parameters:
Maximum Swing Over Bed: Φ500 mm
Maximum Turning Diameter: Φ380 mm
Maximum Travel on X/Z Axis: 220/350 mm
Spindle Bore Diameter: Φ56 mm
Maximum Bar Diameter: Φ42 mm
Spindle Nose Type: A2-5 (6")
Spindle Speed: 8000 rpm
Servo - X/Z Axis Feed Motor: 1.8/1.8 kW
Servo - Main Spindle Motor: 11-15 kW
Positioning Repeatability Accuracy: 0.005 mm
12-Station Servo Turret
Linear Guides/Sliding Guides: 45/45 Linear Guide
X/Z Axis Connection Type: Direct
Tailstock Sleeve Diameter: 80 mm
Tailstock Sleeve Travel: 80 mm
Maximum Machining Diameter: 400 mm
Tailstock Taper: Mohs 4#
Dimensions (Length * Width * Height): 2,415 * 1,742 * 1,680 mm
Weight: 2,600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This BAOFENG BF-36DW FANUC CNC lathe is a robust machine designed for precision turning tasks. It features a maximum swing over the bed of 500 mm and a maximum turning diameter of 380 mm, making it suitable for medium-sized workpieces. The lathe offers a travel range of 220 mm along the X-axis and 350 mm along the Z-axis, providing flexibility for various machining operations. The spindle bore diameter is 56 mm, accommodating bars up to 42 mm in diameter. Equipped with a powerful spindle motor rated at 11 kW, it achieves spindle speeds up to 8000 rpm, ensuring efficient material removal and high productivity.
The machine includes a 12-station servo turret, allowing for multiple tooling options and complex machining sequences without manual tool changes. It utilizes 45 mm linear guides on both axes for smooth and precise movement, with direct connection types enhancing positioning repeatability to 0.005 mm. The tailstock features an 80 mm sleeve diameter with an 80 mm travel, and a Mohs 4# taper for secure workpiece support.
Physically, the lathe measures 2415 mm in length, 1742 mm in width, and 1680 mm in height, with a total weight of 2600 kg. The spindle nose type is A2-5 (6"), compatible with standard tooling interfaces.

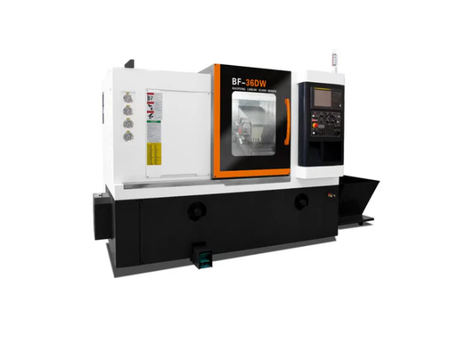

The machine is housed within an enclosed working area, which includes a windowed door for safe observation of the machining process. The control panel is mounted on the right side and is equipped with a screen along with multiple buttons and knobs for operational control. The overall condition appears clean and well-maintained, with no visible signs of damage or wear. This lathe is suitable for users seeking a reliable CNC turning center with comprehensive capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
