| Manufacturer | Arburg |
|---|---|
| Model | 400T 820S 4000/1300 |
| Year | 2014 |
| Location | France
|

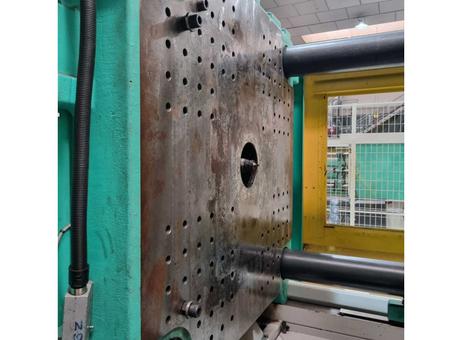

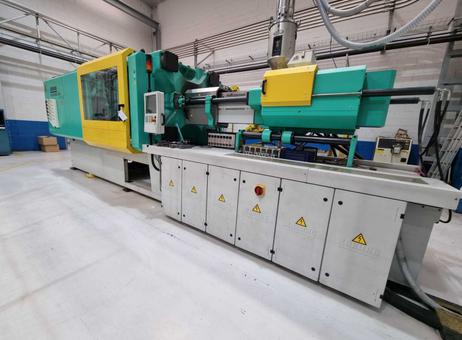

This listing features an ARBURG 400T 820S 4000/1300 injection moulding machine, manufactured in 2014. It is designed with a clamping force of 400 tons and an opening stroke of 700 mm, suitable for a variety of moulding applications. The machine's platen dimensions are 1171 x 1171 mm, with tie bar spacing of 820 mm both horizontally and vertically, providing ample space for mould installation. The screw diameter is 60 mm, with a shot volume of 664 cm³, and it operates at a pressure of 2000 bar on the material.
The machine measures 6500 mm in length, 2400 mm in width, and 3500 mm in height. It is equipped with two cores and includes a robot interface and one blow gun as additional options. The control system is of the SELOGICA type, and the machine features a control panel located on the right side.

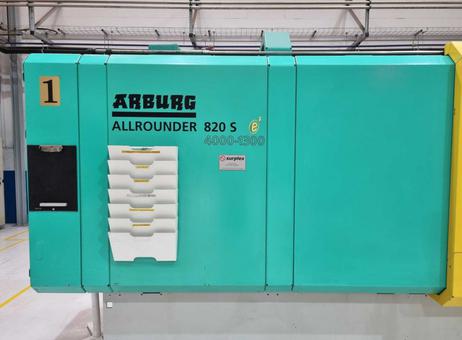

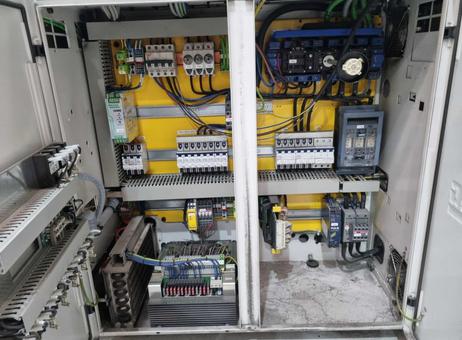

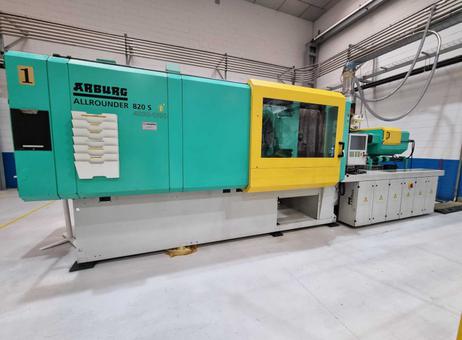

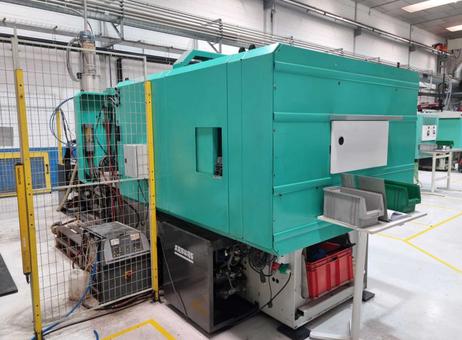

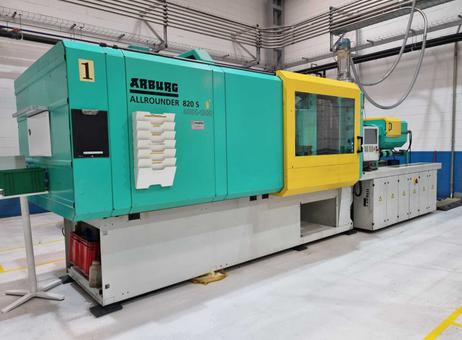

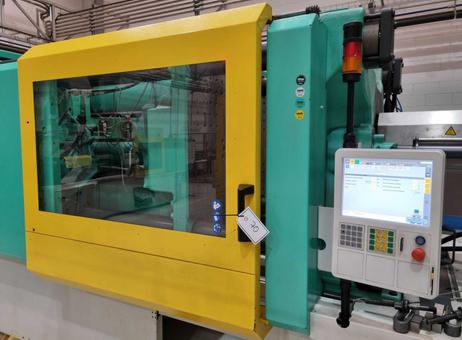

The casing of the machine is turquoise and yellow, and it appears clean and well-maintained based on visual inspection. A document holder with papers is attached to the left side, and the electrical cabinet is positioned on the right side alongside the control panel. The surrounding area is clean and organized, indicating careful upkeep.
This ARBURG Allrounder model is suitable for industrial applications requiring precise and robust injection moulding capabilities. It offers reliable performance with a motor power of 55 kW and heating power of 23 kW. Overall, this machine presents a comprehensive package for manufacturing operations needing a 400-ton clamping force injection moulding solution.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
ARBURG 400T 820S 4000/1300 YEAR 2014
Year of manufacture: 2014

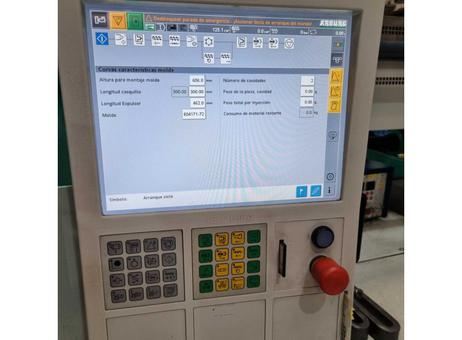

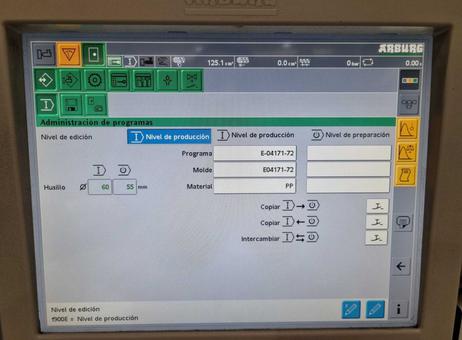

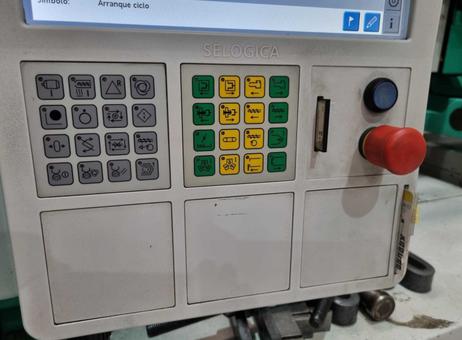

Type of control: SELOGICA
Number of hours: 31,086 H
Closing force: 400 T
Opening stroke: 700 mm
Distance between tie-bars: 820 x 820 mm

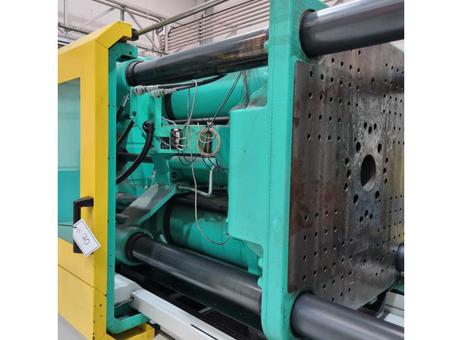

Plates dimensions: 1171 x 1171 mm
Min/max mould: 850 mm
Max gap between plates: 1550 mm
Screw diameter: 60 mm
Screw length: 20/D
cm3: 664
Bars: 2000
Motor power: 55kw
Heating power: 23kw
Closing weight: 20 Tons
Injection weight:
Dimensions length: 6.5m
Dimensions width: 2.4 m
Dimensions height: 3.5 m
Options:
Cores: 2
Robot interface: yes
1 blow gun
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this Arburg 400T 820S 4000/1300 manufactured?
This Arburg 400T 820S 4000/1300 injection moulding machine was manufactured in 2014.
What type of screw does the machine feature?
This injection moulding machine features a single material screw.
Is this Arburg 400T 820S 4000/1300 fully hydraulic?
This Arburg 400T 820S 4000/1300 is a fully hydraulic machine with a servo motor.
Is the machine currently under power for inspection?
The machine can be inspected under power in Paris.
What is this Arburg 400T 820S 4000/1300 injection molding press model?
This Arburg 400T 820S 4000/1300 injection molding press.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
