Contact us to receive an offer.
| Manufacturer | Arburg |
|---|---|
| Model | 275 V 250-70 Schiebetisch |
| Year | 2017 |
| Location | Slovakia
|
This Arburg 275 V 250-70 Schiebetisch injection moulding machine, manufactured in 2017, offers a clamping force of 25 tons. It features a shuttle table with a maximum load capacity of 120 kg and a shuttle table stroke of 500 mm, facilitating efficient handling of moulds and parts. The machine's opening force and stroke range from 100 to 225 mm, with a mould height adjustable between 122 and 222 mm, allowing versatility for various mould sizes.
The injection unit is equipped with a 22 mm diameter screw, an effective screw length to diameter ratio (L/D) of 20, and a maximum screw stroke of 90 mm. It has a shot weight of 31 grams and a stroke volume of 34 cm³, suitable for precise injection moulding tasks. The machine operates at an injection pressure of up to 2000 bar, ensuring consistent material injection.
The ejector system provides a maximum force of 16 kN with a stroke of 40 mm, supporting reliable part ejection. The machine's weight is approximately 120 kg, reflecting its robust construction.

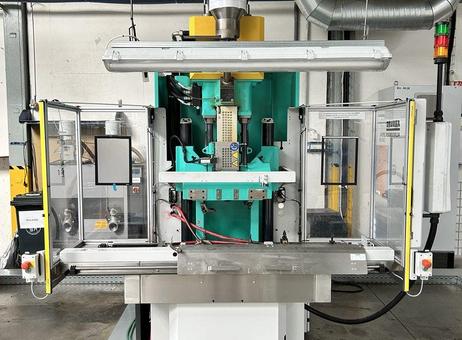

The control panel includes multiple buttons and an emergency stop, integrated within the machine's electrical cabinet. Safety features include yellow safety light curtains on both sides and a safety light tower mounted on top, enhancing operator protection. Feed hoppers are mounted on top of the machine for material input.

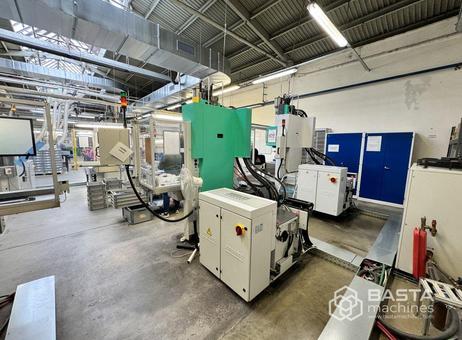

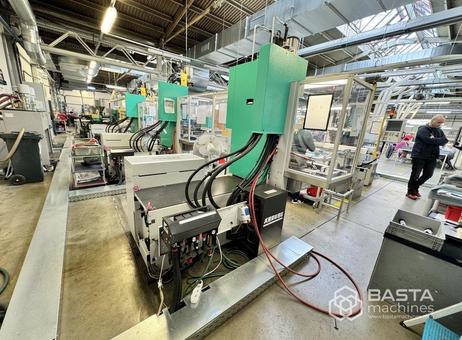

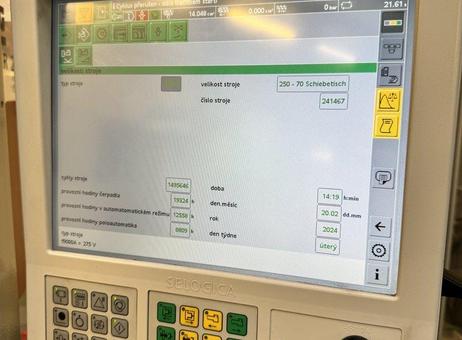

The machine appears clean and well maintained in a factory setting, with multiple cables and hoses connected, indicating readiness for operation. Operating hours displayed on the control interface include 12,558 hours in automatic mode and 8,809 hours in semi-automatic mode. Overall, this Arburg injection moulding machine combines precise technical specifications with safety and operational features suitable for diverse production needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Clamping force: 25 ton Version: Shuttle table Opening force/stroke min.- max. : 100/225 mm Mould height variable min.- max. : 122-222 mm Shuttle table stroke: 500 mm Wight on shuttle table. max. :120 kg Ejector force/stroke max. : 16/40 kN/mm Screw: 22 mm Effective screw length L/D : 20 Screw stroke max. : 90 mm Stroke volume: 34 cm3 Shot weight: 31 g Injection pressure: 2.000 bar Working hours: 12.500 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this Arburg 275 V 250-70 Schiebetisch for sale?
This Arburg 275 V 250-70 Schiebetisch is for sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 48 |
| Last activity | Oct. 22, 2026 |
Clamping force: 25 ton Version: Shuttle table Opening force/stroke min.- max. : 100/225 mm Mould height variable min.- max. : 122-222 mm Shuttle table stroke: 500 mm Wight on shuttle table. max. :120 kg Ejector force/stroke max. : 16/40 kN/mm Screw: 22 mm Effective screw length L/D : 20 Screw stroke max. : 90 mm Stroke volume: 34 cm3 Shot weight: 31 g Injection pressure: 2.000 bar Working hours: 12.500 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this Arburg 275 V 250-70 Schiebetisch for sale?
This Arburg 275 V 250-70 Schiebetisch is for sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This Arburg 275 V 250-70 Schiebetisch injection moulding machine, manufactured in 2017, offers a clamping force of 25 tons. It features a shuttle table with a maximum load capacity of 120 kg and a shuttle table stroke of 500 mm, facilitating efficient handling of moulds and parts. The machine's opening force and stroke range from 100 to 225 mm, with a mould height adjustable between 122 and 222 mm, allowing versatility for various mould sizes.
The injection unit is equipped with a 22 mm diameter screw, an effective screw length to diameter ratio (L/D) of 20, and a maximum screw stroke of 90 mm. It has a shot weight of 31 grams and a stroke volume of 34 cm³, suitable for precise injection moulding tasks. The machine operates at an injection pressure of up to 2000 bar, ensuring consistent material injection.
The ejector system provides a maximum force of 16 kN with a stroke of 40 mm, supporting reliable part ejection. The machine's weight is approximately 120 kg, reflecting its robust construction.
The control panel includes multiple buttons and an emergency stop, integrated within the machine's electrical cabinet. Safety features include yellow safety light curtains on both sides and a safety light tower mounted on top, enhancing operator protection. Feed hoppers are mounted on top of the machine for material input.
The machine appears clean and well maintained in a factory setting, with multiple cables and hoses connected, indicating readiness for operation. Operating hours displayed on the control interface include 12,558 hours in automatic mode and 8,809 hours in semi-automatic mode. Overall, this Arburg injection moulding machine combines precise technical specifications with safety and operational features suitable for diverse production needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 48 |
| Last activity | Oct. 22, 2026 |
