| Manufacturer | ACCUWAY |
|---|---|
| Model | UT-300LX2M |
| Year | 2016 |
| Location | Slovenia
|

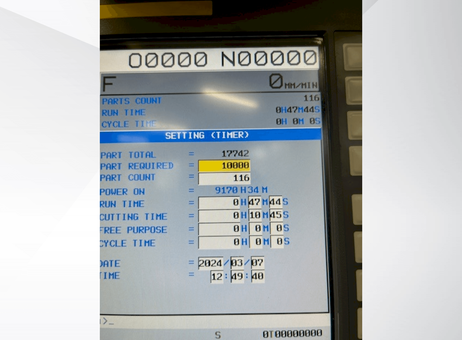

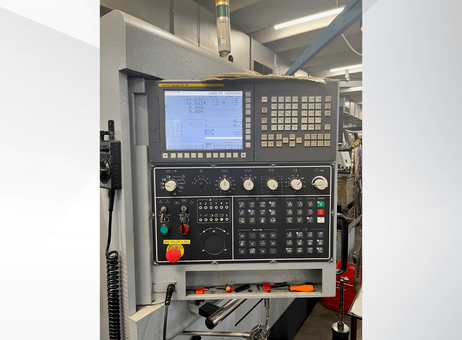

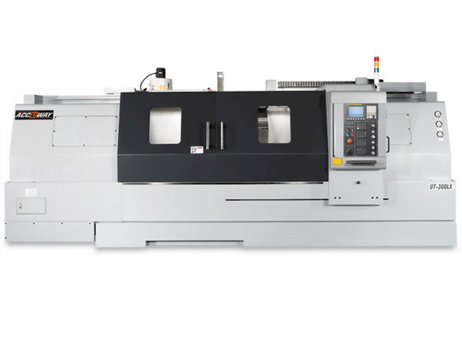

This ACCUWAY UT-300LX2M CNC lathe, manufactured in 2016, is designed for precision turning operations. It features a FANUC 0i-T control system with a 10.4" colored LCD monitor, providing an intuitive interface for programming and operation. The control panel is equipped with a numerical keypad, function keys, and a display screen that shows operational data such as parts count and run time.
The machine measures 5500 mm in length, 2300 mm in width, and 2200 mm in height, with a net weight of 9000 kg. It has a robust construction suitable for industrial environments. The lathe offers a turning length capacity of 2180 mm and a maximum turning diameter of 500 mm, with a swing over the bed of 612 mm. The X-axis has a movement range of 300 mm, while the Z-axis extends to 2250 mm.
Equipped with a single turret holding 12 tool positions, the turret tooling system supports both hydraulic and servo-driven types, accommodating square tool shanks of 25 mm and round shanks of 40 mm. The spindle motor delivers up to 22 kW of power, with spindle speeds reaching 3500 rpm. The spindle accepts various chuck diameters (10", 12", or 15") and bar capacities ranging from 75 mm to 116.5 mm.
Additional features include a heat exchanger for the electric cabinet to maintain optimal operating temperatures and a lubrication system to ensure smooth machine operation. The machine is fitted with a three-color warning light for operational safety.

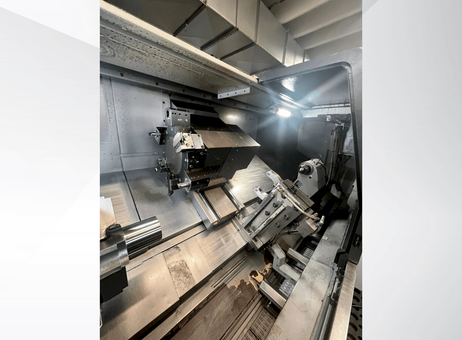

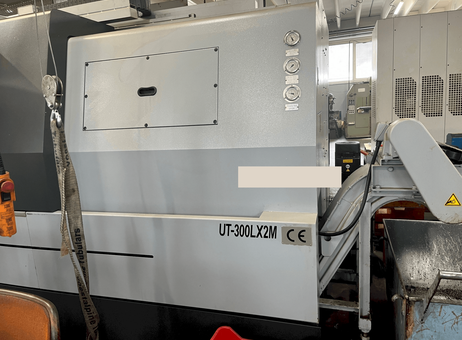

The lathe's exterior and interior appear clean and well-maintained with minor signs of use. The enclosure includes a turret tool holder and a steady rest inside the machining area. Pressure gauges are mounted on the upper right side of the machine body. The control panel is intact and functional, displaying machine status clearly.

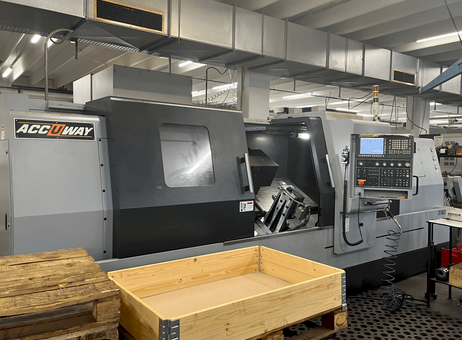

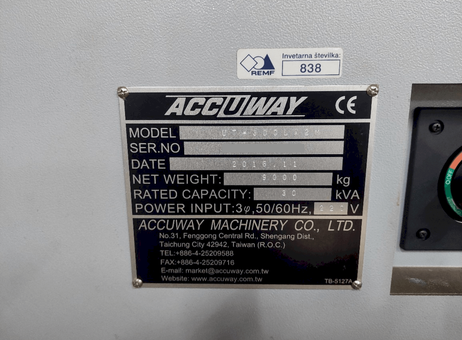

For transport or storage, wooden crates and pallets are present in front of the machine. Manufacturer details and certification marks are visible on the machine body, confirming authenticity and compliance. This CNC lathe is suitable for precision machining tasks requiring reliable performance and versatility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This ACCUWAY UT-300LX2M Lathe machine was manufactured in the year 2016. It is equipped with a FANUC 0i-T Control Unit. It has a heat exchanger for electric cabinet and a lubrication system. The monitor (LCD) is 10.4" colored and dispose a three color warning light.
Machine width: 2300 mm
Machine depth: 5500 mm
Machine height: 2200 mm
Machine weight: 9000 kg
CNC: FANUC 0i-T
Interface: RJ-45
Spindle speed range: 3500 // 2700 // 2500 // 2000 rpm
Spindle motor power: 15/18.5 kW or 18.5/22 kW
Number of axis: 3
X-Axis Movement: 300mm
X-Axis Rapid Traverse: 20m/min
Z-Axis Movement: 2250mm
Z-Axis Rapid Traverse: 15m/min
Number of turrets: 1
Number of tool slots: 12
Capacity; swing over bed: 612mm // swing over saddle: 400mm / max. Turning diameter: 500mm // max. Turning length: 2180mm or 2100mm
Spindle; spindle nose taper: asa a2-8 or a2-11 // chuck diameter: 10", 12", or 15" // bar capacity: 75mm, 90mm, 105mm, or 116. 5mm // spindle speed: 3500rpm, 2700rpm, 2500rpm, or 2000rpm // spindle motor power (cont. / 30min): 15/18. 5 kw or 18. 5/22 kw
Turret tooling system: bot
Turret driven type: hydraulic/servo // square tool shank size: 25mm // round tool shank size: 40mm
Tailstock body travel: 2040mm // quill travel: 120mm // quill diameter: 110mm // quill taper: mt#5
Rigid tapping
Heat exchanger for electric cabinet
10. 4" colored lcd monitor
Lubrication system
Three-color warning light
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2045 |
| Last activity | Oct. 30, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This ACCUWAY UT-300LX2M Lathe machine was manufactured in the year 2016. It is equipped with a FANUC 0i-T Control Unit. It has a heat exchanger for electric cabinet and a lubrication system. The monitor (LCD) is 10.4" colored and dispose a three color warning light.
Machine width: 2300 mm
Machine depth: 5500 mm
Machine height: 2200 mm
Machine weight: 9000 kg
CNC: FANUC 0i-T
Interface: RJ-45
Spindle speed range: 3500 // 2700 // 2500 // 2000 rpm
Spindle motor power: 15/18.5 kW or 18.5/22 kW
Number of axis: 3
X-Axis Movement: 300mm
X-Axis Rapid Traverse: 20m/min
Z-Axis Movement: 2250mm
Z-Axis Rapid Traverse: 15m/min
Number of turrets: 1
Number of tool slots: 12
Capacity; swing over bed: 612mm // swing over saddle: 400mm / max. Turning diameter: 500mm // max. Turning length: 2180mm or 2100mm
Spindle; spindle nose taper: asa a2-8 or a2-11 // chuck diameter: 10", 12", or 15" // bar capacity: 75mm, 90mm, 105mm, or 116. 5mm // spindle speed: 3500rpm, 2700rpm, 2500rpm, or 2000rpm // spindle motor power (cont. / 30min): 15/18. 5 kw or 18. 5/22 kw
Turret tooling system: bot
Turret driven type: hydraulic/servo // square tool shank size: 25mm // round tool shank size: 40mm
Tailstock body travel: 2040mm // quill travel: 120mm // quill diameter: 110mm // quill taper: mt#5
Rigid tapping
Heat exchanger for electric cabinet
10. 4" colored lcd monitor
Lubrication system
Three-color warning light
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
