Contact us to receive an offer.
| Manufacturer | ZPS |
|---|---|
| Model | MCFH 63 CNC |
| Year | 1998 |
| Location | Czech Republic
|

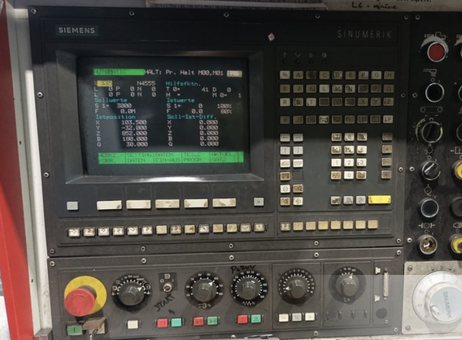

This listing features a ZPS MCFH 63 CNC horizontal machining center, manufactured in 1998, with a modernization update completed in 2010. The machine is equipped with a Siemens SINUMERIK 880 ME control system, which includes a control panel with an attached monitor and keyboard, as well as an emergency stop button for operational safety. The control panel shows typical usage wear but remains intact.
The machining center offers travel dimensions of 1000 mm on the X-axis, 800 mm on the Y-axis, and 850 mm on the Z-axis, suitable for a variety of medium to large workpieces. It has a pallet clamping area measuring 800 x 630 mm and includes two pallets to facilitate efficient workpiece handling. The machine supports a maximum workpiece weight of 1000 kg.
The spindle features a maximum speed of 4500 rpm, powered by a 30 kW motor, and uses an ISO 50 spindle taper. The tool magazine accommodates up to 60 tool pockets, enabling versatile tooling options for complex machining tasks.

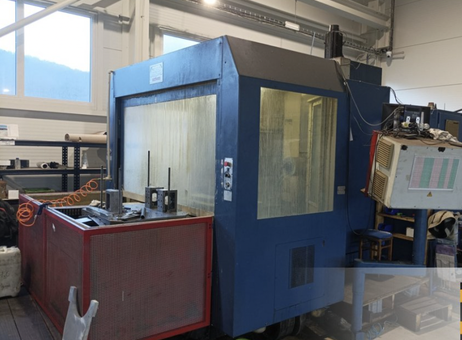

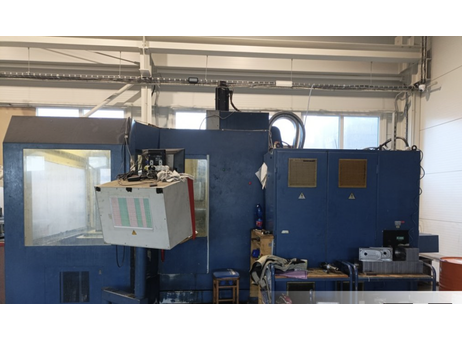

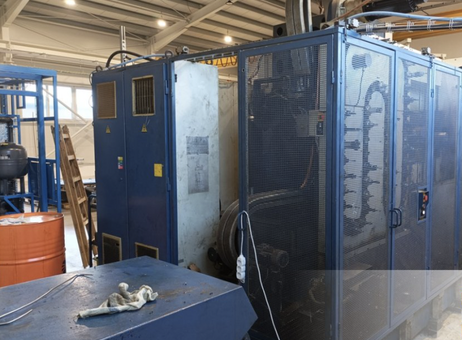

The machine is housed in a blue enclosure with large transparent windows allowing visibility into the machining area. Some dirt and wear are visible on the machine surfaces and windows, indicating regular use but no visible damage. Multiple ventilation grills are integrated into the blue panels to support cooling. Nearby, there are maintenance-related items such as an orange barrel and wooden ladder, as well as a green drip tray positioned underneath the machine, suggesting routine maintenance practices.

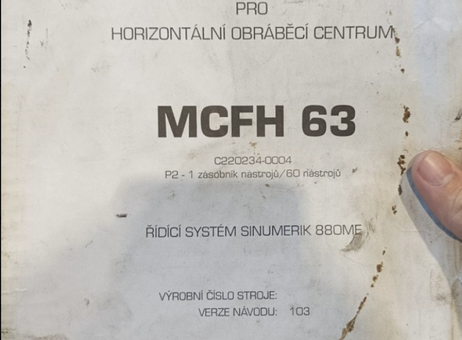

The overall machine weight is approximately 16,500 kg. The equipment is situated indoors in a well-lit industrial environment, with surrounding shelving, a workbench, stools, and tools indicating an active workshop setting. Documentation for installation, operation, and maintenance is available, confirming the model and control system details.
This machining center is suitable for industrial applications requiring robust horizontal machining capabilities with a comprehensive tool magazine and dual-pallet system.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
year 1998, modernization 2010
Control system: Sinumeric 880 ME
X-axis travel: 1,000 mm
Y-axis travel: 800 mm
Z-axis travel: 850 mm
Spindle speed: 4,500 rpm
Spindle motor power: 30 kW
Spindle taper: ISO 50
Number of tools in magazine: 60 pcs
Pallet clamping area: 800 x 630
Number of pallets: 2
Max. workpiece weight: 1,000 kg
Machine weight: 16,500 kg
Very good condition - possible to test.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this ZPS MCFH 63 CNC horizontal machining center functional?
This ZPS MCFH 63 CNC horizontal machining center is functional.
Can this ZPS MCFH 63 CNC horizontal machining center be tested?
This ZPS MCFH 63 CNC horizontal machining center is under power and can be tested.
When was this equipment manufactured?
This equipment was manufactured in 1998.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 77 |
| Last activity | Oct. 31, 2026 |
year 1998, modernization 2010
Control system: Sinumeric 880 ME
X-axis travel: 1,000 mm
Y-axis travel: 800 mm
Z-axis travel: 850 mm
Spindle speed: 4,500 rpm
Spindle motor power: 30 kW
Spindle taper: ISO 50
Number of tools in magazine: 60 pcs
Pallet clamping area: 800 x 630
Number of pallets: 2
Max. workpiece weight: 1,000 kg
Machine weight: 16,500 kg
Very good condition - possible to test.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this ZPS MCFH 63 CNC horizontal machining center functional?
This ZPS MCFH 63 CNC horizontal machining center is functional.
Can this ZPS MCFH 63 CNC horizontal machining center be tested?
This ZPS MCFH 63 CNC horizontal machining center is under power and can be tested.
When was this equipment manufactured?
This equipment was manufactured in 1998.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This listing features a ZPS MCFH 63 CNC horizontal machining center, manufactured in 1998, with a modernization update completed in 2010. The machine is equipped with a Siemens SINUMERIK 880 ME control system, which includes a control panel with an attached monitor and keyboard, as well as an emergency stop button for operational safety. The control panel shows typical usage wear but remains intact.
The machining center offers travel dimensions of 1000 mm on the X-axis, 800 mm on the Y-axis, and 850 mm on the Z-axis, suitable for a variety of medium to large workpieces. It has a pallet clamping area measuring 800 x 630 mm and includes two pallets to facilitate efficient workpiece handling. The machine supports a maximum workpiece weight of 1000 kg.
The spindle features a maximum speed of 4500 rpm, powered by a 30 kW motor, and uses an ISO 50 spindle taper. The tool magazine accommodates up to 60 tool pockets, enabling versatile tooling options for complex machining tasks.
The machine is housed in a blue enclosure with large transparent windows allowing visibility into the machining area. Some dirt and wear are visible on the machine surfaces and windows, indicating regular use but no visible damage. Multiple ventilation grills are integrated into the blue panels to support cooling. Nearby, there are maintenance-related items such as an orange barrel and wooden ladder, as well as a green drip tray positioned underneath the machine, suggesting routine maintenance practices.
The overall machine weight is approximately 16,500 kg. The equipment is situated indoors in a well-lit industrial environment, with surrounding shelving, a workbench, stools, and tools indicating an active workshop setting. Documentation for installation, operation, and maintenance is available, confirming the model and control system details.
This machining center is suitable for industrial applications requiring robust horizontal machining capabilities with a comprehensive tool magazine and dual-pallet system.
