| Manufacturer | ZIMMER & KREIM |
|---|---|
| Model | PEC 850 |
| Year | 1994 |
| Location | Germany
|
Manufacturer: ZIMMER & KREIM
Model: PEC 850
Year of manufacture: 1994
Type: CNC die-sinking EDM
Technical condition: good
State: under power
Summary

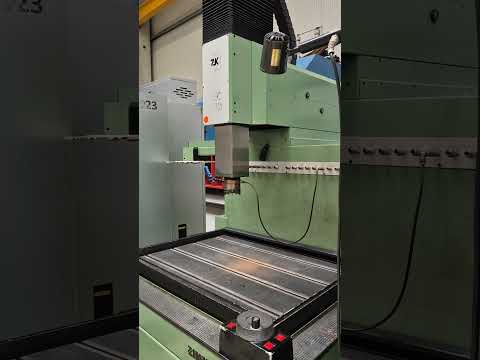

This ZIMMER & KREIM PEC 850 is a CNC die-sinking EDM with a controlled C-axis and a 16-position tool changer. The machine is described as being in good technical condition and under power. Overall footprint and weight are listed for reference.
Key machine specifications
- Overall dimensions (L x W x H): 2760 x 1110 x 1840 mm
- Weight: 2750 kg
- Worktable size: 840 x 600 mm (table length 840 mm / table width 600 mm)
- Dielectric clearance above table: 360 mm
- Maximum workpiece weight: 1000 kg
- T-slots: 4 × 10 mm
- Distance table to quill (max / min): 595 / 180 mm
Axis and motion
- X-axis travel: 565 mm
- Y-axis travel: 400 mm
- Z-axis travel: 415 mm
- X–Y–Z resolution: 0.001 mm
- C-axis: controlled; resolution: 0.001 deg
- Rapid traverse speed: 800 mm/min
Electrodes and tool handling
- 16-position tool changer
- Maximum electrode weight without rotation: 100 kg
- Maximum electrode weight with rotation: 15 kg
Dielectric and generator
- Dielectric tank volume: 400 liters
- Paper candle filters: 4 pieces
- Generator dimensions (H x W x D): 1800 x 600 x 920 mm
- Generator weight: 300 kg
- Generator rated current: 60 – 120 A
- Generator power rating: 15 – 23 kVA
- Maximum machining current listed: 120 A
Notes
This description consolidates provided technical details for the PEC 850. Additional documentation or specific test reports are not included here; further technical information or verification can be requested from the seller.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: ZIMMER & KREIM
Model: PEC 850
Year of manufacture: 1994
Technical condition: good
State: under power
Overall dimensions (L x W x H): 2760 x 1110 x 1840 mm
Weight: 2750 kg
X-axis travel: 565 mm
Y-axis travel: 400 mm
Z-axis travel: 415 mm
X-Y-Z resolution: 0.001 mm
C-axis resolution: 0.001 deg
C-axis: controlled
Table/worktable size: 840 x 600 mm
Dielectric above table: 360 mm
Max. workpiece weight: 1000 kg
T-slots: 4 x 10 mm
Distance table to quill (max / min): 595 / 180 mm
Table length: 840 mm
Table width: 600 mm
Max machining current: 120 A
Worktank length: 840 mm
Worktank width: 600 mm
Type: CNC
Tool changer: 16-position
Dielectric supply: Tank volume: 400 liters
Paper candle filters: 4 pieces
Generator: dimensions (H x W x D): 1800 x 600 x 920 mm
Generator: weight: 300 kg
Generator: rated current: 60 – 120 A
Generator: power rating: 15 – 23 kVA
Worktank/Dielectric system: as specified above
Notes: This machine features a controlled C-axis and a 16-position tool changer for enhanced precision and versatility. Battery and electronics status follow standard expectations for a unit described as under power. Additional technical details available on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 28 |
| Last activity | Sept. 3, 2026 |
Manufacturer: ZIMMER & KREIM
Model: PEC 850
Year of manufacture: 1994
Technical condition: good
State: under power
Overall dimensions (L x W x H): 2760 x 1110 x 1840 mm
Weight: 2750 kg
X-axis travel: 565 mm
Y-axis travel: 400 mm
Z-axis travel: 415 mm
X-Y-Z resolution: 0.001 mm
C-axis resolution: 0.001 deg
C-axis: controlled
Table/worktable size: 840 x 600 mm
Dielectric above table: 360 mm
Max. workpiece weight: 1000 kg
T-slots: 4 x 10 mm
Distance table to quill (max / min): 595 / 180 mm
Table length: 840 mm
Table width: 600 mm
Max machining current: 120 A
Worktank length: 840 mm
Worktank width: 600 mm
Type: CNC
Tool changer: 16-position
Dielectric supply: Tank volume: 400 liters
Paper candle filters: 4 pieces
Generator: dimensions (H x W x D): 1800 x 600 x 920 mm
Generator: weight: 300 kg
Generator: rated current: 60 – 120 A
Generator: power rating: 15 – 23 kVA
Worktank/Dielectric system: as specified above
Notes: This machine features a controlled C-axis and a 16-position tool changer for enhanced precision and versatility. Battery and electronics status follow standard expectations for a unit described as under power. Additional technical details available on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: ZIMMER & KREIM
Model: PEC 850
Year of manufacture: 1994
Type: CNC die-sinking EDM
Technical condition: good
State: under power
Summary
This ZIMMER & KREIM PEC 850 is a CNC die-sinking EDM with a controlled C-axis and a 16-position tool changer. The machine is described as being in good technical condition and under power. Overall footprint and weight are listed for reference.
Key machine specifications
- Overall dimensions (L x W x H): 2760 x 1110 x 1840 mm
- Weight: 2750 kg
- Worktable size: 840 x 600 mm (table length 840 mm / table width 600 mm)
- Dielectric clearance above table: 360 mm
- Maximum workpiece weight: 1000 kg
- T-slots: 4 × 10 mm
- Distance table to quill (max / min): 595 / 180 mm
Axis and motion
- X-axis travel: 565 mm
- Y-axis travel: 400 mm
- Z-axis travel: 415 mm
- X–Y–Z resolution: 0.001 mm
- C-axis: controlled; resolution: 0.001 deg
- Rapid traverse speed: 800 mm/min
Electrodes and tool handling
- 16-position tool changer
- Maximum electrode weight without rotation: 100 kg
- Maximum electrode weight with rotation: 15 kg
Dielectric and generator
- Dielectric tank volume: 400 liters
- Paper candle filters: 4 pieces
- Generator dimensions (H x W x D): 1800 x 600 x 920 mm
- Generator weight: 300 kg
- Generator rated current: 60 – 120 A
- Generator power rating: 15 – 23 kVA
- Maximum machining current listed: 120 A
Notes
This description consolidates provided technical details for the PEC 850. Additional documentation or specific test reports are not included here; further technical information or verification can be requested from the seller.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
