| Manufacturer | Zhejiang Haotong Machinery |
|---|---|
| Model | HT-420 |
| Year | 2022 |
| Location | Russia
|

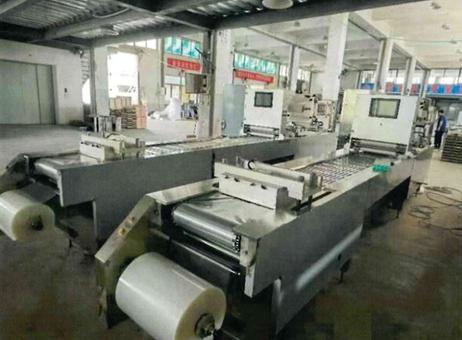

This listing offers a Zhejiang Haotong Machinery HT-420 automatic blister packaging machine, manufactured in 2022. The machine is designed for packaging probes (swabs) in stretch film using a four-sided sealing method. It operates with a production speed ranging from 30 to 400 packages per minute, accommodating product packaging sizes with lengths between 5 and 400 mm, widths from 5 to 300 mm, and heights from 1 to 60 mm. The packaging film width can be up to 435 mm with an outer diameter of less than 400 mm, and it supports PE compound PET film materials.
The machine dimensions are 6520 mm in length, 1060 mm in width, and 1720 mm in height, with a weight of 2600 kg. It requires an air pressure of 6 MPa and operates on a 380 V 50/60 Hz three-phase power supply, consuming a total power of 14.5 kW. The working height of the machine is 930 mm.

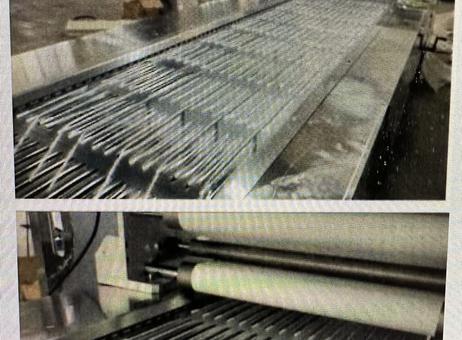

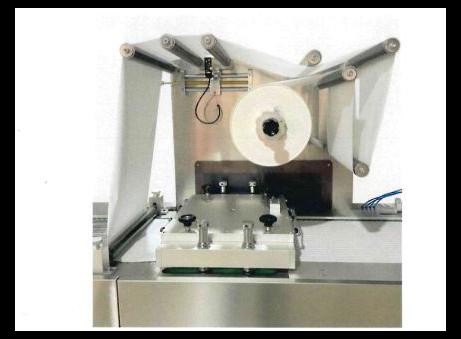

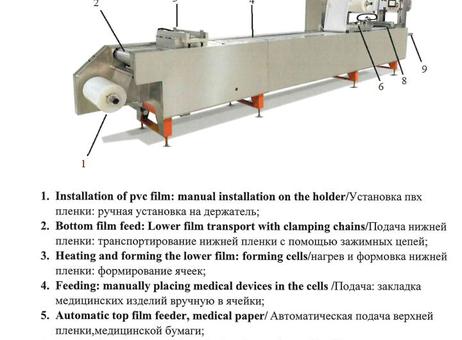

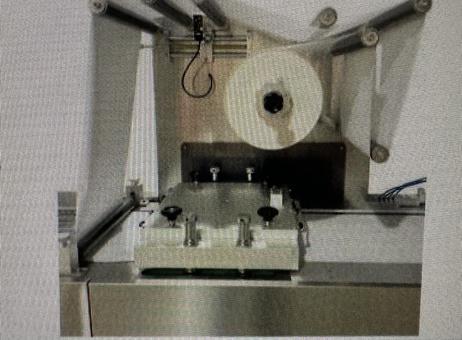

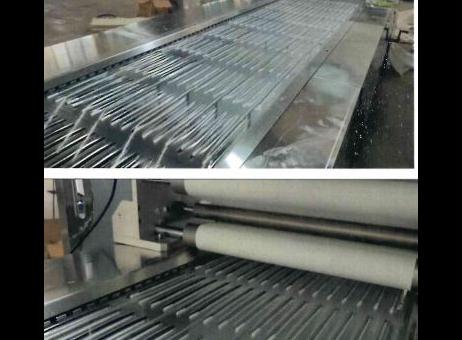

The equipment includes several key components: a manual PVC film installation holder at the machine's start, a lower film transport system utilizing clamping chains, a heating and forming section with forming cells for the lower film, an automatic top film feeder, and a sealing section that uses heat and pressure near the machine's end. Additionally, it features a batch number and date printer, a cutting section, and a finished goods transfer area.
This machine is delivered in its original packaging and has not been used. Included in the offer are two molds suitable for the packaging process. This setup is ideal for businesses requiring efficient, high-speed packaging solutions for medical or similar probe products.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Two pieces of equipment - an automatic machine for packaging probes (swabs) in stretch film and two molds. Equipment purchased in 2022. Not used. Contained in original packaging.

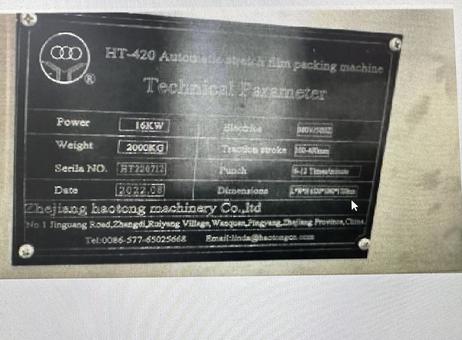

Technical parameters: model HT-420; production speed 30-400 packages/min;
type of packaging in a bag: four-sided sealing;
product packaging size (length) 5 - 400 mm, (width) 5 - 300 mm, (height) 1-60 mm;
packaging film width <435 mm; outer diameter of packaging film <400 mm;
packaging film material PE compound PET;
air pressure 6 MPa; working height of the machine 930 mm;
total power 14.5 kW;
power type 380 V 50/60 Hz three-phase; machine weight 2600kg;
machine size 6520x 1060x 1720 mm (LxWxH)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2008 |
| Offers online | 1 |
| Last activity | Nov. 24, 2023 |
Two pieces of equipment - an automatic machine for packaging probes (swabs) in stretch film and two molds. Equipment purchased in 2022. Not used. Contained in original packaging.
Technical parameters: model HT-420; production speed 30-400 packages/min;
type of packaging in a bag: four-sided sealing;
product packaging size (length) 5 - 400 mm, (width) 5 - 300 mm, (height) 1-60 mm;
packaging film width <435 mm; outer diameter of packaging film <400 mm;
packaging film material PE compound PET;
air pressure 6 MPa; working height of the machine 930 mm;
total power 14.5 kW;
power type 380 V 50/60 Hz three-phase; machine weight 2600kg;
machine size 6520x 1060x 1720 mm (LxWxH)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing offers a Zhejiang Haotong Machinery HT-420 automatic blister packaging machine, manufactured in 2022. The machine is designed for packaging probes (swabs) in stretch film using a four-sided sealing method. It operates with a production speed ranging from 30 to 400 packages per minute, accommodating product packaging sizes with lengths between 5 and 400 mm, widths from 5 to 300 mm, and heights from 1 to 60 mm. The packaging film width can be up to 435 mm with an outer diameter of less than 400 mm, and it supports PE compound PET film materials.
The machine dimensions are 6520 mm in length, 1060 mm in width, and 1720 mm in height, with a weight of 2600 kg. It requires an air pressure of 6 MPa and operates on a 380 V 50/60 Hz three-phase power supply, consuming a total power of 14.5 kW. The working height of the machine is 930 mm.
The equipment includes several key components: a manual PVC film installation holder at the machine's start, a lower film transport system utilizing clamping chains, a heating and forming section with forming cells for the lower film, an automatic top film feeder, and a sealing section that uses heat and pressure near the machine's end. Additionally, it features a batch number and date printer, a cutting section, and a finished goods transfer area.
This machine is delivered in its original packaging and has not been used. Included in the offer are two molds suitable for the packaging process. This setup is ideal for businesses requiring efficient, high-speed packaging solutions for medical or similar probe products.
