| Manufacturer | ZEISS |
|---|---|
| Model | LSM 780 NLO |
| Year | |
| Location | USA
|
This listing offers a ZEISS LSM 780 NLO, a high-performance laboratory microscope system designed for advanced imaging applications. The system is mounted on an Axio Examiner.Z1 stand, which is upright with motorized Z-axis control and manual XY stage movement. The motorized XY stage provides 120 × 80 mm travel with a repeatability of ±0.25 µm, allowing precise sample positioning.
The microscope supports multiple imaging modes, including point-scanning confocal (visible spectrum), multiphoton and second-harmonic generation (NLO), spectral scanning, lambda-stacking, fluorescence correlation spectroscopy (FCS) and fluorescence cross-correlation spectroscopy (FCCS). It also features FRAP (fluorescence recovery after photobleaching) and photo-activation capabilities with galvanometer-controlled regions of interest.
The system includes a range of factory-integrated lasers covering wavelengths from 405 nm to 1040 nm, suitable for various fluorophores and applications. Detection is facilitated by a 32-channel GaAsP QUASAR spectral detector, two standard near-infrared enhanced PMT detectors, a BiG-II non-descanned GaAsP detector pair for multiphoton imaging, and a transmitted photomultiplier tube for label-free imaging.
Additional features include polarization optics with rotatable polarizer and analyzer sets for anisotropy imaging, an X-Cite 120LED widefield illumination lamp with a fast shutter, and a user I/O box with 8 TTL inputs and outputs for external triggering and synchronization.
Objectives supplied range from 10× dry to 63× oil immersion lenses, including water immersion options optimized for live-cell multiphoton imaging. Environmental control accessories include a PeCon Incubator XL-LSM for temperature, CO₂, and humidity regulation, as well as a temperature module for sample cooling and heating.
The system is controlled via ZEN Black 2012 software, which includes modules for spectral unmixing, FCS/FCCS, FRAP/FLIP bleaching control, experiment design, and 3D volume rendering.

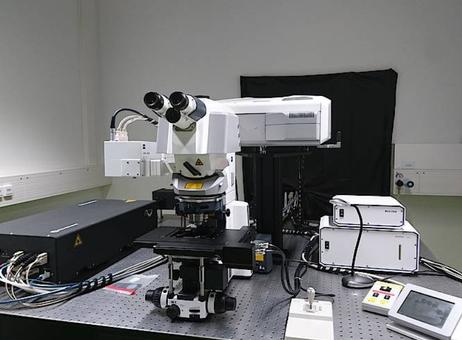

Visible in the setup are binocular eyepieces, adjustment knobs on the microscope stage, several electronic control units, and a joystick controller. The entire system is mounted on an optical table with a perforated surface for vibration isolation. The equipment appears clean and well-maintained with no visible damage. This setup is offered as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: ZEISS LSM 780 NLO Laboratory Equipment
Manufacturer: ZEISS
Model: LSM 780 NLO
Technical Condition: As-is, where-is
Stand: Axio Examiner.Z1 (upright, motorized Z, manual XY)
Motorized XY Stage: 120 × 80 mm travel, repeatability ±0.25 µm
Real-time Autofocus: Definite Focus 2 for NLO
User I/O Box: 8 TTL in / 8 TTL out for external trigger and synchronization
Polarization Optics: Rotatable polarizer + analyzer set for anisotropy imaging
Illumination: X-Cite 120LED widefield lamp with fast shutter
Imaging Modes:
- Point-scanning confocal (VIS)
- Multiphoton / second-harmonic generation (NLO)
- Spectral scanning, lambda-stacking, FCS/FCCS
- FRAP & photo-activation with galvanometer ROI
Lasers (factory-integrated):
- Tunable 690-1 040 nm Coherent Chameleon Ultra II (3.5 W) 140 fs pulses, 80 MHz
- 405 nm 30 mW diode DNA / DAPI
- 445 nm 50 mW diode CFP, mCerulean
- 488 nm 20 mW OPSL GFP, FITC
- 561 nm 25 mW DPSS Cy3, mCherry
- 594 nm 20 mW HeNe Texas Red
- 633 nm 10 mW HeNe Cy5, Alexa 647
Detectors:
- 32-channel GaAsP QUASAR spectral detector (photon-counting capable, 405–695 nm)
- 2 × standard PMT detectors (NIR-enhanced)
- BiG-II non-descanned GaAsP pair for multiphoton (blue-green & green-red bands)
- Transmitted NDD PMT for SHG / label-free imaging
Filter Cubes (widefield side port):
- Set 49 DAPI Ex G365 / Em BP 445/50
- Set 38 HE GFP Ex BP 470/40 / Em BP 525/50
- Set 43 HE mCherry Ex BP 550/25 / Em BP 605/70
- Set 50 Cy5 Ex BP 640/30 / Em BP 690/50
Objectives (with matching DIC sliders):
- Plan-Apochromat 10× 0.45 dry WD 2 mm
- Plan-Apochromat 20× 0.8 dry WD 0.55 mm
- C-Apochromat 40× 1.2 water, corr. collar Live-cell MP
- Plan-Apochromat 63× 1.4 oil Highest resolution
Environmental Control:
- PeCon Incubator XL-LSM: 5–40 °C, 0–15 % CO₂, humidity regulation
- Temperature Module S: sample cooling to –5 °C / heating to +80 °C (no CO₂)
Software:
- ZEN Black 2012
- Spectral Unmixing & Linear Unmix Wizard
- FCS & FCCS GaAsP module
- FRAP / FLIP bleaching control with recovery analysis
- Experiment Designer + Multi-Time / Tile & Position
- 3D-VisArt volume-render engine
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
