| Manufacturer | WOTAN |
|---|---|
| Model | Rapid 1 |
| Year | 1995 |
| Location | Portugal
|
WOTAN Rapid 1 — 5-axis CNC table-type boring machine (manufactured 1995). Key machine data: X travel 1,500 mm; Y travel 1,000 mm; Z travel 1,000 mm. Number of axes: 5. B-axis (rotary table): 360°. Max spindle speed: 1,600 rpm. Spindle taper: BT 50. Control brand: FANUC. The machine was retrofitted with a FANUC control in 2017 (control retrofit noted in the listing). A maximum table load capacity of 4 tons is listed in the current description.

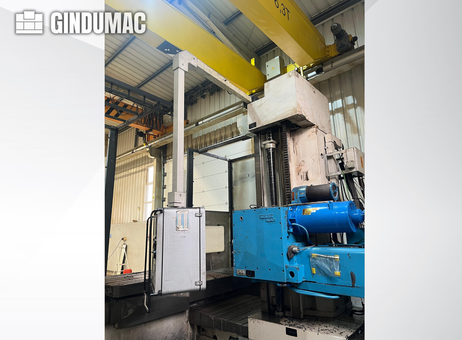

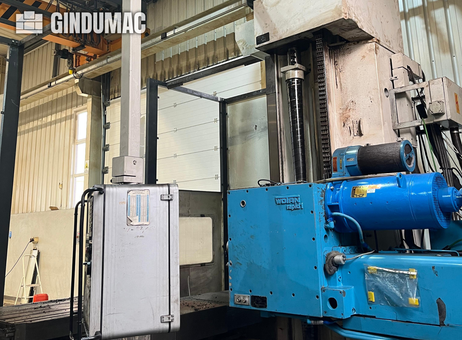

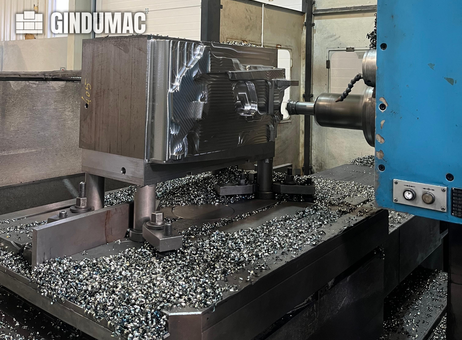

Construction and visible components/accessories: the main spindle head is finished in blue and is marked with “WOTAN rapid1.” An electric motor is mounted at the right side of the head. The machine has a vertical column with a large lead/ball-screw and associated chain/guide and a vertical spindle assembly with a protective cover and rack/chain. Flexible cable bundles and cable carriers are present. The work area includes a T-slotted table with multiple clamping fixtures and studs securing workpieces. A large metal workpiece is shown clamped on the table, with a rotating spindle/boring tool engaged. Extensive metal chips and swarf are visible on and around the table. Surface staining and paint wear are visible on the column and housing.
Notes and recommendations: confirm electrical specifications, spindle motor power, overall machine dimensions, accuracy/tolerance data, tooling collets/adapters, maintenance and service history, and whether the machine has been run or inspected since the retrofit. Additional photos, a copy of the control/setup parameters, and any available test or inspection reports are recommended before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis WOTAN Rapid 1 boring machine was manufactured in 1995 and retrofitted in 2017. It features an impressive X-axis travel of 1,500 mm, Y-axis travel of 1,000 mm, and Z-axis travel of 1,000 mm. The 360° rotary table allows for multi-sided machining, enhancing efficiency. If you are looking to get high-quality boring capabilities, consider the WOTAN Rapid 1 machine we have for sale. Contact us for further details.B-axis (rotary table): 360°; max weight capacity 4 tons
Key highlights:
360° rotary table enables multi-sided machining in a single setup, reducing downtime and improving tolerances
2017 Fanuc control retrofit offers a modern interface and compatibility with current programming standards
Control Brand: FANUC
Number of Axes: 5
Spindle Speed: 1600 RPM
Taper Size: BT 50
X-axis Travel: 1500 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 1000 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2115 |
| Last activity | Oct. 26, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 4-axis WOTAN Rapid 1 boring machine was manufactured in 1995 and retrofitted in 2017. It features an impressive X-axis travel of 1,500 mm, Y-axis travel of 1,000 mm, and Z-axis travel of 1,000 mm. The 360° rotary table allows for multi-sided machining, enhancing efficiency. If you are looking to get high-quality boring capabilities, consider the WOTAN Rapid 1 machine we have for sale. Contact us for further details.B-axis (rotary table): 360°; max weight capacity 4 tons
Key highlights:
360° rotary table enables multi-sided machining in a single setup, reducing downtime and improving tolerances
2017 Fanuc control retrofit offers a modern interface and compatibility with current programming standards
Control Brand: FANUC
Number of Axes: 5
Spindle Speed: 1600 RPM
Taper Size: BT 50
X-axis Travel: 1500 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 1000 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
WOTAN Rapid 1 — 5-axis CNC table-type boring machine (manufactured 1995). Key machine data: X travel 1,500 mm; Y travel 1,000 mm; Z travel 1,000 mm. Number of axes: 5. B-axis (rotary table): 360°. Max spindle speed: 1,600 rpm. Spindle taper: BT 50. Control brand: FANUC. The machine was retrofitted with a FANUC control in 2017 (control retrofit noted in the listing). A maximum table load capacity of 4 tons is listed in the current description.
Construction and visible components/accessories: the main spindle head is finished in blue and is marked with “WOTAN rapid1.” An electric motor is mounted at the right side of the head. The machine has a vertical column with a large lead/ball-screw and associated chain/guide and a vertical spindle assembly with a protective cover and rack/chain. Flexible cable bundles and cable carriers are present. The work area includes a T-slotted table with multiple clamping fixtures and studs securing workpieces. A large metal workpiece is shown clamped on the table, with a rotating spindle/boring tool engaged. Extensive metal chips and swarf are visible on and around the table. Surface staining and paint wear are visible on the column and housing.
Notes and recommendations: confirm electrical specifications, spindle motor power, overall machine dimensions, accuracy/tolerance data, tooling collets/adapters, maintenance and service history, and whether the machine has been run or inspected since the retrofit. Additional photos, a copy of the control/setup parameters, and any available test or inspection reports are recommended before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
