Price on request
Make an offer| Ram stroke | 120 mm |
| Nbr of strokes/min | 63 |
| Distance between columns | 1600 mm |
| Engine Power | 5.5 kW |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Datasheet | WMW PEDN 63/2 |
| Last availability date | 15/04/2026 |
This listing is for a WMW PEDN 63/2 eccentric press manufactured in 1970. The machine features a nominal pressing power of 63 tons, with a ram stroke of up to 120 mm and a stroke rate of 63 strokes per minute. The engine power is rated at 5.5 kW. The press has a distance between columns of 1600 mm, providing ample workspace for various applications.
The ram adjustment range is 70 mm, with a ram surface measuring 400 x 500 mm. It includes a 40 mm tool hole in the ram and a tool shank hole with dimensions of 92 mm in depth and diameter. The machine is equipped with two T-slots for tool mounting. The throat depth is approximately 315 mm, and the cutting surface area is 1600 mm². The press is suitable for sheet thicknesses up to 6.3 mm or 3.2 mm, depending on the material.

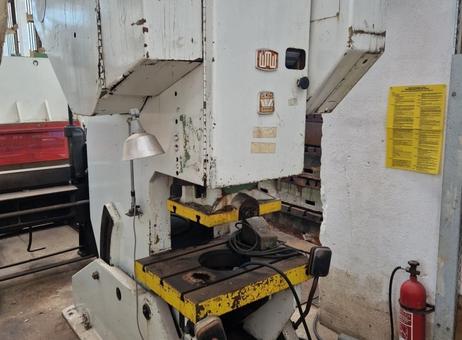

The machine is painted white and shows visible signs of wear and rust, particularly on the edges and base, indicating previous use. It includes a yellow and black work table with a circular hole in the center, which may be useful for specific tooling or material handling. A foot pedal with a red button is located at the bottom front of the machine to operate the press. Additionally, there is a metal lamp attached to the left side of the machine to illuminate the work area.
Please note that a red fire extinguisher is positioned nearby for safety but is not part of the machine.

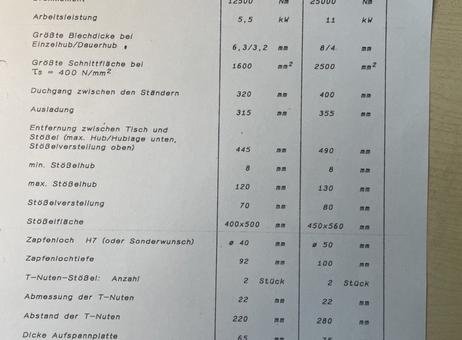

This press is suitable for industrial applications requiring reliable mechanical pressing with considerable force and precise stroke control. Further technical details can be found in the manufacturer's documentation, which includes specifications for related models.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
nominal power 63 t
stroke rate in continuous stroke 90 min
force 2200 Nm
Torque 12500 Nm
Labour performance 5,5 kW
sheet thickness - max. 6,3 / 3,2 mm
cutting surface 1600 mm²
distance between columns 320 mm
throat 315 mm
min. ram stroke 8 mm
max. ram stroke 120 mm
ram adjustment 70 mm
ram surface 400 x 500 mm
tool hole in ram 40 mm
tool shank hole (depth x diameter) 92 mm
T-slots 2 Stk
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
