Contact us to receive an offer.
| Manufacturer | Wipotec X-Ray |
|---|---|
| Model | SC-Essential 4000 - 1800 |
| Year | 2018 |
| Location | Germany
|
Product overview:

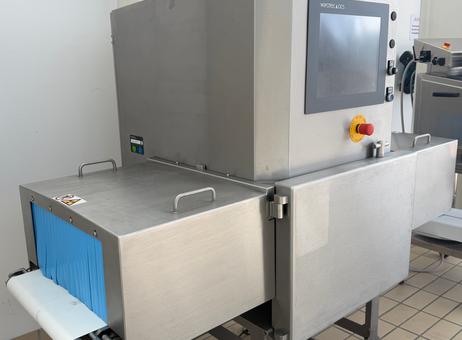

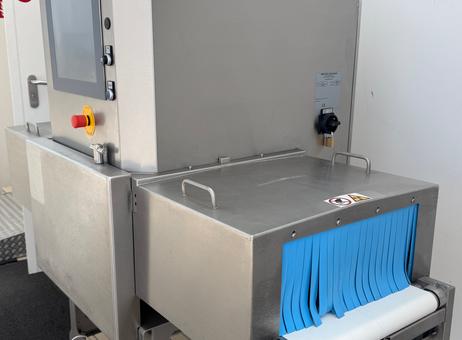

End-of-line X-ray inspection scanner for professional foreign object detection. Model SC-Essential 4000 - 1800 by Wipotec X-Ray. Year of manufacture: 2018. Technical condition: as-is, where-is.
Intended use and integration:
Designed as an entry-level system for state-of-the-art X-ray inspection with straightforward integration into existing production lines. Conveyor direction is left-to-right (L→R). Sorting is performed by belt stop. Throughput is specified as approximately 100 pcs/min (please consult before submitting an offer).
Key dimensions and mechanical data:
- Overall length: 1,800 mm
- Belt width: 420 mm
- Scan width: 400 mm
- Conveyor height: adjustable, 850–950 mm
- Industrial stainless-steel construction with open profile

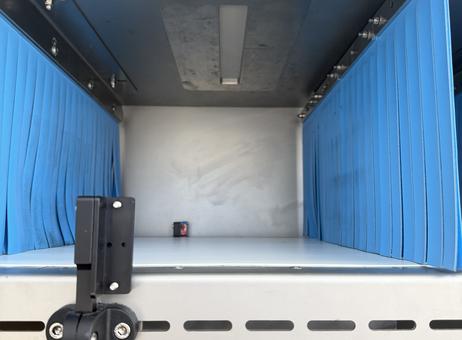

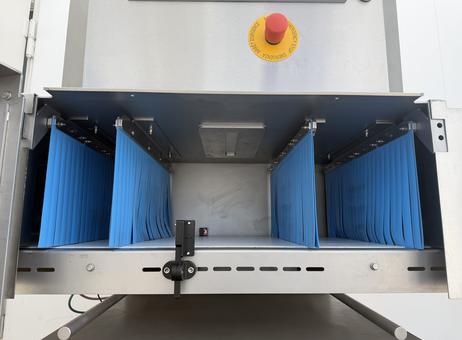

- Safety guards: removable inlet and outlet hoods in stainless steel
- Tool-free belt change and adjustment; maximum belt speed 50 m/min
X-ray and detection:
- Industrial high-performance X-ray tube (X-ray tank)
- Maximum X-ray power: up to 200 W (operating parameters noted as 80 kV, 3 mA, continuously adjustable)
- High-resolution diode detector with 0.4 mm resolution
- High-precision image analysis software UXS (manufacturer: Wipotec) for foreign object detection
- X-ray on indicator tower light with self-monitoring; monitored yellow indicator and red light active on foreign object detection
Electrical, control and software:
- Mains power connection: 110–230 VAC, 50/60 Hz, single-phase; approx. 2.2 kVA (approx. 9.5 A). System should be connected via a separate supply line protected by 10 A at 230 VAC or 16 A at 110 VAC.

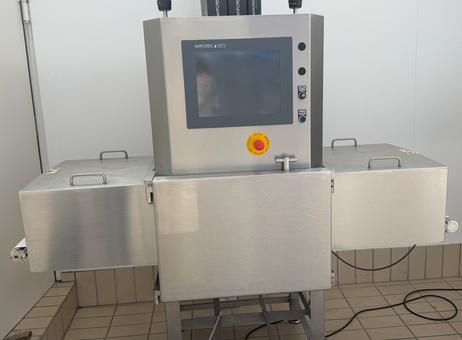

- 15" color TFT touch HMI and high-performance IPC for image analysis and HMI control
- Real-time control (SWA) and PLC inputs/outputs for line synchronization, remote start/stop, and fault outputs
- Integrated UPS for power-failure-safe data processing and storage
- Safety circuit to Cat.4 and CE-compliant; emergency stop for X-ray generation and drives; concealed safety switch for hood/door
Software and data handling:
- Intuitive touchscreen operation, display of production data, graphical/numerical statistics and export capability
- 100 product parameter memory slots (optionally expandable)
- QM mode for cyclic monitoring, plain-text error messages
- VPN access and EKS (network capability)
Documentation and cleaning:
- Includes spare parts catalog, wiring diagram and operating manual (EU language)
- Protection class IP 65 (except control cabinet door due to cooling)
- Cleaning per IEC 60529/DIN 40050: suitable for jet water; not suitable for steam or high-pressure cleaning
Compliance and notes:
- Meets applicable EC directives (Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU)
- Max. product height/width: refer to attached beam chart (not provided here)
Please consult the seller for any additional operational history, installation requirements or inspection before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Product type: End-of-line X-ray inspection scanner for professional foreign object detection
Model: SC-Essential 4000 - 1800
Manufacturer: Wipotec X-Ray
Year of manufacture: 2018
Technical condition: as-is, where-is
Purpose: entry into state-of-the-art X-ray inspection with simple integration into existing production lines
Conveyor direction: L->R
Conveyor height: 850–950 mm (adjustable)
Overall length: 1,800 mm
Belt width: 420 mm
Scan width: 400 mm
Max. product height/width: see attached beam chart
Protection class: IP 65
Sorting: by belt stop
Throughput: approx. 100 pcs/min (please consult before submitting an offer)
VPN access: yes
EKS: yes
X-ray light indicators: Monitored yellow: yes; Light red: yes (active on foreign object detection)
Statistics export: yes
General machine data: industrial scanner made of stainless steel with an open profile
Power supply: 110
