Contact us to receive an offer.
| Manufacturer | Wilco |
|---|---|
| Model | MAT R HSA 02/R 20 VISION |
| Year | |
| Location | Germany
|

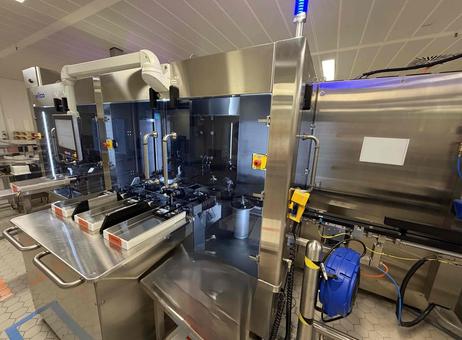

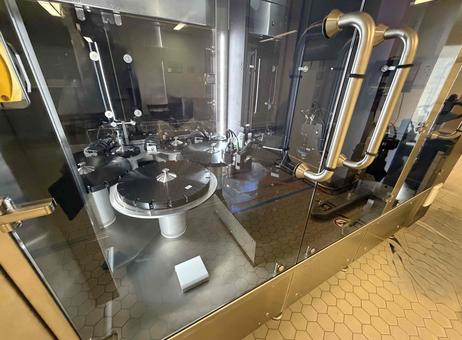

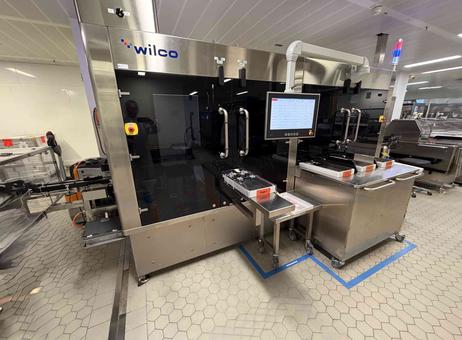

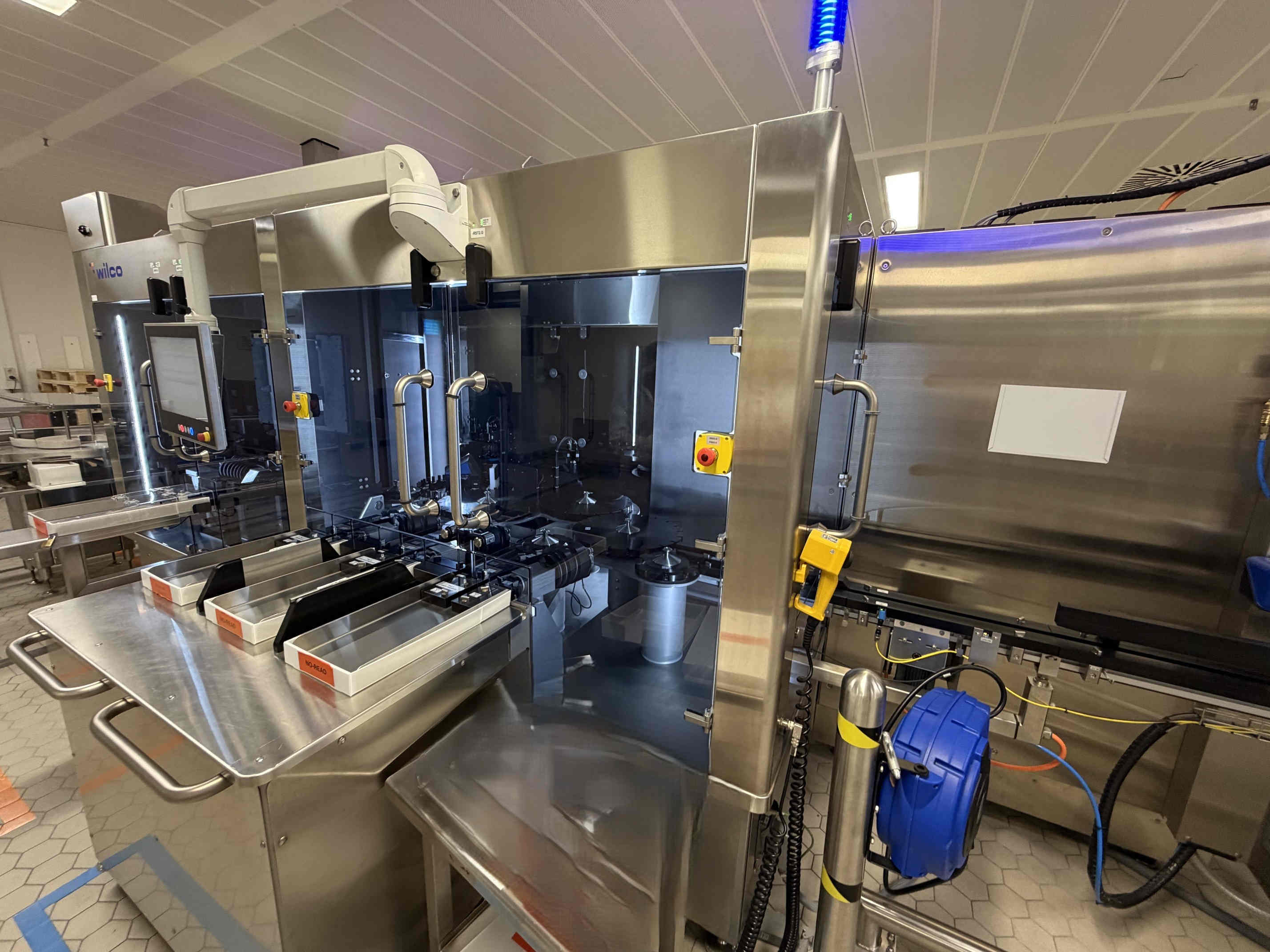

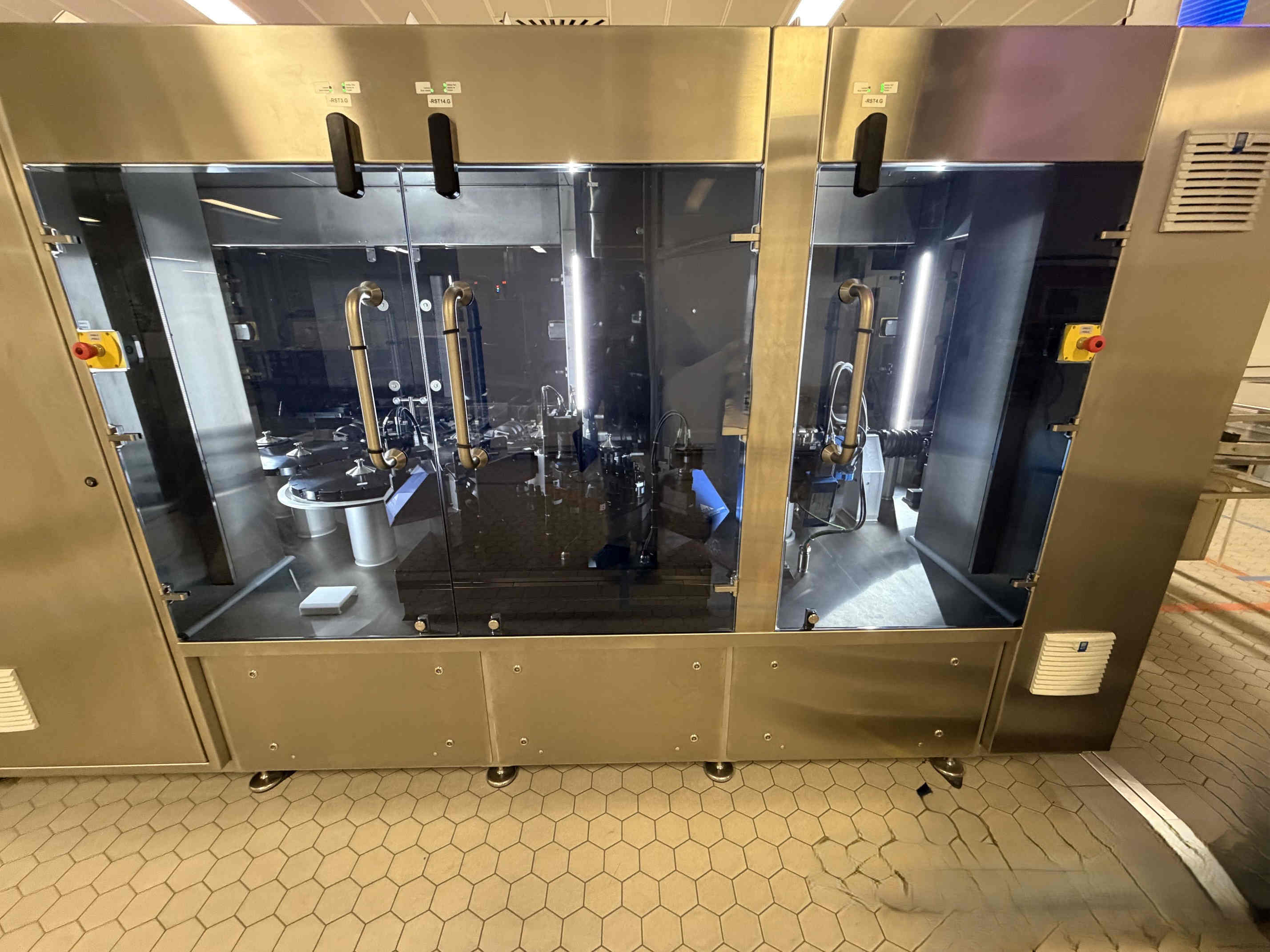

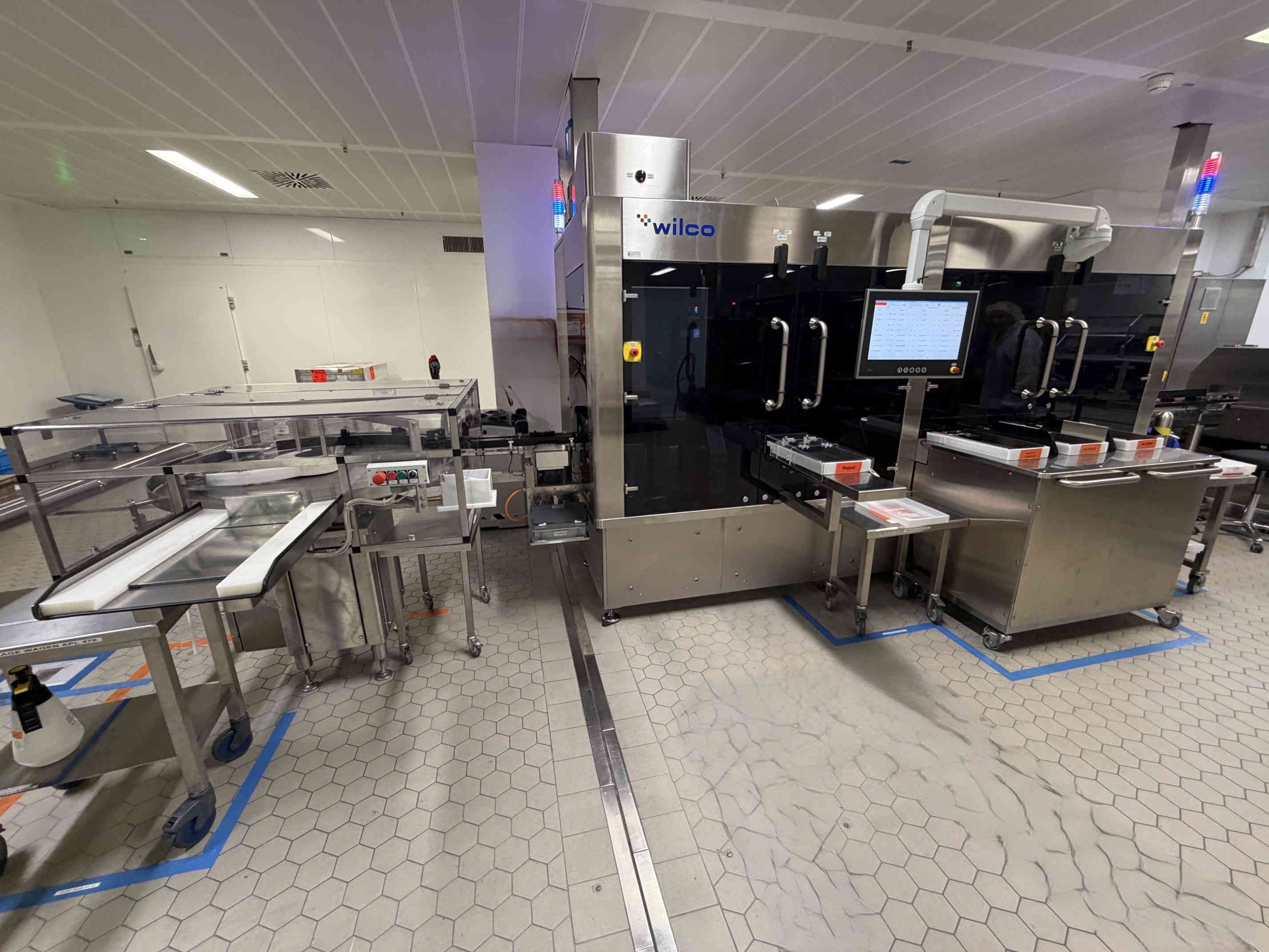

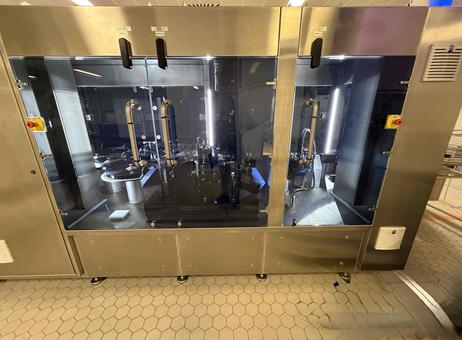

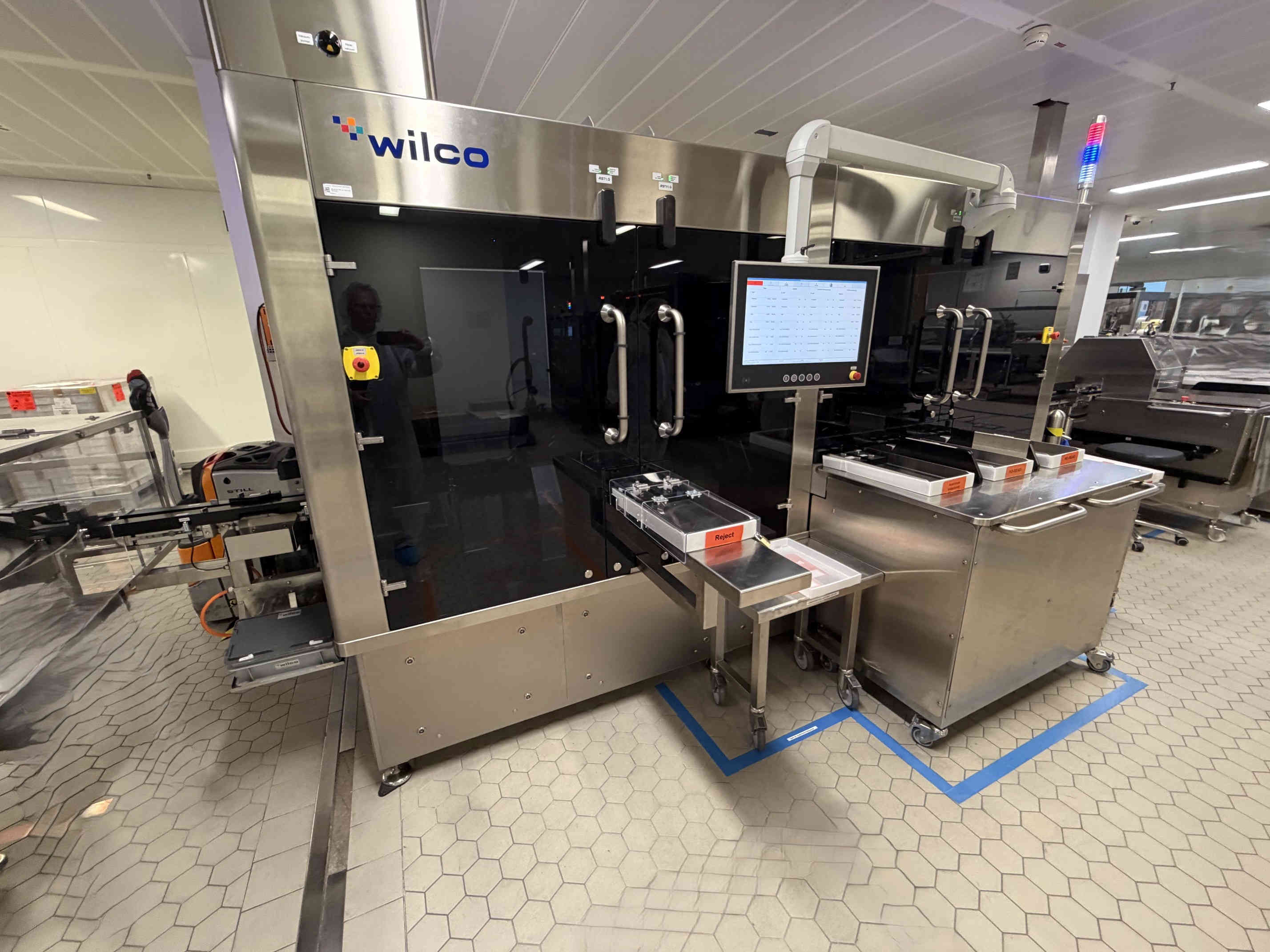

Wilco WILCOMAT R HSA 02/R 20 VISION fully automatic vial inspection system, designed to combine headspace analysis with visual inspection. The HSA stage determines oxygen content in the test specimen using one single-head test station. The stated HSA test sensitivities are 950/0%, 950/2%, and 950/20%, plus 20% for Lyo test specimens. The VISION stage uses three cameras to inspect for manufacturing and cosmetic defects at the Cap 1, Flip-Off, and Cap 2 test stations. VISION test sensitivity is specified according to the fault catalogue. Maximum output is up to 400 vials per minute.

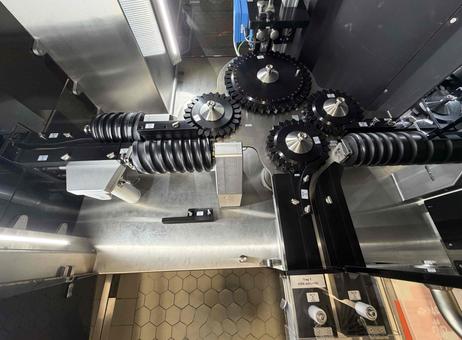

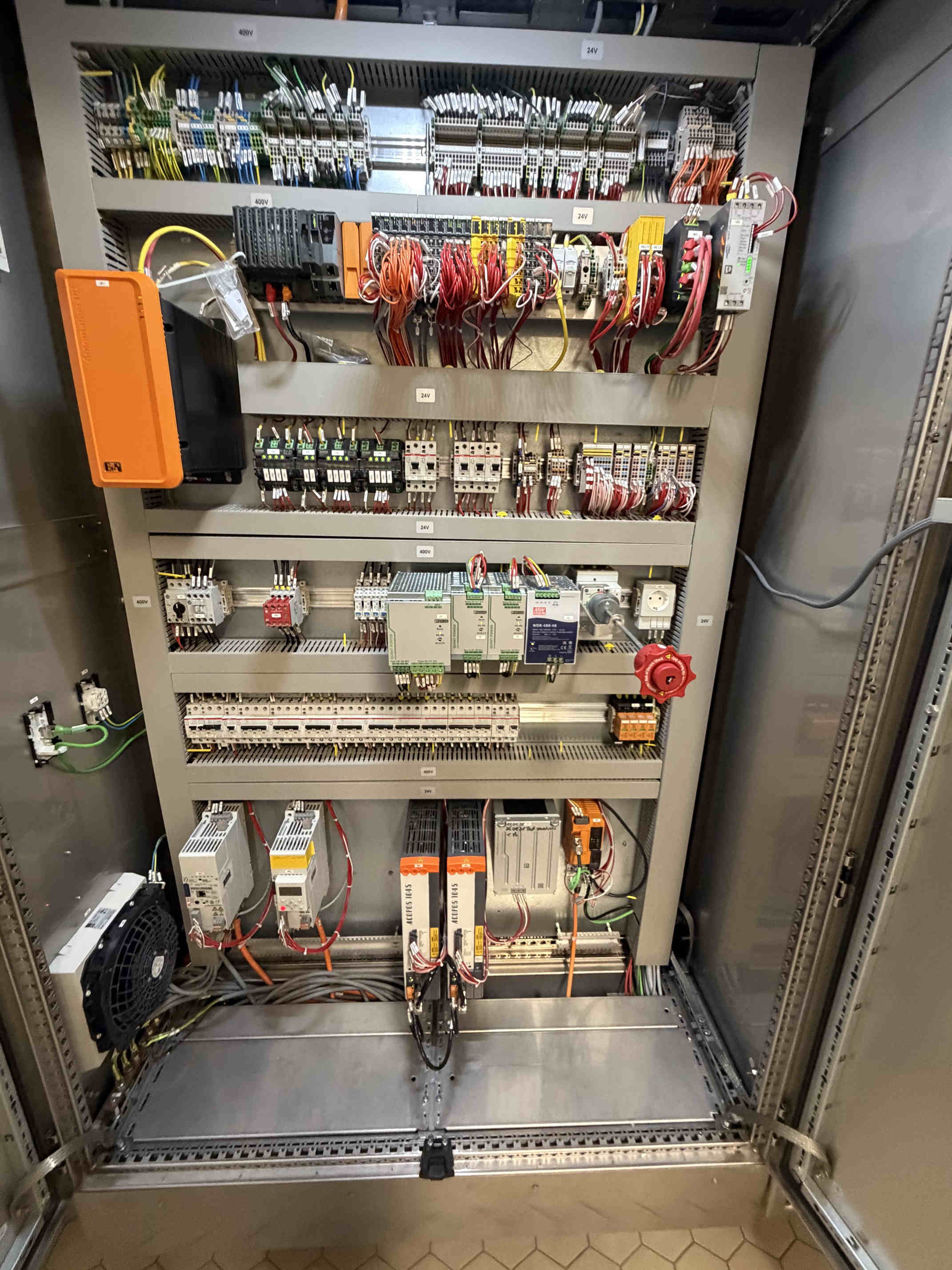

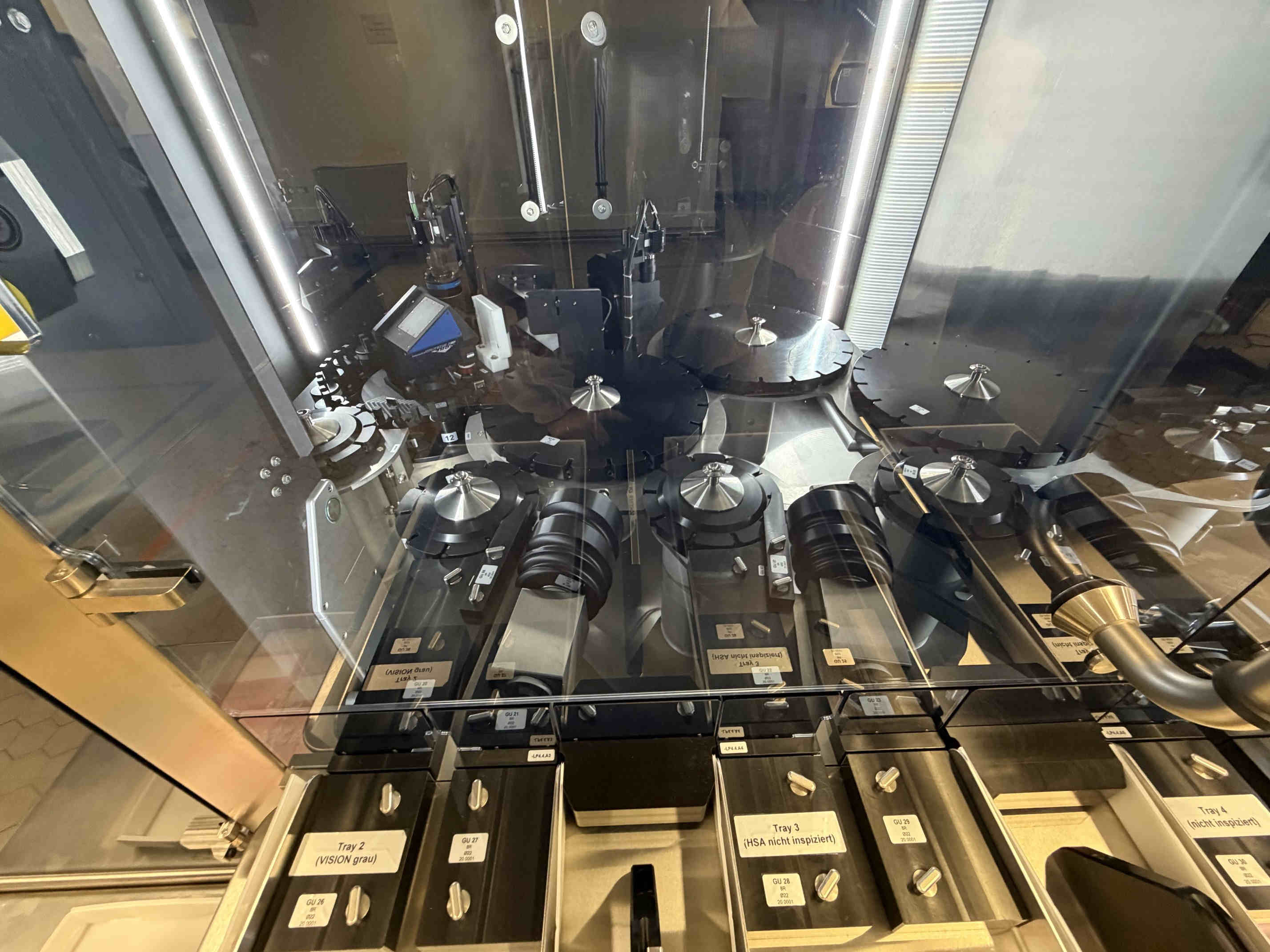

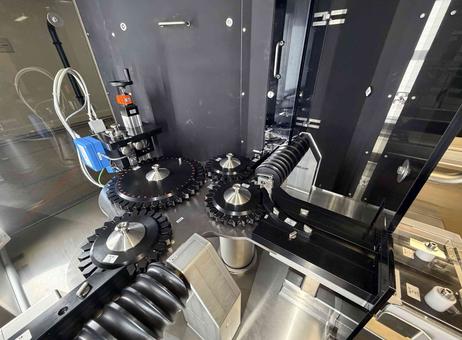

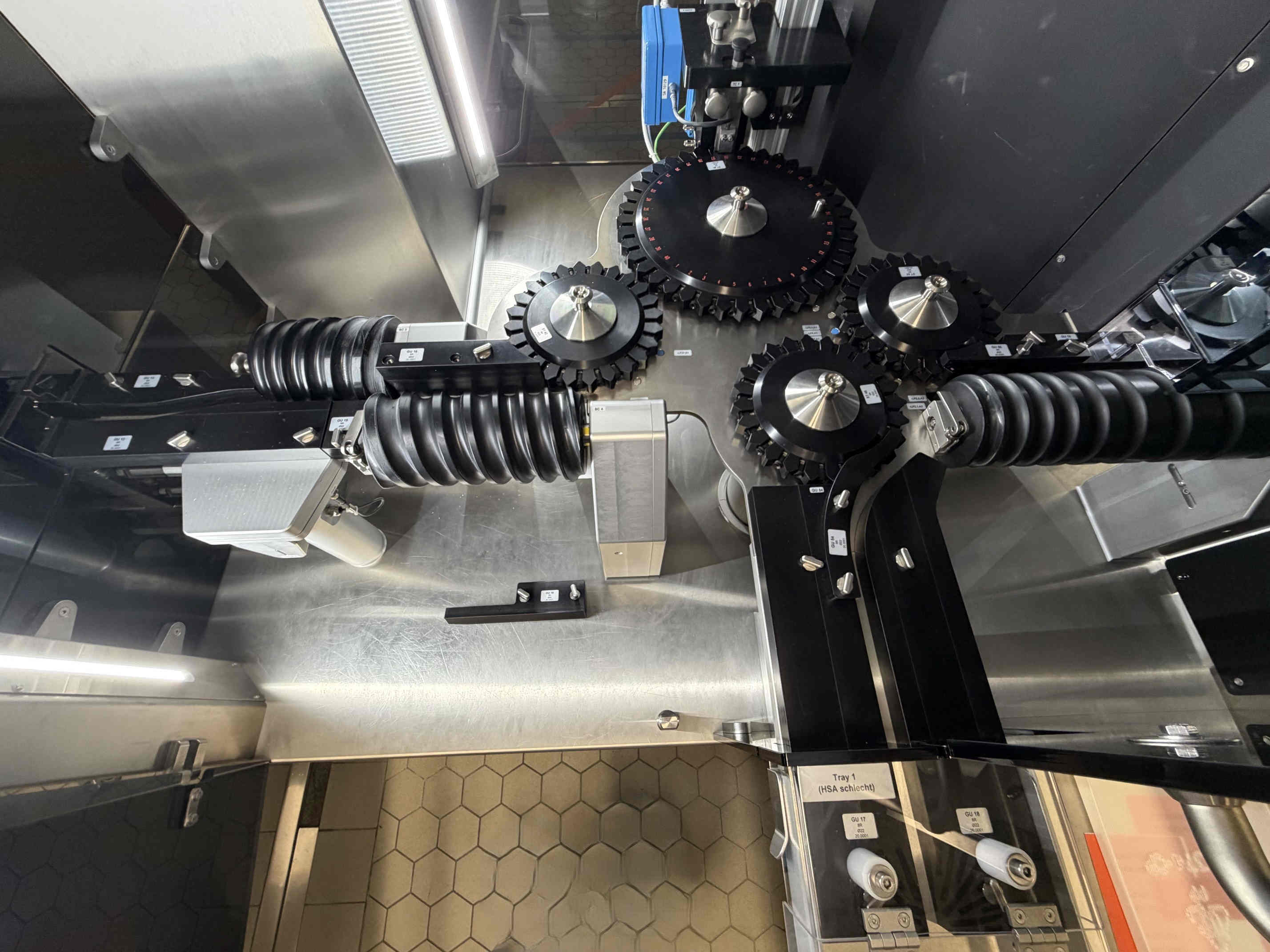

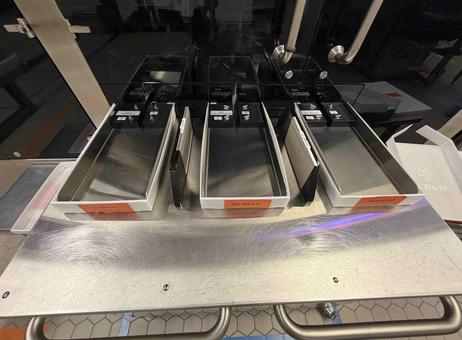

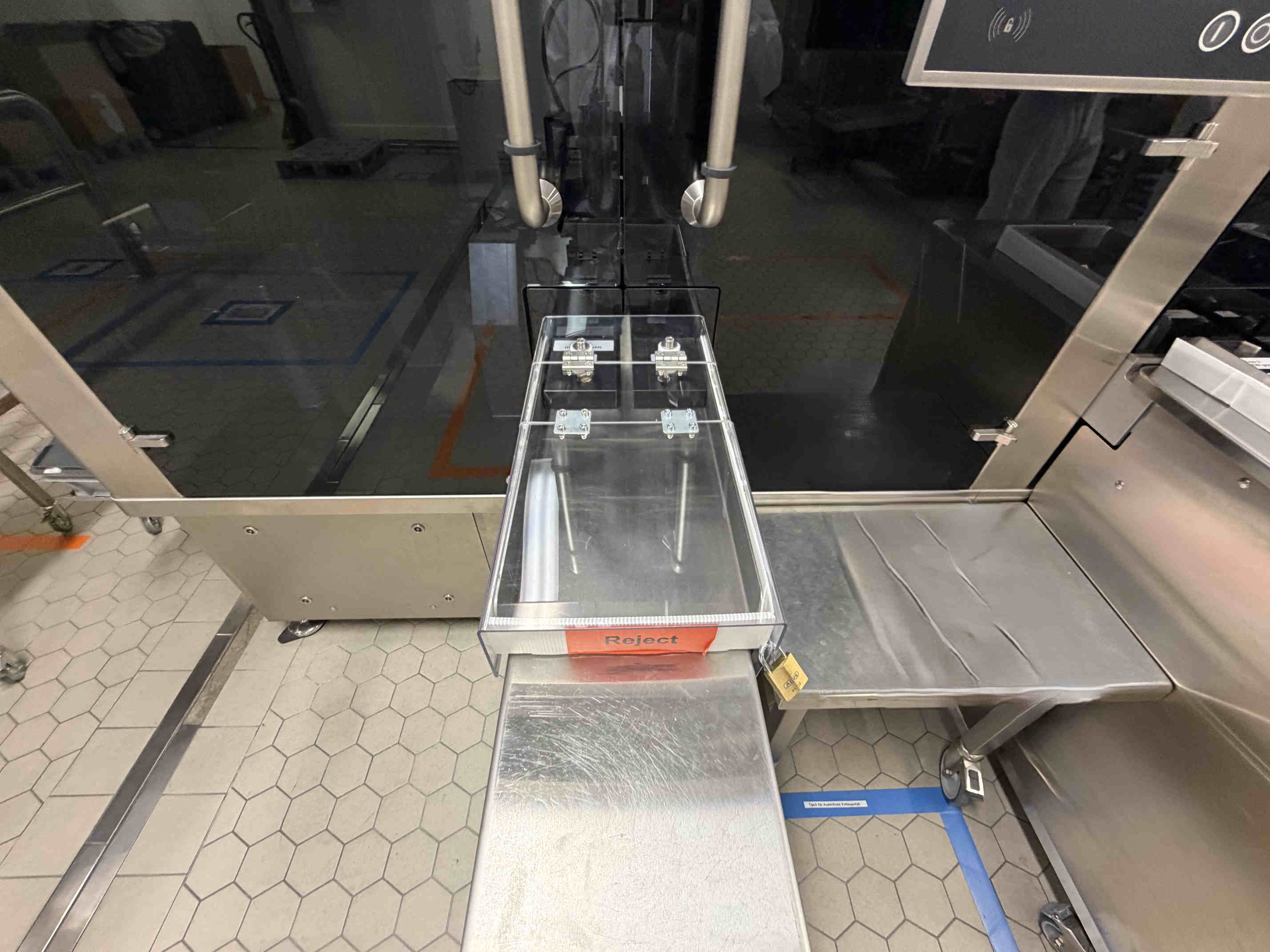

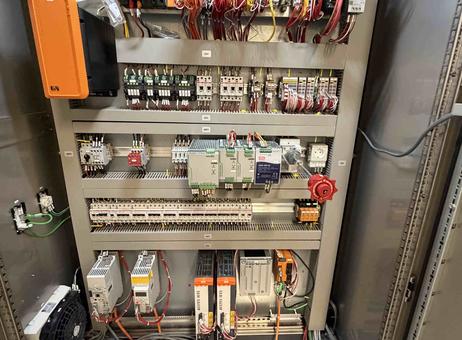

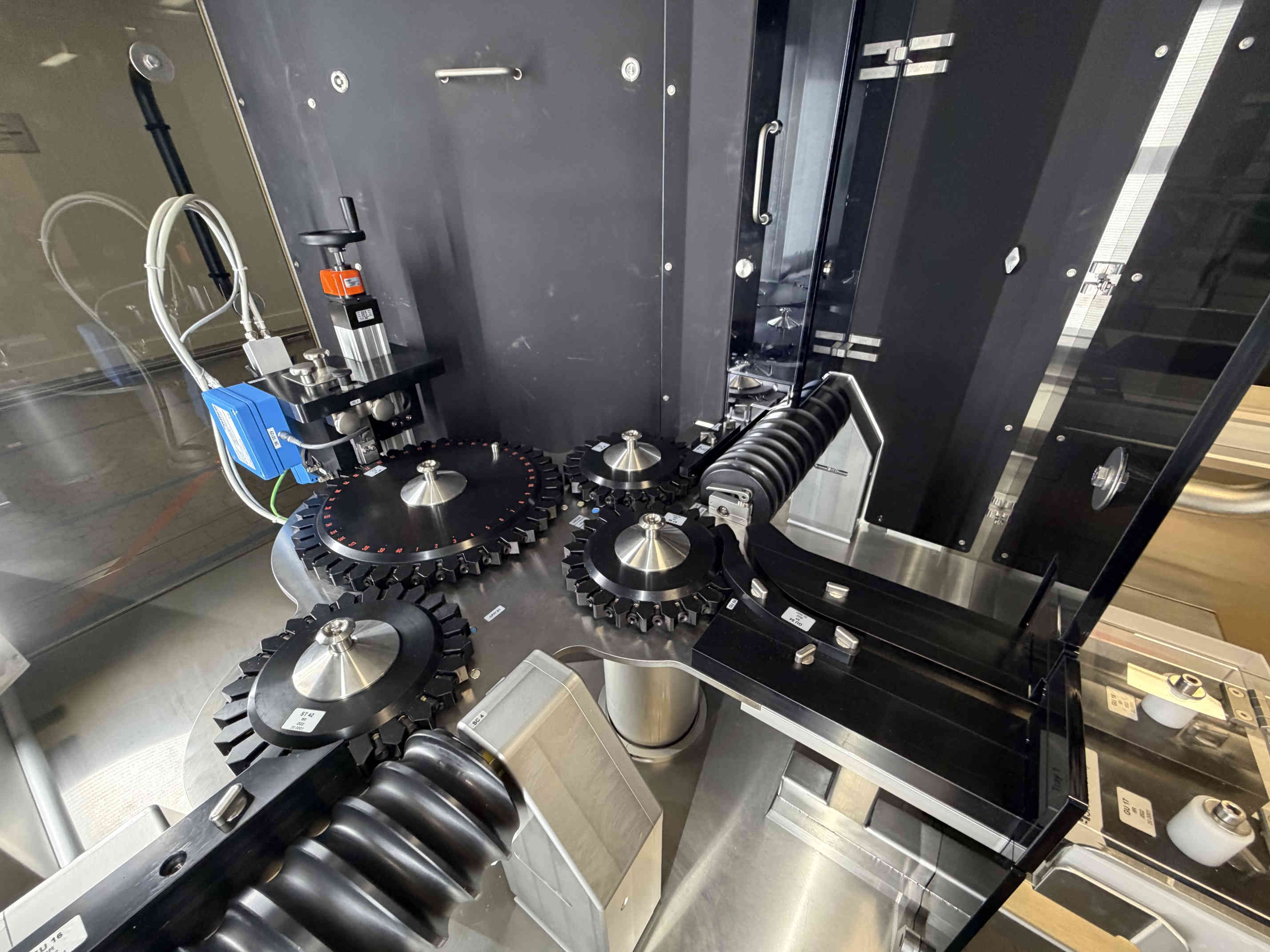

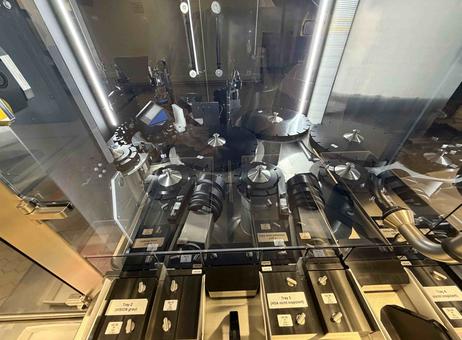

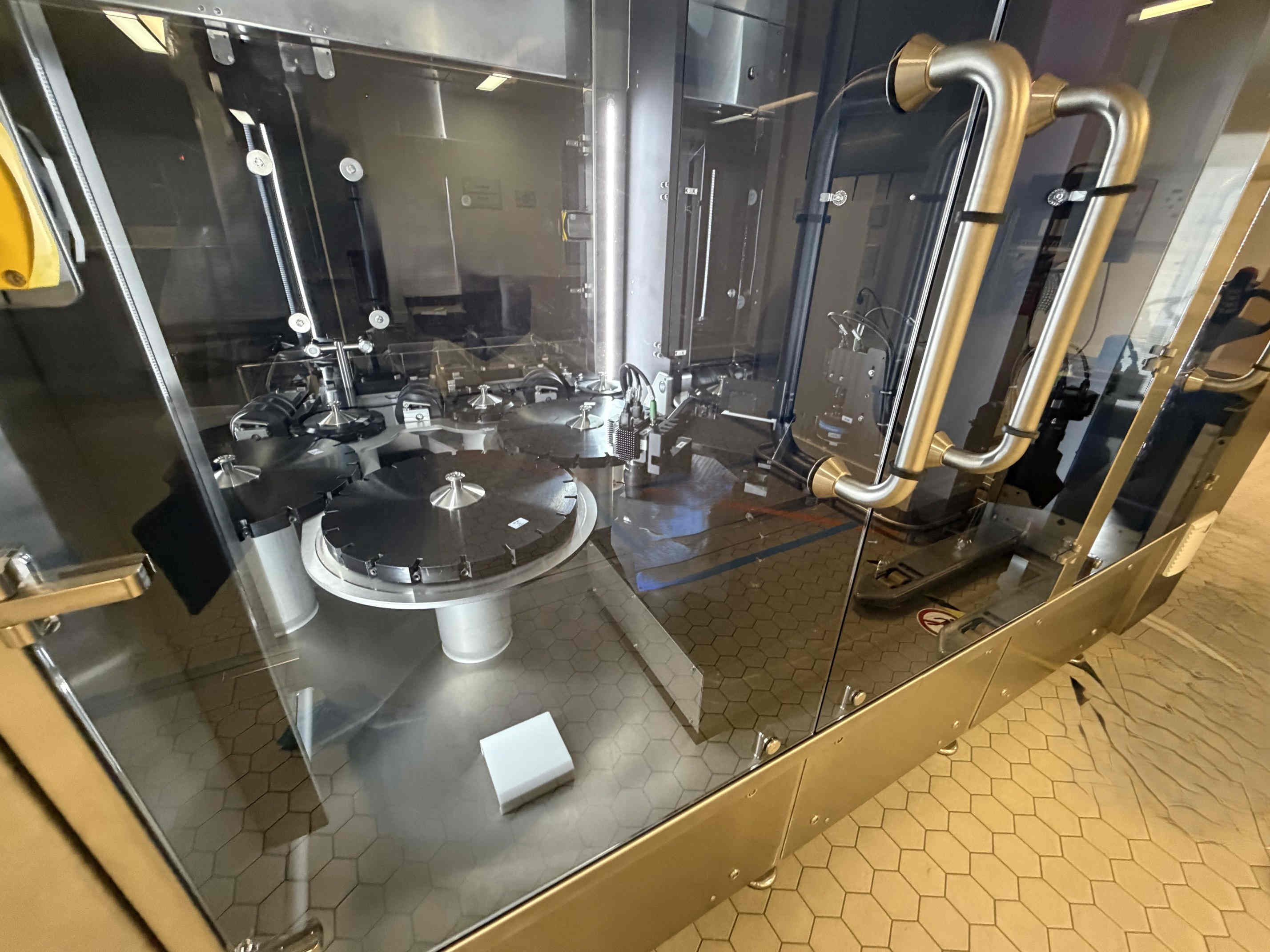

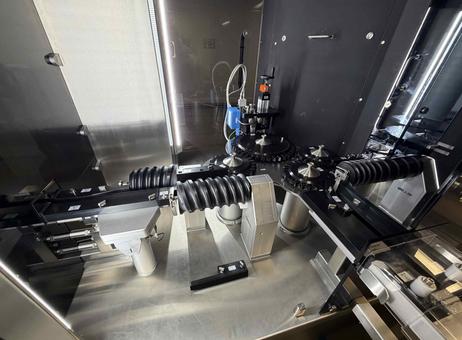

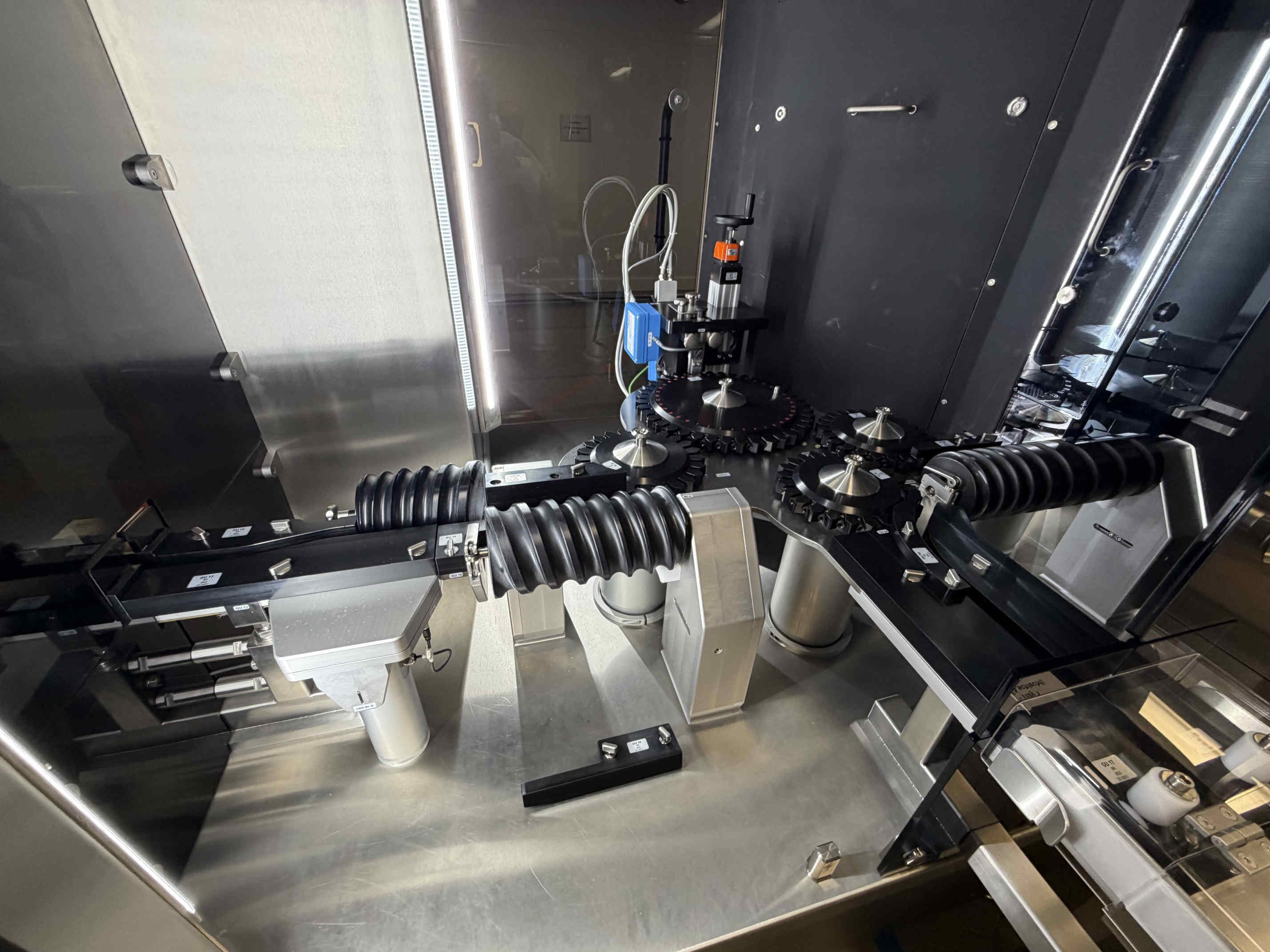

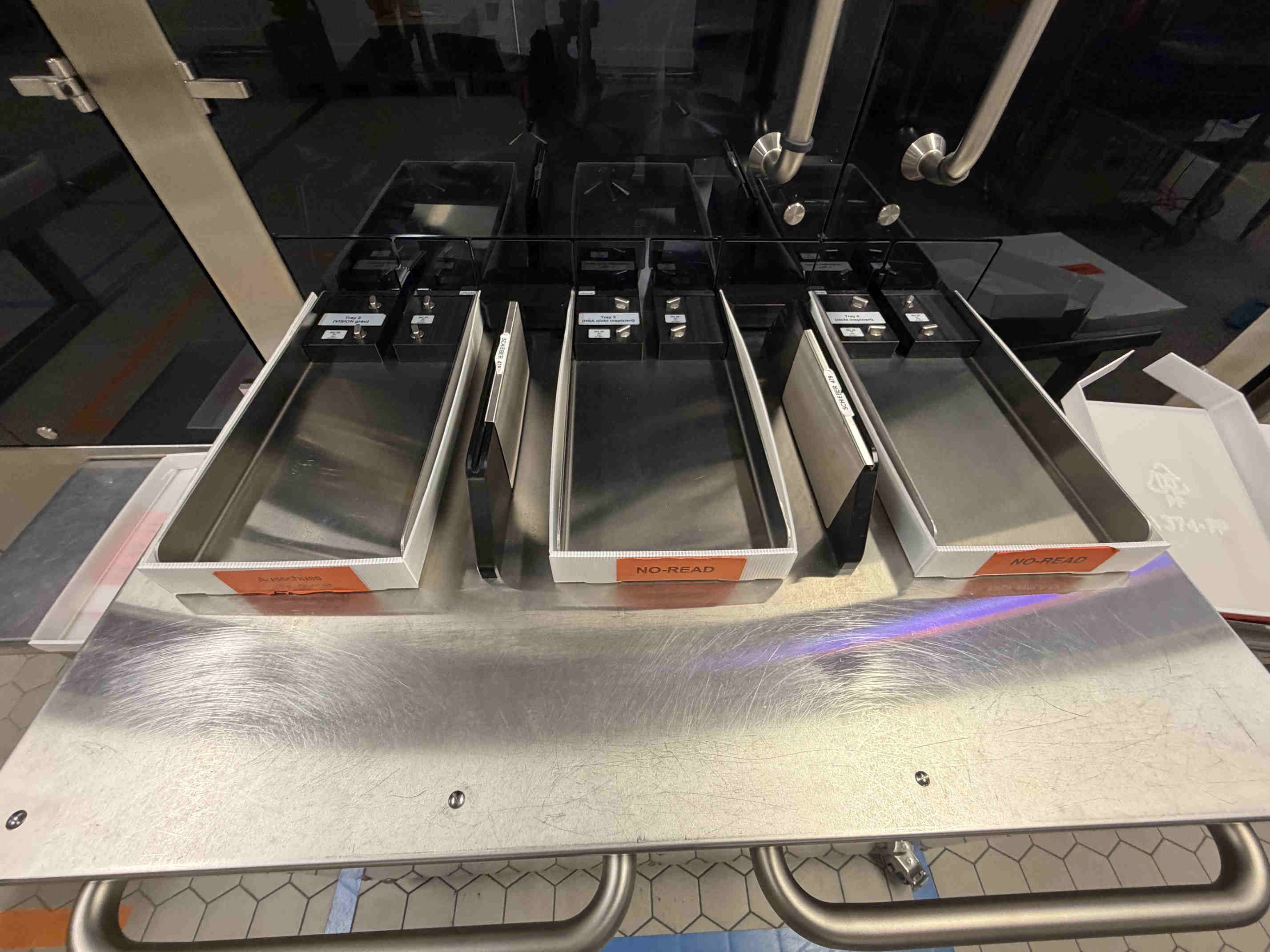

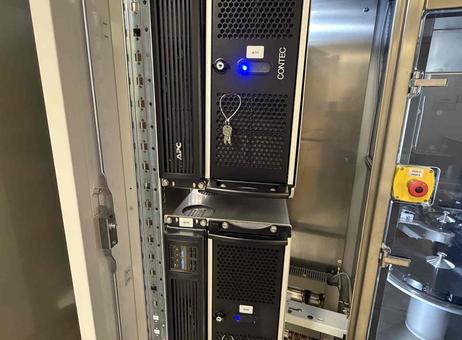

The system includes an HMI interface and control panel, in-line feed conveyor, bypass system, HSA test rotor, HSA reject and not-inspected trays, acceleration screw conveyor between the HSA and VISION stages, VISION test rotor, VISION grey/uninspected tray with star wheels, in-line outfeed conveyor, and tray loader. The control system is a B&R PLC with HMI. The equipment also includes three electrical control cabinets and one vacuum pump. Included trays are for HSA defective, VISION grey, HSA uninspected, and uninspected vials. Format parts for 8R Lyo vials are included.
Electrical connection: 3 x 400 V / 230 V / 50 Hz. Compressed air connection: 6–10 bar. Approximate dimensions are 6,664 x 1,464 x 2,400 mm (L x W x H), and approximate net weight is 3,600 kg. The listed condition is good, and inspection is available.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Wilco WILCOMAT R HSA 02/R 20 VISION fully automatic vial inspection system
Manufacturer: Wilco
Model: WILCOMAT R HSA 02/R 20 VISION
Machine type: Fully automatic test vial inspection system
Condition: Good
Inspection: Available for inspection
Inspection methods: Headspace Analysis (HSA) and visual inspection (VISION)
HSA inspection: One single-head test station for determining oxygen content
HSA test sensitivity: 950/0%, 950/2%, 950/20%, and 20% for Lyo test specimens
VISION inspection: Three cameras for detecting manufacturing and cosmetic defects
VISION test stations: Cap 1, Flip-Off, and Cap 2
VISION test sensitivity: According to the fault catalogue
Maximum output: Up to 400 vials per minute
Main components: HMI interface and control panel, in-line feed conveyor, bypass system, HSA test rotor, HSA reject and not-inspected trays, acceleration screw conveyor, VISION test rotor, VISION grey/uninspected tray with star wheels, in-line outfeed conveyor, and tray loader
Control system: B&R PLC and HMI
Electrical control cabinets: 3
Vacuum pump: 1
Included trays: HSA defective, VISION grey, HSA uninspected, and uninspected
Included format parts: 8R Lyo vials
Electrical connection: 3 x 400 V / 230 V / 50 Hz
Compressed air connection: 6–10 bar
Dimensions (L x W x H): Approx. 6,664 x 1,464 x 2,400 mm
Net weight: Approx. 3,600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
