| Manufacturer | WEINIG / DIMTER |
|---|---|
| Model | Weinig Unicontrol 10-5 |
| Year | 1998 |
| Location | Germany
|

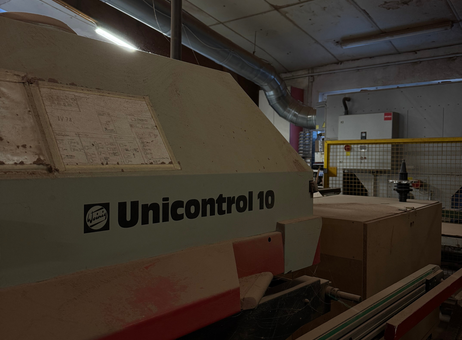

The Weinig Unicontrol 10-5, manufactured in 1998 by WEINIG / DIMTER, is a specialized window manufacturing machine designed for precise and versatile wood machining. It supports a working width range from 40 to 220 mm and offers motor powers up to 15 kW across various machining units, enabling a wide variety of milling and profiling tasks. The machine includes advanced features such as a synchronization device, electronic height adjustment, and an automatic turning system to facilitate efficient one-operator use.
Capable of handling workpiece heights between 40 and 100 mm, it supports longitudinal and cross machining with minimum workpiece lengths suitable for window and door frame production. The feed system for cross machining includes a 0.3 kW motor with speeds adjustable between 3 and 25 m/min, while longitudinal machining feed is powered by a 2.2 kW motor with infinitely variable speeds from 4 to 18 m/min.
Machining units include a 3 kW crosscut saw with a 40 mm spindle diameter and 2800 rpm spindle speed, multiple profiling spindles each powered by 11 kW motors running at 6000 rpm, and additional milling units for detailed profile work. The machine is equipped with mechanical spindle brakes for safety and precision.
Additional equipment options enhance functionality, such as laser guide lights for crosscut saw section detection, a studio window device, swiveling length stops with electronic digital displays, and software extensions allowing up to 100 freely programmable milling types.

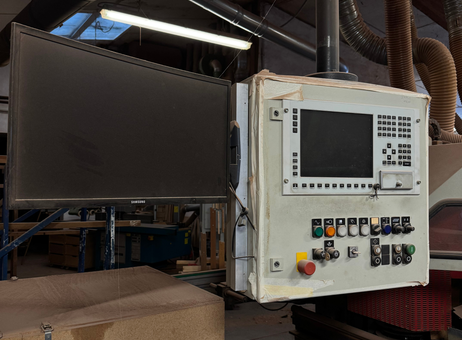

The machine features a comprehensive control panel with a screen and multiple buttons, accompanied by a Samsung monitor, facilitating user interaction and process control. Several large flexible hoses connected to the machine serve dust extraction or ventilation purposes and appear intact. The machine surface shows signs of dust and wear, and some control panel edges are taped, indicating possible wear or minor repairs.

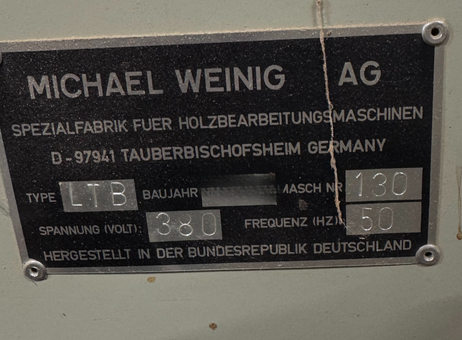

Manufactured by Michael Weinig AG in Germany, this robust machine is suitable for high-quality milling and profiling tasks in window and door production. For more details or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This Weinig Unicontrol 10-5 was manufactured in 1998. A robust used window manufacturing machine, it features a working width of 40-220 mm and motor powers up to 15 kW for various machining units. It includes advanced features like a synchronization device, electronic height adjustment, and an automatic turning system for efficient one-man operation. If you are looking to get high-quality milling capabilities, consider the Weinig Unicontrol 10-5 machine we have for sale. Contact us for more information.Capacities
Working width: 40–220 mm
Working height (longitudinal machining): 40–100 mm
Working height (cross machining): 40–100 mm (counter wood height 80 mm)
Workpiece length (longitudinal): min. 220 mm + 2 x tenon length
Workpiece length (cross): min. 275 mm + 1 x tenon length with 320 mm tool diameter
Feed (cross machining)
Motor power: 0.3 kW
Feed speed: 3–25 m/min
Workpiece clamping: 2 clamping claws
Length stop: with scale and reading magnifier for frame or sash outer dimensions
Counter: pneumatically clocked, 4 positions (not for studio windows), up to wood height max. 80 mm
Double part package: single or double part feeding, with cross separation and retention system
1st piece (lying on the stop) wood width: 55–90 mm
2nd piece wood width: 130 mm
Feed (longitudinal machining)
Motor power: 2.2 kW
Feed speed: 4–18 m/min (infinitely variable via frequency converter)
Feed roller spacing: 100/120 mm
Feed roller width: 30/50 mm
Feed roller diameter: 95 mm
Machining units
Crosscut saw
Motor power: 3 kW
Spindle diameter: 40 mm
Spindle speed: 2800 rpm
Tool swing: max. 400 mm
Axial adjustment: pneumatic against 4-fold turret
1st spindle with tenon and slot
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 3250 rpm
Tool swing: max. 320 mm
Tool clamping length: 320 mm
Axial adjustment range: 240 mm
Number of tools: 4 x 80 mm
Axial adjustment: hydraulic
1st profiling spindle
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6000 rpm
Tool diameter: max. 232 mm
Tool zero swing circle: 130–140 mm
Tool clamping length: 320 mm
Axial/radial adjustment range: 240/80 mm
Number of tool positions: 4 x 80 mm
Axial adjustment: hydraulic
2nd profiling spindle
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6000 rpm
Tool diameter: max. 232 mm
Tool zero circle: 130–140 mm
Tool clamping length: 320 mm
Axial/radial adjustment range: 240/80 mm
Number of tool positions: 4 x 80 mm
Axial adjustment: hydraulic
Mechanical spindle brakes
For profiling spindle(s)
For crosscut saw and profiling/sawing units
Profile milling unit (horizontal, top; in front of last profiling spindle)
Radially indexed: 2 positions
Axially indexed: 2 positions
Motor power: 3 kW
Spindle diameter: 40 mm
Spindle speed: 5850 rpm
Tool swing: 130 mm
Tool clamping length: 40 mm
Axial adjustment range: 52 mm
Radial adjustment range: 125 mm
Profile milling unit (vertical, right; at end of machine)
Radially indexed: 2 positions
Axially indexed: 2 positions
Motor power: 3 kW
Spindle diameter: 40 mm
Spindle speed: 5850 rpm
Tool swing: 210 mm
Tool clamping length: 160 mm
Axial adjustment range: 90 mm
Radial adjustment range: 100 mm
Length tenoning and slotting spindle (640 mm tool clamping length, instead of 320 mm spindle)
Motor power: 15 kW
Spindle speed: 2925 rpm
Number of tool positions: 8 x 80 mm
Axial adjustment range: 560 mm
Additional equipment
Laser guide light for crosscut saw for section detection
Studio window device
Swiveling length stop +/- 60° with electronic digital display and pneumatic clamping
Sliding counter bar
Special pressure for slanted part production
Restriction: wood thickness max. 120 mm
At -60°: workpiece width max. 110 mm with 80 mm tenon length, or max. 150 mm with counter profiles
Milling package
Synchronization device with automatic immersion (on 1st profiling spindle)
Support rail with sliding belt
High/low clocked feed roller up to the 2nd profiling spindle to shorten the milling path
Software extension with 100 freely programmable milling types
Two axially clocked feed rollers opposite both profiling spindles for production of narrow, short parts
Rung guide
Automatically clocked guide bar in the stop for rung production
Rung support bar from above in the area of the vertical-right profile milling unit at the end of the machine
Electronic height adjustment for feed with electronic digital display

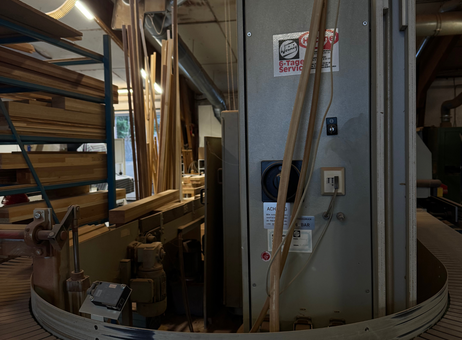

Automatic turning system for one-man operation, including conveyor be
Spindle Power: 11 kW
Spindle Speed: 6000 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
