Contact us to receive an offer.
| Manufacturer | Waldrich |
|---|---|
| Model | COBURG |
| Year | 2005 |
| Location | Germany
|
This Waldrich Coburg COBURG is a robust double column 5-axis machining centre designed for high-precision and heavy-duty milling tasks. Manufactured in 2005, it features a Siemens Sinumerik 840D control system, ensuring reliable and advanced CNC operations. The machine is equipped with a 2-axis NC milling head capable of full 5-axis simultaneous machining, allowing for complex part geometries.

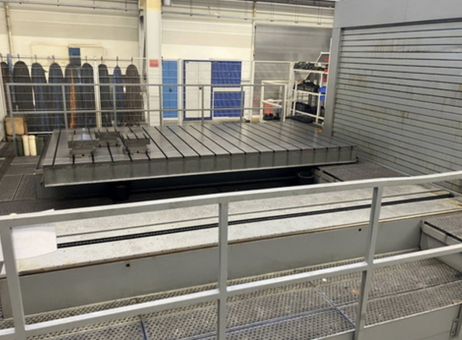

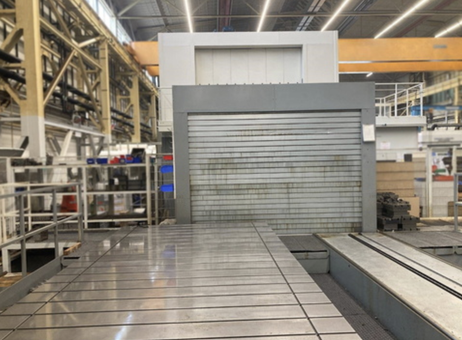

The machining centre includes a two-station pallet changer with pallets measuring 5000 x 2500 mm, supporting a maximum part weight of 12,000 kg. The table offers a large working surface with T-slots for secure workpiece mounting, and the surface is clean with minor wear marks, indicating careful use. The machine’s travels are substantial, with 6000 mm along the X-axis, 3500 mm along the Y-axis, and 1500 mm vertical travel on the Z-axis. The distance between the columns is 3000 mm, providing ample workspace.
The spindle has a maximum speed of 6000 rpm and is powered by a 30 kW motor, delivering up to 800 Nm of torque. It uses an HSK-A100 taper, compatible with tools up to 250 mm in diameter, 500 mm in length, and 30 kg in weight. The tool magazine holds 100 positions, facilitating efficient tool changes with a chip-to-chip time of 20 seconds.

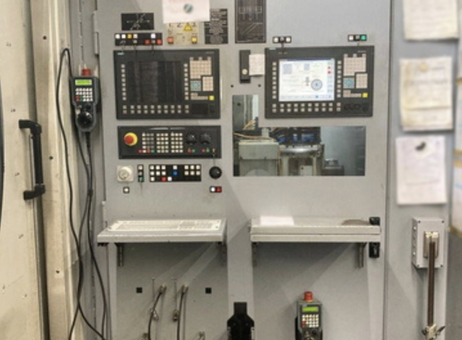

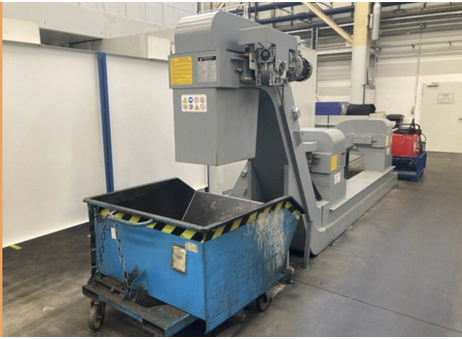

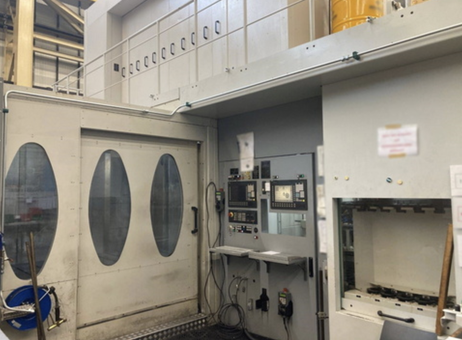

Additional features include external coolant at 12 bar, internal coolant through the spindle at 50 bar, a coolant filtration system, tool life control, and a chip conveyor. The machine is housed within a large enclosure with windows and a door for operator safety, and it includes a vertical protective shutter behind the table. The control panel is equipped with multiple screens, buttons, emergency stop, and handheld remote controls, all showing signs of use but well maintained. A safety railing surrounds the platform area for added operator protection.
Overall, this Waldrich Coburg machining centre offers a combination of size, power, and precision suitable for demanding machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Double Column 5-Axis Machining Centre with Pallet Changer
Manufacturer Waldrich Coburg
Model Valutec
Year 2005
Control Siemens Sinumerik 840D
back to shopping cart
Number of pallets: 2 pallets
Pallet size: 5000 x 2500 mm
Pallet loading capacity: max. 12000 kg
Table longitudinal travel: X 6000 mm
Ram cross travel: Y 3500 mm
Milling ram vertical travel: Z 1500 mm
Distance between the columns: 3000 mm
Vertical clearance spindle to table: 1500 mm
Rapids up to: X 30000 mm/min.
Y,Z 60000 mm/min.
2-Axis NC Milling Head:
Horizontal rotation axis: C -10°/+370°
Vertical swivelling axis: B +5°/-95°
Spindle taper: HSK-A100
Spindle motor rating: 30 KW
Spindle speeds: max. 6000 rpm
Spindle torque: max. 800 Nm
Tool magazine positions: 100
Tool taper: HSK-A100
Tool diameter : max. 250 mm
Tool length: max. 500 mm
Tool weight: max. 30 kg
Chip to chip time: 20
Machine weight: to be advised kg
Machine size: LxWxH 20500 x 11000 x 6300 mm
Equipped with: Full 5-Axis simultaneous machining.
2-Axis NC Milling head.
2 station pallet changer.
100 station tool changer.
External coolant 12 bar.
Internal coolant through the spindle 50 bar.
Coolant filtration system.
Tool life control.
Chip conveyor.
Condition: Very good condition.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2004 |
| Offers online | 41 |
| Last activity | Oct. 29, 2026 |
Double Column 5-Axis Machining Centre with Pallet Changer
Manufacturer Waldrich Coburg
Model Valutec
Year 2005
Control Siemens Sinumerik 840D
back to shopping cart
Number of pallets: 2 pallets
Pallet size: 5000 x 2500 mm
Pallet loading capacity: max. 12000 kg
Table longitudinal travel: X 6000 mm
Ram cross travel: Y 3500 mm
Milling ram vertical travel: Z 1500 mm
Distance between the columns: 3000 mm
Vertical clearance spindle to table: 1500 mm
Rapids up to: X 30000 mm/min.
Y,Z 60000 mm/min.
2-Axis NC Milling Head:
Horizontal rotation axis: C -10°/+370°
Vertical swivelling axis: B +5°/-95°
Spindle taper: HSK-A100
Spindle motor rating: 30 KW
Spindle speeds: max. 6000 rpm
Spindle torque: max. 800 Nm
Tool magazine positions: 100
Tool taper: HSK-A100
Tool diameter : max. 250 mm
Tool length: max. 500 mm
Tool weight: max. 30 kg
Chip to chip time: 20
Machine weight: to be advised kg
Machine size: LxWxH 20500 x 11000 x 6300 mm
Equipped with: Full 5-Axis simultaneous machining.
2-Axis NC Milling head.
2 station pallet changer.
100 station tool changer.
External coolant 12 bar.
Internal coolant through the spindle 50 bar.
Coolant filtration system.
Tool life control.
Chip conveyor.
Condition: Very good condition.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Waldrich Coburg COBURG is a robust double column 5-axis machining centre designed for high-precision and heavy-duty milling tasks. Manufactured in 2005, it features a Siemens Sinumerik 840D control system, ensuring reliable and advanced CNC operations. The machine is equipped with a 2-axis NC milling head capable of full 5-axis simultaneous machining, allowing for complex part geometries.
The machining centre includes a two-station pallet changer with pallets measuring 5000 x 2500 mm, supporting a maximum part weight of 12,000 kg. The table offers a large working surface with T-slots for secure workpiece mounting, and the surface is clean with minor wear marks, indicating careful use. The machine’s travels are substantial, with 6000 mm along the X-axis, 3500 mm along the Y-axis, and 1500 mm vertical travel on the Z-axis. The distance between the columns is 3000 mm, providing ample workspace.
The spindle has a maximum speed of 6000 rpm and is powered by a 30 kW motor, delivering up to 800 Nm of torque. It uses an HSK-A100 taper, compatible with tools up to 250 mm in diameter, 500 mm in length, and 30 kg in weight. The tool magazine holds 100 positions, facilitating efficient tool changes with a chip-to-chip time of 20 seconds.
Additional features include external coolant at 12 bar, internal coolant through the spindle at 50 bar, a coolant filtration system, tool life control, and a chip conveyor. The machine is housed within a large enclosure with windows and a door for operator safety, and it includes a vertical protective shutter behind the table. The control panel is equipped with multiple screens, buttons, emergency stop, and handheld remote controls, all showing signs of use but well maintained. A safety railing surrounds the platform area for added operator protection.
Overall, this Waldrich Coburg machining centre offers a combination of size, power, and precision suitable for demanding machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
