| Manufacturer | Voorwood |
|---|---|
| Model | Slitter Rewinder Voorwood |
| Year | 2011 |
| Location | Mexico
|
Manufacturer: Voorwood
Model: Slitter Rewinder Voorwood (nameplate also identifies model marking S64PA)
Year of manufacture: 2011
Type of material: Paper
Working width: 1676 mm
Overall dimensions (L × W × H): 3048 × 1778 × 1930 mm
Weight: 1225 kg
Technical condition (as listed): Good
Machine overview:

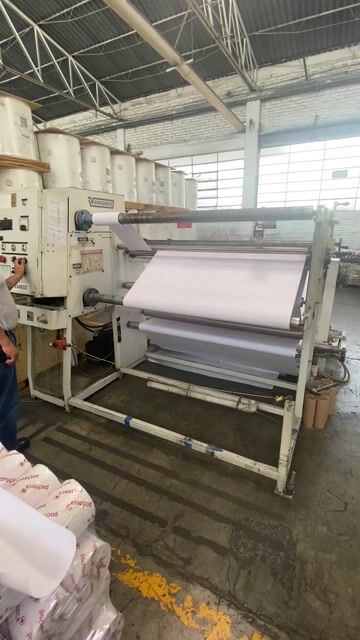

This is a Voorwood slitter-rewinder configured for paper webs. The machine includes a modular rotary shear slitting station designed to be removable from the main frame. Powered 60 mm diameter upper and lower knife shafts drive matched male and female shear knife assemblies. Shear knife assemblies are positionable across the web area and secured with eccentric locking keys. The male shear knife shaft mounts to an adjustable dovetail bar assembly that allows axial adjustment for face contact pressure and rotational adjustment for knife overlap. A two-position lock lever permits rotation of the dovetail bar assembly to an open position for removal of the knife shaft assembly and to the closed slitting position. Rotary shear drive is either proportional to web speed or manually controlled.
Rewind system:
Slit web is rewound on duplex air-expanding rewind shafts. Rewind shafts are flange-mounted for easy change to other shaft types or diameters. The outboard rewind support can swing open to allow removal of finished rolls from the cantilevered shafts. Pneumatic controls are provided for rewind differential force and web tension.
Controls and instrumentation:
Control station is located on the left side. Operator controls include machine activate, rewind, edge guide system, rotary shear, counter, speed controls, torque control, and an emergency stop. Visual displays include rewind motor load and web length. The left-side panel contains push buttons, rotary knobs, a meter/gauge and a red emergency stop button.
Other observed components and condition notes:
- Brand markings/Voorwood nameplates are present on the central cabinet and right stand; a nameplate identifies manufacturing by Voorwood Company, Anderson, California. Model marking S64PA is present. A label reading “VARE02” and a safety instructions sticker are also present.
- Right stand includes an axial fan assembly. Multiple small drive rollers and a woven/mesh conveyor section are present between the upright stands.
- Several rollers show surface wear, scratches and areas of discoloration. Frame and baseplates exhibit paint chipping, scuffs, dirt and adhesive/tape residue. An orange tag is attached at the right side and a temporary rope or cable barrier is stretched across the front of the machine.
Buyers are advised to arrange an inspection to confirm mechanical and electrical condition and to verify any operational requirements or spare parts.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer title: Slitter rewinder Voorwood
Manufacturer: Voorwood
Model: Slitter Rewinder Voorwood
Year of manufacture: 2011
Year of manufacture approximate: Not specified
Technical condition: Good
State: In production
Working width: 1676.0 mm
Type of material: Paper
Length: 3048.0 mm
Width: 1778.0 mm
Height: 1930.0 mm
Weight: 1225.0 kg
Rotary shear slitting station: The rotary shear slitting station is a modular design allowing detachment from the main frame. The powered 60 mm (2.367 inch) diameter upper and lower knife shafts drive the male and female shear knife assemblies. The male and female shear knife assemblies may be positioned anywhere within the web area, and are held in position by eccentric locking keys. The removable male shear knife shaft assembly is mounted to a rigid dovetail bar assembly. The dovetail bar assembly is adjustable axially for shear knife face contact pressure and rotationally for knife overlap. A two-position lock lever assembly is used to rotate the dovetail bar assembly 90 degrees to the open position for removal of knife shaft assembly, or closed in the slitting position. Rotary shear drive speed is proportional to web speed, or manually controlled by the operator.
Rewind: The slit web is alternately rewound on the duplex air expanding rewind shafts. Flange mounted rewind shafts provide ease of change to other desired types or diameters. The outboard rewind support swings open for removal of finished rolls from the cantilevered rewind shafts.
Control station: The control panel is located on the left side of the machine. Operator controls include machine activate, rewind, edge guide system, rotary shear, counter, speed controls, torque control, and emergency stop. Visual displays include rewind motor load and web length. Pneumatic controls for rewind differential force and web tension.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
